INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9

EAU36610

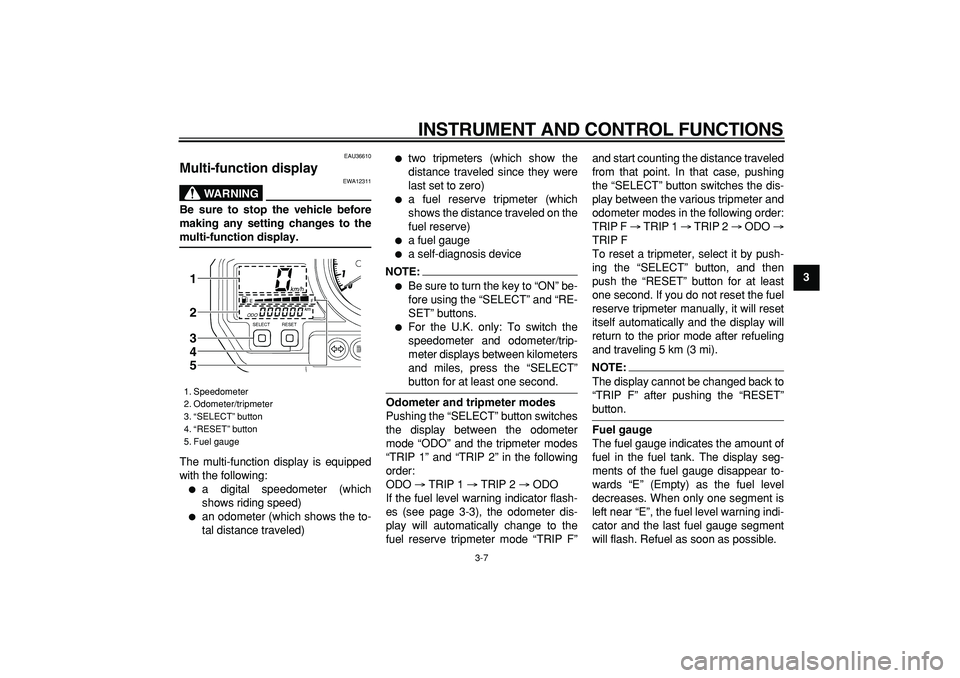

Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
The multi-function display is equipped
with the following:

a digital speedometer (which
shows riding speed)

an odometer (which shows the to-
tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)

a fuel gauge

a self-diagnosis device
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.

For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”
button for at least one second.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO
→
TRIP 1
→
TRIP 2
→
ODO
If the fuel level warning indicator flash-
es (see page 3-3), the odometer dis-
play will automatically change to the
fuel reserve tripmeter mode “TRIP F”and start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
TRIP F
→
TRIP 1
→
TRIP 2
→
ODO
→
TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
NOTE:

The display cannot be changed back to
“TRIP F” after pushing the “RESET”
button.
Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel gauge disappear to-
wards “E” (Empty) as the fuel level
decreases. When only one segment is
left near “E”, the fuel level warning indi-
cator and the last fuel gauge segment
will flash. Refuel as soon as possible.
1. Speedometer
2. Odometer/tripmeter
3. “SELECT” button
4. “RESET” button
5. Fuel gauge
1
2
3
4
5

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8

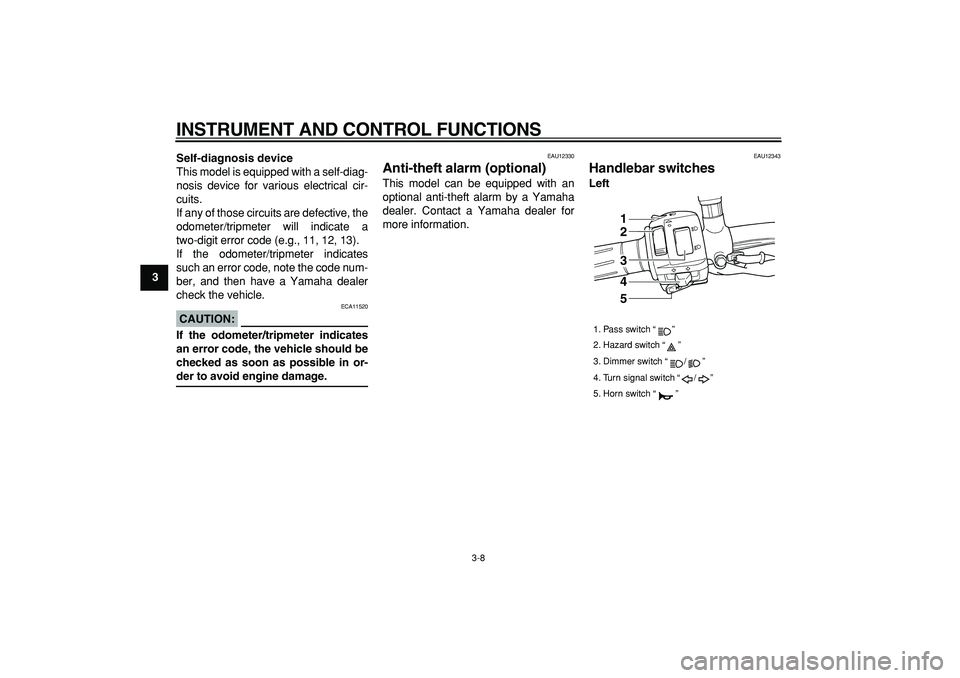

9Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
odometer/tripmeter will indicate a
two-digit error code (e.g., 11, 12, 13).
If the odometer/tripmeter indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:

ECA11520
If the odometer/tripmeter indicates
an error code, the vehicle should be
checked as soon as possible in or-
der to avoid engine damage.
EAU12330
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12343
Handlebar switches
Left
1. Pass switch “”
2. Hazard switch “”
3. Dimmer switch “/”
4. Turn signal switch “/”
5. Horn switch “”
1
2
3
4
5

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8

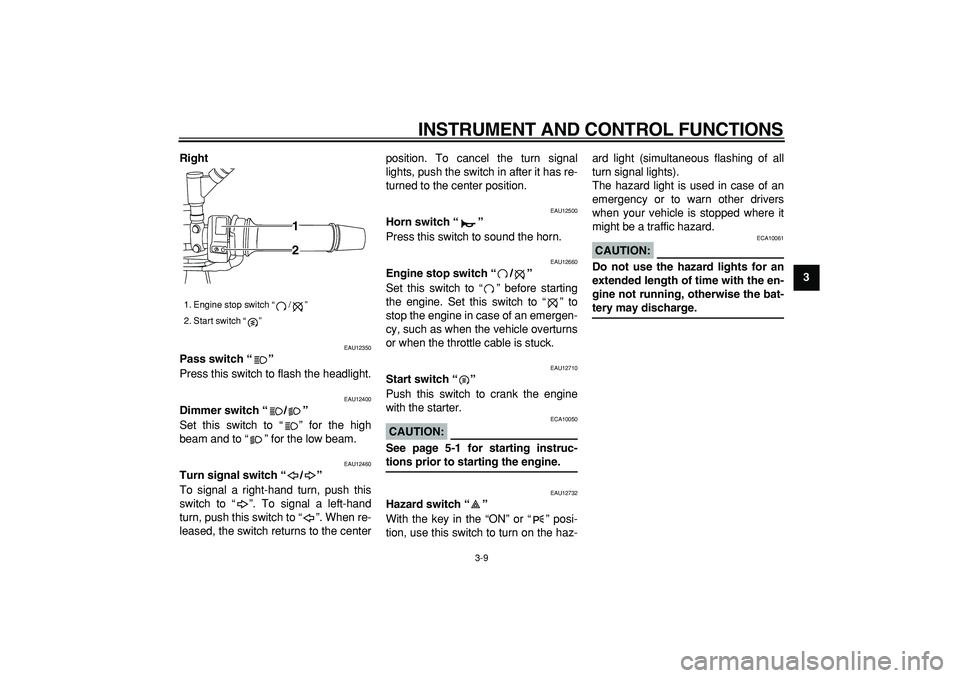

9 Right

EAU12350
Pass switch “”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU12732
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-ard light (simultaneous flashing of all
turn signal lights).
The hazard light is used in case of an
emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
CAUTION:

ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
1. Engine stop switch “/”
2. Start switch “”
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9

EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-19.)
EAU12870
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU26822
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
1. Clutch lever
1

1. Shift pedal
1

1. Brake lever
2. Brake lever position adjusting dial
3. “” mark
4. Distance between brake lever and
handlebar grip
1 2
4
3

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9
dial is aligned with the “” mark on the
brake lever.

EAU12941

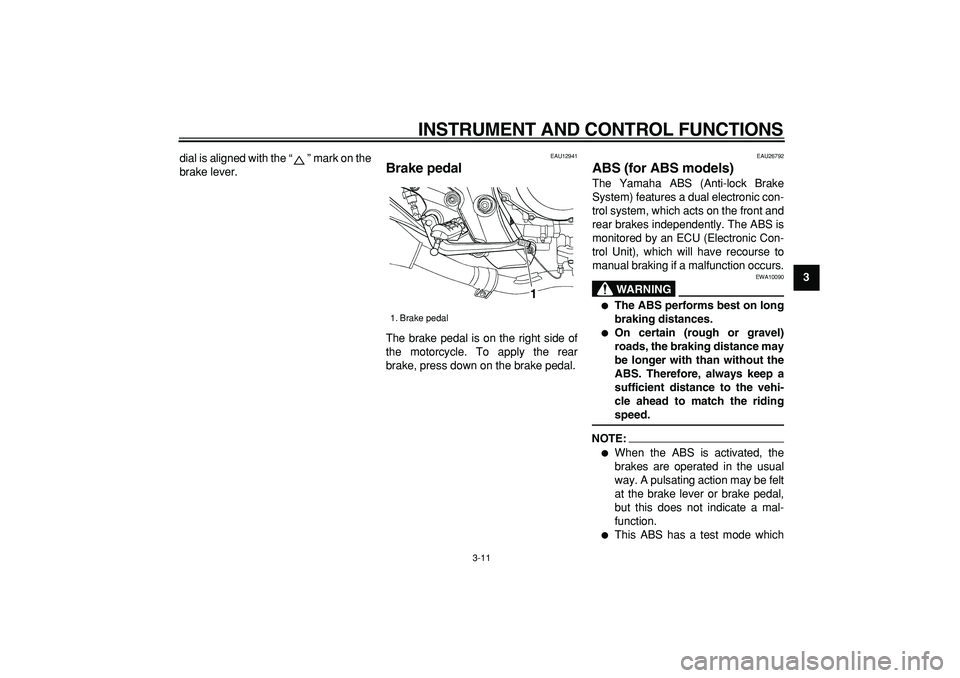

Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU26792
ABS (for ABS models)
The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently. The ABS is
monitored by an ECU (Electronic Con-
trol Unit), which will have recourse to
manual braking if a malfunction occurs.
WARNING

EWA10090

The ABS performs best on long
braking distances.

On certain (rough or gravel)
roads, the braking distance may
be longer with than without the
ABS. Therefore, always keep a
sufficient distance to the vehi-
cle ahead to match the riding
speed.
NOTE:


When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake lever or brake pedal,
but this does not indicate a mal-
function.

This ABS has a test mode which
1. Brake pedal
1

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9
allows the owner to experience the
pulsating at the brake lever or
brake pedal when the ABS is oper-
ating. However, special tools are
required, so please consult your
Yamaha dealer when performing

this test.
EAU13090
Fuel tank cap
To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/8 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
NOTE:

The fuel tank cap cannot be closed un-less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING

EWA11090
Make sure that the fuel tank cap is
properly closed before riding.
1. Fuel tank cap lock cover
2. Unlock.
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-13
2
34
5
6
7
8
9

EAU13210

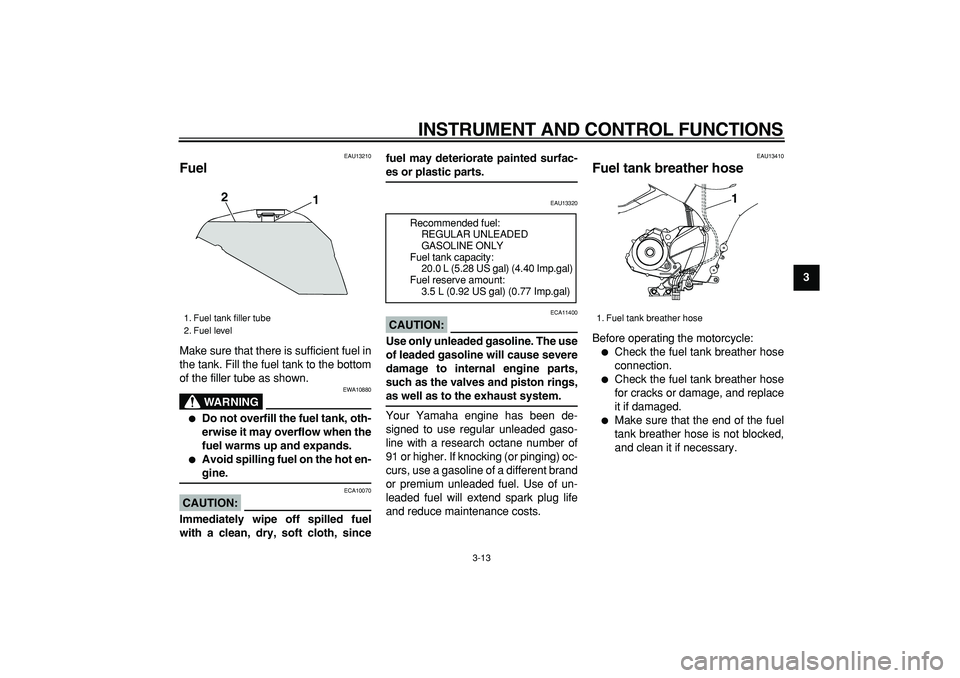

Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, sincefuel may deteriorate painted surfac-
es or plastic parts.
EAU13320
CAUTION:

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13410
Fuel tank breather hose
Before operating the motorcycle:

Check the fuel tank breather hose
connection.

Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.

Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
1. Fuel tank filler tube
2. Fuel level
1 2

Recommended fuel:
REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)
1. Fuel tank breather hose
1

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9

EAU13441
Catalytic converter
This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING

EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:

ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.

Do not allow the engine to idle
too long.
EAU13860

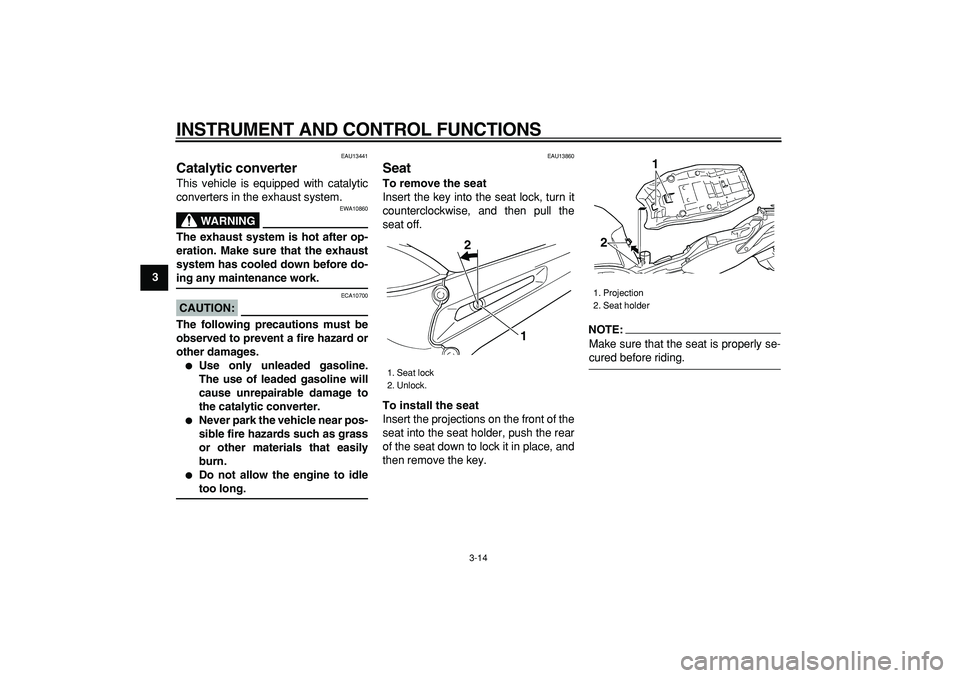

Seat
To remove the seat
Insert the key into the seat lock, turn it
counterclockwise, and then pull the
seat off.
To install the seat
Insert the projections on the front of the
seat into the seat holder, push the rear
of the seat down to lock it in place, and
then remove the key.
NOTE:

Make sure that the seat is properly se-
cured before riding.
1. Seat lock
2. Unlock.1
2

1. Projection
2. Seat holder
1
2

INSTRUMENT AND CONTROL FUNCTIONS
3-15
2
34
5
6
7
8
9

EAU14411

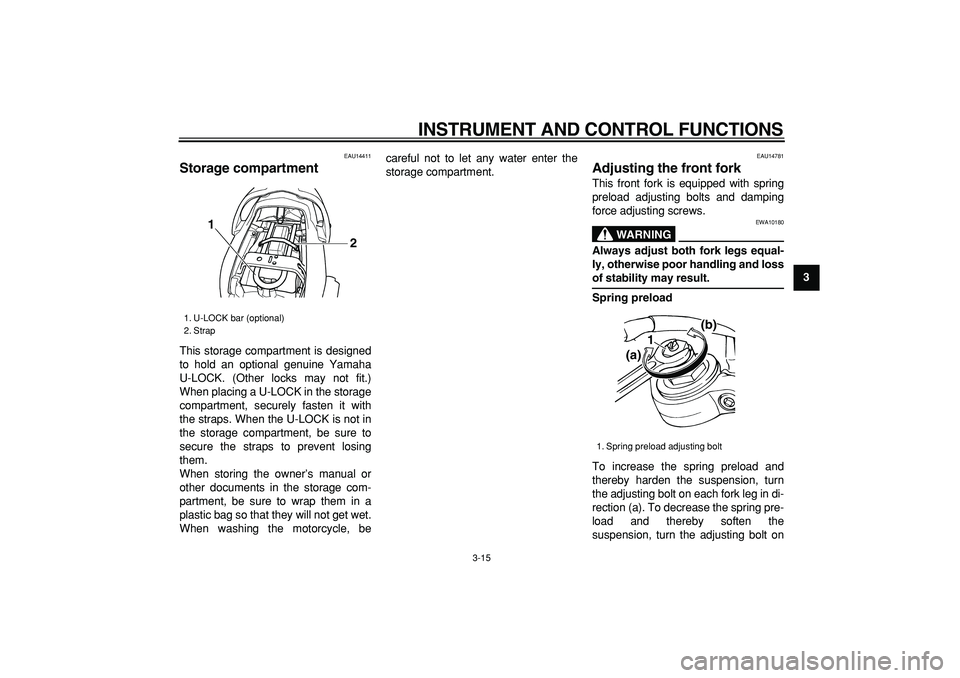

Storage compartment
This storage compartment is designed
to hold an optional genuine Yamaha
U-LOCK. (Other locks may not fit.)
When placing a U-LOCK in the storage
compartment, securely fasten it with
the straps. When the U-LOCK is not in
the storage compartment, be sure to
secure the straps to prevent losing
them.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
When washing the motorcycle, becareful not to let any water enter the
storage compartment.
EAU14781
Adjusting the front fork
This front fork is equipped with spring
preload adjusting bolts and damping
force adjusting screws.
WARNING

EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.
Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection (a). To decrease the spring pre-
load and thereby soften the
suspension, turn the adjusting bolt on
1. U-LOCK bar (optional)
2. Strap
1
2

1. Spring preload adjusting bolt
1
(a)(b)

INSTRUMENT AND CONTROL FUNCTIONS
3-16
1
2
3
4
5
6
7
8
9
each fork leg in direction (b).
NOTE:

Align the appropriate groove on the ad-
justing mechanism with the top of the
front fork cap bolt.

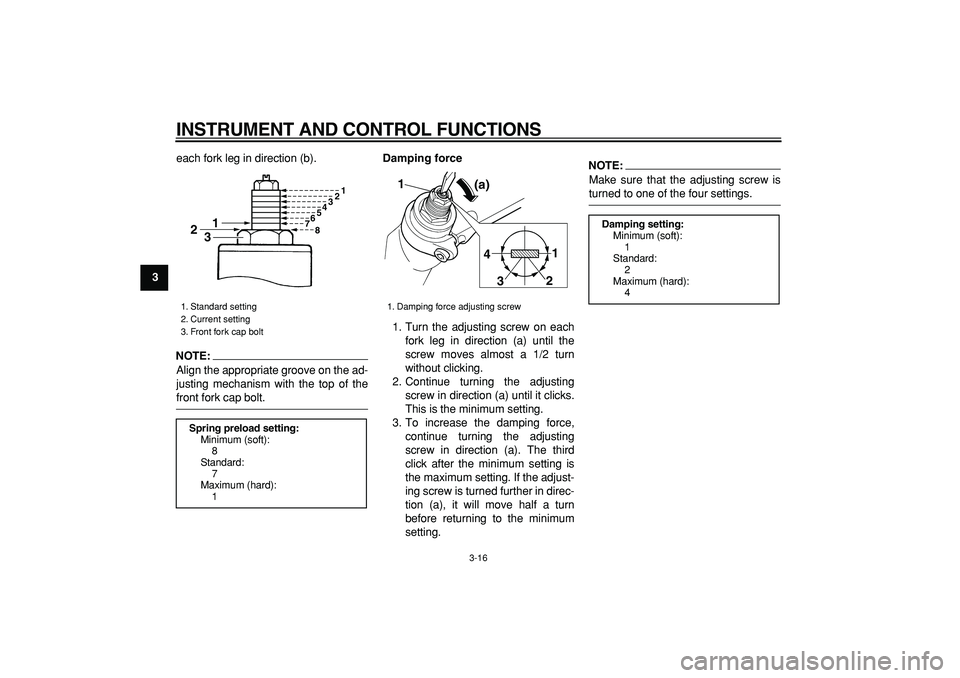

Damping force
1. Turn the adjusting screw on each
fork leg in direction (a) until the
screw moves almost a 1/2 turn
without clicking.
2. Continue turning the adjusting
screw in direction (a) until it clicks.
This is the minimum setting.
3. To increase the damping force,
continue turning the adjusting
screw in direction (a). The third
click after the minimum setting is
the maximum setting. If the adjust-
ing screw is turned further in direc-
tion (a), it will move half a turn
before returning to the minimum
setting.
NOTE:

Make sure that the adjusting screw is
turned to one of the four settings.
1. Standard setting
2. Current setting
3. Front fork cap bolt
Spring preload setting:
Minimum (soft):
8
Standard:
7
Maximum (hard):
1
2
31
7654321
8

1. Damping force adjusting screw(a) 1
1
2
3 4

Damping setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
4
