PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
1
2
3
4
5
6
7
8
9

EAU46310

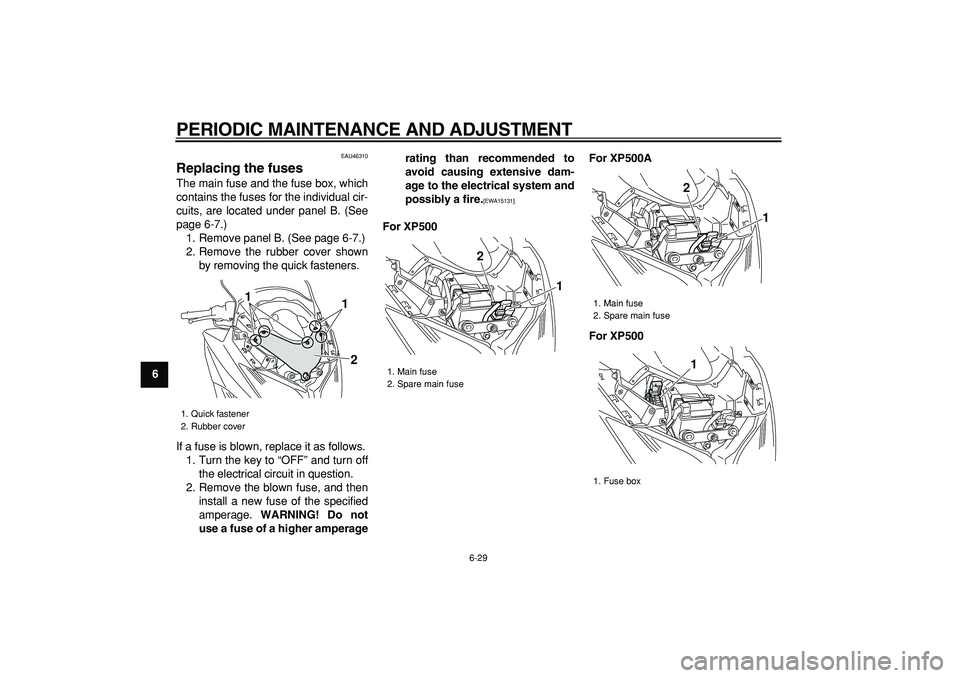

Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under panel B. (See
page 6-7.)
1. Remove panel B. (See page 6-7.)
2. Remove the rubber cover shown
by removing the quick fasteners.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
WARNING! Do not
use a fuse of a higher amperagerating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]

For XP500For XP500A
For XP500
1. Quick fastener
2. Rubber cover
21
1

1. Main fuse
2. Spare main fuse
1
2

1. Main fuse
2. Spare main fuse
1. Fuse box
1
21

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
2
3
4
5
67
8

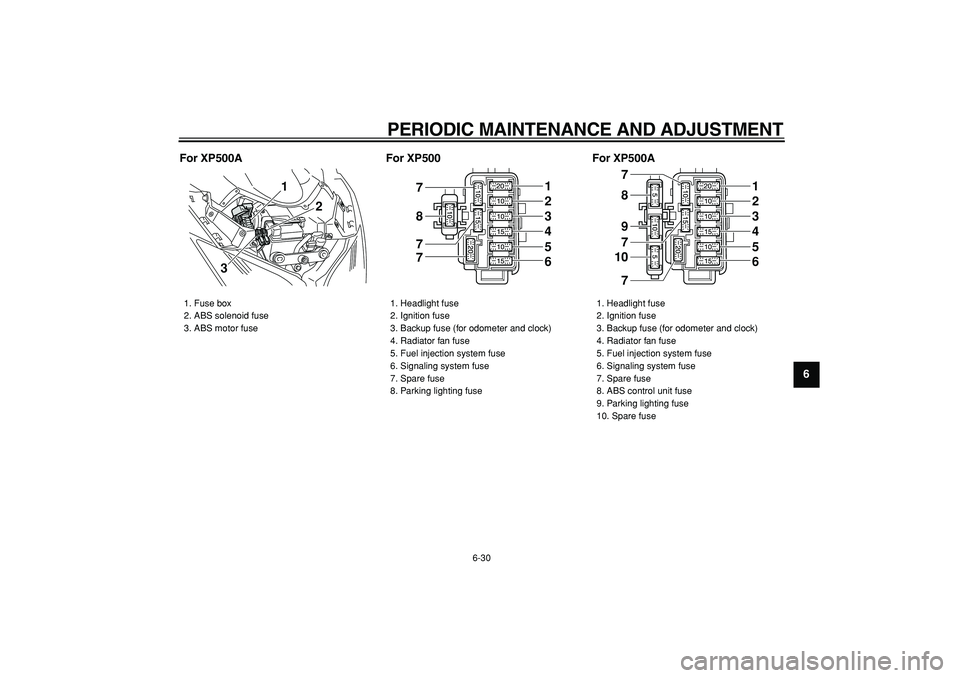

9 For XP500A For XP500 For XP500A

1. Fuse box
2. ABS solenoid fuse
3. ABS motor fuse
1
3
2

1. Headlight fuse
2. Ignition fuse
3. Backup fuse (for odometer and clock)
4. Radiator fan fuse
5. Fuel injection system fuse
6. Signaling system fuse
7. Spare fuse
8. Parking lighting fuse
7
7 7 8
123456

1. Headlight fuse
2. Ignition fuse
3. Backup fuse (for odometer and clock)
4. Radiator fan fuse
5. Fuel injection system fuse
6. Signaling system fuse
7. Spare fuse
8. ABS control unit fuse
9. Parking lighting fuse
10. Spare fuse
7
7 7 9
1
810
23456
