stop start YAMAHA TMAX 2009 Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-4
2
34
5
6
7
8
9 flashes while riding, the ABS may
not work correctly. If this occurs,
have a Yamaha dealer check the

electrical circuit.
See page 3-14 for an explanation of the
ABS.
The electrical circuit of the warning light
can be checked by setting the engine
stop switch to “ ” and turning the key
to “ON”. The warning light should come
on for a few seconds, and then go off. If
the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
WARNING

EWA11350
When the ABS warning light comes
on or flashes while riding, the brake
system reverts to conventional brak-
ing. Therefore, be careful not to
cause the wheel to lock during emer-
gency braking.
TIP

The ABS warning light may come on
while accelerating the engine with the
scooter on its centerstand, but this
does not indicate a malfunction.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. (See page 3-9 for an expla-
nation of the self-diagnosis device.)
EAU11601
Speedometer
The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
1. Speedometer
1

INSTRUMENT AND CONTROL FUNCTIONS
3-9
1
2
3
4
5
6
7
8
9
oil change indicator “OIL” flashes (i.e.
before the periodic oil change interval
has been reached), the indicator “OIL”
must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “ ”
and turn the key to “ON”.
2. Check that the oil change indicator
comes on for a few seconds and
then goes off.
3. If the oil change indicator does not
come on, have a Yamaha dealer
check the electrical circuit.
V-belt replacement indicator
“V-BELT”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
After changing the V-belt, reset the
V-belt replacement indicator. To reset
the V-belt replacement indicator, select
it by pushing the “SELECT” button until
“V-BELT Trip” is displayed, and then
push the “RESET” button at least 1 sec-
ond. When pushing the “RESET” but-
ton, “V-BELT Trip” starts flashing.
While “V-BELT Trip” is flashing, push
the “RESET” button for at least 3 sec-
onds.
If the V-belt is changed before theV-belt replacement indicator “V-BELT”
flashes (i.e. before the periodic V-belt
change interval has been reached), the
indicator “V-BELT” must be reset after
the V-belt change for the next periodic
V-belt change to be indicated at the
correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “ ”.
2. Check that the V-belt replacement
indicator comes on for a few sec-
onds and then goes off.
3. If the V-belt replacement indicator
does not come on, have a Yamaha
dealer check the electrical circuit.

1. V-belt replacement indicator “V-BELT”
1

INSTRUMENT AND CONTROL FUNCTIONS
3-11
1
2
3
4
5
6
7
8
9

EAU12331

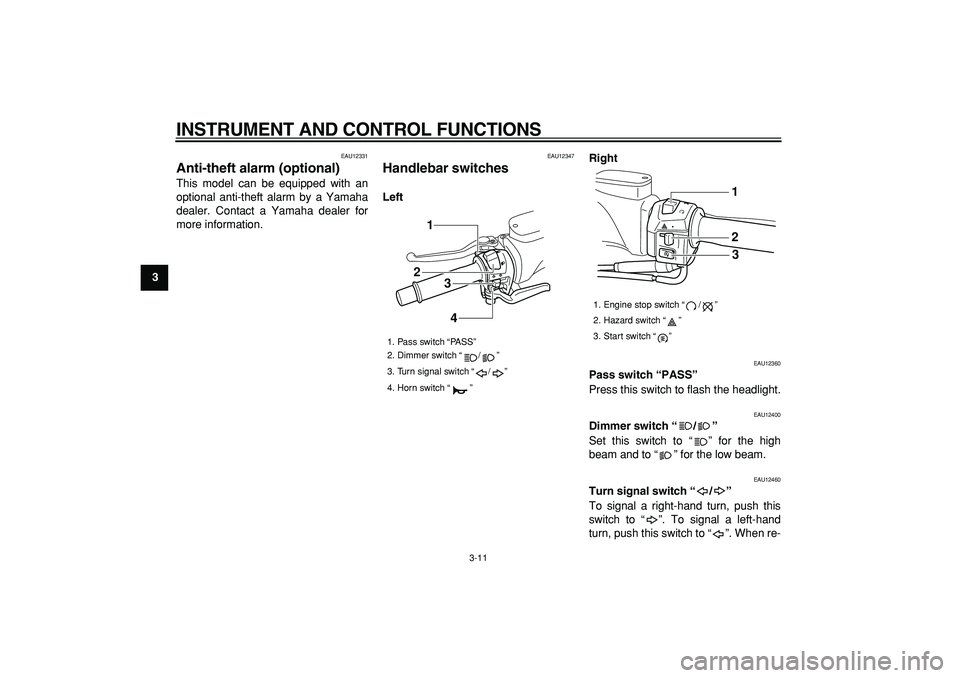

Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347
Handlebar switches
LeftRight
EAU12360
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1
2
3
4

1. Engine stop switch “ / ”
2. Hazard switch “ ”
3. Start switch “ ”
1
23

INSTRUMENT AND CONTROL FUNCTIONS
3-12
2
34
5
6
7
8
9

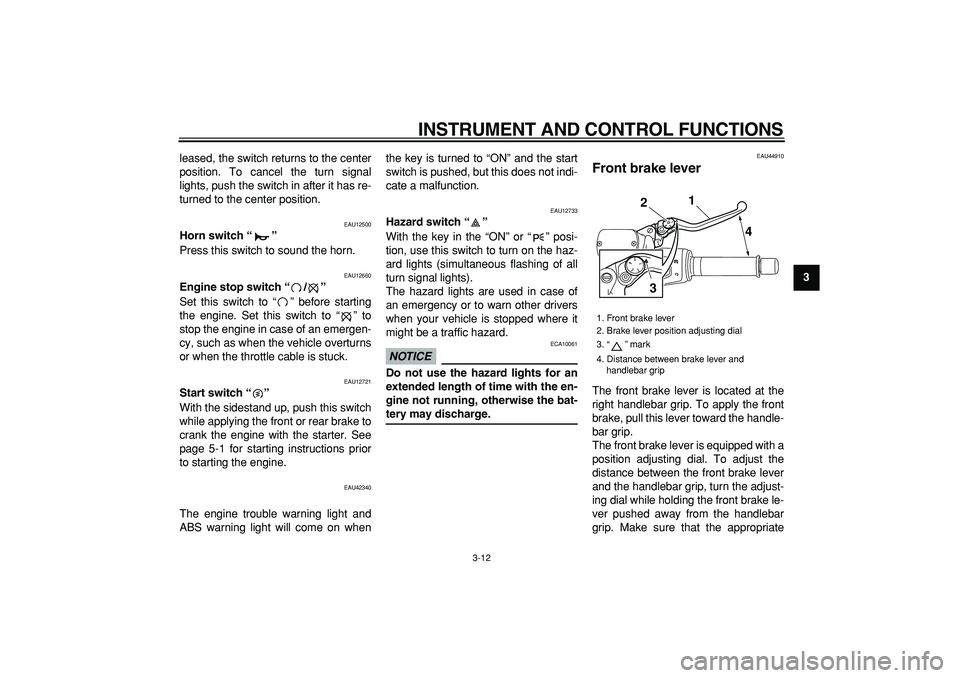

leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.

EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12721
Start switch “ ”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter. See
page 5-1 for starting instructions prior
to starting the engine.
EAU42340
The engine trouble warning light and
ABS warning light will come on whenthe key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
NOTICE

ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU44910
Front brake lever
The front brake lever is located at the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
The front brake lever is equipped with a
position adjusting dial. To adjust the
distance between the front brake lever
and the handlebar grip, turn the adjust-
ing dial while holding the front brake le-
ver pushed away from the handlebar
grip. Make sure that the appropriate
1. Front brake lever
2. Brake lever position adjusting dial
3. “ ” mark
4. Distance between brake lever and
handlebar grip
1
3
4 2

INSTRUMENT AND CONTROL FUNCTIONS
3-24
2
34
5
6
7
8
9
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING

5-1
1
2
3
4
5
6
7
8
9

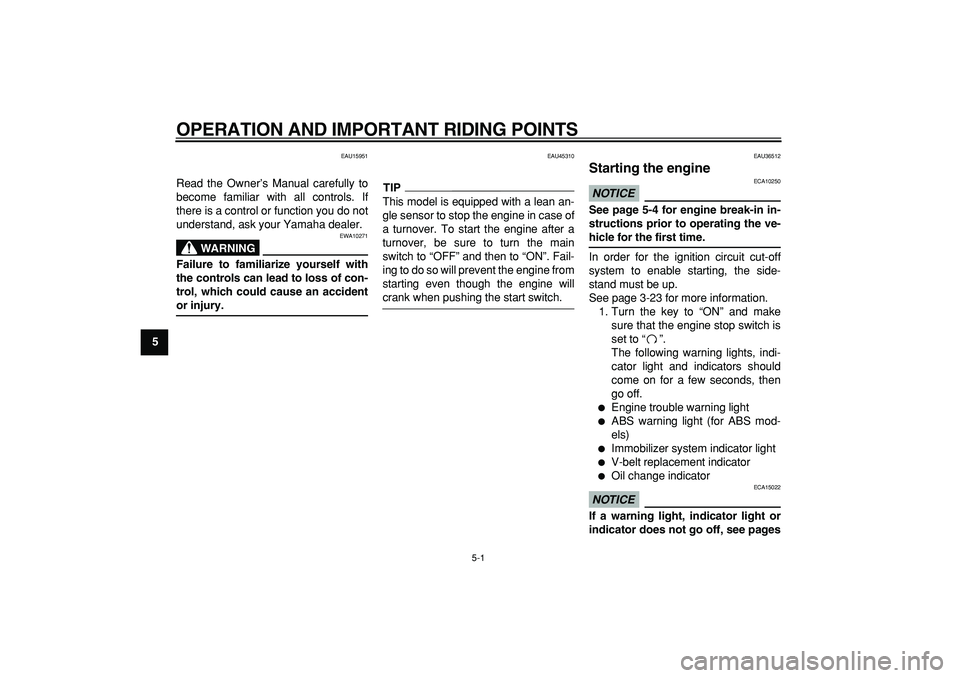

OPERATION AND IMPORTANT RIDING POINTS
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU45310
TIP

This model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. To start the engine after a
turnover, be sure to turn the main
switch to “OFF” and then to “ON”. Fail-
ing to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAU36512
Starting the engine
NOTICE

ECA10250
See page 5-4 for engine break-in in-
structions prior to operating the ve-
hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up.
See page 3-23 for more information.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “ ”.
The following warning lights, indi-
cator light and indicators should
come on for a few seconds, then
go off.

Engine trouble warning light

ABS warning light (for ABS mod-
els)

Immobilizer system indicator light

V-belt replacement indicator

Oil change indicator
NOTICE

ECA15022
If a warning light, indicator light or
indicator does not go off, see pages

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
2
3
4
5
67
8

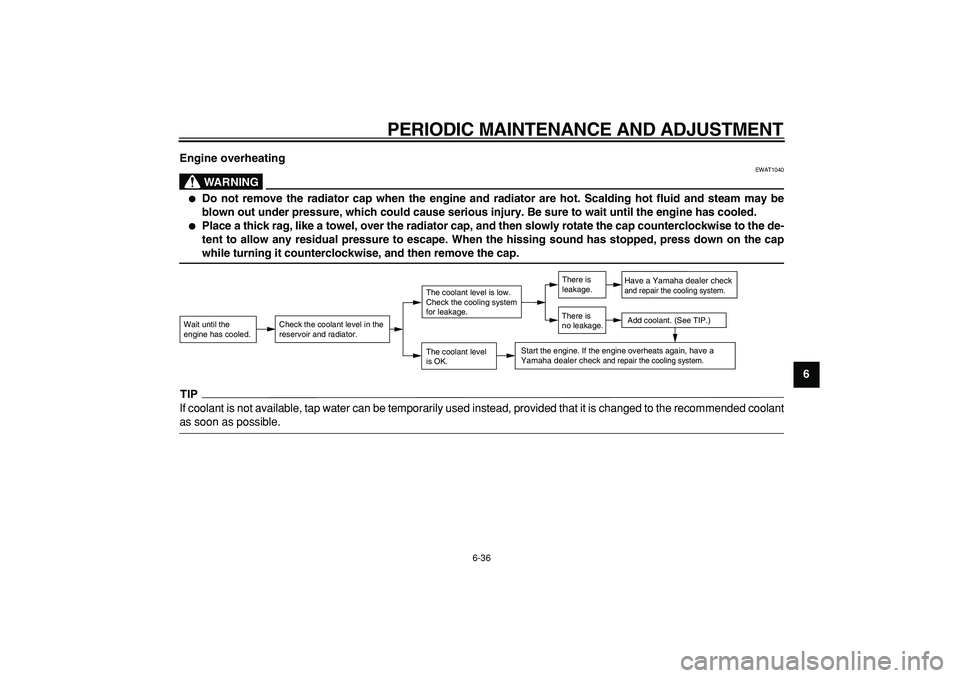

9 Engine overheating
WARNING

EWAT1040

Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.

Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the cap
while turning it counterclockwise, and then remove the cap.
TIP

If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolant
as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.

INDEX
A
ABS (for ABS models) .............................3-14
ABS warning light (for ABS models) ..........3-3
Acceleration and deceleration ...................5-2
Air filter element, replacing ......................6-17
Anti-theft alarm (optional) ........................3-11
Auxiliary light bulb, replacing ...................6-34
B
Battery .....................................................6-27
Brake fluid, changing ...............................6-24
Brake fluid level, checking .......................6-23
Brake lever, front .....................................3-12
Brake lever, rear ......................................3-13
Brake levers, lubricating ..........................6-25
Braking ......................................................5-3
C
Care ...........................................................7-1
Catalytic converter ...................................3-18
Centerstand and sidestand, checking and
lubricating ..............................................6-25
Chain drive oil ..........................................6-14
Coolant ....................................................6-15
Coolant temperature gauge .......................3-5
D
Dimmer switch .........................................3-11
E
Engine break-in .........................................5-4
Engine idling speed .................................6-17
Engine oil and oil filter cartridge ..............6-11
Engine stop switch...................................3-12
Engine trouble warning light ......................3-3
F
Front and rear brake lever free play ........6-21
Front and rear brake pads, checking .......6-22Front fork, checking ................................. 6-26
Fuel ......................................................... 3-16
Fuel consumption, tips for reducing .......... 5-3
Fuel gauge ................................................ 3-5
Fuel tank cap ........................................... 3-15
Fuses, replacing ...................................... 6-29
H
Handlebar switches ................................. 3-11
Hazard switch .......................................... 3-12
Headlight bulb, replacing ......................... 6-31
Helmet holder .......................................... 3-20
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-12
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-23
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-33
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-6
P
Panels, removing and installing................. 6-7
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-11Periodic maintenance and lubrication
chart ........................................................ 6-3
R
Rear brake lock lever .............................. 3-14
Rear brake lock lever cable, adjusting .... 6-21
Rear view mirrors .................................... 3-22
Rider backrest, adjusting......................... 3-19
S
Safe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-18
Shock absorber assembly ....................... 3-22
Sidestand ................................................ 3-23
Spark plugs, checking ............................. 6-10
Specifications ............................................ 8-1
Speedometer............................................. 3-4
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-12
Steering, checking................................... 6-27
Storage...................................................... 7-3
Storage compartments ............................ 3-20
T
Tail/brake light ......................................... 6-32
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating ............................................. 6-24
Tires ........................................................ 6-19
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-34
Troubleshooting charts............................ 6-35
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-32
Turn signal switch ................................... 3-11
