DESCRIPTION
2-2
12
3
4
5
6
7
8
9
EAU10421
Right view
3
6
1
54
2

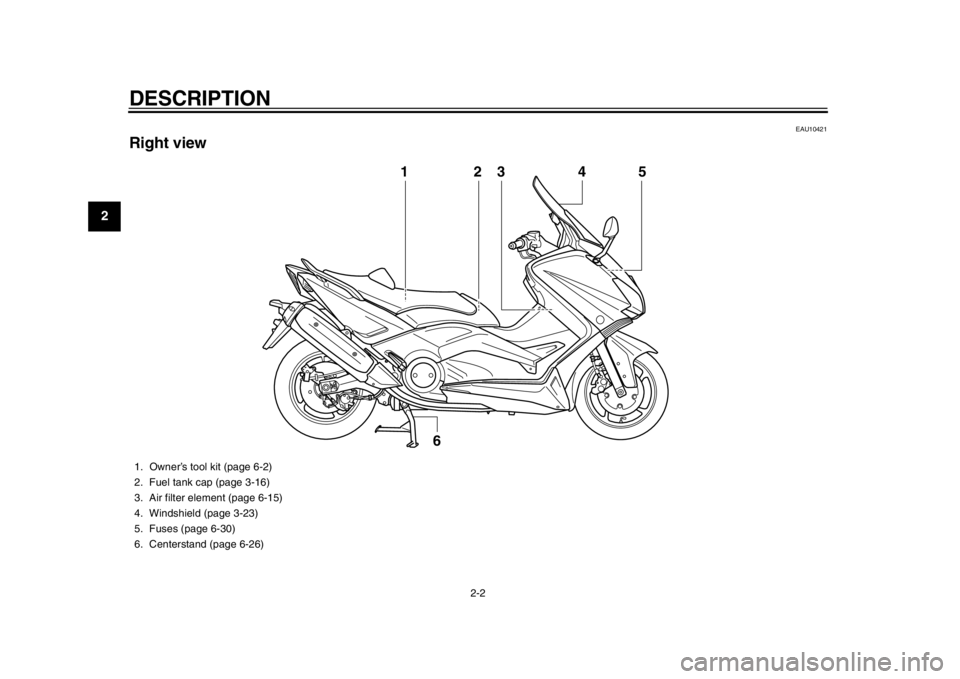

1. Owner’s tool kit (page 6-2)
2. Fuel tank cap (page 3-16)
3. Air filter element (page 6-15)
4. Windshield (page 3-23)
5. Fuses (page 6-30)
6. Centerstand (page 6-26)
59C-9-E2.book 2 ページ ２０１３年６月１８日　火曜日　午後１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
2
3
4
567
8
9
EAU1770G
General maintenance and lubrication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 Air filter element Replace. 
2 *V-belt case air filter
elements Clean.

Replace. 
3 *Front brake Check operation, fluid level and
vehicle for fluid leakage. 
Replace brake pads. Whenever worn to the limit
4 *Rear brake Check operation, fluid level and
vehicle for fluid leakage. 
Replace brake pads. Whenever worn to the limit
5 *Brake hoses Check for cracks or damage.
Check for correct routing and
clamping. 
Replace. Every 4 years
6 *Brake fluid Replace. Every 2 years
7 Rear brake lock
cable Check cable length.
Adjust if necessary.
4000 km (2400 mi) after the initial 1000 km (600 mi) and every
5000 km (3000 mi) thereafter
8 *Rear brake lock Check operation.
Check rubber boot.
Check wear indicator.
Adjust if necessary. 
9 *Wheels Check runout and for damage. 
10 *Tires Check tread depth and for
damage.
Replace if necessary.
Check air pressure.
Correct if necessary. 
11 *Wheel bearings Check bearing for looseness or
damage. 
59C-9-E2.book 4 ページ ２０１３年６月１８日　火曜日　午後１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
1
2
3
4
56
7
8
9
EAU38263
TIP
Engine air filter and V-belt air filters
This model’s engine air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with
compressed air to avoid damaging it.
The engine air filter element needs to be replaced and the V- belt air filter elements need to be serviced more frequent-
ly when riding in unusuall y wet or dusty areas.

Hydraulic brake service
After disassembling the brake master cylinders and calipers, always change the fluid. Regu larly check the brake fluid
levels and fill the reservoirs as required.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid. Replace the brake hoses every four years and if cracked or damaged.
59C-9-E2.book 7 ページ ２０１３年６月１８日　火曜日　午後１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
1
2
3
4
56
7
8
9er by removing the screw.
5. Open the coolant reservoir cap, add coolant to the maximum level
mark, and then close the reservoir
cap. WARNING! Remove only
the coolant reservoir cap. Never
attempt to remove the radiator
cap when the engine is
hot.
[EWA15162]
NOTICE: If coolant is
not available, use distilled water
or soft tap water instead. Do not
use hard water or salt water
since it is harmful to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other- wise the cooling system will not
be protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant as
soon as possible, otherwise the
effectiveness of the coolant will
be reduced.
[ECA10473]
6. Install the coolant reservoir cover
by installing the screw.
7. Place the left floorboard mat in the original position and push it down-
ward to secure it.
EAU52031
Replacing the air filter elementThe air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas.
To replace the air filter element1. Remove panel C. (See page 6-8.)
2. Remove the air filter case cover by removing the screws.
3. Pull the air filter element out.
1. Coolant reservoir cover
2. Screw
1 2
1. Coolant reservoir cap Coolant reservoir capacity (up to the
maximum level mark):
0.27 L (0.29 US qt, 0.24 Imp.qt)
1
1. Screw
2. Air filter case cover
1
1 2
59C-9-E2.book 15 ページ ２０１３年６月１８日　火曜日　午後１時３３分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
2
3
4
567
8
9
4. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seated in the air filter
case. The engine should never
be operated without the air filter
element installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
5. Install the air filter case cover by in- stalling the screws.
6. Install the panel.
EAU33483
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.
1. Remove panel D. (See page 6-8.)
2. Check the engine idling speed and, if necessary, adjust it to spec-
ification by turning the idle adjust-
ing screw. To increase the engine
idling speed, turn the screw in di-
rection (a). To decrease the en-
gine idling speed, turn the screw in
direction (b).
TIPIf the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
3. Install the panel.
1. Air filter element
1
1. Idle adjusting screw Engine idling speed: 1100–1300 r/min
1(a)(b)
59C-9-E2.book 16 ページ ２０１３年６月１８日　火曜日　午後１時３３分

8-1
1
2
3
4
5
6
78
9
SPECIFICATIONS
EAU5091D
Dimensions:Overall length:2200 mm (86.6 in)
Overall width: 775 mm (30.5 in)
Overall height: 1420/1475 mm (55.9/58.1 in)
Seat height:
800 mm (31.5 in)
Wheelbase: 1580 mm (62.2 in)
Ground clearance: 125 mm (4.92 in)
Minimum turning radius:
2800 mm (110.2 in)Weight:Curb weight:XP500 217 kg (478 lb)
XP500A 221 kg (487 lb)Engine:Engine type:Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 2-cylinder
Displacement: 530 cm
3
Bore  stroke:
68.0  73.0 mm (2.68  2.87 in)
Compression ratio: 10.90 : 1
Starting system: Electric starter
Lubrication system:
Dry sump
Engine oil:Recommended brand:YAMALUBE
Type: SAE 10W-30 or 10W-40
Recommended engine oil grade: API service SG type or higher, JASO stan-
dard MA
Engine oil quantity: Without oil filter cartridge replacement: 2.70 L (2.85 US qt, 2.38 Imp.qt)
With oil filter cartridge replacement: 2.90 L (3.07 US qt, 2.55 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):0.27 L (0.29 US qt, 0.24 Imp.qt)
Radiator capacity (including all routes): 1.50 L (1.59 US qt, 1.32 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:Regular unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity: 15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)Fuel injection:Throttle body:ID mark: 59C1 00
Spark plug(s):Manufacturer/model:
NGK/CR7E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-disc automaticTransmission:Primary reduction ratio:1.000
Final drive:
Belt
Secondary reduction ratio: 6.034 (52/32 x 36/22 x 59/26)
Transmission type: V-belt automaticChassis:Frame type:Diamond
Caster angle: 25.00 
Trail:
92 mm (3.6 in)Front tire:Type:Tubeless
Size:
120/70R15 M/C 56H
Manufacturer/model: DUNLOP/GPR-100F
Manufacturer/model: BRIDGESTONE/BT011F
59C-9-E2.book 1 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INDEXAABS (for ABS models) .............................3-15
ABS warning light (for ABS models) ..........3-3
Acceleration and deceleration....................5-3
Air filter element, replacing ......................6-15
Auxiliary light bulb, replacing ...................6-35BBattery......................................................6-28
Brake fluid, changing ...............................6-24
Brake fluid level, checking .......................6-23
Brake lever, front......................................3-13
Brake lever, rear ......................................3-14
Brake levers, lubricating...........................6-25
Braking .......................................................5-3CCables, checking and lubricating .............6-24
Care ...........................................................7-1
Catalytic converter ...................................3-19
Centerstand and sidestand, checking and lubricating .......................................6-26
Coolant.....................................................6-14DDimmer switch .........................................3-12
Drive belt slack.........................................6-24EEngine break-in ..........................................5-4
Engine idling speed..................................6-16
Engine oil and oil filter cartridge ...............6-11
Engine stop switch ...................................3-13
Engine trouble warning light.......................3-3FFront and rear brak e lever free play,
checking ................................................6-20
Front and rear brake pads, checking .......6-22 Front fork, checking ................................. 6-26
Fuel.......................................................... 3-17
Fuel consumption, tips
for reducing........... 5-4
Fuel tank cap ........................................... 3-16
Fuses, replacing ...................................... 6-30
HHandlebar switches ................................. 3-12
Hazard switch .......................................... 3-13
Headlight bulb, replacing ......................... 6-32
Helmet holder .......................................... 3-21
High beam indicator light ........................... 3-3
Horn switch .............................................. 3-13IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-26
Immobilizer system .................................... 3-1
Immobilizer system indicator light.............. 3-4
Indicator lights and warning lights ............. 3-3LLicense plate light bulb, replacing ........... 6-34MMain switch/steering lock........................... 3-2
Maintenance and lubrication, periodic ....... 6-4
Maintenance, emission control system...... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-1
Multi-function display ................................. 3-5PPanels, removing and installing ................. 6-8
Parking ...................................................... 5-5
Part locations ............................................. 2-1
Pass switch.............................................. 3-12RRear brake lock cable, adjusting ............. 6-21 Rear brake lock, checking ....................... 6-21
Rear brake lock lever .............................. 3-15
Rear view mirrors .................................... 3-25
Rider backrest, adjusting......................... 3-20
SSafe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-19
Shock absorber assembly ....................... 3-25
Sidestand ................................................ 3-26
Spark plugs, checking ............................. 6-10
Specifications ............................................ 8-1
Speedometer............................................. 3-5
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-13
Steering, checking................................... 6-27
Storage...................................................... 7-3
Storage compartments ............................ 3-21TTachometer ............................................... 3-5
Tail/brake light ......................................... 6-33
Throttle grip and cable, checking and
lubricating ............................................. 6-25
Throttle grip free play, checking .............. 6-17
Tires ........................................................ 6-17
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-35
Troubleshooting charts............................ 6-37
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (f ront), replacing .... 6-33
Turn signal switch ................................... 3-12VValve clearance....................................... 6-17
59C-9-E2.book 2 ページ ２０１３年６月１８日　火曜日　午後１時３３分
