DESCRIPTION
2-3
23
4
5
6
7
8
9
EAU10431
Controls and instruments
4
2
3
6
7
8
1
11
9
5
10
12

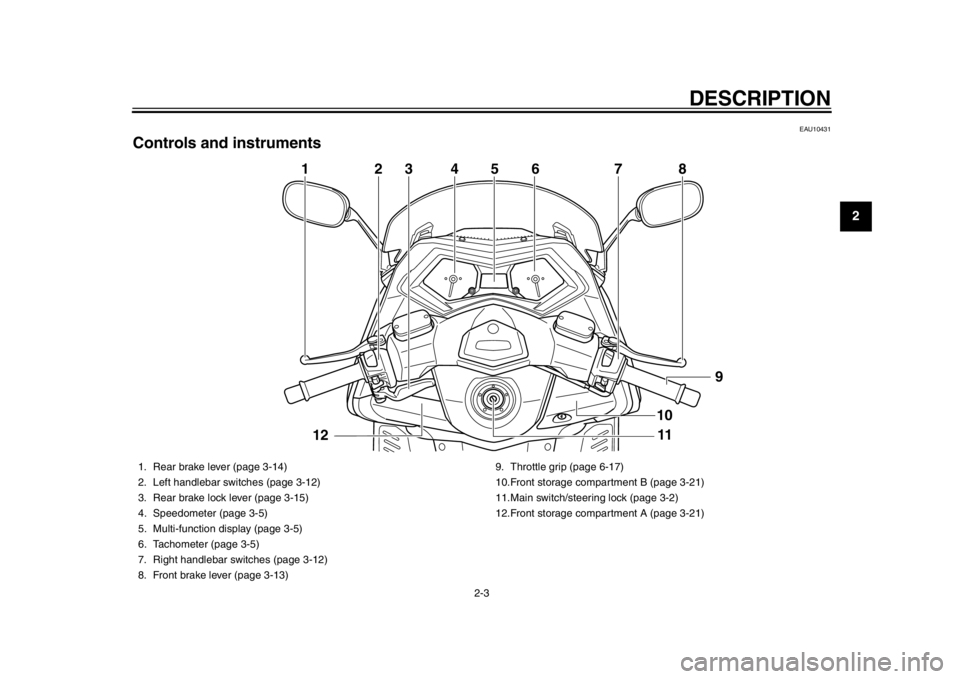

1. Rear brake lever (page 3-14)
2. Left handlebar switches (page 3-12)
3. Rear brake lock lever (page 3-15)
4. Speedometer (page 3-5)
5. Multi-function display (page 3-5)
6. Tachometer (page 3-5)
7. Right handlebar switches (page 3-12)
8. Front brake lever (page 3-13)9. Throttle grip (page 6-17)
10.Front storage compartment B (page 3-21)
11.Main switch/steering lock (page 3-2)
12.Front storage compartment A (page 3-21)
59C-9-E2.book 3 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-5
1
23
4
5
6
7
8
9
EAU11602

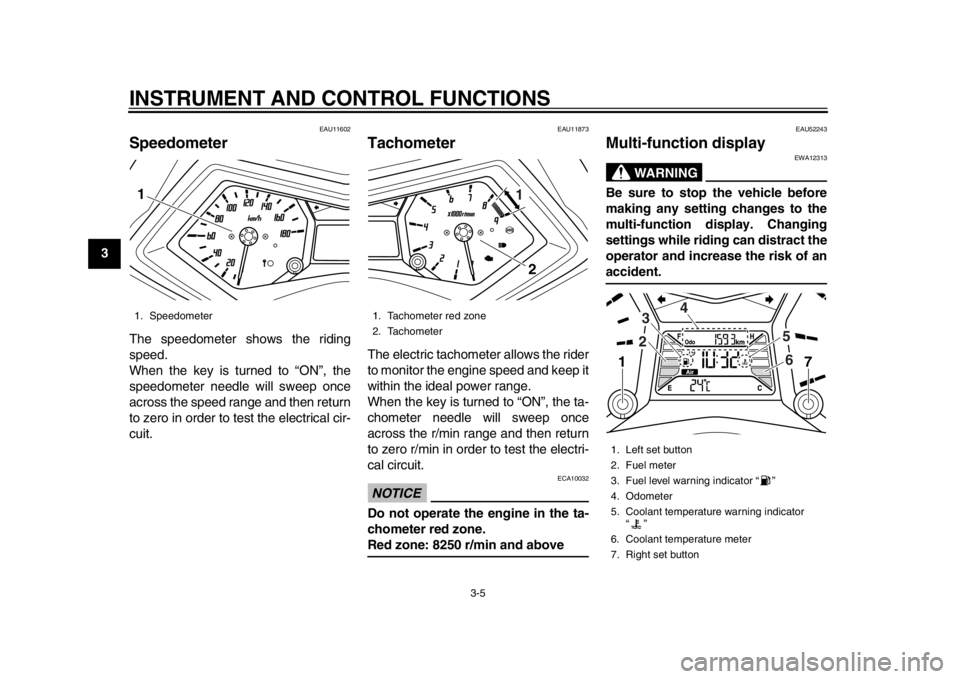

SpeedometerThe speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11873
TachometerThe electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.Red zone: 8250 r/min and above
EAU52243
Multi-function display
WARNING
EWA12313
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.
1. Speedometer1
1. Tachometer red zone
2. Tachometer
21
1. Left set button
2. Fuel meter
3. Fuel level warning indicator “ ”
4. Odometer
5. Coolant temperature warning indicator “”
6. Coolant temperature meter
7. Right set button
23
4
56
11
7
59C-9-E2.book 5 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-6
234
5
6
7
8
9
The multi-function display is equipped
with the following:

a fuel meter

a coolant temperature meter

an odometer

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled when
the remaining fuel in the fuel tank
reaches approximately 3.0 L (0.79
US gal, 0.66 Imp.gal))

a self-diagnosis device

a clock

an ambient temperature display

a fuel consumption display (aver-
age and instantaneous consump-
tion functions)

an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)

a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
TIP
Be sure to turn the key to “ON” be-
fore using the left and right set but-
tons.

When the key is turned to “ON”, all
of the display segments of the multi-function display will appear
one after the other and then disap-
pear, in order to test the electrical
circuits.
Clock
To set the clock:
1. Push the left set button and right set button together for at least two
seconds.
2. When the hour digits start flashing, push the right set button to set the
hours.
3. Push the left set button, and the minute digits will start flashing.
4. Push the right set button to set the

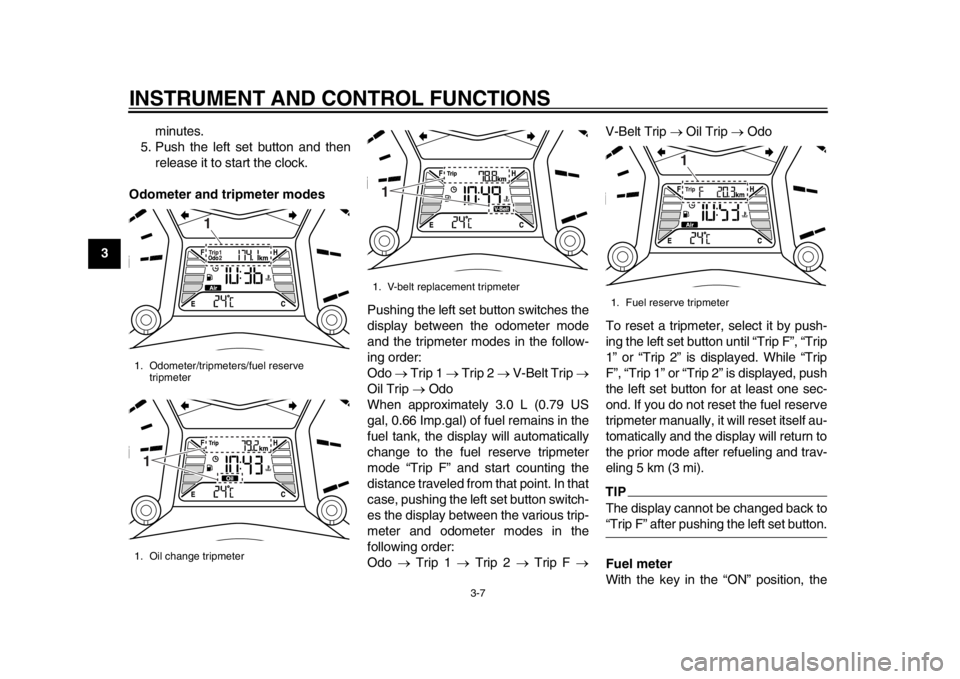

1. Tripmeter/fuel reserve tripmeter
2. Ambient temperature/average fuel consumption/instantaneous fuel
consumption
1. Clock
211
1. Clock
1
59C-9-E2.book 6 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-7
1
23
4
5
6
7
8
9minutes.
5. Push the left set button and then release it to start the clock.
Odometer and tripmeter modes
Pushing the left set button switches the
display between the odometer mode
and the tripmeter modes in the follow-
ing order:
Odo  Trip 1  Trip 2  V-Belt Trip 
Oil Trip  Odo
When approximately 3.0 L (0.79 US
gal, 0.66 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In that
case, pushing the left set button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
Odo  Trip 1  Trip 2  Trip F V-Belt Trip
 Oil Trip  Odo
To reset a tripmeter, select it by push-
ing the left set button until “Trip F”, “Trip
1” or “Trip 2” is displayed. While “Trip
F”, “Trip 1” or “Trip 2” is displayed, push
the left set button for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
TIPThe display cannot be changed back to“Trip F” after pushing the left set button.
Fuel meter
With the key in the “ON” position, the
1. Odometer/tripmeters/fuel reserve tripmeter

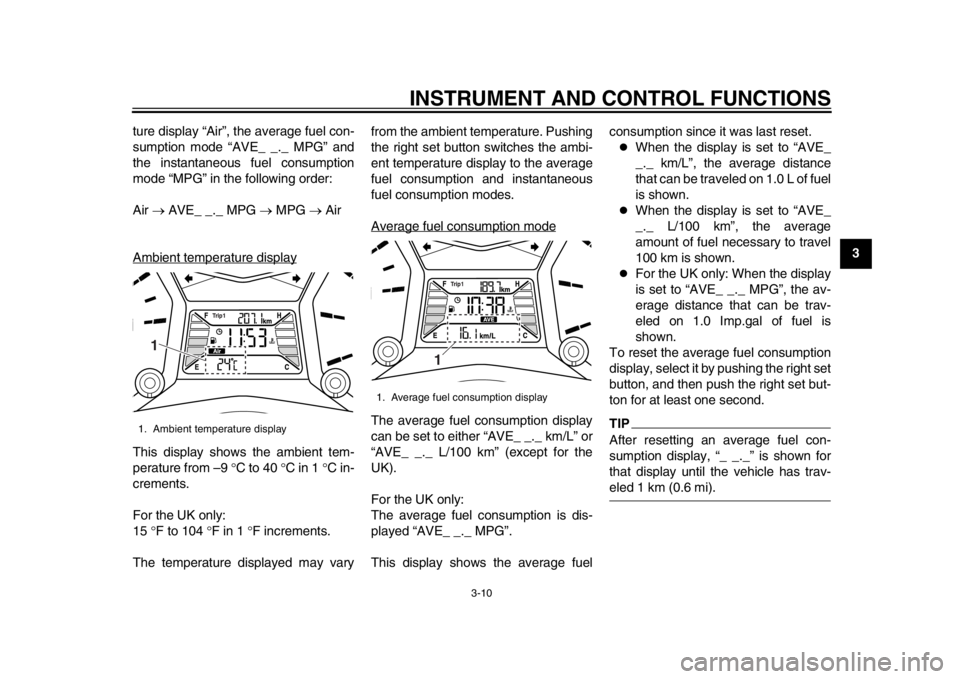

1. Oil change tripmeter
1
1
1. V-belt replacement tripmeter1
1. Fuel reserve tripmeter
1
59C-9-E2.book 7 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-8
234
5
6
7
8
9
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator, “F”, “E”, and the bottom
segment will flash. Refuel as soon as
possible.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with chang-
es in the weather and engine load. If
the top segment, “H”, “C”, and coolant
temperature warning indicator flash,
stop the vehicle and let the engine cool. (See page 6-38.)
NOTICE
ECA10022
Do not continue to operate the en-gine if it is overheating.

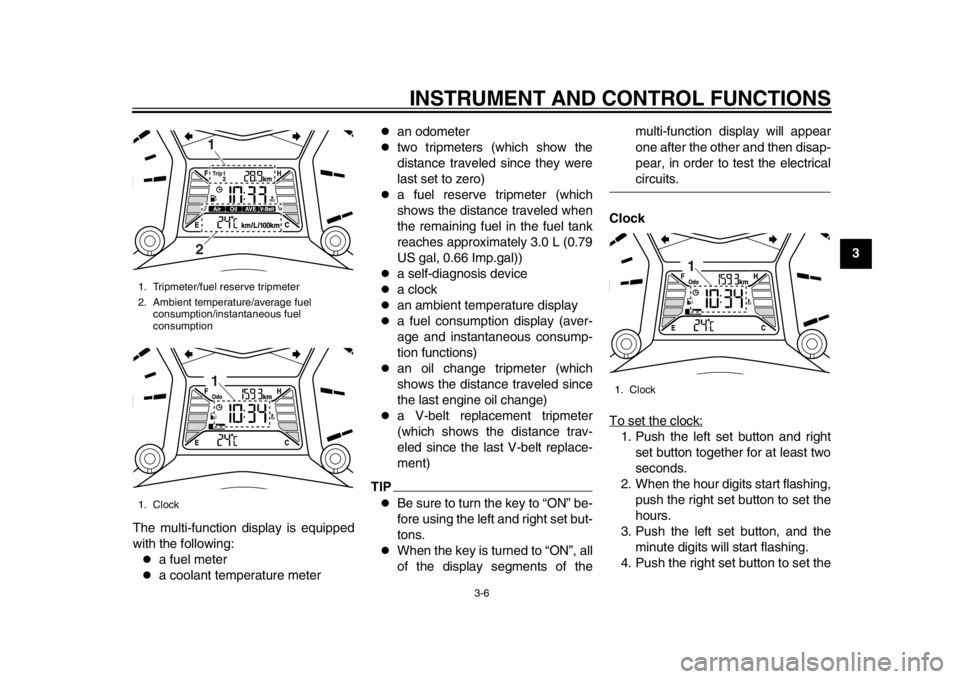

Oil change indicator “Oil”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 5000 km (3000 mi) thereafter
to indicate that the engine oil should be
changed.
After changing the engine oil, reset the
oil change indicator. To reset the oil
change indicator, select it by pushing
the left set button until “Oil Trip” is dis-
played, and then push the left set but-
ton at least one second. When pushing
the left set button, “Oil Trip” starts flash-
ing. While “Oil Trip” is flashing, push the
left set button for at least three sec-
onds.
If the engine oil is changed before the
oil change indicator “Oil” flashes (i.e.
before the periodic oil change interval
has been reached), the indicator “Oil”
must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Set the engine stop switch to “ ” and turn the key to “ON”.
2. Check that the oil change indicator comes on for a few seconds and1. Oil change indicator “Oil”1
59C-9-E2.book 8 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-9
1
23
4
5
6
7
8
9then goes off.
3. If the oil change indicator does not come on, have a Yamaha dealer
check the electrical circuit.
V-belt replacement indicator
“V-Belt”
This indicator flashes every 20000 km
(12500 mi) when the V-belt needs to be
replaced.
After changing the V-belt, reset the
V-belt replacement indicator. To reset
the V-belt replacement indicator, select
it by pushing the left set button until
“V-Belt Trip” is displayed, and then
push the left set button at least one sec-
ond. When pushing the left set button, “V-Belt Trip” starts flashing. While
“V-Belt Trip” is flashing, push the left set
button for at least three seconds.
If the V-belt is changed before the
V-belt replacement indicator “V-Belt”
flashes (i.e. before the periodic V-belt
change interval has been reached), the
indicator “V-Belt” must be reset after
the V-belt change for the next periodic
V-belt change to be indicated at the
correct time.
The electrical circuit of the indicator can
be checked according to the following
procedure.
1. Turn the key to “ON” and make sure that the engine stop switch is
set to “ ”.
2. Check that the V-belt replacement indicator comes on for a few sec-
onds and then goes off.
3. If the V-belt replacement indicator does not come on, have a Yamaha
dealer check the electrical circuit. Ambient temperature display, aver-
age fuel consumption, and instan-
taneous fuel consumption modes
Push the right set button to switch the
display between the ambient tempera-
ture display “Air”, the average fuel con-
sumption mode “AVE_ _._ km/L” or
“AVE_ _._ L/100 km”, and the instanta-
neous fuel consumption mode “km/L”
or “L/100 km” in the following order:
Air
 AVE_ _._ km/L or AVE_ _._ L/
100 km  km/L or L/100 km  Air
For the UK only:
Push the right set button to switch the
display between the ambient tempera-
1. V-belt replacement indicator “V-Belt”1
1. Ambient temperature/average fuel consumption/instantaneous fuel
consumption
1
59C-9-E2.book 9 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-10
234
5
6
7
8
9
ture display “Air”, the average fuel con-
sumption mode “AVE_ _._ MPG” and
the instantaneous fuel consumption
mode “MPG” in the following order:
Air
 AVE_ _._ MPG  MPG  Air
Ambient temperature display
This display shows the ambient tem-
perature from –9  C to 40 C in 1  C in-
crements.
For the UK only:
15 F to 104 F in 1 F increments.
The temperature displayed may vary from the ambient temperature. Pushing
the right set button switches the ambi-
ent temperature display to the average
fuel consumption and instantaneous
fuel consumption modes.
Average fuel consumption mode
The average fuel consumption display
can be set to either “AVE_ _._ km/L” or
“AVE_ _._ L/100 km” (except for the
UK).
For the UK only:
The average fuel consumption is dis-
played “AVE_ _._ MPG”.
This display shows the average fuelconsumption since it was last reset.

When the display is set to “AVE_
_._ km/L”, the average distance
that can be traveled on 1.0 L of fuel
is shown.

When the display is set to “AVE_
_._ L/100 km”, the average
amount of fuel necessary to travel
100 km is shown.

For the UK only: When the display
is set to “AVE_ _._ MPG”, the av-
erage distance that can be trav-
eled on 1.0 Imp.gal of fuel is
shown.
To reset the average fuel consumption
display, select it by pushing the right set
button, and then push the right set but-
ton for at least one second.
TIPAfter resetting an average fuel con-
sumption display, “_ _._” is shown for
that display until the vehicle has trav-eled 1 km (0.6 mi).
1. Ambient temperature display1
1. Average fuel consumption display
1
59C-9-E2.book 10 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-11
1
23
4
5
6
7
8
9Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or “L/
100 km” (except for the UK).
For the UK only:
The instantaneous fuel consumption is
displayed “MPG”.
When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.

When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.

For the UK only: The distance that
can be traveled on 1.0 Imp.gal of
fuel under the current riding condi-
tions is shown.
To switch between the instantaneous
fuel consumption displays, push the
right set button for one second when
one of the displays is shown (except for
the UK).
TIPIf traveling at speeds under 10 km/h(6.0 mi/h), “_ _._” is displayed.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits. If a problem is detected in any of those
circuits, the engine trouble warning light
comes on and the display indicates an
error code.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in any of the im-
mobilizer system circuits, the immobi-
lizer system indicator light flashes and
the display indicates an error code.
TIPIf the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
1. Instantaneous fuel consumption display
1
1. Error code display
1
59C-9-E2.book 11 ページ ２０１３年６月１８日　火曜日　午後１時３３分

INSTRUMENT AND CONTROL FUNCTIONS
3-12
234
5
6
7
8
9
from starting.2. If the engine starts, turn it off and try starting the engine with the
standard keys.
3. If one or both of the standard keys do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.NOTICE
ECA11591
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
EAU1234F
Handlebar switchesLeft Right
EAU12361
Pass switch “PASS”
Press this switch to flash the headlight.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
1. Pass switch “PASS”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1
2
3
4
1. Engine stop switch “ / ”
2. Hazard switch “ ”
3. Start switch “ ”
1
2
3
59C-9-E2.book 12 ページ ２０１３年６月１８日　火曜日　午後１時３３分
