fuse YAMAHA TRACER 900 GT 2018 Owners Manual

Table of contents
Checking and lubricating the
throttle grip and cable ................6-25
Checking and lubricating the brake and shift pedals ...............6-26
Checking and lubricating the
brake and clutch levers ..............6-26
Checking and lubricating the centerstand and sidestand ........6-27
Lubricating the swingarm pivots ...6-28
Checking the front fork..................6-28
Checking the steering ...................6-29
Checking the wheel bearings ........6-29
Battery ...........................................6-29
Replacing the fuses .......................6-31
Headlights .....................................6-33
Auxiliary lights ...............................6-33
Brake/tail light ...............................6-33
Replacing a turn signal light bulb ............................................6-34
Replacing the license plate light
bulb ............................................6-34
Troubleshooting ............................6-35
Troubleshooting charts .................6-36
Motorcycle care an d stora ge ..........7-1
Matte color caution .........................7-1
Care .................................................7-1
Storage ............................................7-4 Specifications
................................... 8-1
Consumer information ..................... 9-1
Identification numbers .................... 9-1
Diagnostic connector...................... 9-2
Vehicle data recording .................... 9-2
In dex ................................................ 10-1
UB1JE0E0.book Page 2 Tuesday, February 13, 2018 9:12 AM

Description
2-1
2
EAU10411
Left view
1
2
3
4,56
10
11
8
7
9
1. Windshield (page 3-38)
2. Battery (page 6-29)
3. Fuses (page 6-31)
4. Storage compartment (page 3-38)
5. Tool kit (page 6-2)
6. Seat lock (page 3-34)
7. Spring preload adjuster (page 3-41)
8. Rebound damping force adjuster (page 3-41)9. Shift pedal (page 3-26)
10.Engine oil drain bolt (page 6-11)
11.Engine oil filter cartridge (page 6-11)
UB1JE0E0.book Page 1 Tuesday, February 13, 2018 9:12 AM

Description
2-2
2
EAU10421
Right view
1
2
3,4,5
6
7
8
9
10
11
1. Rear brake fluid reservoir (page 6-21)
2. Fuel tank cap (page 3-30)
3. Rebound damping force adjuster (page 3-39)
4. Spring preload adjuster (page 3-39)
5. Compression damping force adjuster (page 3-39)
6. Headlight (page 6-33)
7. Fuses (page 6-31)
8. Coolant reservoir (page 6-13) 9. Engine oil level check window (page 6-11)
10.Engine oil filler cap (page 6-11)
11.Brake pedal (page 3-27)UB1JE0E0.book Page 2 Tuesday, February 13, 2018 9:12 AM

Instrument and control functions
3-43
3 
Do not dispose of a damag ed or
worn-out shock a bsor ber as-
sem bly yourself. Take the shock
a b sor ber assem bly to a Yamaha
d ealer for any service.
EAU49454

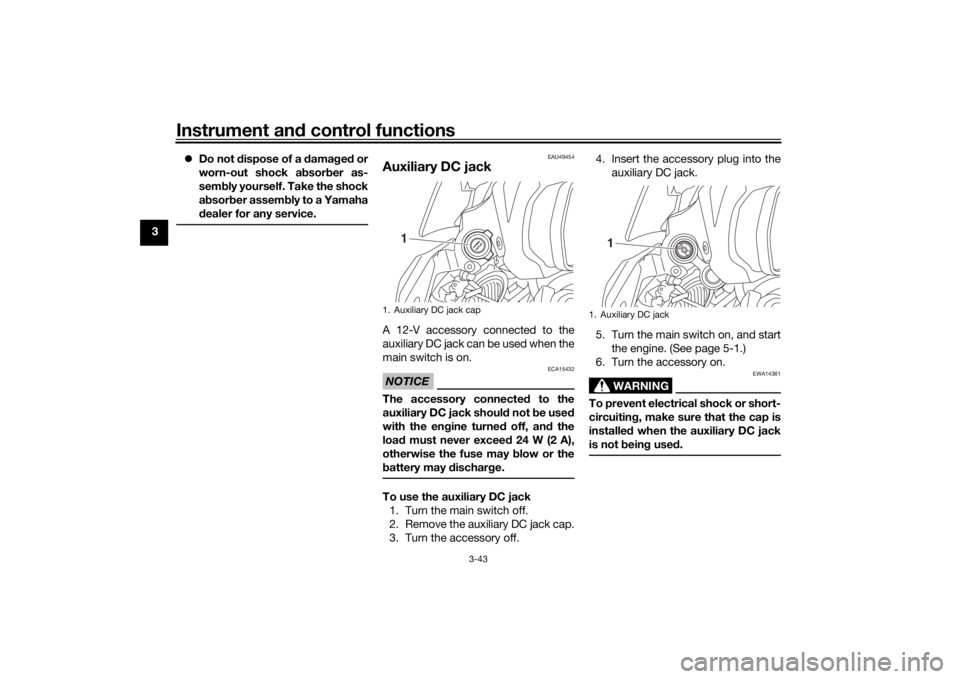

Auxiliary DC jackA 12-V accessory connected to the
auxiliary DC jack can be used when the
main switch is on.NOTICE
ECA15432
The accessory connecte d to the
auxiliary DC jack shoul d not b e used
with the en gine turne d off, an d the
loa d must never excee d 24 W (2 A),
otherwise the fuse may blow or the
b attery may d ischarge.To use the auxiliary DC jack
1. Turn the main switch off.
2. Remove the auxiliary DC jack cap.
3. Turn the accessory off. 4. Insert the accessory plug into the
auxiliary DC jack.
5. Turn the main switch on, and start the engine. (See page 5-1.)
6. Turn the accessory on.
WARNING
EWA14361
To prevent electrical shock or short-
circuitin g, make sure that the cap is
installe d when the auxiliary DC jack
is not bein g use d.
1. Auxiliary DC jack cap
1
1. Auxiliary DC jack
1
UB1JE0E0.book Page 43 Tuesday, February 13, 2018 9:12 AM

Periodic maintenance an d a djustment
6-31
6
EAU63134

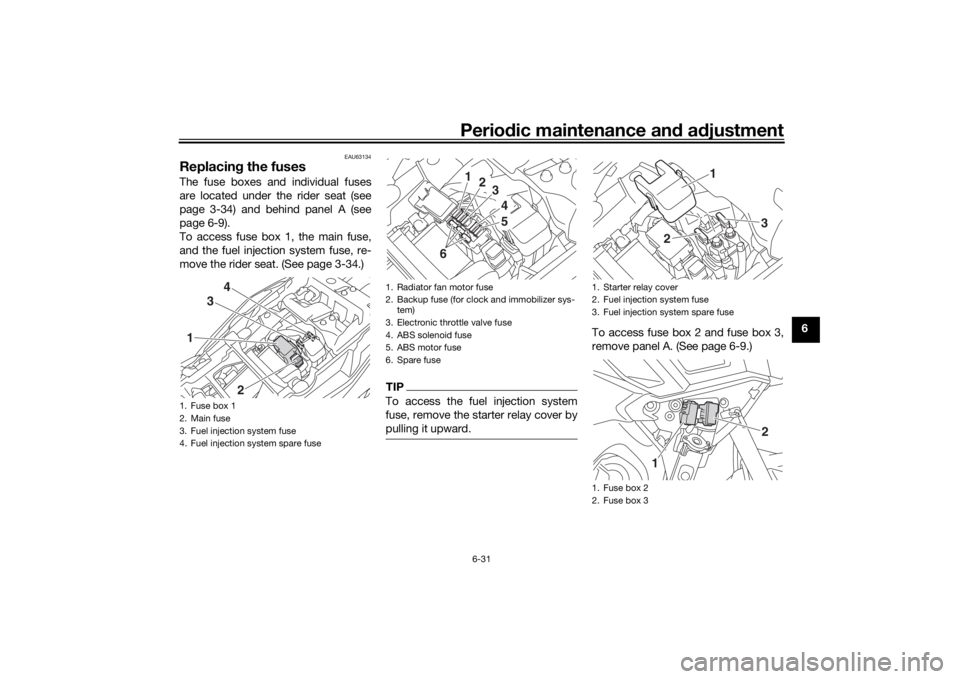

Replacin g the fusesThe fuse boxes and individual fuses
are located under the rider seat (see
page 3-34) and behind panel A (see
page 6-9).
To access fuse box 1, the main fuse,
and the fuel injection system fuse, re-
move the rider seat. (See page 3-34.)
TIPTo access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
To access fuse box 2 and fuse box 3,
remove panel A. (See page 6-9.)
1. Fuse box 1
2. Main fuse
3. Fuel injection system fuse
4. Fuel injection system spare fuse1 3
4
2
1. Radiator fan motor fuse
2. Backup fuse (for clock and immobilizer sys- tem)
3. Electronic throttle valve fuse
4. ABS solenoid fuse
5. ABS motor fuse
6. Spare fuse
1
2
345
6
1. Starter relay cover
2. Fuel injection system fuse
3. Fuel injection system spare fuse
1. Fuse box 2
2. Fuse box 3
3
2
1
1
2
UB1JE0E0.book Page 31 Tuesday, February 13, 2018 9:12 AM

Periodic maintenance an d a djustment
6-32
6
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to avoi
d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again, have a Yamaha dealer
check the electrical system.
1. Parking lighting fuse
2. Headlight fuse
3. Plug +12V fuse (DC connector, option)
4. Plug +12V fuse (DC jack)
5. Cruise control fuse
6. Brake light fuse
7. Signaling system fuse
8. Fog lamp fuse (option)
9. ABS control unit fuse
10.Seat heater fuse (option)
11.Spare fuse
12.Ignition fuse
123411
121110987
6
5
Specifie d fuses:
Main fuse: 50.0 A
Fuel injection system fuse:
20.0 A
Specifie d fuses (fuse box 1):
Radiator fan motor fuse: 15.0 A
ABS motor fuse:
30.0 A
ABS solenoid fuse: 15.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
Specifie d fuses (fuse box 2):
Fog lamp fuse:
2.0 A
Brake light fuse:
1.0 A
Signaling system fuse: 7.5 A
Ignition fuse: 15.0 A
ABS control unit fuse:
7.5 A
Seat heater fuse: 7.5 A
Specifie d fuses (fuse box 3):
Headlight fuse:
7.5 A
Parking lighting fuse: 7.5 A
Cruise control fuse: 1.0 A
Plug +12V fuse:
2.0 A
Plug +12V fuse: 2.0 A
UB1JE0E0.book Page 32 Tuesday, February 13, 2018 9:12 AM

Periodic maintenance an d a djustment
6-33
6
EAU77470
Hea dlig htsThis model is equipped with LED-type
headlights.
If a headlight does not come on, check
the fuses and then have a Yamaha
dealer check the vehicle.TIPWhen the headlights are set to low
beam, one headlight will come on.
When the headlights are set to high
beam or the passing switch is pushed,
both headlights should come on.NOTICE
ECA16581
Do not affix any type of tinte d film or
stickers to the head lig ht lens.
EAU54502
Auxiliary li ghtsThis model is equipped with LED-type
auxiliary lights.
If an auxiliary light does not come on,
have a Yamaha dealer check it.
EAU70540
Brake/tail li ghtThis model is equipped with an LED-
type brake/tail light.
If the brake/tail light does not come on,
have a Yamaha dealer check it.
1. Auxiliary light
1
1
UB1JE0E0.book Page 33 Tuesday, February 13, 2018 9:12 AM

Specifications
8-3
8
License plate light:5.0 W
Meter lighting: LED
Neutral indicator light:
LED
High beam indicator light: LED
Turn signal indicator light: LED
Engine oil and Coolant warning light:
LED
Engine trouble warning light: LED
ABS warning light: LED
Cruise control “SET” indicator light:
LED
Cruise control “ON” indicator light: LED
Immobilizer system indicator light: LED
Shift timing indicator light:
LED
Traction control system indicator light: LEDFuse(s):Main fuse:
50.0 A
Headlight fuse: 7.5 A
Fog lamp fuse: 2.0 A Brake light fuse:
1.0 A
Signaling system fuse: 7.5 A
Ignition fuse:
15.0 A
Parking lighting fuse: 7.5 A
Radiator fan motor fuse: 15.0 A
Fuel injection system fuse:
20.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
15.0 A
Cruise control fuse: 1.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
Seat heater fuse: 7.5 A
Plug +12V fuse: 2.0 A
Plug +12V fuse:
2.0 A
UB1JE0E0.book Page 3 Tuesday, February 13, 2018 9:12 AM

10-1
10
IndexAABS ....................................................... 3-27
ABS warning light ................................... 3-6
Air filter element .................................... 6-15
Auxiliary DC connector ......................... 3-44
Auxiliary DC jack ................................... 3-43
Auxiliary lights ....................................... 6-33BBattery .................................................. 6-29
Brake and clutch levers, checking and
lubricating ........................................... 6-26
Brake and shift pedals, checking and
lubricating ........................................... 6-26
Brake fluid, changing ............................ 6-22
Brake fluid level, checking .................... 6-21
Brake lever ............................................ 3-26
Brake lever free play, checking............. 6-19
Brake light switches.............................. 6-20
Brake pedal........................................... 3-27
Brake/tail light ....................................... 6-33CCables, checking and lubricating ......... 6-25
Canister................................................. 6-11
Care ........................................................ 7-1
Catalytic converter ................................ 3-33
Centerstand and sidestand, checking
and lubricating .................................... 6-27
Clutch lever ........................................... 3-25
Clutch lever free play, adjusting ........... 6-19
Coolant ................................................. 6-13
Cruise control indicator lights ................. 3-5
Cruise control switches .......................... 3-4
Cruise control system ............................. 3-8
DData recording, vehicle .......................... 9-2
Diagnostic connector ............................. 9-2
Dimmer/Pass switch .............................. 3-4
Display, main screen ............................ 3-11
Display, menu screen ........................... 3-15
D-mode (drive mode) ........................... 3-25
Drive chain, cleaning and lubricating ... 6-24
Drive chain slack .................................. 6-23
Drive mode switch.................................. 3-4EEngine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-15
Engine oil .............................................. 6-11
Engine oil and Coolant warning light ...... 3-7
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-5FFront and rear brake pads, checking ... 6-20
Front fork, adjusting ............................. 3-39
Front fork, checking ............................. 6-28
Fuel ....................................................... 3-31
Fuel consumption, tips for reducing ...... 5-3
Fuel tank cap ........................................ 3-30
Fuel tank overflow hose ....................... 3-33
Fuses, replacing ................................... 6-31HHandlebar position, adjusting .............. 3-39
Handlebar switches ................................ 3-3
Hazard switch......................................... 3-4
Headlight beams, adjusting.................. 3-38
Headlights ............................................ 6-33
Helmet holder ....................................... 3-37
High beam indicator light ....................... 3-5 Horn switch .............................................3-4
IIdentification numbers ............................9-1
Ignition circuit cut-off system ...............3-45
Immobilizer system .................................3-1
Immobilizer system indi
cator light ..........3-7
Indicator lights and warning lights ..........3-5LLicense plate light bulb, replacing ........6-34MMain switch/steering lock .......................3-2
Maintenance and lubrication, periodic....6-5
Maintenance, emission control system ..................................................6-3
Matte color, caution ................................7-1
Model label .............................................9-1NNeutral indicator light ..............................3-5PPanel, removing and installing ................6-9
Parking ....................................................5-4
Part locations ..........................................2-1QQuick shift system ................................3-26RRider seat height, adjusting ..................3-35SSafety information ...................................1-1
Seats .....................................................3-34
Shift indicator light ..................................3-6
Shifting ....................................................5-2
Shift pedal .............................................3-26
Shock absorber assembly, adjusting ....3-41
Sidestand ..............................................3-44
UB1JE0E0.book Page 1 Tuesday, February 13, 2018 9:12 AM
