YAMAHA TRICITY 2015 Manual PDF

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU54501
Auxiliary lightThis model is equipped with LED-type
auxiliary lights.
If an auxiliary light does not come on,
have a Yamaha dealer check it.
EAU24182
Tail/b rake li ghtThis model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU61170
Turn si gnal li ght bul bIf a turn signal light does not come on,
have a Yamaha dealer check its electri-
cal circuit or replace the bulb.
1. Auxiliary light
1
U2CME1E0.book Page 30 Tuesday, December 9, 2014 4:12 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU60700
Troubleshootin gAlthough Yamaha vehicles receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your vehicle re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the vehicle prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, do
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot lig hts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plod e, causin g severe injury or prop-
erty dama ge.U2CME1E0.book Page 31 Tuesday, December 9, 2014 4:12 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
EAU61350

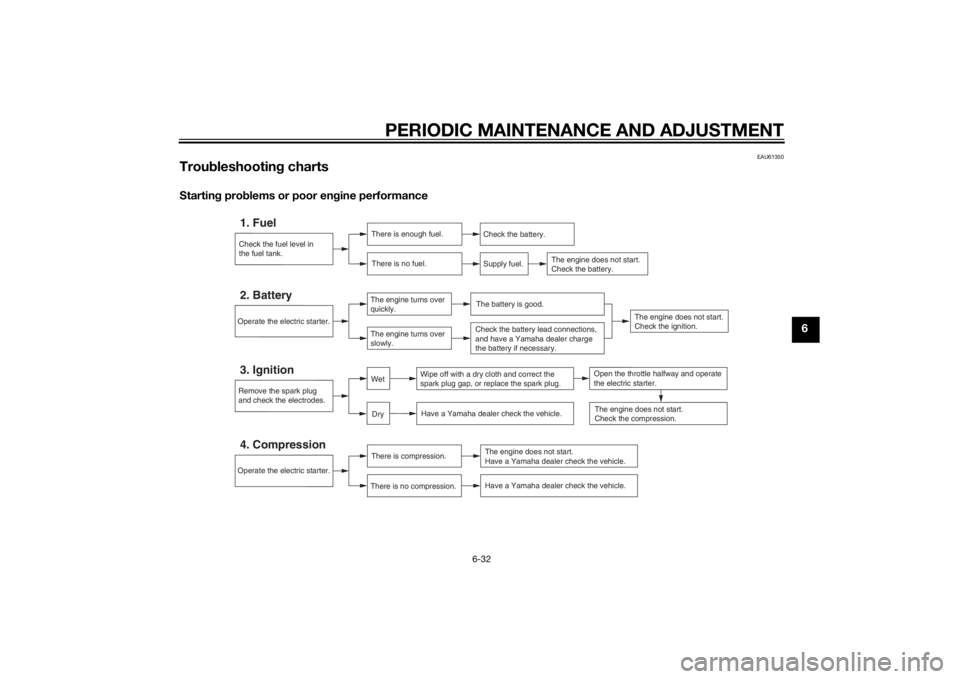

Troubleshootin g chartsStartin g prob lems or poor en gine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the battery.
Supply fuel.
The engine does not start.
Check the battery.
The engine does not start.
Have a Yamaha dealer check the vehicle.
Operate the electric starter.4. Compression
There is compression.
There is no compression.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug. Have a Yamaha dealer check the vehicle.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Check the compression.
The engine does not start.
Check the ignition.
Operate the electric starter.2. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U2CME1E0.book Page 32 Tuesday, December 9, 2014 4:12 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press d own on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U2CME1E0.book Page 33 Tuesday, December 9, 2014 4:12 PM

VEHICLE CARE AND STORAGE
7-1
7
EAU37834
Matte color cautionNOTICE
ECA15193
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
a d vice on what prod ucts to use be-
fore cleanin g the vehicle. Usin g a
b rush, harsh chemical pro ducts or
cleanin g compoun ds when cleanin g
these parts will scratch or damag e
their surface. Wax also shoul d not
b e applie d to any matte colored fin-
ishe d parts.
EAUU1740
CareWhile the open design of this vehicle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of this ve-
hicle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your ve-
hicle looking good, extend its life and
optimize its performance.
Before cleanin g
1. Cover the muffler outlet with a plastic bag after the engine has
cooled down.
2. Make sure that all caps and cov- ers as well as all electrical cou-
plers and connectors, including
the spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt, like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod- ucts onto seals, gaskets and
wheel axles. Always rinse the dirt
and degreaser off with water.
Cleanin g
NOTICE
ECA20970
Avoi d usin g stron g aci dic wheel
cleaners, especially on spoke
wheels. If such pro ducts are
use d on har d-to-remove dirt, do
not leave the cleaner on the af-
fected area any lon ger than in-
structed . Also, thorou ghly rinse
the area off with water, immed i-
ately dry it, an d then apply a cor-
rosion protection spray.
 Improper cleanin g can d amage
plastic parts (such as cowlin gs,
panels, win dshiel ds, head light
lenses, meter lenses, etc.) an d
the mufflers. Use only a soft,
clean cloth or spon ge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
ou ghly cleaned with water, di-
lute d mil d d eter gent with water
may be used . Be sure to rinse
U2CME1E0.book Page 1 Tuesday, December 9, 2014 4:12 PM

VEHICLE CARE AND STORAGE
7-2
7off any d
etergent resi due usin g
plenty of water, as it is harmful
to plastic parts.
 Do not use any harsh chemical
prod ucts on plastic parts. Be
sure to avoi d using cloths or
spon ges which have been in
contact with stron g or a brasive
cleanin g prod ucts, solvent or
thinner, fuel ( gasoline), rust re-
movers or inhi bitors, brake flui d,
antifreeze or electrolyte.
 Do not use hi gh-pressure wash-
ers or steam-jet cleaners since
they cause water seepa ge an d
d eterioration in the followin g ar-
eas: seals (of wheel an d swin g-
arm bearin gs, fork an d b rakes),
electric components (couplers,
connectors, instruments,
switches an d lig hts), breather
hoses an d vents.
 For vehicles equipped with a
win dshield : Do not use strong
cleaners or har d spon ges as
they will cause dullin g
or
scrat c

hing . Some cleanin g
compoun ds for plastic may
leave scratches on the win d- shield
. Test the pro duct on a
small hidden part of the win d-
shield to make sure that it does
not leave any marks. If the win d-
shield is scratche d, use a quality
plastic polishin g compoun d af-
ter washin g.
NOTICE
ECAU0061
Use care when cleanin g the ra diator.
Hi gh-pressure washers may dam-
a g e the ra diator fins. Do not spray
the ra diator fins at an an gle, an d al-
ways keep the nozzle at least 50 cm
(20 in) away from the spins when
sprayin g.After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning. After riding in the rain, near the sea, or
on salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive
in combination with water, carry out
the following steps after each ride in
the rain, near the sea, or on salt-
sprayed roads.TIPSalt sprayed on roads in the winter
may remain well into spring.1. Clean the vehicle with cold water
and a mild detergent after the en-
gine has cooled down. NOTICE:
Do not use warm water since it
increases the corrosive action
of the salt.
[ECA10792]
2. Apply a corrosion protection spray on all metal, including chrome-
and nickel-plated, surfaces to pre-
vent corrosion.
Cleaning the windshieldAvoid using any alkaline or strong acid
cleaner, gasoline, brake fluid, or any
other solvent. Clean the windshield
with a cloth or sponge dampened with
a mild detergent, and then wash it off
U2CME1E0.book Page 2 Tuesday, December 9, 2014 4:12 PM

VEHICLE CARE AND STORAGE
7-3
7
thoroughly with water. For additional
cleaning, use Yamaha Windshield
Cleaner or another high-quality wind-
shield cleaner. Some cleaning com-
pounds for plastics may leave
scratches on the windshield. Before
using such cleaners, test an area of the
windshield which does not affect your
visibility and which cannot be easily
recognized.
After cleanin
g
1. Dry the vehicle with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum, and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
3. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed surfaces.
4. Use spray oil as a universal clean- er to remove any remaining dirt. 5. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the vehicle dry completely be- fore storing or covering it.
WARNING
EWA17830
Contaminants on the b rakes or tires
can cause loss of control.  Make sure that there is no oil or
wax on the b rakes or tires. If
necessary, clean the brake
d iscs an d b rake linin gs with a
re gular brake disc cleaner or
acetone, an d wash the tires with
warm water an d a mil d d eter-
g ent.
 Before operatin g the vehicle
test its brakin g performance
an d cornerin g b ehavior.NOTICE
ECAU0022
 Apply spray oil an d wax spar-
in gly an d make sure to wipe off
any excess. 
Never apply oil or wax to any
rubber parts, plastic parts or
hea dlig ht, tailli ght and meter
lenses, but treat them with a
suita ble care pro duct.
 Avoi d using abrasive polishin g
compoun ds as they will wear
away the paint.
TIP Consult a Yamaha dealer for ad-
vice on what products to use.
 Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
U2CME1E0.book Page 3 Tuesday, December 9, 2014 4:12 PM

VEHICLE CARE AND STORAGE
7-4
7
EAU60721
StorageShort-term
Always store your vehicle in a cool, dry
place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the vehi-
cle.NOTICE
ECA21170
 Storin g the vehicle in a poorly
ventilate d room or coverin g it
with a tarp, while it is still wet,
will allow water an d humi dity to
seep in an d cause rust.
 To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are stored .Long-term
Before storing your vehicle for several
months: 1. Follow all the instructions in the “Care” section of this chapter. 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinder, piston rings,
etc. from corrosion.a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent dama ge or injury
from sparkin g, make sure to
g roun d the spark plu g elec-
tro des while turning the en-
g ine over.
[EWA10952]
4. Lubricate all control cables and
the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the vehicle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-26.TIPMake any necessary repairs before
storing the vehicle.
U2CME1E0.book Page 4 Tuesday, December 9, 2014 4:12 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:1905 mm (75.0 in)
Overall width:
735 mm (28.9 in)
Overall height: 1215 mm (47.8 in)
Seat height: 780 mm (30.7 in)
Wheelbase:
1310 mm (51.6 in)
Ground clearance: 120 mm (4.72 in)
Minimum turning radius: 2300 mm (90.6 in)Wei ght:Curb weight:
156 kg (344 lb)Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement: 124 cm3
Bore × stroke:
52.4 × 57.9 mm (2.06 × 2.28 in)
Compression ratio: 10.9 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 20W-40 or 20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA or MB
Engine oil quantity: Periodic oil change:
0.80 L (0.85 US qt, 0.70 Imp.qt)Final transmission oil:Type:YAMALUBE 10W-40 or SAE 10W-30 type SE motor oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)Coolant quantity:Coolant reservoir (up to the maximum level
mark):
0.33 L (0.35 US qt, 0.29 Imp.qt)
Radiator (including all routes): 0.37 L (0.39 US qt, 0.33 Imp.qt)
Air filter:Air filter element:Oil-coated paper elementFuel:Recommended fuel:Regular unleaded gasoline (Gasohol (E10)
acceptable)
Fuel tank capacity: 6.6 L (1.74 US gal, 1.45 Imp.gal)Fuel injection:Throttle body:
ID mark:2CM1 00Spark plu g(s):Manufacturer/model:
NGK/CR7E
Spark plug gap: 0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:Dry, centrifugal automaticTransmission:Primary reduction ratio:
1.000
Secondary reduction ratio: 9.533 (44/15 x 39/12)
Transmission type: V-belt automaticChassis:Frame type:Underbone
Caster angle: 20.00 °
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40
SAE 10W-40
U2CME1E0.book Page 1 Tuesday, December 9, 2014 4:12 PM

SPECIFICATIONS
8-2
8
Trail:68 mm (2.7 in)
Track: 385 mm (15.2 in)Front tire:Type:Tubeless
Size: 90/80-14M/C 43P
Manufacturer/model:
CHENG SHIN/M6231Rear tire:Type:Tubeless
Size:
110/90-12 64P
Manufacturer/model: CHENG SHIN/M6232Loa din g:Maximum load:
169 kg (373 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measure d on col d
tires):
Front:
175 kPa (1.75 kgf/cm2, 25 psi)
Rear: 225 kPa (2.25 kgf/cm2, 33 psi)
Front wheel:Wheel type:Cast wheel
Rim size: 14M/C x MT2.15
Rear wheel:Wheel type:Cast wheel
Rim size:
12 x MT2.15Unifie d b rake system:Operation:
Activated by rear brakeFront brake:Type:
Disc brake
Operation: Right hand operation
Specified brake fluid:
DOT 4Rear brake:Type:
Disc brake
Operation:
Left hand operation
Specified brake fluid: DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type: Coil spring/oil damper
Wheel travel: 90 mm (3.5 in)Rear suspension:Type:Unit swing
Spring/shock absorber type: Coil spring/oil damper Wheel travel:
89 mm (3.5 in)
Electrical system:Ignition system:
TCI
Charging system: AC magnetoBattery:Model:
YTZ7V
Voltage, capacity: 12 V, 6.0 AhHea dlig ht:Bulb type:
Halogen bulbBul b volta ge, watta ge × quantity:Headlight:
12 V, 60.0 W/55.0 W × 1
Tail/brake light:
LED
Front turn signal light: 12 V, 10.0 W × 2
Rear turn signal light: 12 V, 10.0 W × 2
Auxiliary light:
LED
Meter lighting: LED
High beam indicator light: LED
Turn signal indicator light:
LED
Coolant temperature warning light: LED
U2CME1E0.book Page 2 Tuesday, December 9, 2014 4:12 PM
