PERIODIC MAINTENANCE AND MINOR REPAIR
6-34
1
2
3
4
5
6
7
8
9

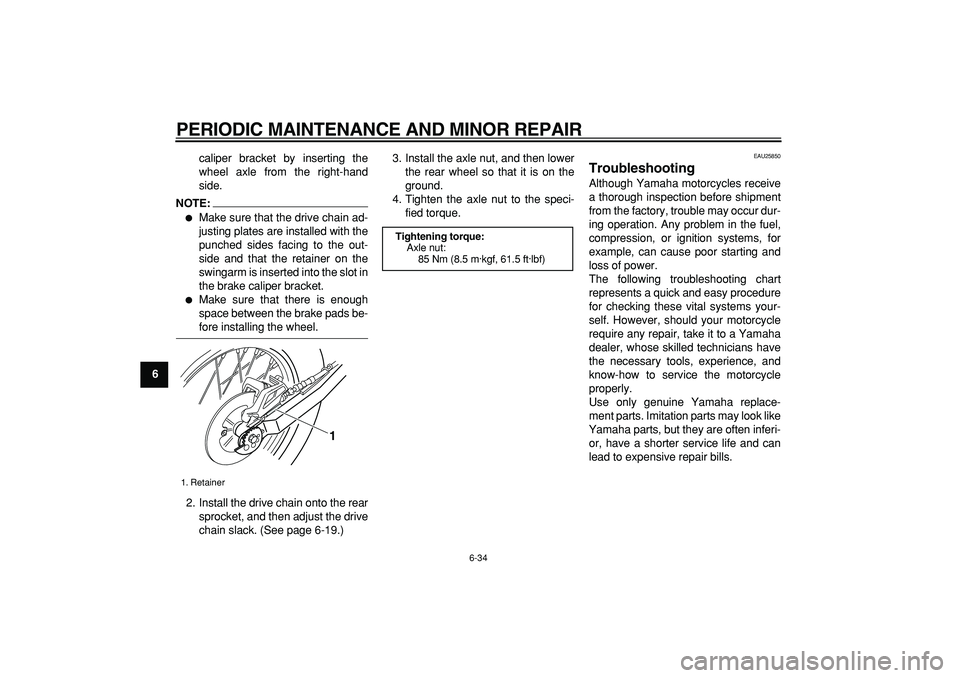

caliper bracket by inserting the
wheel axle from the right-hand
side.
NOTE:


Make sure that the drive chain ad-
justing plates are installed with the
punched sides facing to the out-
side and that the retainer on the
swingarm is inserted into the slot in
the brake caliper bracket.

Make sure that there is enough
space between the brake pads be-
fore installing the wheel.
2. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-19.)3. Install the axle nut, and then lower
the rear wheel so that it is on the
ground.
4. Tighten the axle nut to the speci-
fied torque.
EAU25850
Troubleshooting
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
1. Retainer
1

Tightening torque:
Axle nut:
85 Nm (8.5 m·kgf, 61.5 ft·lbf)

8-1
1
2
3
4
5
6
7
8
9

SPECIFICATIONS
EAU2633D
Dimensions:
Overall length:
2010 mm (79.1 in)
Overall width:
800 mm (31.5 in)
Overall height:
1145 mm (45.1 in)
Seat height:
790 mm (31.1 in)
Wheelbase:
1330 mm (52.4 in)
Ground clearance:
280 mm (11.02 in)
Minimum turning radius:
1900 mm (74.8 in)
Weight:
With oil and fuel:
120.0 kg (265 lb)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
249.0 cm
3

(15.19 cu.in)
Bore
×
stroke:
74.0
×
58.0 mm (2.91
×
2.28 in)
Compression ratio:
9.50 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement:
1.20 L (1.27 US qt) (1.06 Imp.qt)
With oil filter element replacement:
1.30 L (1.37 US qt) (1.14 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
6.0 L (1.59 US gal) (1.32 Imp.gal)
Fuel reserve amount:
1.9 L (0.50 US gal) (0.42 Imp.gal)
Carburetor:
Manufacturer:
TEIKEI
Type
×
quantity:
MV33 x 1
Spark plug (s):
Manufacturer/model:
NGK/DR7EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
74/24 (3.083)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
45/15 (3.000)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
37/13 (2.846)
2nd:
29/16 (1.812)
3rd:
29/22 (1.318)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
