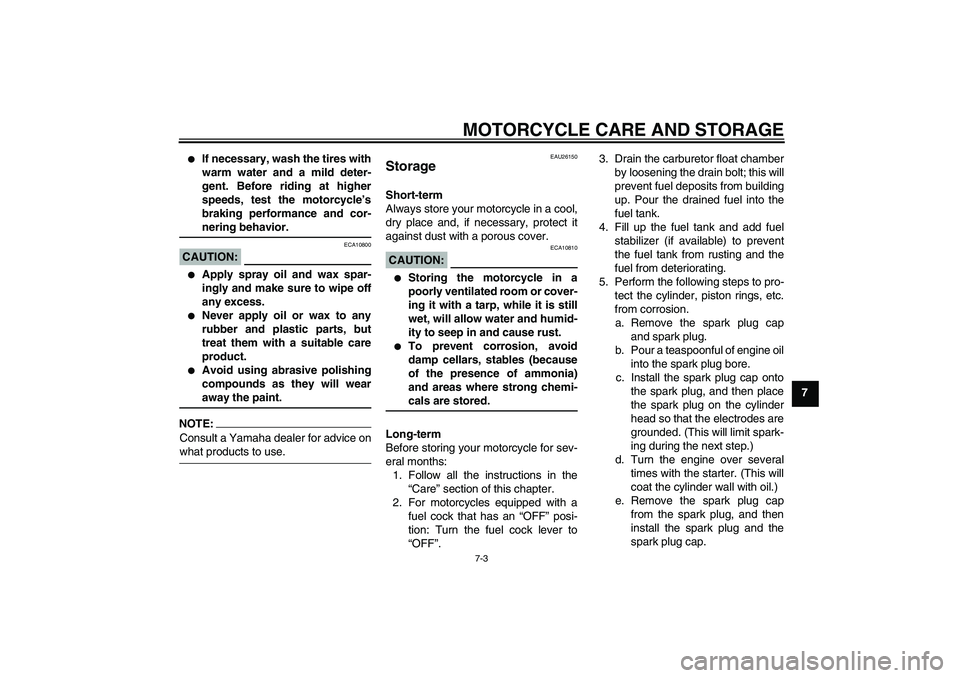

MOTORCYCLE CARE AND STORAGE
7-3
7
If necessary, wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
CAUTION:
ECA10800
Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU26150
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an “OFF” posi-
tion: Turn the fuel cock lever to
“OFF”.3. Drain the carburetor float chamber
by loosening the drain bolt; this will
prevent fuel deposits from building
up. Pour the drained fuel into the
fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap.
U5B680E0.book Page 3 Tuesday, July 17, 2007 9:11 AM
Page 72 of 78

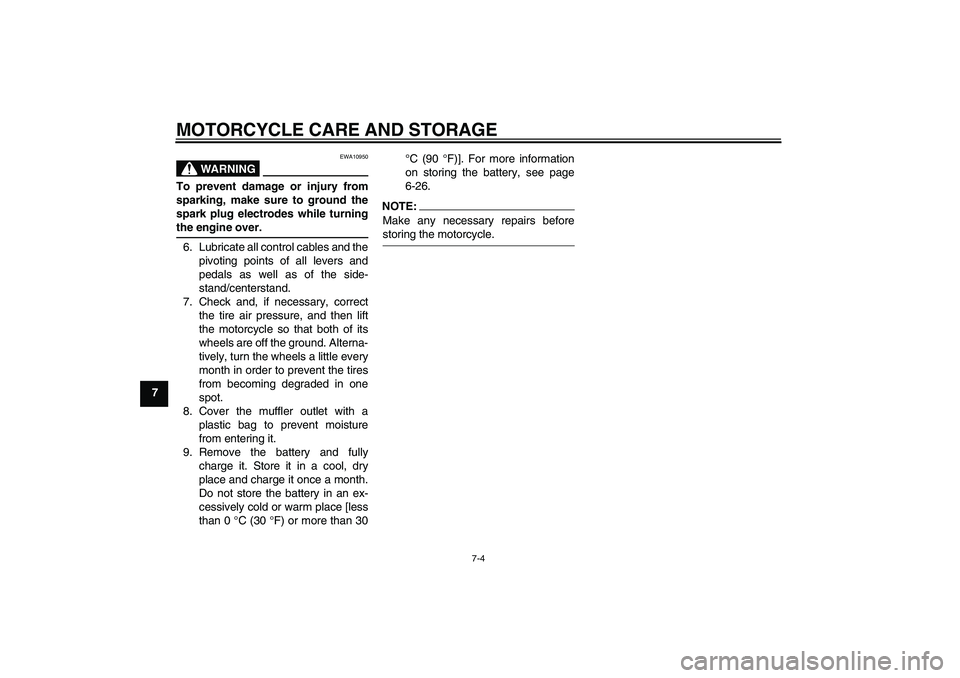

MOTORCYCLE CARE AND STORAGE
7-4
7
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.
6. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30°C (90 °F)]. For more information
on storing the battery, see page
6-26.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U5B680E0.book Page 4 Tuesday, July 17, 2007 9:11 AM
Page 73 of 78

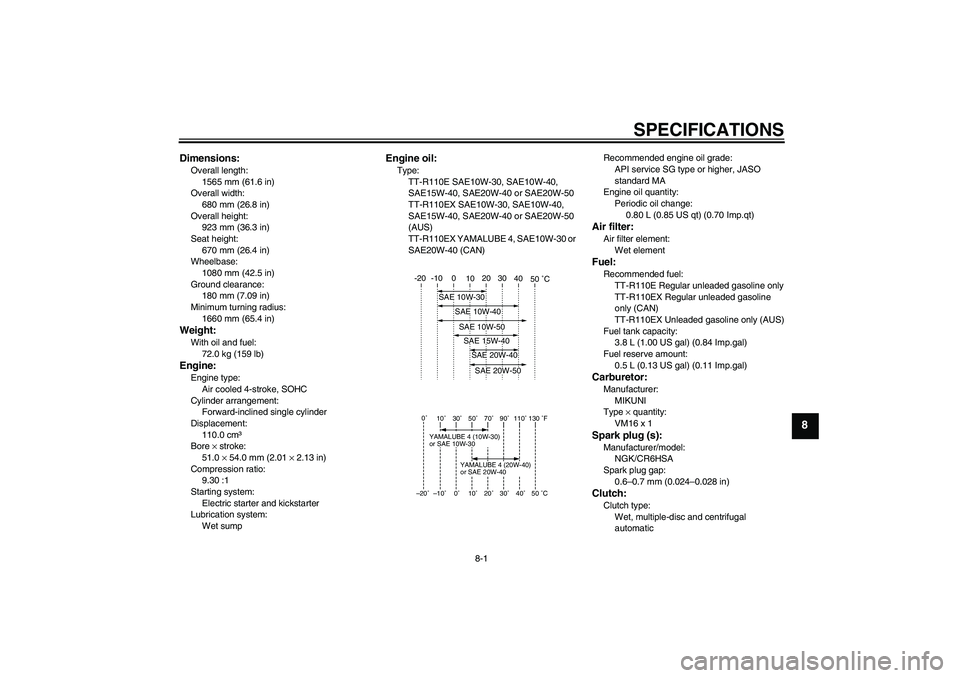

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1565 mm (61.6 in)
Overall width:
680 mm (26.8 in)
Overall height:
923 mm (36.3 in)
Seat height:
670 mm (26.4 in)
Wheelbase:
1080 mm (42.5 in)
Ground clearance:
180 mm (7.09 in)
Minimum turning radius:
1660 mm (65.4 in)Weight:With oil and fuel:
72.0 kg (159 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
110.0 cm³
Bore × stroke:
51.0 × 54.0 mm (2.01 × 2.13 in)
Compression ratio:
9.30 :1
Starting system:
Electric starter and kickstarter
Lubrication system:
Wet sump
Engine oil:Type:
TT-R110E SAE10W-30, SAE10W-40,
SAE15W-40, SAE20W-40 or SAE20W-50
TT-R110EX SAE10W-30, SAE10W-40,
SAE15W-40, SAE20W-40 or SAE20W-50
(AUS)
TT-R110EX YAMALUBE 4, SAE10W-30 or
SAE20W-40 (CAN)Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Periodic oil change:
0.80 L (0.85 US qt) (0.70 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
TT-R110E Regular unleaded gasoline only
TT-R110EX Regular unleaded gasoline
only (CAN)
TT-R110EX Unleaded gasoline only (AUS)
Fuel tank capacity:
3.8 L (1.00 US gal) (0.84 Imp.gal)
Fuel reserve amount:
0.5 L (0.13 US gal) (0.11 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type × quantity:
VM16 x 1Spark plug (s):Manufacturer/model:
NGK/CR6HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-disc and centrifugal
automatic
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
10˚30˚50˚70˚90˚110˚
0˚
130
˚F
YAMALUBE 4 (10W-30)
or SAE 10W-30
YAMALUBE 4 (20W-40)
or SAE 20W-40
–10
˚0˚10˚20˚30˚40˚
–20˚
50 ˚C
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
Page 74 of 78

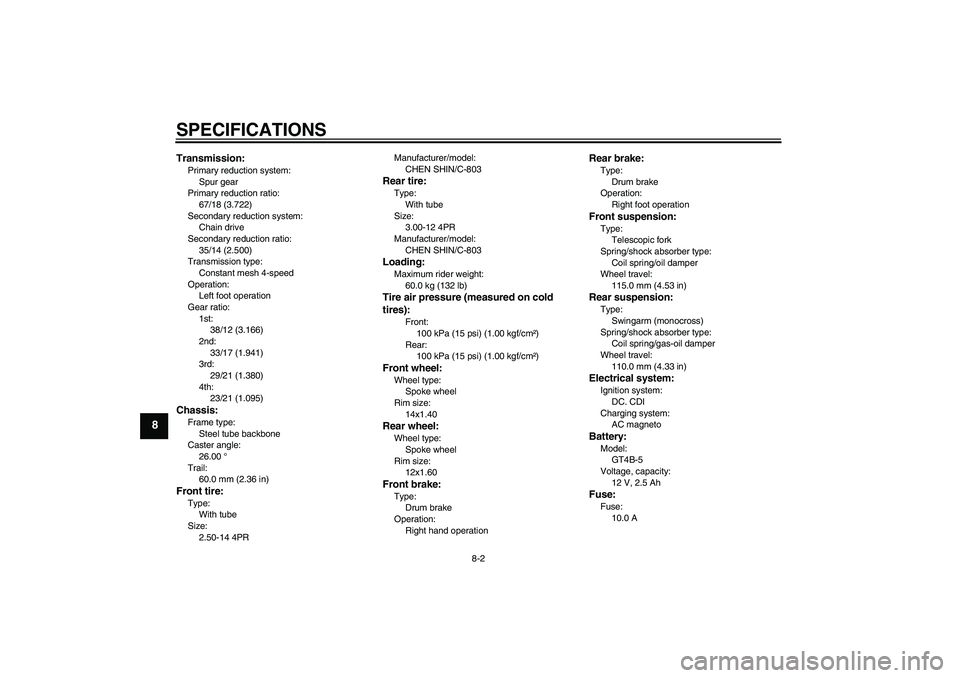

SPECIFICATIONS
8-2
8
Transmission:Primary reduction system:
Spur gear
Primary reduction ratio:
67/18 (3.722)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
35/14 (2.500)
Transmission type:
Constant mesh 4-speed
Operation:
Left foot operation
Gear ratio:
1st:
38/12 (3.166)
2nd:
33/17 (1.941)
3rd:
29/21 (1.380)
4th:
23/21 (1.095)Chassis:Frame type:
Steel tube backbone
Caster angle:
26.00 °
Trail:
60.0 mm (2.36 in)Front tire:Type:
With tube
Size:
2.50-14 4PRManufacturer/model:
CHEN SHIN/C-803
Rear tire:Type:
With tube
Size:
3.00-12 4PR
Manufacturer/model:
CHEN SHIN/C-803Loading:Maximum rider weight:
60.0 kg (132 lb)Tire air pressure (measured on cold
tires):
Front:
100 kPa (15 psi) (1.00 kgf/cm²)
Rear:
100 kPa (15 psi) (1.00 kgf/cm²)
Front wheel:Wheel type:
Spoke wheel
Rim size:
14x1.40Rear wheel:Wheel type:
Spoke wheel
Rim size:
12x1.60Front brake:Type:
Drum brake
Operation:
Right hand operation
Rear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
115.0 mm (4.53 in)Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
110.0 mm (4.33 in)Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
GT4B-5
Voltage, capacity:
12 V, 2.5 AhFuse:Fuse:
10.0 A
U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM
Page 75 of 78

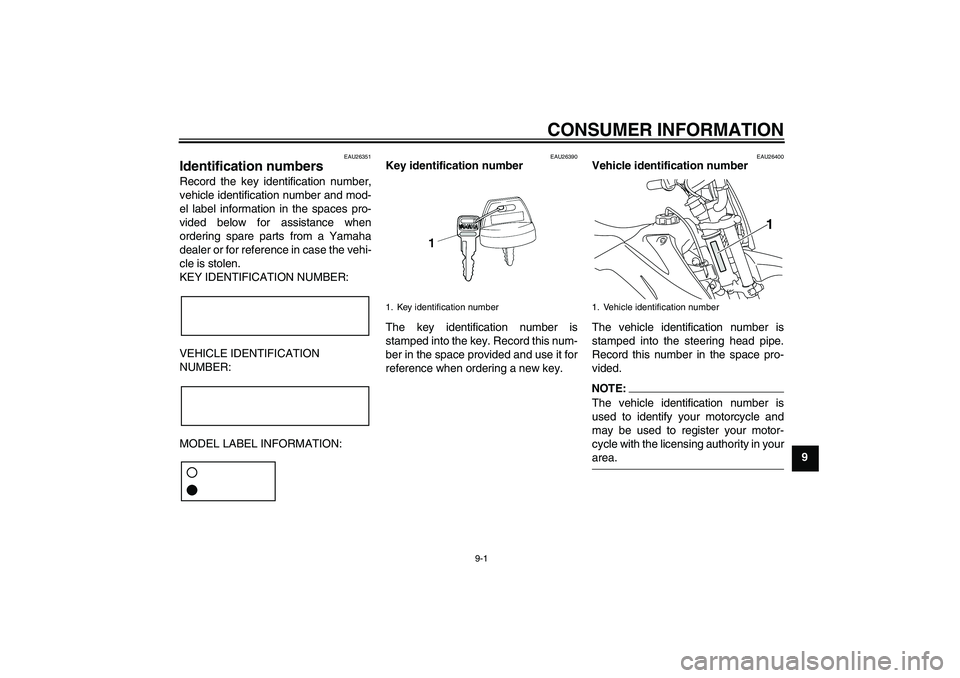

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26390
Key identification number
The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
1
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
Page 76 of 78
CONSUMER INFORMATION
9-2
9
EAU36980
Model label
The model label is affixed to the frame
behind panel B. (See page 6-6.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
1
U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM
Page 77 of 78

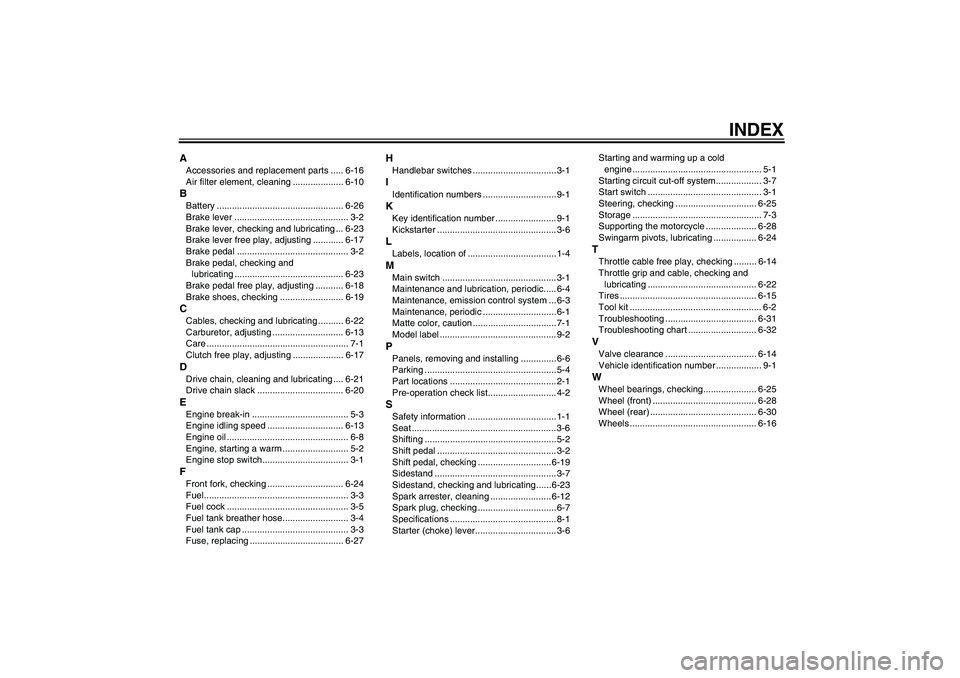

INDEX
AAccessories and replacement parts ..... 6-16
Air filter element, cleaning .................... 6-10BBattery .................................................. 6-26
Brake lever ............................................. 3-2
Brake lever, checking and lubricating ... 6-23
Brake lever free play, adjusting ............ 6-17
Brake pedal ............................................ 3-2
Brake pedal, checking and
lubricating ........................................... 6-23
Brake pedal free play, adjusting ........... 6-18
Brake shoes, checking ......................... 6-19CCables, checking and lubricating .......... 6-22
Carburetor, adjusting ............................ 6-13
Care ........................................................ 7-1
Clutch free play, adjusting .................... 6-17DDrive chain, cleaning and lubricating .... 6-21
Drive chain slack .................................. 6-20EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-13
Engine oil ................................................ 6-8
Engine, starting a warm .......................... 5-2
Engine stop switch.................................. 3-1FFront fork, checking .............................. 6-24
Fuel......................................................... 3-3
Fuel cock ................................................ 3-5
Fuel tank breather hose.......................... 3-4
Fuel tank cap .......................................... 3-3
Fuse, replacing ..................................... 6-27
HHandlebar switches ................................. 3-1IIdentification numbers ............................. 9-1KKey identification number ........................ 9-1
Kickstarter ............................................... 3-6LLabels, location of ...................................1-4MMain switch ............................................. 3-1
Maintenance and lubrication, periodic..... 6-4
Maintenance, emission control system ... 6-3
Maintenance, periodic ............................. 6-1
Matte color, caution .................................7-1
Model label .............................................. 9-2PPanels, removing and installing .............. 6-6
Parking ....................................................5-4
Part locations .......................................... 2-1
Pre-operation check list........................... 4-2SSafety information ...................................1-1
Seat ......................................................... 3-6
Shifting ....................................................5-2
Shift pedal ............................................... 3-2
Shift pedal, checking ............................. 6-19
Sidestand ................................................ 3-7
Sidestand, checking and lubricating...... 6-23
Spark arrester, cleaning ........................ 6-12
Spark plug, checking ...............................6-7
Specifications .......................................... 8-1
Starter (choke) lever................................ 3-6Starting and warming up a cold
engine ................................................... 5-1
Starting circuit cut-off system.................. 3-7
Start switch ............................................. 3-1
Steering, checking ................................ 6-25
Storage ................................................... 7-3
Supporting the motorcycle .................... 6-28
Swingarm pivots, lubricating ................. 6-24
TThrottle cable free play, checking ......... 6-14
Throttle grip and cable, checking and
lubricating ........................................... 6-22
Tires ...................................................... 6-15
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-31
Troubleshooting chart ........................... 6-32VValve clearance .................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-25
Wheel (front) ......................................... 6-28
Wheel (rear) .......................................... 6-30
Wheels .................................................. 6-16
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
Page 78 of 78
YAMAHA MOTOR CO., LTD.
PRINTED ON RECYCLED PAPERPRINTED IN JAPAN
2007.08-0.9×1 CR
(E)
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
