PRE-OPERATION CHECKS
4-2
4
EAU15605

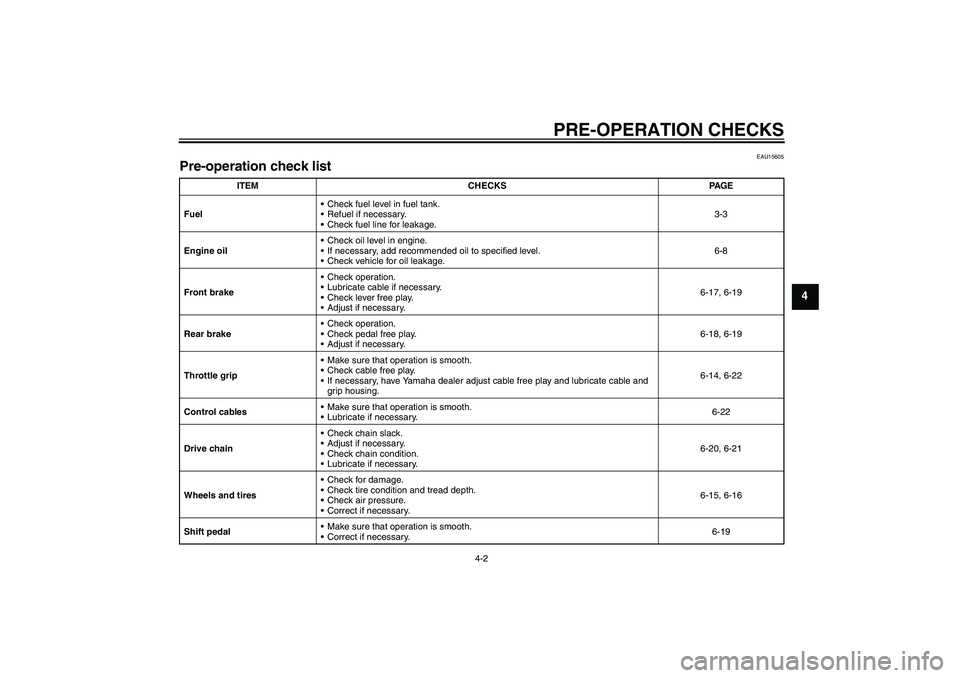

Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-3
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-8
Front brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-17, 6-19
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.6-18, 6-19
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-14, 6-22
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-22
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-20, 6-21
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-15, 6-16
Shift pedalMake sure that operation is smooth.
Correct if necessary.6-19
U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM
Page 32 of 78
PRE-OPERATION CHECKS
4-3
4

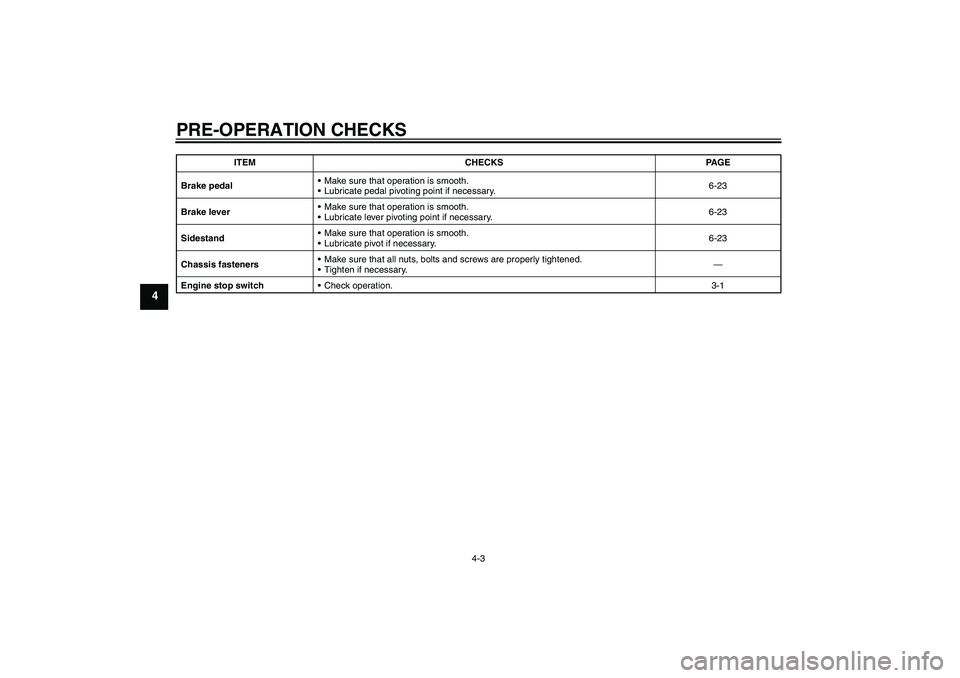

Brake pedalMake sure that operation is smooth.
Lubricate pedal pivoting point if necessary.6-23
Brake leverMake sure that operation is smooth.
Lubricate lever pivoting point if necessary.6-23
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-23
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switchCheck operation.3-1 ITEM CHECKS PAGE
U5B680E0.book Page 3 Tuesday, July 17, 2007 9:11 AM
Page 33 of 78
OPERATION AND IMPORTANT RIDING POINTS
5-1
5

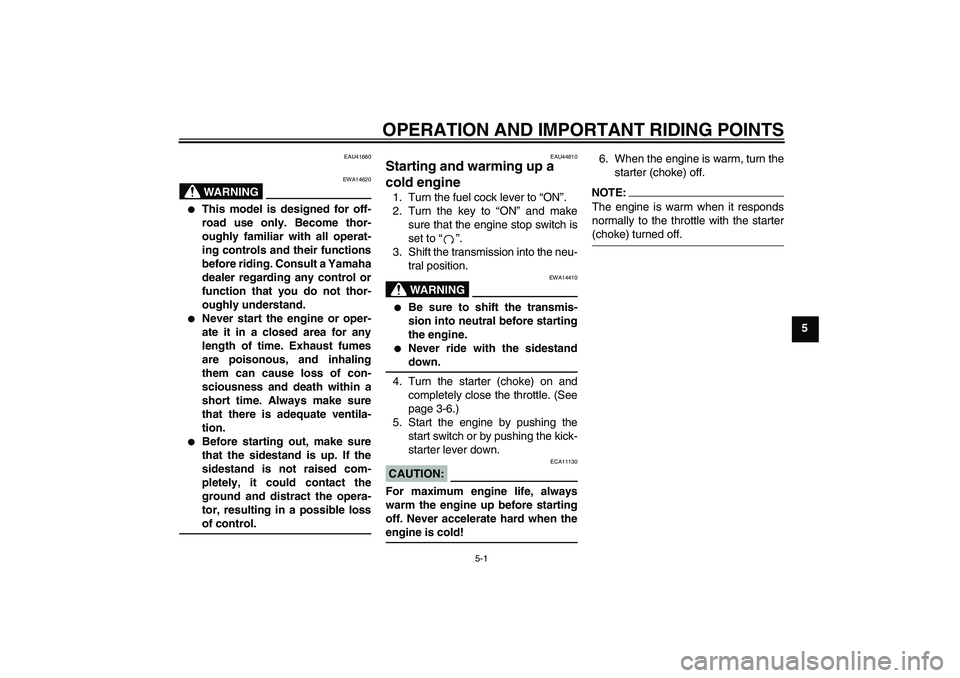

EAU41680
WARNING
EWA14620
This model is designed for off-
road use only. Become thor-
oughly familiar with all operat-
ing controls and their functions
before riding. Consult a Yamaha
dealer regarding any control or
function that you do not thor-
oughly understand.
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU44810
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410
Be sure to shift the transmis-
sion into neutral before starting
the engine.
Never ride with the sidestanddown.
4. Turn the starter (choke) on and
completely close the throttle. (See
page 3-6.)
5. Start the engine by pushing the
start switch or by pushing the kick-
starter lever down.
CAUTION:
ECA11130
For maximum engine life, always
warm the engine up before starting
off. Never accelerate hard when theengine is cold!6. When the engine is warm, turn the
starter (choke) off.
NOTE:The engine is warm when it responds
normally to the throttle with the starter(choke) turned off.
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
Page 34 of 78
OPERATION AND IMPORTANT RIDING POINTS
5-2
5

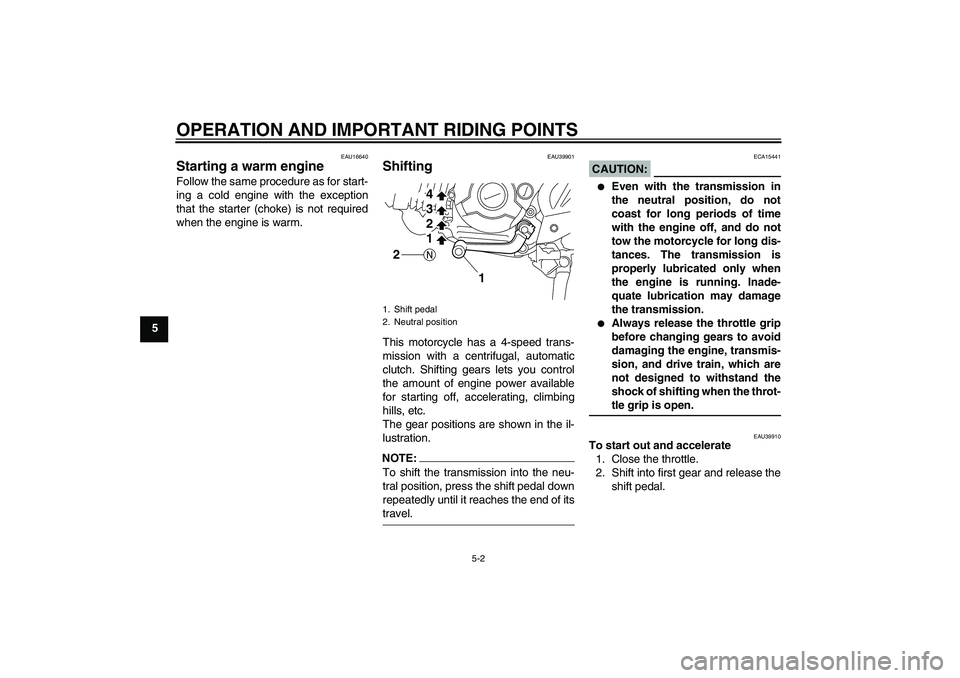

EAU16640
Starting a warm engine Follow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
EAU39901
Shifting This motorcycle has a 4-speed trans-
mission with a centrifugal, automatic
clutch. Shifting gears lets you control
the amount of engine power available
for starting off, accelerating, climbing
hills, etc.
The gear positions are shown in the il-
lustration.NOTE:To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel.
CAUTION:
ECA15441
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
Always release the throttle grip
before changing gears to avoid
damaging the engine, transmis-
sion, and drive train, which are
not designed to withstand the
shock of shifting when the throt-tle grip is open.
EAU39910
To start out and accelerate
1. Close the throttle.
2. Shift into first gear and release the
shift pedal.
1. Shift pedal
2. Neutral position
1
2
1 2
34
U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM
Page 35 of 78
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
CAUTION:
ECA15460
Always close the throttle before
shifting gears, otherwise damage to
the engine and drive train may re-sult.
3. Open the throttle gradually.
4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle.
5. Shift into second gear and release
the shift pedal.
6. Open the throttle gradually.
7. Follow the same procedure when
shifting to the next higher gear.
EAU16710
To decelerate
1. Close the throttle and apply both
the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and
shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU39920
Engine break-in There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to ac-
custom the rider to the motorcycle dur-
ing this time. Please read the following
information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first 5
hours of operation. The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided. However, momentary full-
throttle operation under load (i.e., two
to three seconds maximum) does not
harm the engine. Each full-throttle ac-
celeration should be followed with a
substantial rest period for the engine.
To allow the engine to cool down from
the temporary buildup of heat, cruise at
a lower engine speed.
After the first 5 hours of operation, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
CAUTION:
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealercheck the vehicle.
U5B680E0.book Page 3 Tuesday, July 17, 2007 9:11 AM
Page 36 of 78
OPERATION AND IMPORTANT RIDING POINTS
5-4
5

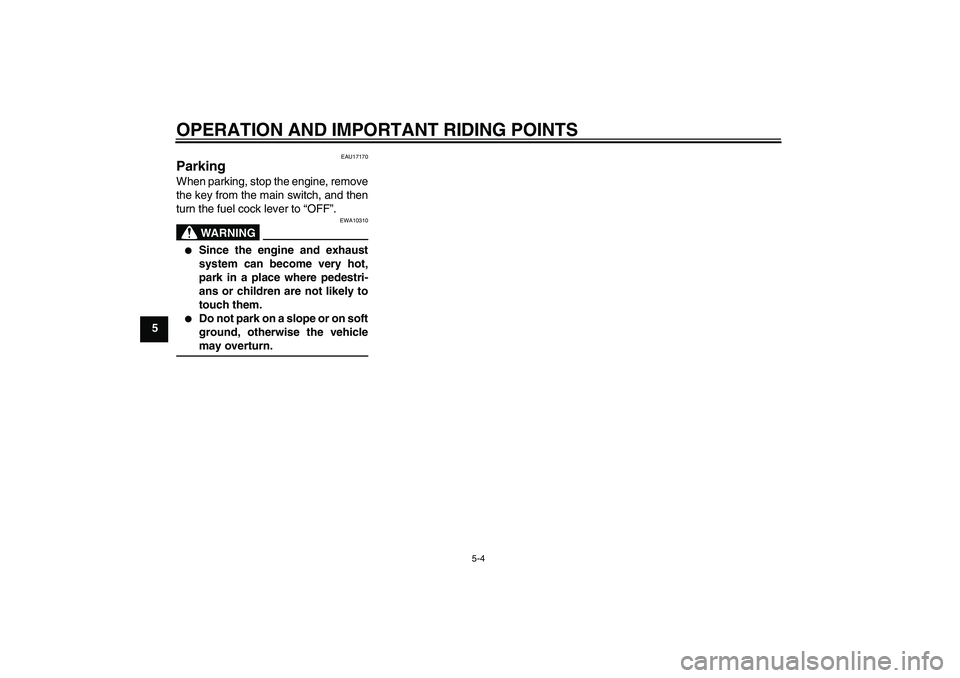

EAU17170
Parking When parking, stop the engine, remove
the key from the main switch, and then
turn the fuel cock lever to “OFF”.
WARNING
EWA10310
Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.
Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
U5B680E0.book Page 4 Tuesday, July 17, 2007 9:11 AM
Page 37 of 78

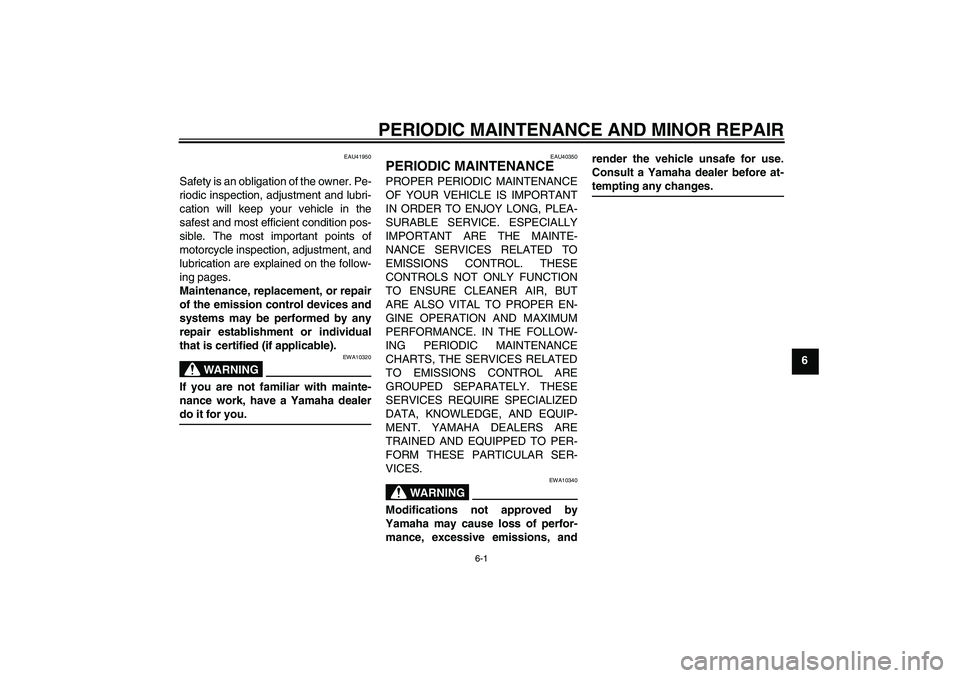

PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
EAU41950
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of
motorcycle inspection, adjustment, and
lubrication are explained on the follow-
ing pages.
Maintenance, replacement, or repair
of the emission control devices and
systems may be performed by any
repair establishment or individual
that is certified (if applicable).
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
EAU40350
PERIODIC MAINTENANCE PROPER PERIODIC MAINTENANCE
OF YOUR VEHICLE IS IMPORTANT
IN ORDER TO ENJOY LONG, PLEA-
SURABLE SERVICE. ESPECIALLY
IMPORTANT ARE THE MAINTE-
NANCE SERVICES RELATED TO
EMISSIONS CONTROL. THESE
CONTROLS NOT ONLY FUNCTION
TO ENSURE CLEANER AIR, BUT
ARE ALSO VITAL TO PROPER EN-
GINE OPERATION AND MAXIMUM
PERFORMANCE. IN THE FOLLOW-
ING PERIODIC MAINTENANCE
CHARTS, THE SERVICES RELATED
TO EMISSIONS CONTROL ARE
GROUPED SEPARATELY. THESE
SERVICES REQUIRE SPECIALIZED
DATA, KNOWLEDGE, AND EQUIP-
MENT. YAMAHA DEALERS ARE
TRAINED AND EQUIPPED TO PER-
FORM THESE PARTICULAR SER-
VICES.
WARNING
EWA10340
Modifications not approved by
Yamaha may cause loss of perfor-
mance, excessive emissions, andrender the vehicle unsafe for use.
Consult a Yamaha dealer before at-
tempting any changes.
U5B680E0.book Page 1 Tuesday, July 17, 2007 9:11 AM
Page 38 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6

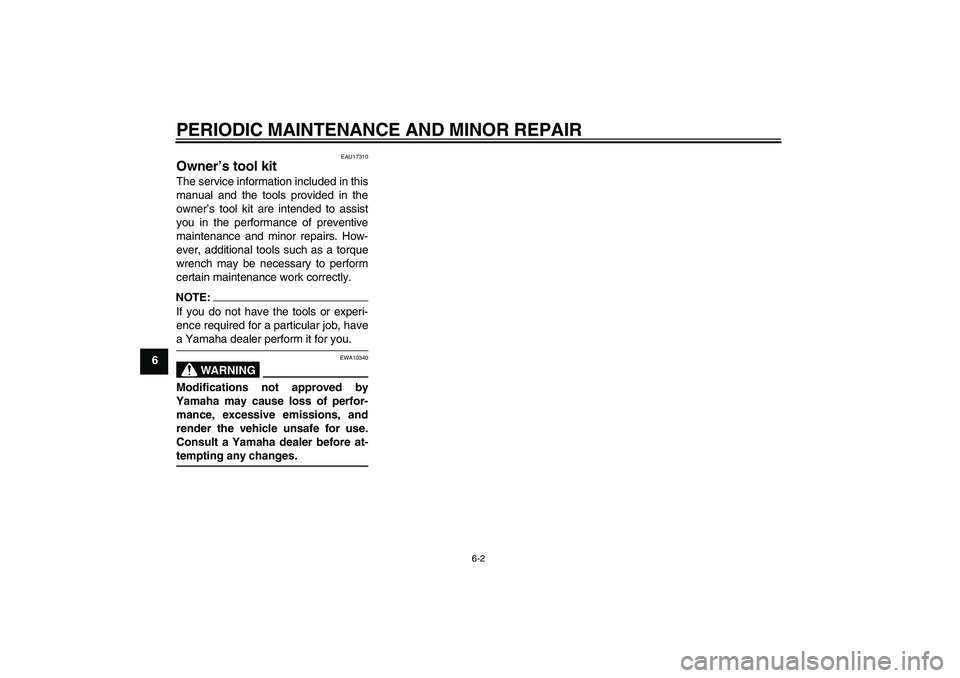

EAU17310
Owner’s tool kit The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10340
Modifications not approved by
Yamaha may cause loss of perfor-
mance, excessive emissions, and
render the vehicle unsafe for use.
Consult a Yamaha dealer before at-tempting any changes.U5B680E0.book Page 2 Tuesday, July 17, 2007 9:11 AM
Page 39 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
EAU39943

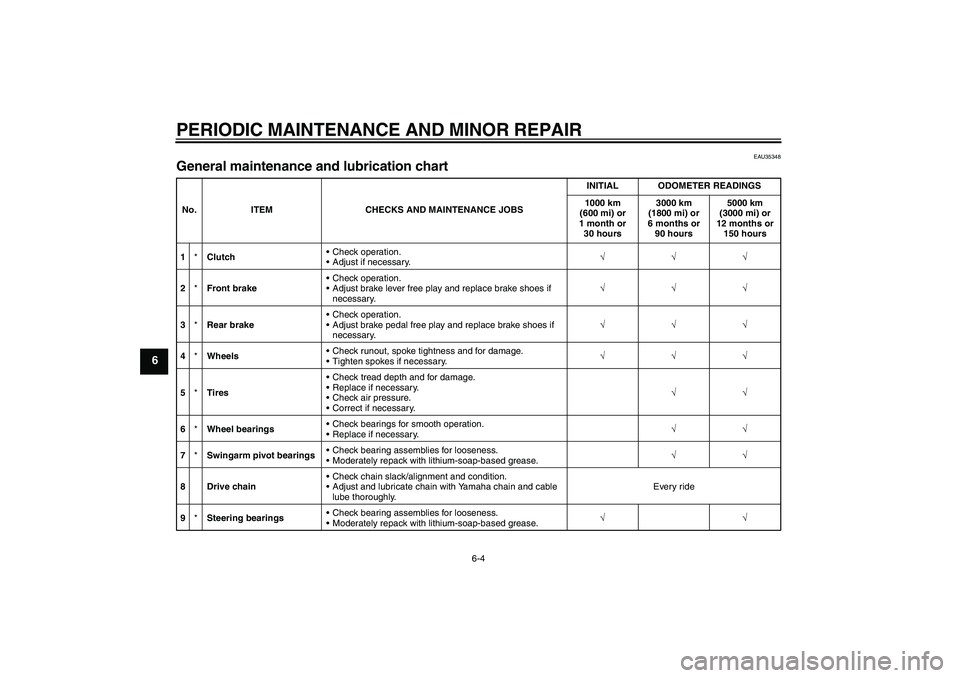

Periodic maintenance chart for the emission control system NOTE:
From 7000 km (4200 mi) or 18 months, repeat the maintenance intervals starting from 3000 km (1800 mi) or 6 months.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.√√
2 Spark plugCheck condition.
Adjust gap and clean.√√
3*Valve clearanceCheck and adjust valve clearance when engine is cold.√
4*Air filter elementClean with solvent.
Replace if necessary.√√
5*Crankcase breather sys-
temCheck ventilation hose for cracks or damage and drain
any deposits.
Replace if necessary.√√√
6*CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.√√√
7 Exhaust systemCheck for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.√√
8 Engine oilChange (warm engine before draining).√√√
U5B680E0.book Page 3 Tuesday, July 17, 2007 9:11 AM
Page 40 of 78
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU35348
General maintenance and lubrication chart No. ITEM CHECKS AND MAINTENANCE JOBSINITIAL ODOMETER READINGS
1000 km
(600 mi) or
1 month or
30 hours3000 km
(1800 mi) or
6 months or
90 hours5000 km
(3000 mi) or
12 months or
150 hours
1*ClutchCheck operation.
Adjust if necessary.√√√
2*Front brakeCheck operation.
Adjust brake lever free play and replace brake shoes if
necessary.√√√
3*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake shoes if
necessary.√√√
4*WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√√√
5*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√
6*Wheel bearingsCheck bearings for smooth operation.
Replace if necessary.√√
7*Swingarm pivot bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
8 Drive chainCheck chain slack/alignment and condition.
Adjust and lubricate chain with Yamaha chain and cable
lube thoroughly.Every ride
9*Steering bearingsCheck bearing assemblies for looseness.
Moderately repack with lithium-soap-based grease.√√
U5B680E0.book Page 4 Tuesday, July 17, 2007 9:11 AM
