YAMAHA TTR125 2003  Owners Manual CHAS
5 - 43

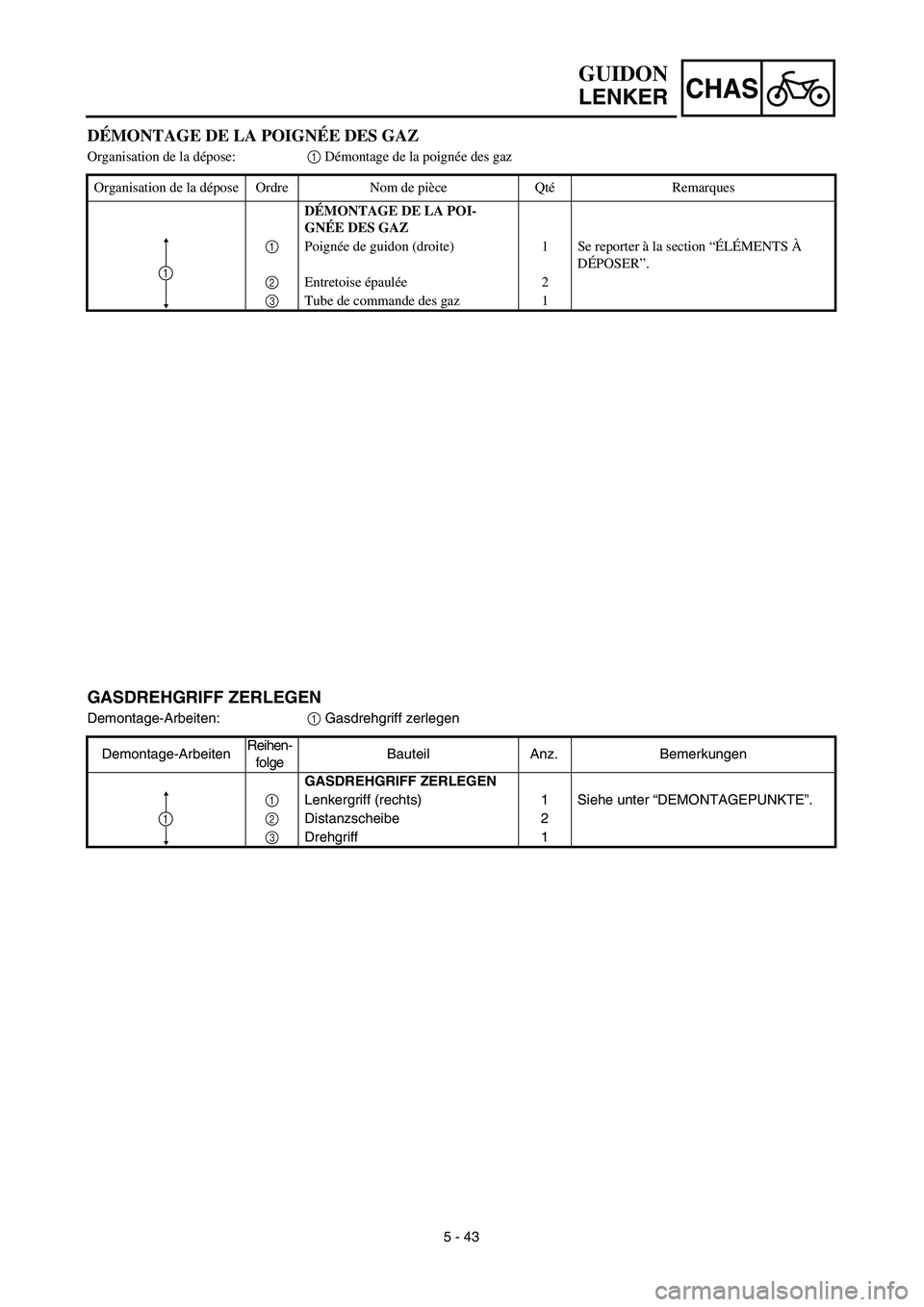

DÉMONTAGE DE LA POIGNÉE DES GAZ
Organisation de la dépose:1 Démontage de la poignée des gaz
Organisation de la dépose Ordre Nom de pièce QtéRemarques
DÉMONTAGE DE LA POI-
GNÉE D

Page 492 of 578

YAMAHA TTR125 2003  Owners Manual 5 - 44
CHAS

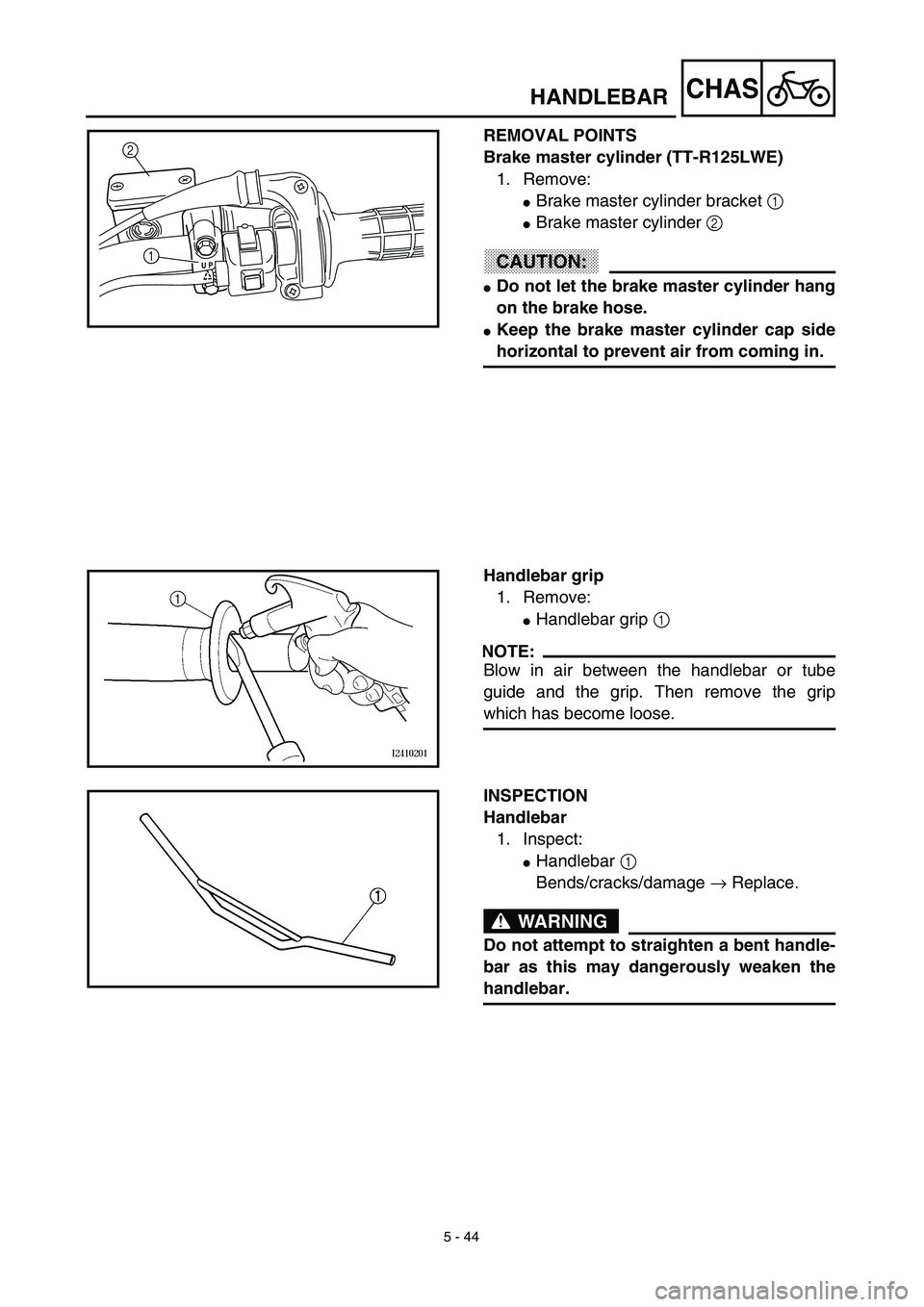

REMOVAL POINTS
Brake master cylinder (TT-R125LWE)
1. Remove:
Brake master cylinder bracket 1
Brake master cylinder 2
CAUTION:
Do not let the brake master cylinder hang
on the brake ho

Page 493 of 578

YAMAHA TTR125 2003  Owners Manual 5 - 44
CHAS

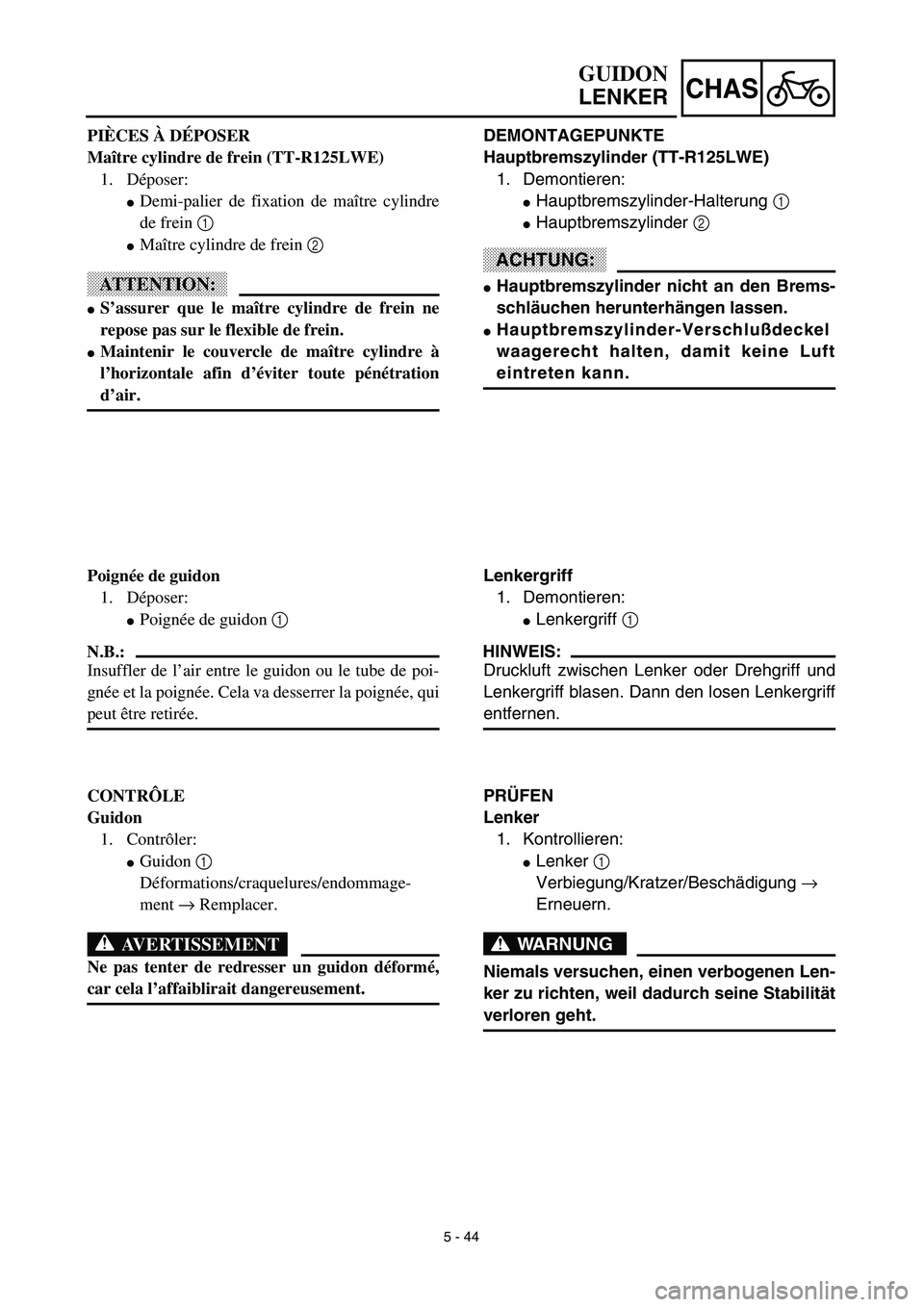

DEMONTAGEPUNKTE
Hauptbremszylinder (TT-R125LWE)
1. Demontieren:
Hauptbremszylinder-Halterung 1
Hauptbremszylinder 2
ACHTUNG:
Hauptbremszylinder nicht an den Brems-
schläuchen herunterh

Page 494 of 578

YAMAHA TTR125 2003  Owners Manual 5 - 45
CHAS

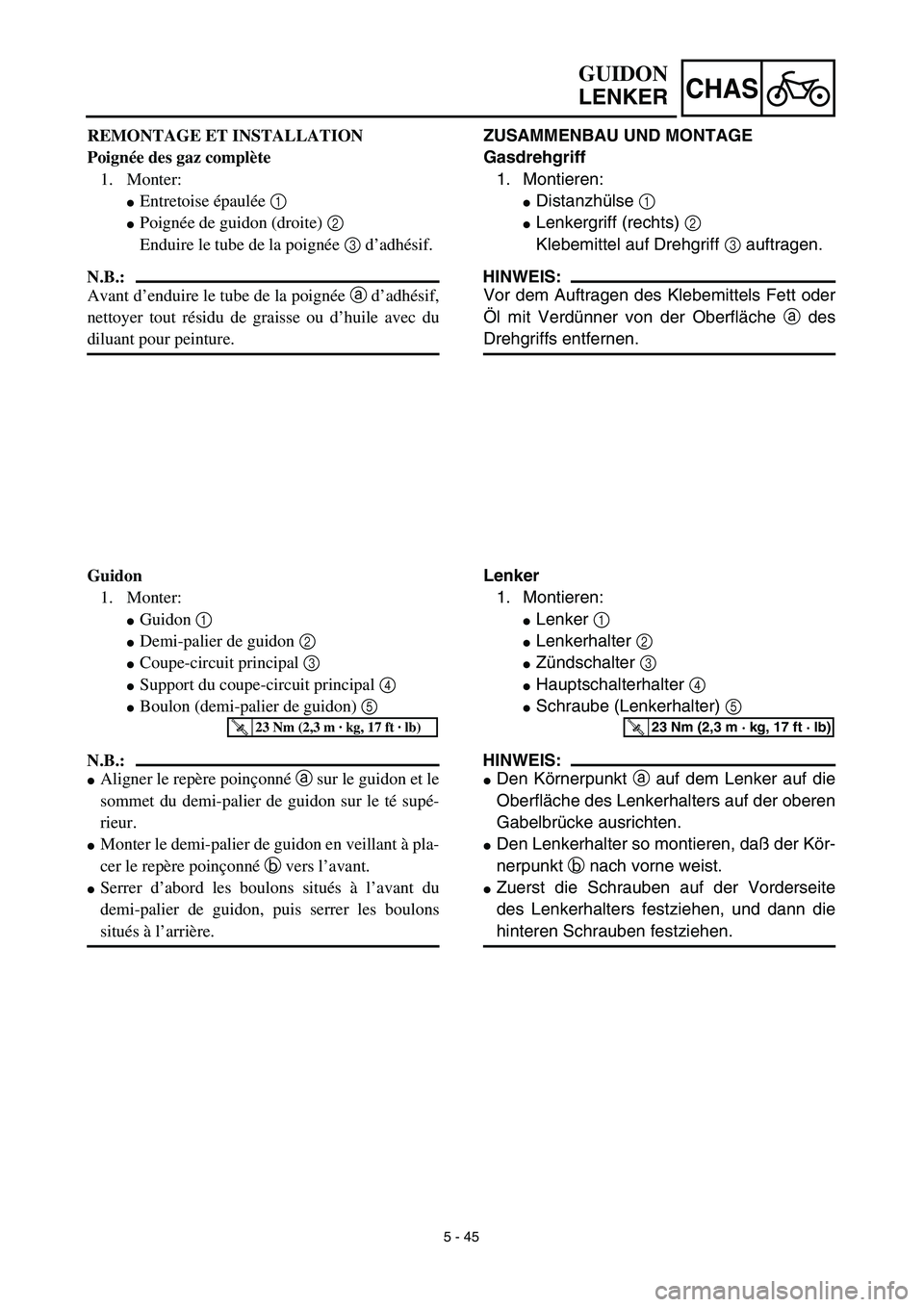

ASSEMBLY AND INSTALLATION
Throttle grip assembly
1. Install:
Collar 1
Handlebar grip (right) 2
Apply the adhesive on the tube guide
3.
NOTE:
Before applying the adhesive, wipe off grea

Page 495 of 578

YAMAHA TTR125 2003  Owners Manual 5 - 45
CHAS
ZUSAMMENBAU UND MONTAGE
Gasdrehgriff
1. Montieren:
Distanzhülse 1
Lenkergriff (rechts) 2
Klebemittel auf Drehgriff 3 auftragen.
HINWEIS:
Vor dem Auftragen des Klebemittels Fett oder

Page 496 of 578

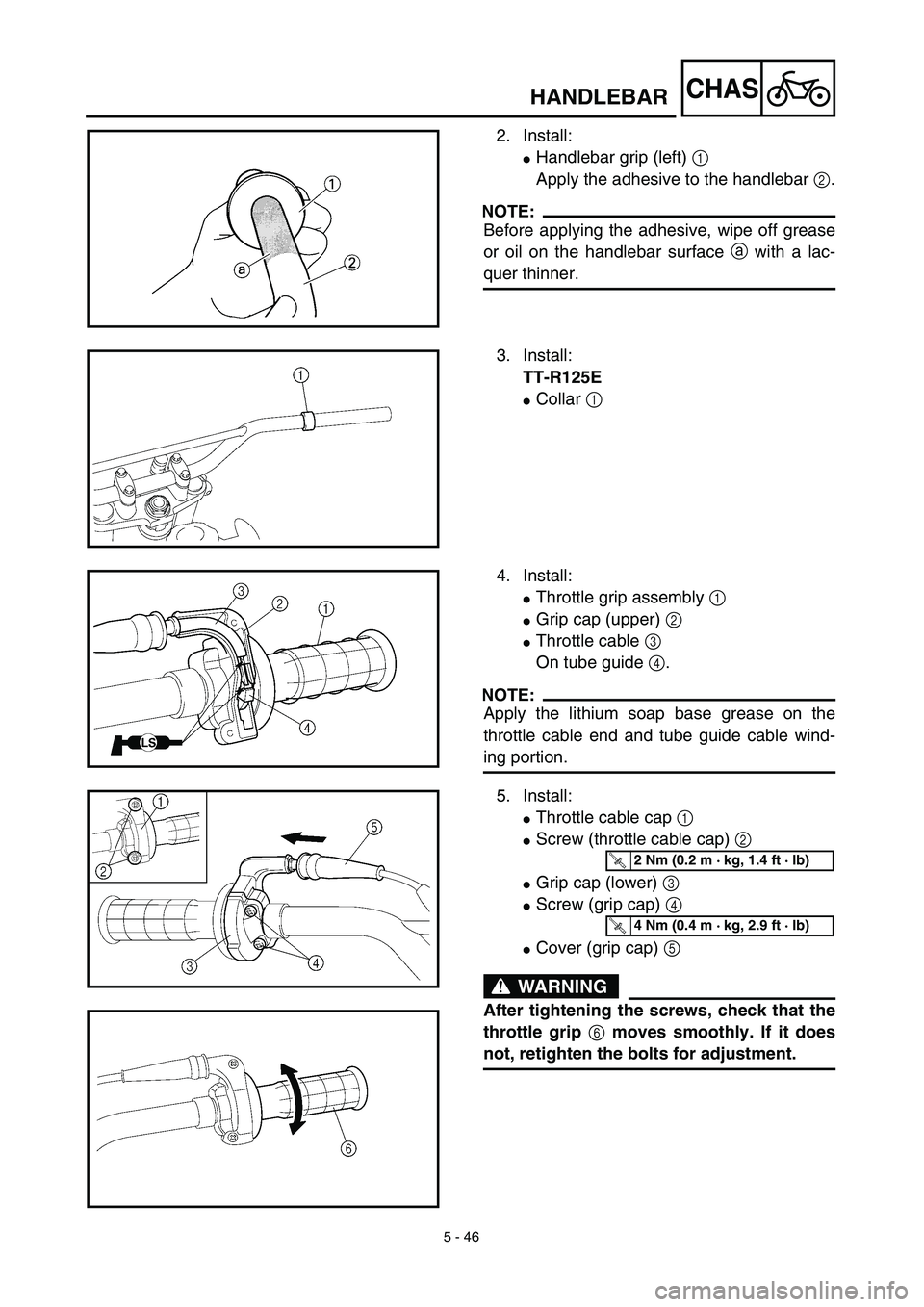

YAMAHA TTR125 2003  Owners Manual 5 - 46
CHAS
2. Install:
Handlebar grip (left) 1
Apply the adhesive to the handlebar 2.
NOTE:
Before applying the adhesive, wipe off grease
or oil on the handlebar surface a with a lac-
quer thinner

Page 497 of 578

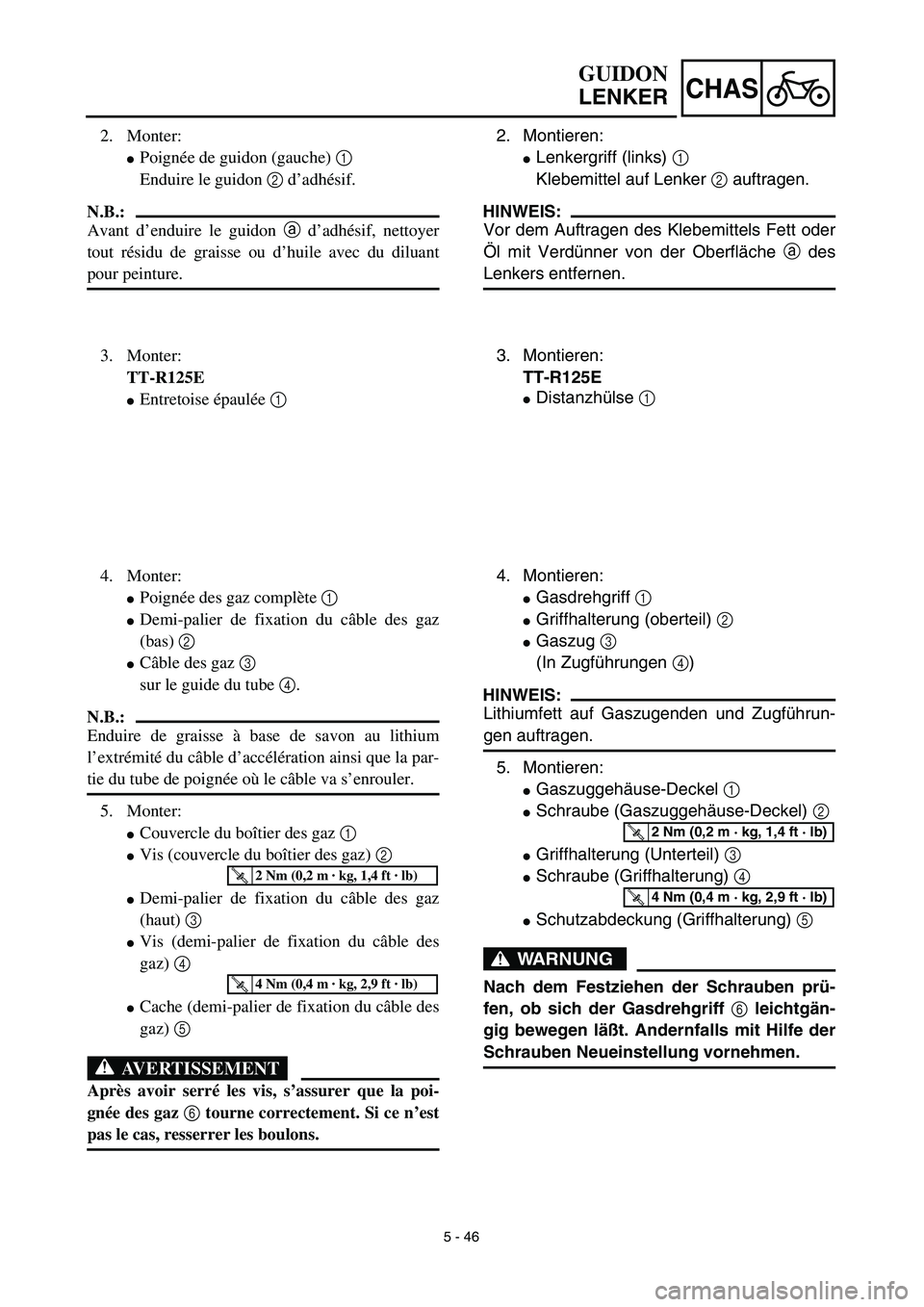

YAMAHA TTR125 2003  Owners Manual 5 - 46
CHAS
2. Montieren:
Lenkergriff (links) 1
Klebemittel auf Lenker 2 auftragen.
HINWEIS:
Vor dem Auftragen des Klebemittels Fett oder
Öl mit Verdünner von der Oberfläche a des
Lenkers entfern

Page 498 of 578

YAMAHA TTR125 2003  Owners Manual 5 - 47
CHAS
6. Install:
TT-R125E
Start switch 1
Bolts (start switch) 2
Front brake cable 3
Clamp
NOTE:
Apply the lithium soap base grease on the
front brake cable end.
TT-R125LWE
Start switch

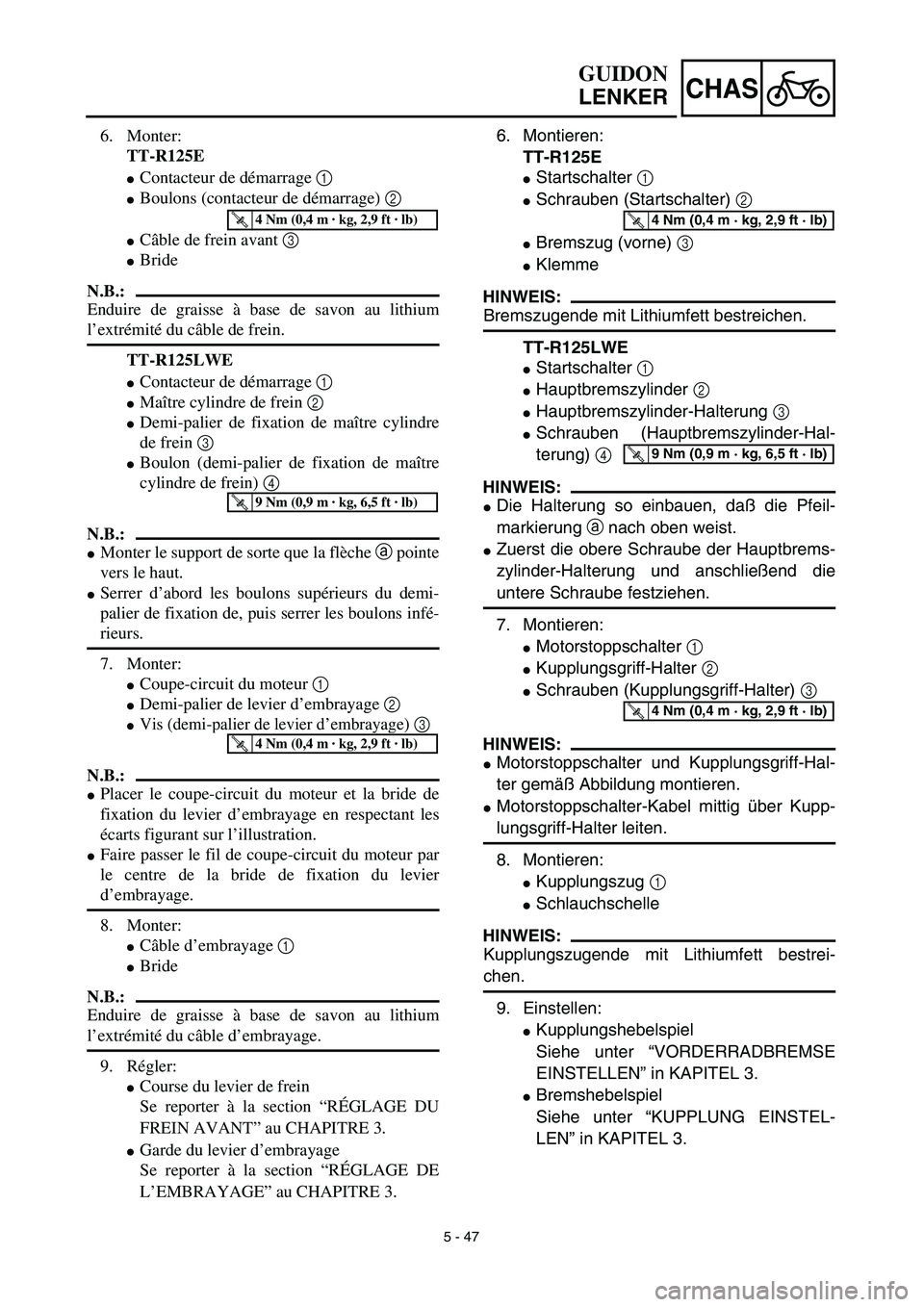

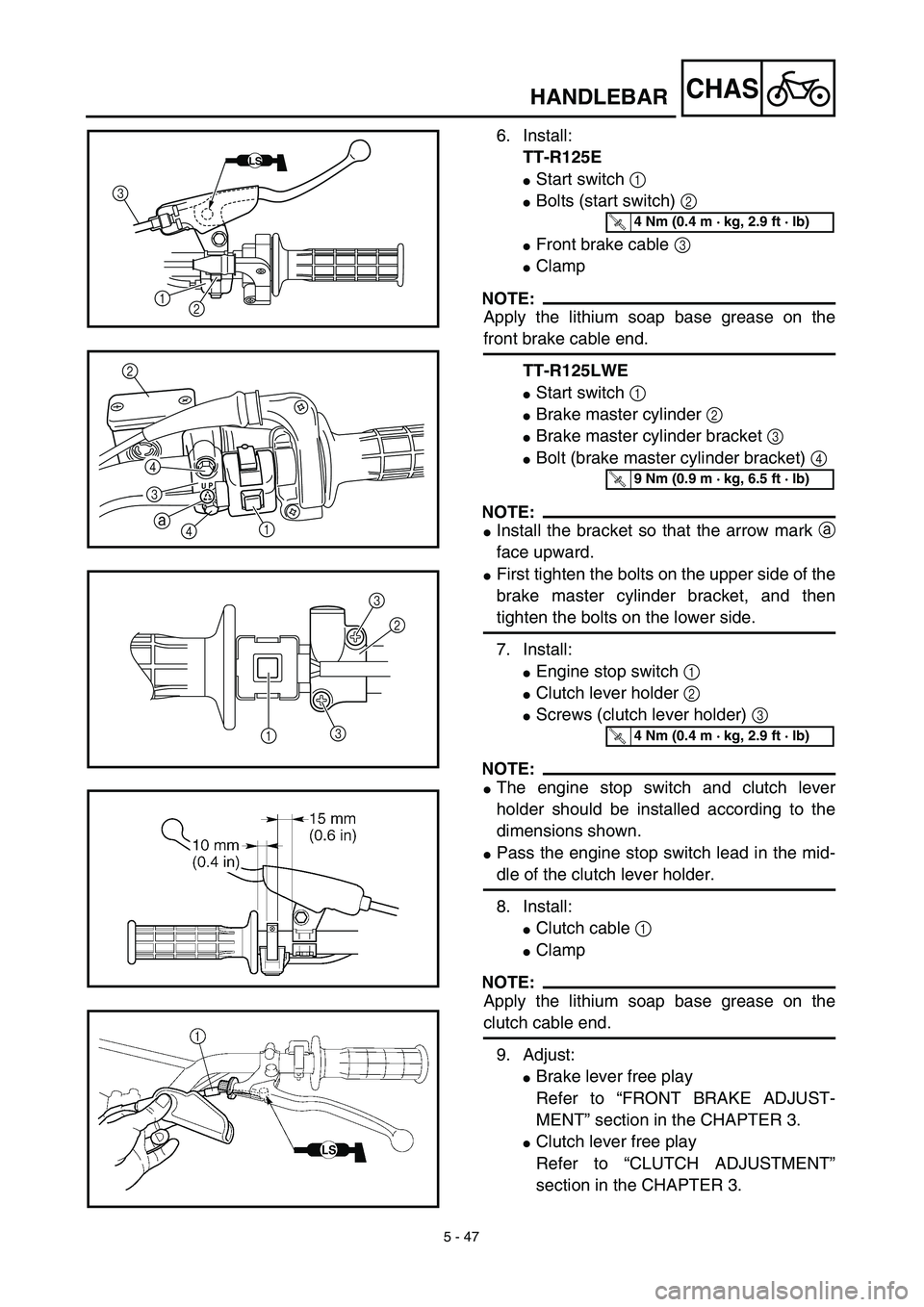

Page 499 of 578

YAMAHA TTR125 2003  Owners Manual 5 - 47
CHAS
6. Montieren:
TT-R125E
Startschalter 1
Schrauben (Startschalter) 2
Bremszug (vorne) 3
Klemme
HINWEIS:
Bremszugende mit Lithiumfett bestreichen.
TT-R125LWE
Startschalter 1
Hauptbre

Page 500 of 578

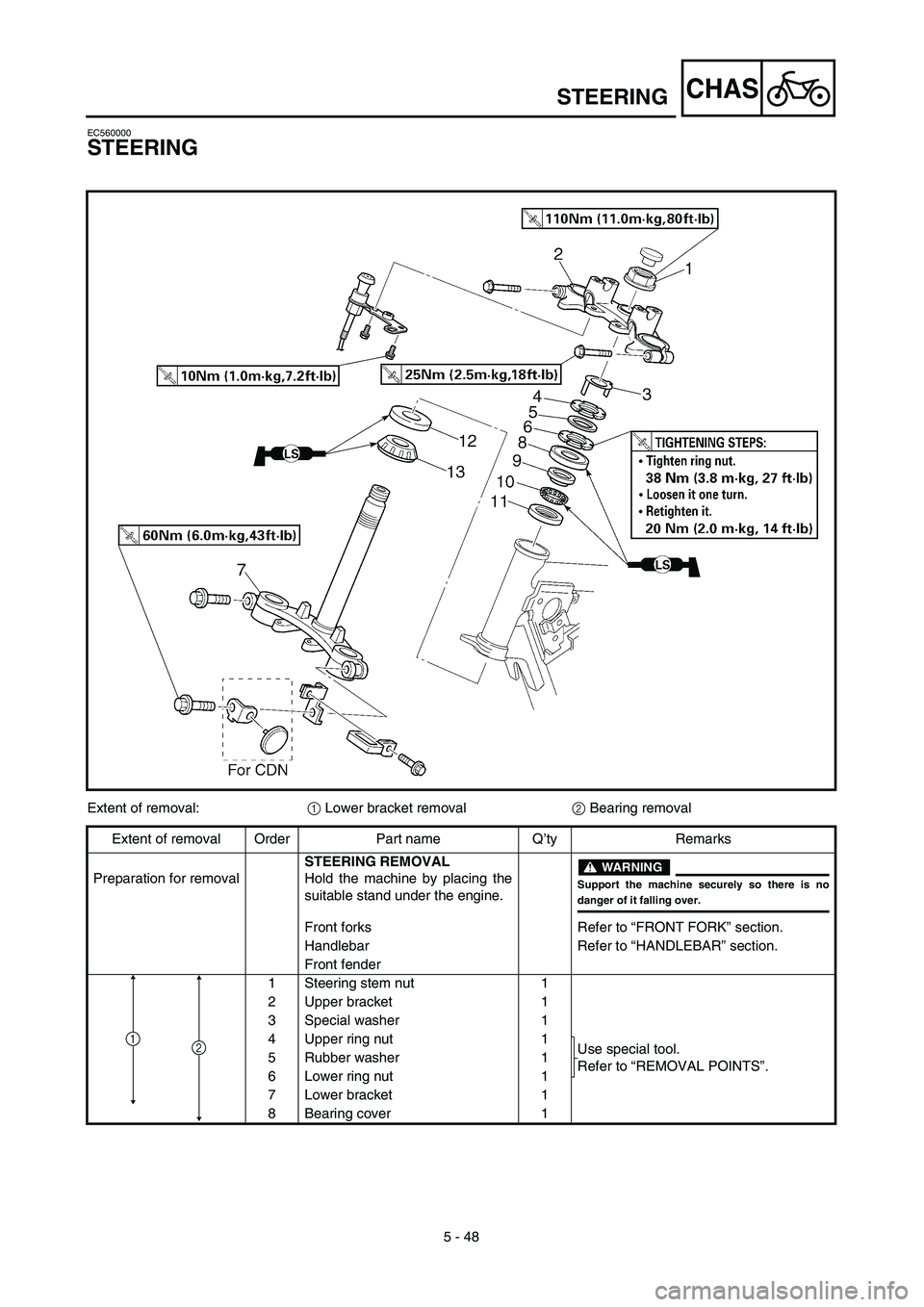

YAMAHA TTR125 2003  Owners Manual 5 - 48
CHASSTEERING
EC560000
STEERING
Extent of removal:1 Lower bracket removal2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalSTEERING REMOVAL
Hold the machi
