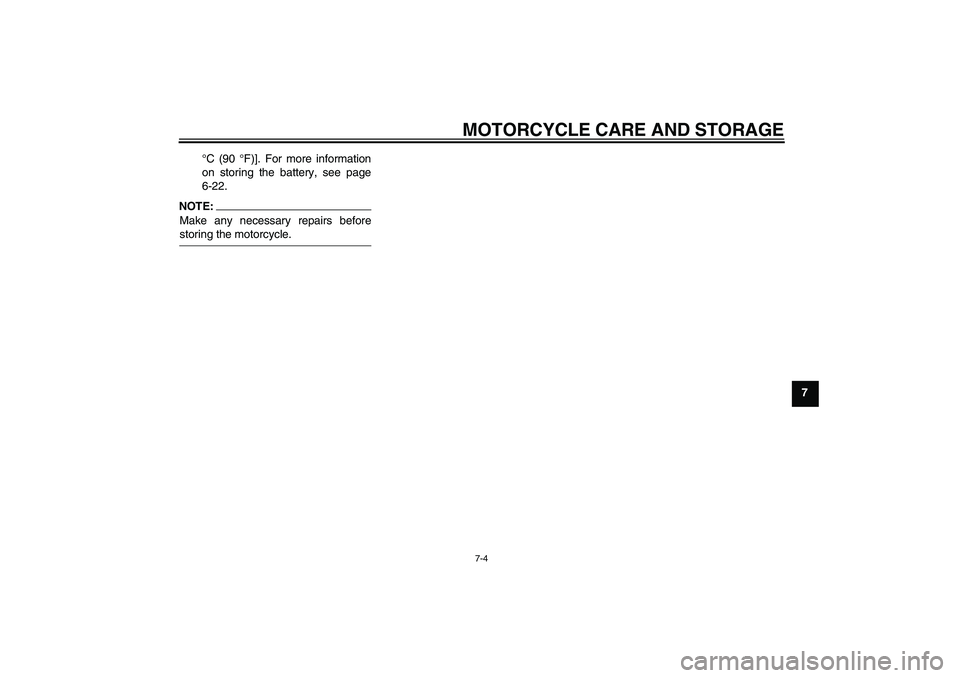

MOTORCYCLE CARE AND STORAGE
7-4
7 °C (90 °F)]. For more information
on storing the battery, see page
6-22.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U1P681E0.book Page 4 Tuesday, April 18, 2006 2:38 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1305 mm (51.4 in)
Overall width:
595 mm (23.4 in)
Overall height:
775 mm (30.5 in)
Seat height:
555 mm (21.9 in)
Wheelbase:
925 mm (36.4 in)
Ground clearance:
135 mm (5.31 in)
Minimum turning radius:
1400 mm (55.1 in)Weight:With oil and fuel:
57.0 kg (126 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.0 cm³ (2.99 cu.in)
Bore × stroke:
36.0 × 48.6 mm (1.42 × 1.91 in)
Compression ratio:
9.50 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
(AUS)(AUT)(BEL)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(NZL)(PRT)(SWE)(ZAF)
YAMALUBE 4, SAE10W30 or SAE20W40
(CAN)
Recommended engine oil grade:
API service SE, SF, SG type or higherEngine oil quantity:
Periodic oil change:
0.80 L (0.85 US qt) (0.70 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
(AUT)(BEL)(CAN)(CHE)(DEU)(DNK)(ESP
)(FIN)(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)
(PRT)(SWE)(ZAF)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
3.1 L (0.82 US gal) (0.68 Imp.gal)
Fuel reserve amount:
0.4 L (0.11 US gal) (0.09 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type × quantity:
VM11 x 1Spark plug (s):Manufacturer/model:
NGK/CR7HSA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-disc and centrifugal
automaticTransmission:Primary reduction system:
Spur gear
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
10° 30° 50° 70° 90°
110°
0°
130°F
YAMALUBE 4 (10W30)
or SAE 10W30
YAMALUBE 4 (20W40)
or SAE 20W40
–10° 0° 10° 20° 30°
40° –20°
50°C
U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM

SPECIFICATIONS
8-2
8
Primary reduction ratio:
67/18 (3.722)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
37/13 (2.846)
Transmission type:
Constant mesh 3-speed
Operation:
Left foot operation
Gear ratio:
1st:
39/12 (3.250)
2nd:
33/19 (1.736)
3rd:
28/23 (1.217)Chassis:Frame type:
Steel tube backbone
Caster angle:
25.50 °
Trail:
34.0 mm (1.34 in)Front tire:Type:
With tube
Size:
2.50-10 4PR
Manufacturer/model:
CHENG SHIN/KNOBBYRear tire:Type:
With tubeSize:
2.50-10 4PR
Manufacturer/model:
CHENG SHIN/KNOBBY
Tire air pressure (measured on cold
tires):
Front:
100 kPa (15 psi) (1.00 kgf/cm²)
Rear:
100 kPa (15 psi) (1.00 kgf/cm²)
Front wheel:Wheel type:
Spoke wheel
Rim size:
10x1.40Rear wheel:Wheel type:
Spoke wheel
Rim size:
10x1.40Front brake:Type:
Drum brake
Operation:
Right hand operationRear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring
Wheel travel:
96.0 mm (3.78 in)
Rear suspension:Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
71.0 mm (2.80 in)Electrical system:Ignition system:
CDI
Charging system:
AC magnetoBattery:Model:
YT4B-BS/GT4B-5
Voltage, capacity:
12 V, 2.3 Ah/12 V, 2.5 AhFuse:Fuse:
10.0 A
U1P681E0.book Page 2 Tuesday, April 18, 2006 2:38 PM

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26390
Key identification number
The key identification number is
stamped into the key. Record this num-
ber in the space provided and use it for
reference when ordering a new key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
1. Vehicle identification number
1
U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM

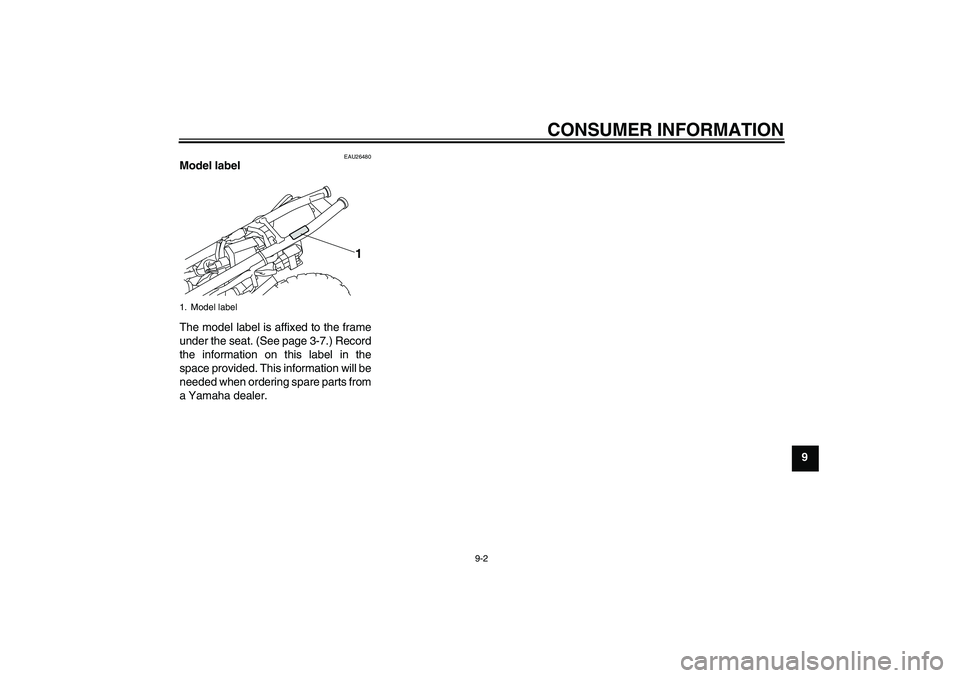

CONSUMER INFORMATION
9-2
9
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-7.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model label
1
U1P681E0.book Page 2 Tuesday, April 18, 2006 2:38 PM

INDEXAAccessories and replacement parts ...... 6-14
Air filter element, cleaning....................... 6-8BBattery................................................... 6-22
Brake and shift pedals,
checking and lubricating ..................... 6-19
Brake lever .............................................. 3-3
Brake lever, checking and lubricating ... 6-20
Brake lever free play, adjusting............. 6-14
Brake pedal ............................................. 3-3
Brake pedal free play, adjusting............ 6-15
Brake shoes, checking .......................... 6-16CCables, checking and lubricating .......... 6-19
Carburetor, adjusting ............................ 6-10
Care ........................................................ 7-1DDrive chain, cleaning and lubricating .... 6-18
Drive chain slack ................................... 6-16EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-11
Engine oil ................................................ 6-6
Engine, starting a warm .......................... 5-2
Engine stop switch .................................. 3-1FFront fork, checking .............................. 6-21
Fuel ......................................................... 3-4
Fuel cock................................................. 3-5
Fuel tank breather hose .......................... 3-5
Fuel tank cap .......................................... 3-3
Fuse, replacing ..................................... 6-24
HHandlebar switches ................................ 3-1IIdentification numbers ............................ 9-1KKey identification number ....................... 9-1LLabels, location of................................... 1-4MMain switch ............................................. 3-1
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Maintenance, periodic ............................ 6-1
Model label ............................................. 9-2PParking ................................................... 5-4
Part locations .......................................... 2-1
Pre-operation check list .......................... 4-2SSafety information................................... 1-1
Seat ........................................................ 3-7
Shifting.................................................... 5-2
Shift pedal............................................... 3-2
Sidestand................................................ 3-7
Sidestand, checking and lubricating ..... 6-20
Spark arrester, cleaning ......................... 6-9
Spark plug, checking .............................. 6-5
Specifications ......................................... 8-1
Speed limiter........................................... 3-2
Starter (choke) lever ............................... 3-6
Starting and warming up a cold
engine .................................................. 5-1
Starting circuit cut-off system ................. 3-8
Start switch ............................................. 3-1Steering, checking................................. 6-21
Storage.................................................... 7-3
Supporting the motorcycle .................... 6-25
Swingarm pivots, lubricating ................. 6-20
TThrottle cable free play, adjusting ......... 6-11
Throttle grip and cable,
checking and lubricating ..................... 6-19
Tires ...................................................... 6-12
Troubleshooting .................................... 6-29
Troubleshooting chart ........................... 6-30VValve clearance..................................... 6-12
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-22
Wheel (front) ......................................... 6-25
Wheel (rear) .......................................... 6-27
Wheels .................................................. 6-14
U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM

U1P681E0.book Page 2 Tuesday, April 18, 2006 2:38 PM

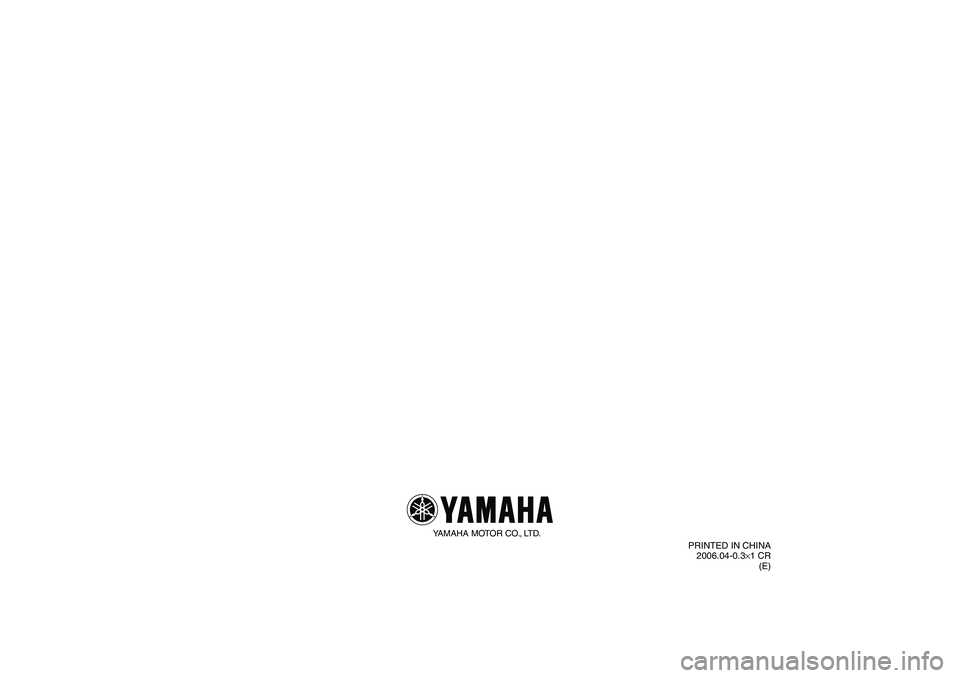

YAMAHA MOTOR CO., LTD.
