YAMAHA TTR50 2008 Owners Manual

1P6-F8199-82
TT-R50E
TT-R50EX
OWNER’S MANUAL
MANUEL DU PROPRIÉTAIRE
BEDIENUNGSANLEITUNG

YAMAHA MOTOR CO., LTD.
PRINTED IN CHINA
2007.05-0.3×1 CR
(E,F,G)

OWNER’S MANUAL
TT-R50E
TT-R50EX1P6-F8199-82-E0
U1P682E0.book Page 1 Wednesday, May 23, 2007 9:34 AM

U1P682E0.book Page 2 Wednesday, May 23, 2007 9:34 AM

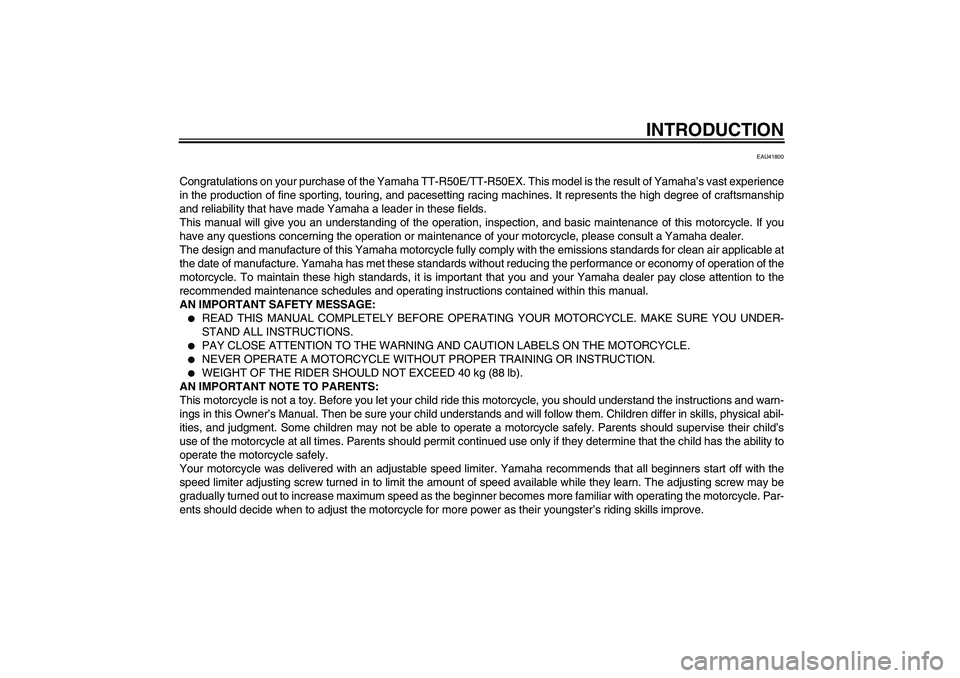

INTRODUCTION
EAU41800
Congratulations on your purchase of the Yamaha TT-R50E/TT-R50EX. This model is the result of Yamaha’s vast experience
in the production of fine sporting, touring, and pacesetting racing machines. It represents the high degree of craftsmanship
and reliability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic maintenance of this motorcycle. If you
have any questions concerning the operation or maintenance of your motorcycle, please consult a Yamaha dealer.
The design and manufacture of this Yamaha motorcycle fully comply with the emissions standards for clean air applicable at
the date of manufacture. Yamaha has met these standards without reducing the performance or economy of operation of the
motorcycle. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the
recommended maintenance schedules and operating instructions contained within this manual.
AN IMPORTANT SAFETY MESSAGE:

READ THIS MANUAL COMPLETELY BEFORE OPERATING YOUR MOTORCYCLE. MAKE SURE YOU UNDER-
STAND ALL INSTRUCTIONS.


PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE MOTORCYCLE.


NEVER OPERATE A MOTORCYCLE WITHOUT PROPER TRAINING OR INSTRUCTION.


WEIGHT OF THE RIDER SHOULD NOT EXCEED 40 kg (88 lb).
AN IMPORTANT NOTE TO PARENTS:
This motorcycle is not a toy. Before you let your child ride this motorcycle, you should understand the instructions and warn-
ings in this Owner’s Manual. Then be sure your child understands and will follow them. Children differ in skills, physical abil-
ities, and judgment. Some children may not be able to operate a motorcycle safely. Parents should supervise their child’s
use of the motorcycle at all times. Parents should permit continued use only if they determine that the child has the ability to
operate the motorcycle safely.
Your motorcycle was delivered with an adjustable speed limiter. Yamaha recommends that all beginners start off with the
speed limiter adjusting screw turned in to limit the amount of speed available while they learn. The adjusting screw may be
gradually turned out to increase maximum speed as the beginner becomes more familiar with operating the motorcycle. Par-
ents should decide when to adjust the motorcycle for more power as their youngster’s riding skills improve.
U1P682E0.book Page 1 Wednesday, May 23, 2007 9:34 AM

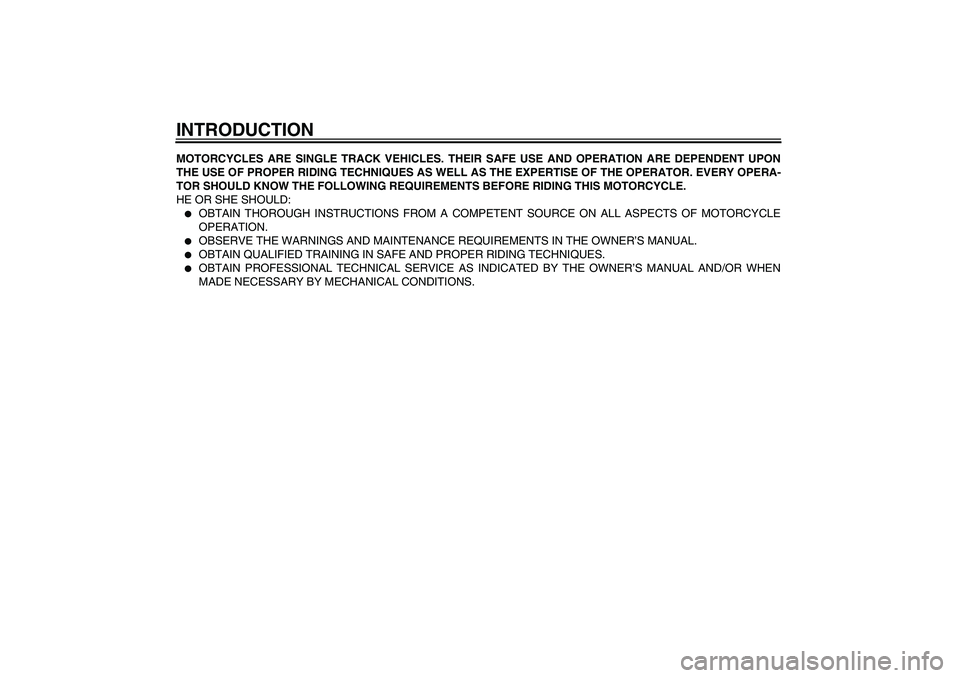

INTRODUCTIONMOTORCYCLES ARE SINGLE TRACK VEHICLES. THEIR SAFE USE AND OPERATION ARE DEPENDENT UPON
THE USE OF PROPER RIDING TECHNIQUES AS WELL AS THE EXPERTISE OF THE OPERATOR. EVERY OPERA-
TOR SHOULD KNOW THE FOLLOWING REQUIREMENTS BEFORE RIDING THIS MOTORCYCLE.
HE OR SHE SHOULD:

OBTAIN THOROUGH INSTRUCTIONS FROM A COMPETENT SOURCE ON ALL ASPECTS OF MOTORCYCLE
OPERATION.


OBSERVE THE WARNINGS AND MAINTENANCE REQUIREMENTS IN THE OWNER’S MANUAL.


OBTAIN QUALIFIED TRAINING IN SAFE AND PROPER RIDING TECHNIQUES.


OBTAIN PROFESSIONAL TECHNICAL SERVICE AS INDICATED BY THE OWNER’S MANUAL AND/OR WHEN
MADE NECESSARY BY MECHANICAL CONDITIONS.
U1P682E0.book Page 2 Wednesday, May 23, 2007 9:34 AM

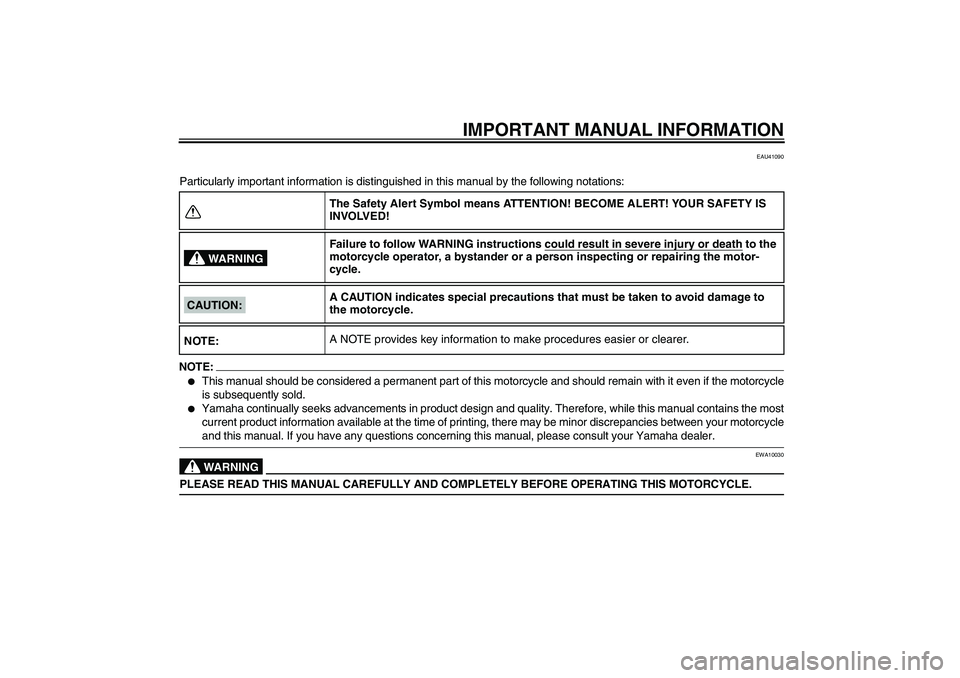

IMPORTANT MANUAL INFORMATION
EAU41090
Particularly important information is distinguished in this manual by the following notations:NOTE:

This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle
is subsequently sold.


Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your motorcycleand this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.WARNING
EWA10030
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death
to the
motorcycle operator, a bystander or a person inspecting or repairing the motor-
cycle.
A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:
NOTE:
U1P682E0.book Page 1 Wednesday, May 23, 2007 9:34 AM

IMPORTANT MANUAL INFORMATION

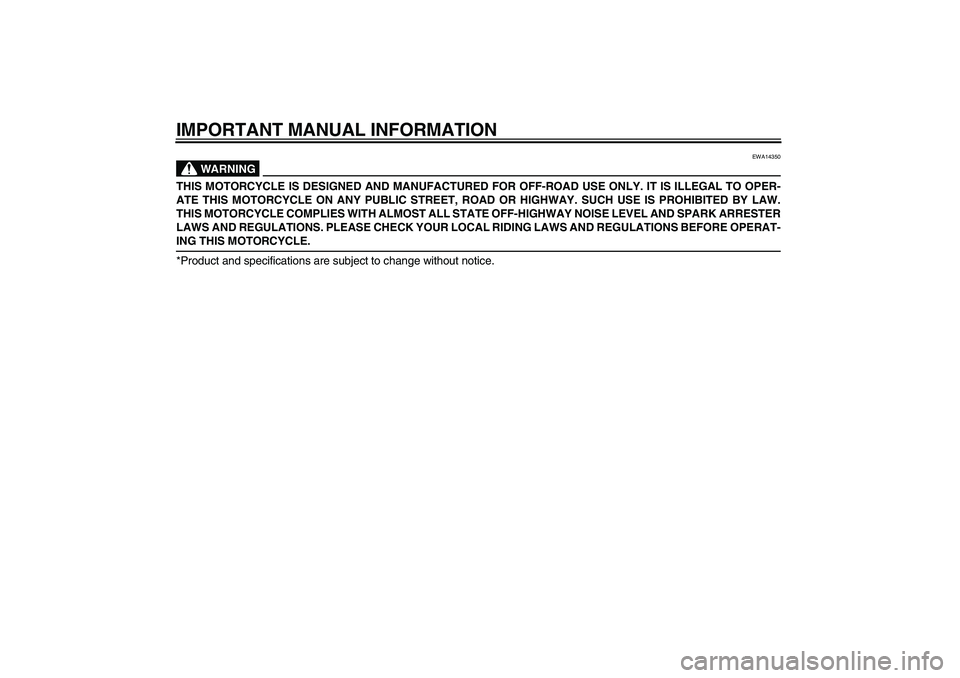

WARNING
EWA14350
THIS MOTORCYCLE IS DESIGNED AND MANUFACTURED FOR OFF-ROAD USE ONLY. IT IS ILLEGAL TO OPER-
ATE THIS MOTORCYCLE ON ANY PUBLIC STREET, ROAD OR HIGHWAY. SUCH USE IS PROHIBITED BY LAW.
THIS MOTORCYCLE COMPLIES WITH ALMOST ALL STATE OFF-HIGHWAY NOISE LEVEL AND SPARK ARRESTER
LAWS AND REGULATIONS. PLEASE CHECK YOUR LOCAL RIDING LAWS AND REGULATIONS BEFORE OPERAT-ING THIS MOTORCYCLE.
*Product and specifications are subject to change without notice.U1P682E0.book Page 2 Wednesday, May 23, 2007 9:34 AM

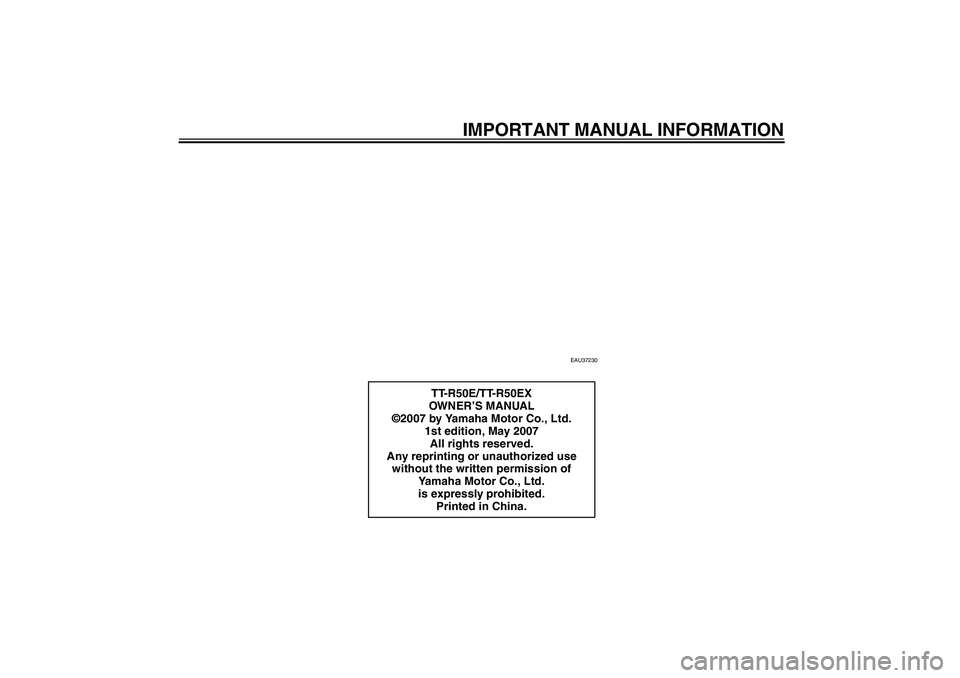

IMPORTANT MANUAL INFORMATION
EAU37230
TT-R50E/TT-R50EX
OWN ER’S MANUAL
©2007 by Yamaha Motor Co., Ltd.
1st edition, May 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in China.
U1P682E0.book Page 3 Wednesday, May 23, 2007 9:34 AM

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Safe riding ......................................1-1
Location of important labels ............1-4
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch .....................................3-1
Handlebar switches ........................3-1
Speed limiter ...................................3-2
Shift pedal .......................................3-2
Brake lever .....................................3-3
Brake pedal ....................................3-3
Fuel tank cap ..................................3-3
Fuel .................................................3-4
Fuel tank breather hose ..................3-5
Fuel cock ........................................3-5
Starter (choke) lever .......................3-6
Seat ................................................3-7
Sidestand ........................................3-7
Starting circuit cut-off system .........3-8
PRE-OPERATION CHECKS..............4-1
Pre-operation check list ..................4-2OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting and warming up a cold
engine ......................................... 5-1
Starting a warm engine .................. 5-2
Shifting ........................................... 5-2
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
PERIODIC MAINTENANCE ........... 6-1
Periodic maintenance chart for
the emission control system ....... 6-2
General maintenance and
lubrication chart .......................... 6-3
Checking the spark plug ................. 6-5
Engine oil ....................................... 6-6
Cleaning the air filter element ........ 6-8
Cleaning the spark arrester ............ 6-9
Adjusting the carburetor ............... 6-10
Adjusting the engine idling
speed ........................................ 6-11
Adjusting the throttle cable free
play ........................................... 6-11
Valve clearance ............................ 6-12
Tires ............................................. 6-12
Spoke wheels ............................... 6-14
Accessories and replacement
parts .......................................... 6-14
Adjusting the clutch free play ....... 6-14Adjusting the brake lever free
play ........................................... 6-15
Adjusting the brake pedal free
play ........................................... 6-16
Checking the front and rear brake
shoes ........................................ 6-16
Drive chain slack .......................... 6-17
Cleaning and lubricating the
drive chain ................................ 6-19
Checking and lubricating the
cables ....................................... 6-19
Checking and lubricating the
throttle grip and cable ............... 6-20
Checking and lubricating the
brake and shift pedals .............. 6-20
Checking and lubricating the
brake lever ................................ 6-20
Checking and lubricating the
sidestand .................................. 6-21
Lubricating the swingarm
pivots ........................................ 6-21
Checking the front fork ................. 6-21
Checking the steering .................. 6-22
Checking the wheel bearings ....... 6-23
Battery ......................................... 6-23
Replacing the fuse ....................... 6-25
Supporting the motorcycle ........... 6-25
Front wheel .................................. 6-26
Rear wheel ................................... 6-28
Troubleshooting ........................... 6-29
Troubleshooting chart .................. 6-30U1P682E0.book Page 1 Wednesday, May 23, 2007 9:34 AM
