LOCATION OF IMPORTANT LABELS1-1
1
EAU41978

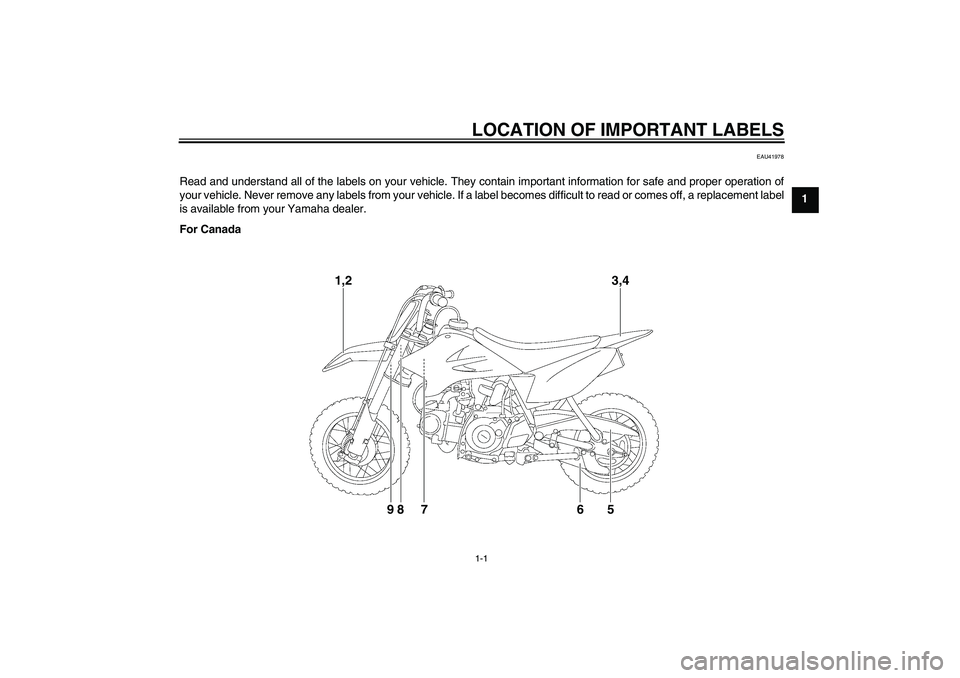

Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
For Canada
1,2
3,4
98 7 6 5
U1P685E0.book Page 1 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS
1-2
1For Canada
NOTICE
1P6-F151A-40
ATTENTION
1P6-F151A-50
3PT-2118K-A1
12
34
56
U1P685E0.book Page 2 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS1-3
1 For Canada
CMVSSCANADANSVAC
TRANSPORT
506
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
1P6-F416E-00
79
8
U1P685E0.book Page 3 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS
1-4
1For Europe
1
2,3
54
U1P685E0.book Page 4 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS1-5
1 For Europe
1P6-F151A-80
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi 100 kPa
1.00 kgf/cm²
15 psi
8AC-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2010
1P6-2156A-10
TT-R50E
2.5 kW 57 kg
3PT-2118K-A1
14
5 2
3
U1P685E0.book Page 5 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS
1-6

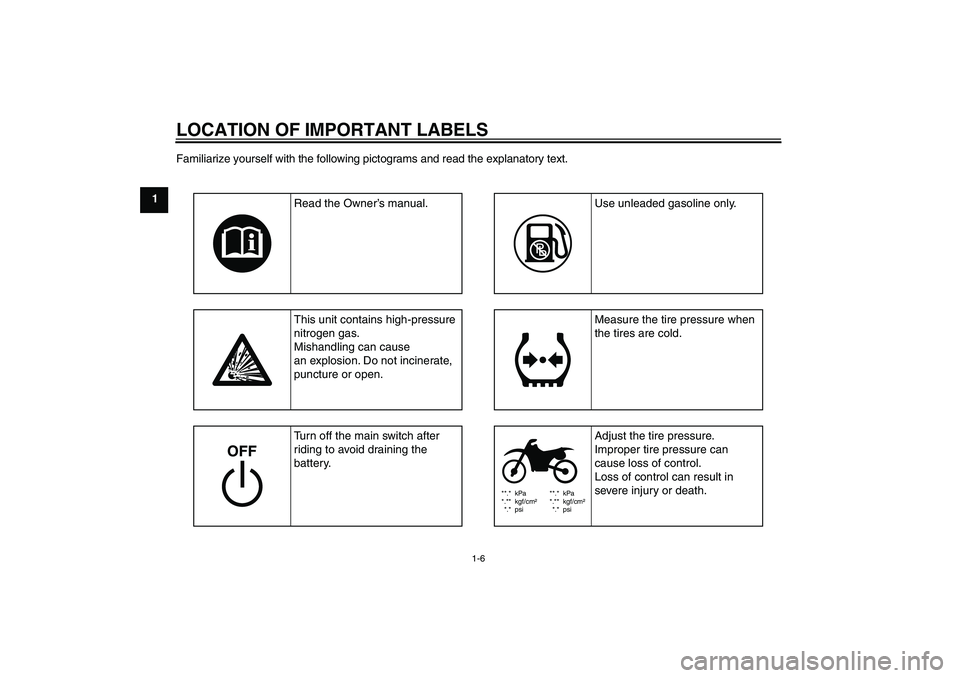

1Familiarize yourself with the following pictograms and read the explanatory text.
**.* kPa
*.** kgf/cm²
*.* psi**.* kPa
*.** kgf/cm²
*.* psi
Read the Owner’s manual.
This unit contains high-pressure
nitrogen gas.
Mishandling can cause
an explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery.Use unleaded gasoline only.
Measure the tire pressure when
the tires are cold.
Adjust the tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.
U1P685E0.book Page 6 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS1-7
1
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****11
2

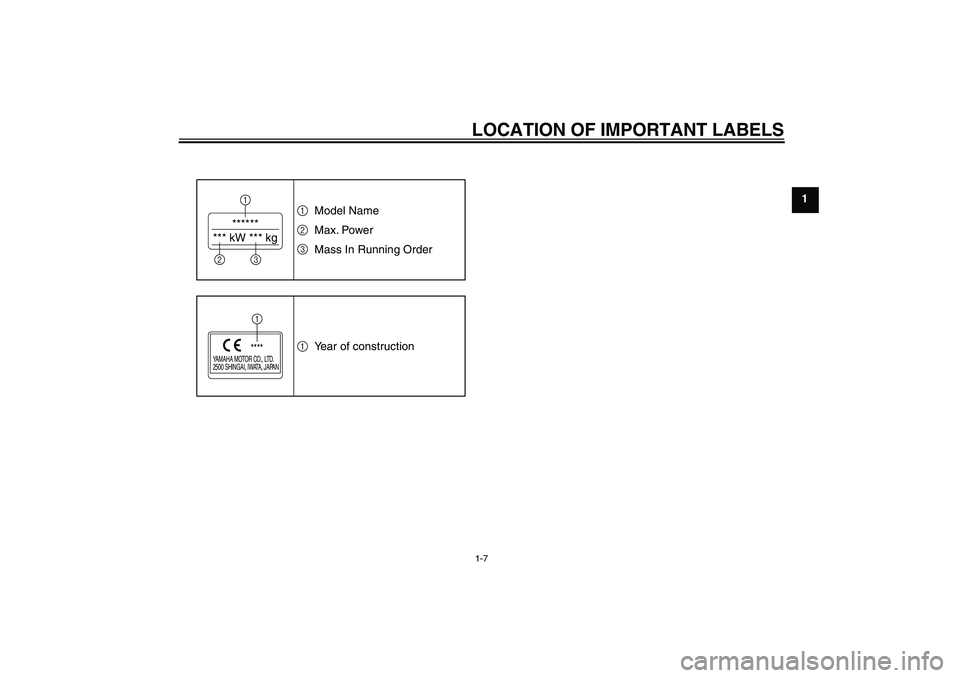

3Model Name
Max. Power
Mass In Running Order
1
Year of construction
U1P685E0.book Page 7 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS
1-8

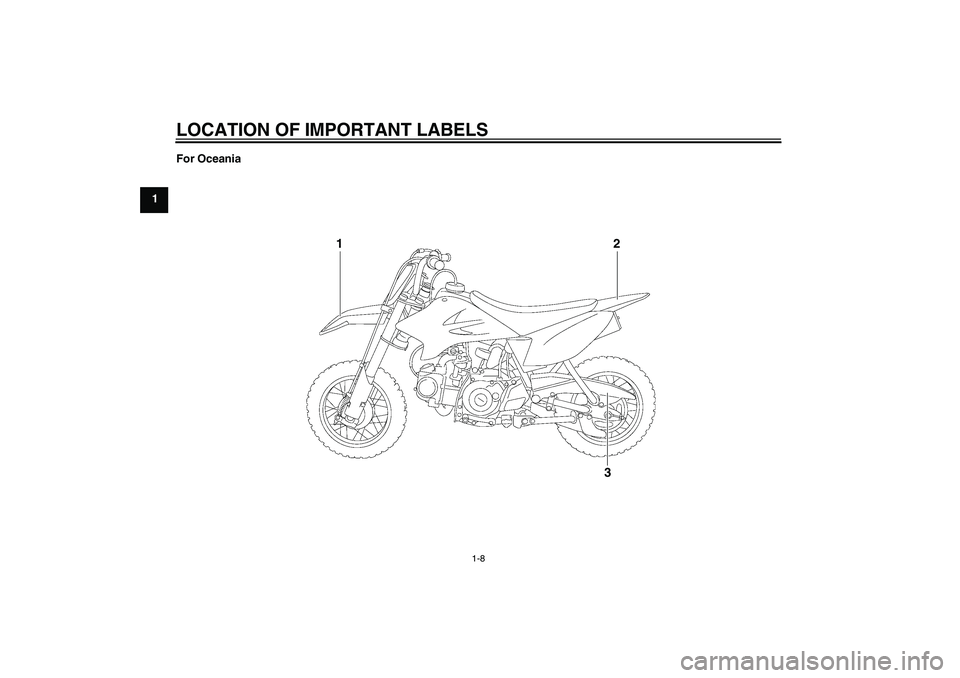

1For Oceania
1
2
3
U1P685E0.book Page 8 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS1-9
1 For Oceania
NOTICE
1P6-F151A-40
3PT-2118K-A1
1
2
3
U1P685E0.book Page 9 Tuesday, April 20, 2010 3:18 PM

LOCATION OF IMPORTANT LABELS
1-10
1For South Africa
1
2
3
U1P685E0.book Page 10 Tuesday, April 20, 2010 3:18 PM
