YAMAHA TTR50 2011 Owner's Guide

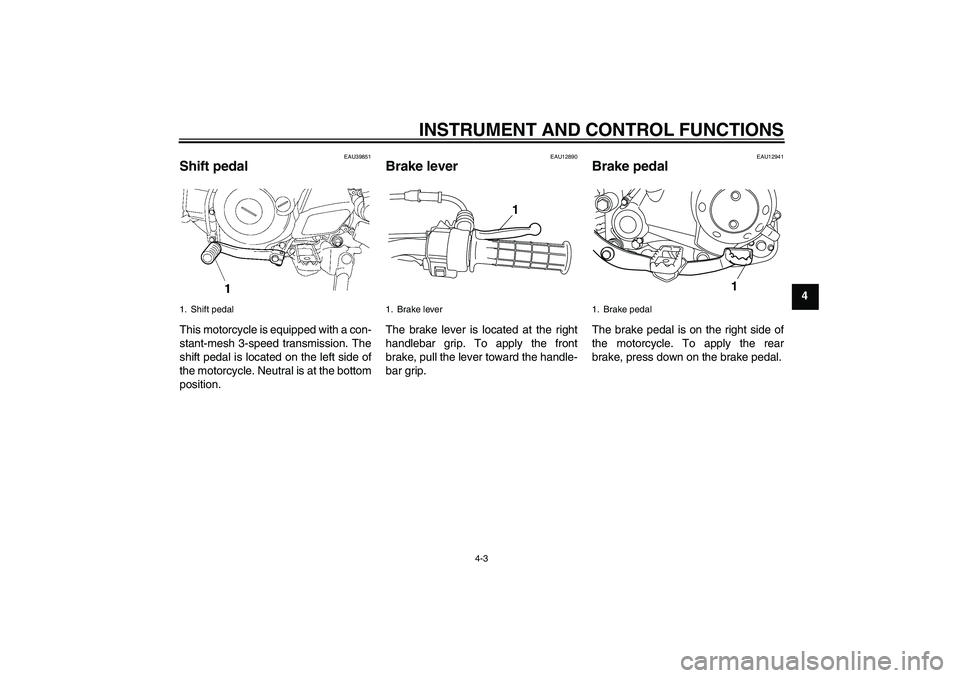

INSTRUMENT AND CONTROL FUNCTIONS
4-3
4
EAU39851
Shift pedal This motorcycle is equipped with a con-
stant-mesh 3-speed transmission. The
shift pedal is located on the left side of
the motorcycle. Neutral is at the bottom
position.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Shift pedal
1. Brake lever
1
1. Brake pedal
1
U1P685E0.book Page 3 Tuesday, April 20, 2010 3:18 PM

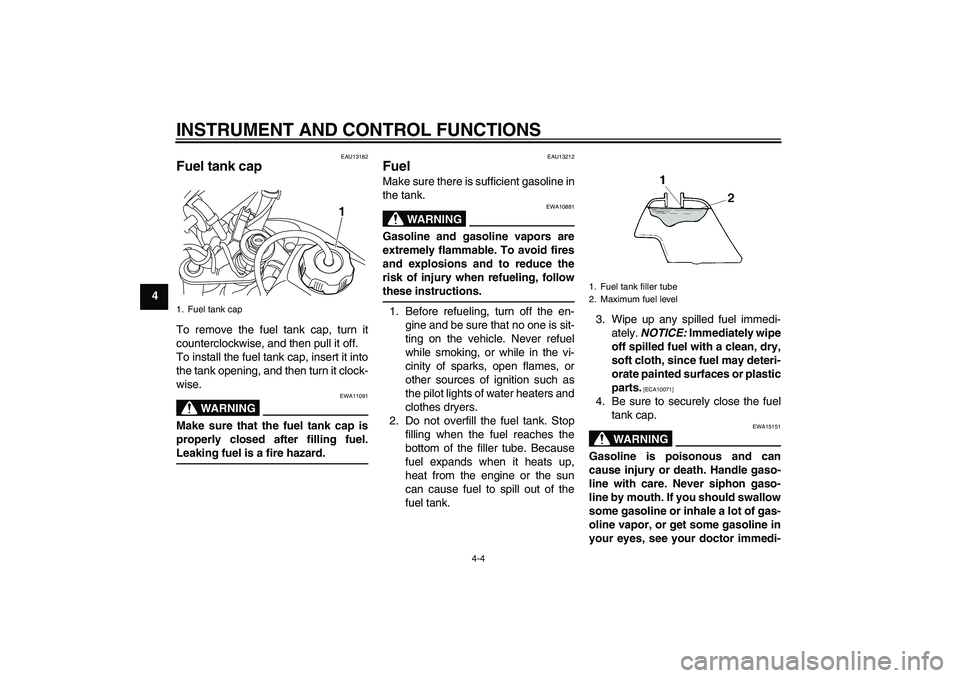

INSTRUMENT AND CONTROL FUNCTIONS
4-4
4
EAU13182
Fuel tank cap To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13212
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-
1. Fuel tank cap
1
1. Fuel tank filler tube
2. Maximum fuel level
U1P685E0.book Page 4 Tuesday, April 20, 2010 3:18 PM

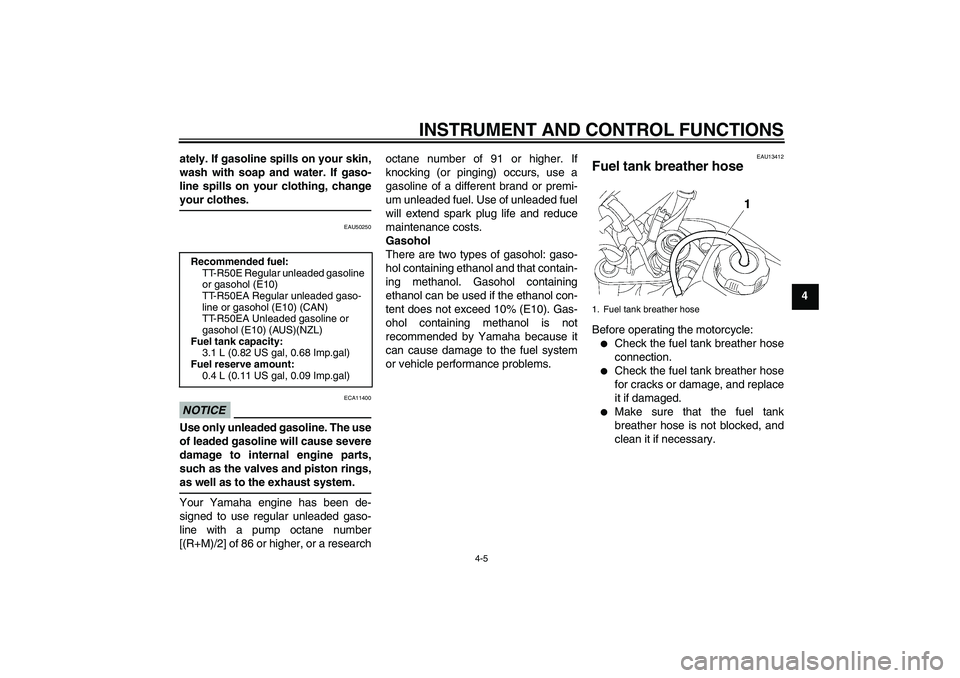

INSTRUMENT AND CONTROL FUNCTIONS
4-5
4 ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU50250
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a pump octane number
[(R+M)/2] of 86 or higher, or a researchoctane number of 91 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand or premi-
um unleaded fuel. Use of unleaded fuel
will extend spark plug life and reduce
maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that contain-
ing methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU13412
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
Recommended fuel:
TT-R50E Regular unleaded gasoline
or gasohol (E10)
TT-R50EA Regular unleaded gaso-
line or gasohol (E10) (CAN)
TT-R50EA Unleaded gasoline or
gasohol (E10) (AUS)(NZL)
Fuel tank capacity:
3.1 L (0.82 US gal, 0.68 Imp.gal)
Fuel reserve amount:
0.4 L (0.11 US gal, 0.09 Imp.gal)
1. Fuel tank breather hose
U1P685E0.book Page 5 Tuesday, April 20, 2010 3:18 PM

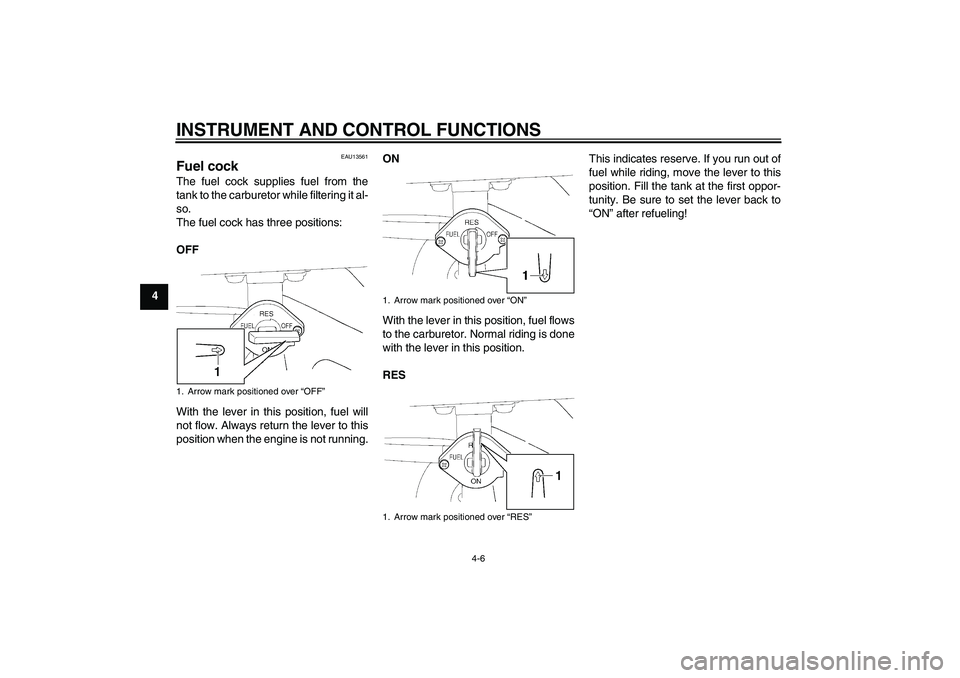

INSTRUMENT AND CONTROL FUNCTIONS
4-6
4
EAU13561
Fuel cock The fuel cock supplies fuel from the
tank to the carburetor while filtering it al-
so.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not running.ON
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.
RESThis indicates reserve. If you run out of
fuel while riding, move the lever to this
position. Fill the tank at the first oppor-
tunity. Be sure to set the lever back to
“ON” after refueling!1. Arrow mark positioned over “OFF”
1. Arrow mark positioned over “ON”
1. Arrow mark positioned over “RES”
U1P685E0.book Page 6 Tuesday, April 20, 2010 3:18 PM

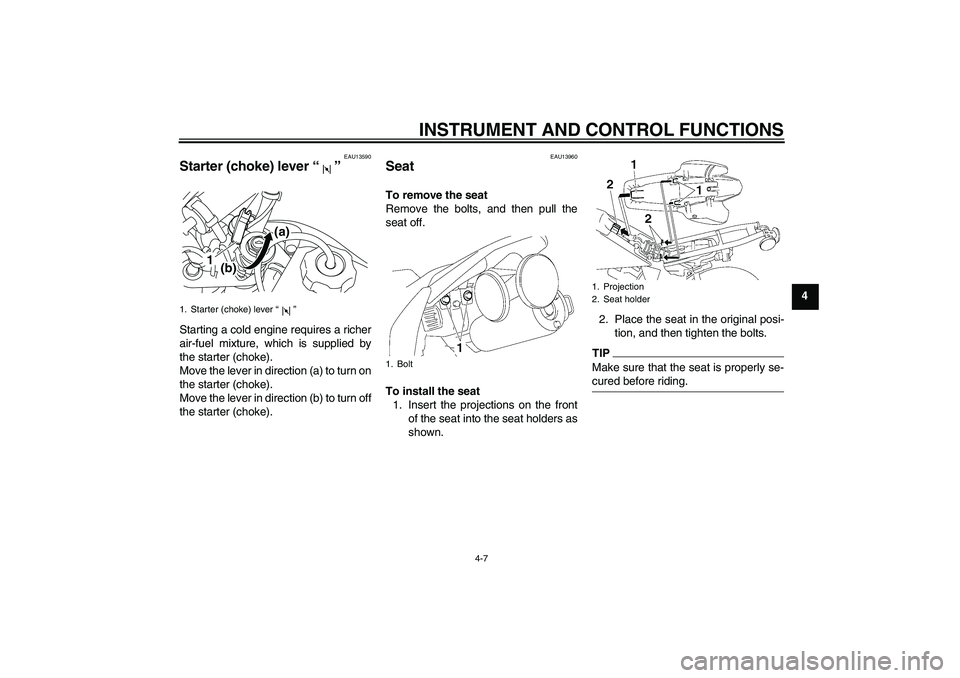

INSTRUMENT AND CONTROL FUNCTIONS
4-7
4
EAU13590
Starter (choke) lever“” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction (a) to turn on
the starter (choke).
Move the lever in direction (b) to turn off
the starter (choke).
EAU13960
Seat To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holders as
shown.2. Place the seat in the original posi-
tion, and then tighten the bolts.
TIPMake sure that the seat is properly se-
cured before riding.
1. Starter (choke) lever“”
1
(a)
(b)
1. Bolt
1. Projection
2. Seat holder
U1P685E0.book Page 7 Tuesday, April 20, 2010 3:18 PM

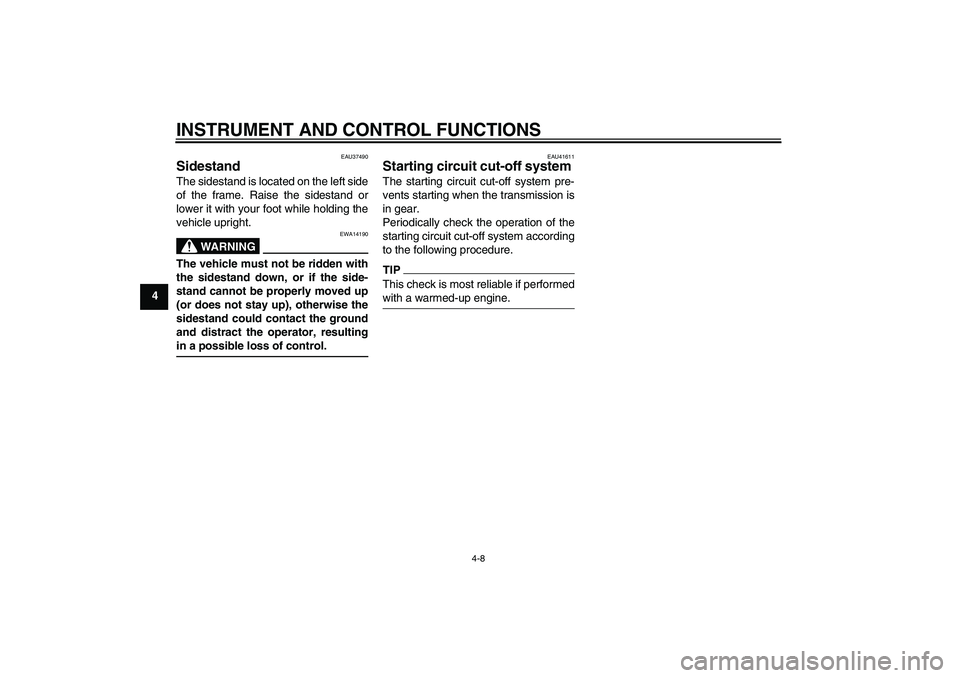

INSTRUMENT AND CONTROL FUNCTIONS
4-8
4
EAU37490
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.
WARNING
EWA14190
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
EAU41611
Starting circuit cut-off system The starting circuit cut-off system pre-
vents starting when the transmission is
in gear.
Periodically check the operation of the
starting circuit cut-off system according
to the following procedure.TIPThis check is most reliable if performed
with a warmed-up engine.
U1P685E0.book Page 8 Tuesday, April 20, 2010 3:18 PM

INSTRUMENT AND CONTROL FUNCTIONS
4-9
4
With the engine turned off:
1. Make sure that the engine stop switch is set to “
”.
2. Turn the key to “ON”.
3. Shift the transmission into gear.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
6. Shift the transmission into the neutral position.
7. Push the start switch.
Does the engine start?
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO
The system is OK. The motorcycle can be ridden.
YES
NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U1P685E0.book Page 9 Tuesday, April 20, 2010 3:18 PM

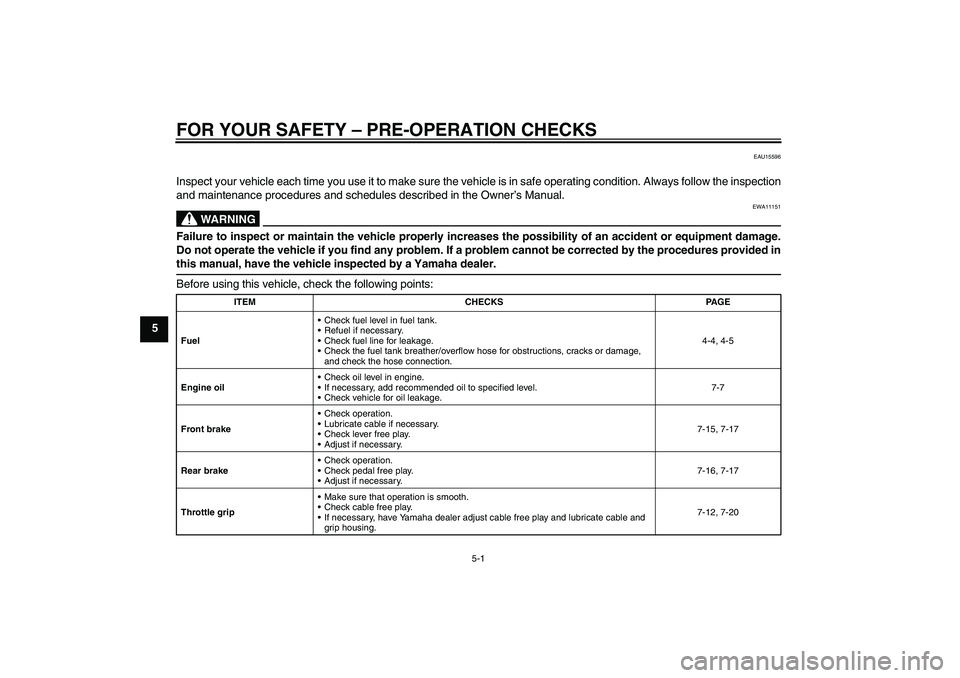

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-1
5
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel Check fuel level in fuel tank.
 Refuel if necessary.
 Check fuel line for leakage.
 Check the fuel tank breather/overflow hose for obstructions, cracks or damage,
and check the hose connection.4-4, 4-5
Engine oil Check oil level in engine.
 If necessary, add recommended oil to specified level.
 Check vehicle for oil leakage.7-7
Front brake Check operation.
 Lubricate cable if necessary.
 Check lever free play.
 Adjust if necessary.7-15, 7-17
Rear brake Check operation.
 Check pedal free play.
 Adjust if necessary.7-16, 7-17
Throttle grip Make sure that operation is smooth.
 Check cable free play.
 If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.7-12, 7-20
chapter5 Page 1 Friday, April 23, 2010 10:13 AM

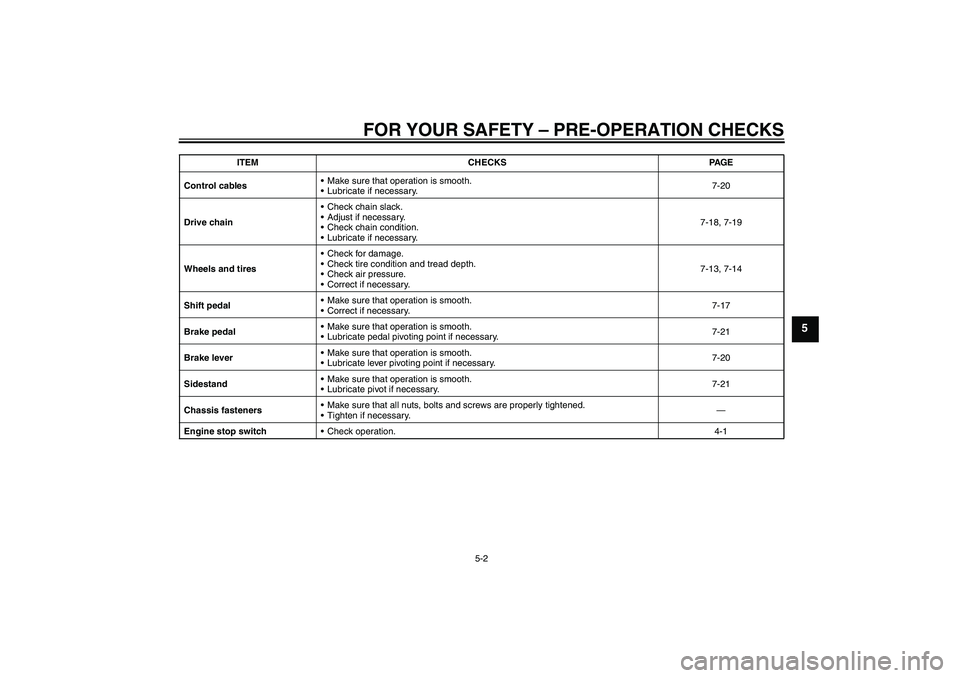

FOR YOUR SAFETY – PRE-OPERATION CHECKS
5-2
5
Control cablesMake sure that operation is smooth.
Lubricate if necessary.7-20
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.7-18, 7-19
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.7-13, 7-14
Shift pedalMake sure that operation is smooth.
Correct if necessary.7-17
Brake pedalMake sure that operation is smooth.
Lubricate pedal pivoting point if necessary.7-21
Brake leverMake sure that operation is smooth.
Lubricate lever pivoting point if necessary.7-20
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.7-21
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Engine stop switchCheck operation.4-1 ITEM CHECKS PAGE
chapter5 Page 2 Friday, April 23, 2010 10:13 AM

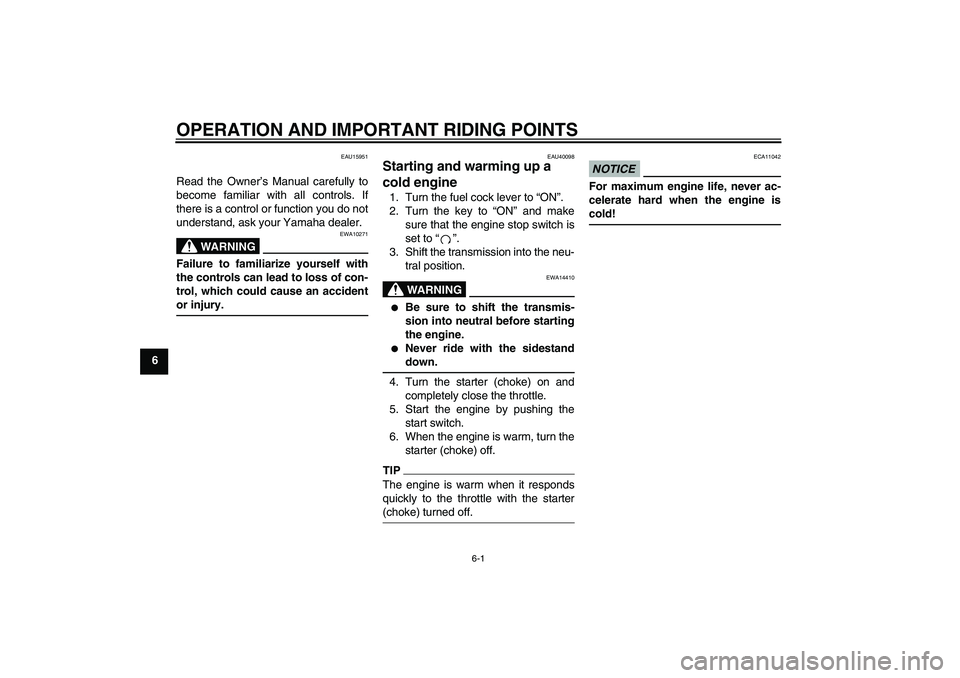

OPERATION AND IMPORTANT RIDING POINTS
6-1
6
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU40098
Starting and warming up a
cold engine 1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
3. Shift the transmission into the neu-
tral position.
WARNING
EWA14410


Be sure to shift the transmis-
sion into neutral before starting
the engine.


Never ride with the sidestand
down.
4. Turn the starter (choke) on and
completely close the throttle.
5. Start the engine by pushing the
start switch.
6. When the engine is warm, turn the
starter (choke) off.TIPThe engine is warm when it responds
quickly to the throttle with the starter
(choke) turned off.
NOTICE
ECA11042
For maximum engine life, never ac-
celerate hard when the engine is
cold!
U1P685E0.book Page 1 Tuesday, April 20, 2010 3:18 PM
