SPEC
2 - 2 Oil type or grade:
Engine oil
(For USA and CDN)
At –10 °C (10 °F) or higher È
Yamalube 4 (10W-30) or SAE 10W-30 type
SE/SF/SG motor oil
At 5 °C (40 °F) or higher É
Yamalube 4 (20W-40) or SAE 20W-40 type
SE/SF/SG motor oil
(Except for USA and CDN)
API “SE/SF/SG” or higher grade
Oil capacity:
Engine oil
Periodic oil change 0.8 L (0.70 Imp qt, 0.85 US qt)
Total amount 1.0 L (0.88 Imp qt, 1.06 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS and NZ)
Regular unleaded gasoline only
(CDN, Europe and ZA)
Tank capacity 4.2 L (0.92 Imp gal, 1.11 US gal)
Reserve amount 0.5 L (0.11 Imp gal, 0.13 US gal)
Carburetor:
Type VM16SH
Manufacturer MIKUNI
Spark plug:
Type CR6HSA/U20FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc and centrifugal automatic
0 10 30 50 70 90 110 130
-20 -10 01020
30 40 50
È
É
˚F
˚C
GENERAL SPECIFICATIONS
1
2

3 - 1
INSP
ADJ
MAINTENANCE INTERVALS
EC300000
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind
that such factors as weather, terrain, geographical location, and individual usage will alter the
required maintenance and lubrication intervals. If you are a doubt as to what intervals to follow in
maintaining and lubricating your machine, consult your Yamaha dealer.
NOTE:
From 18 months or 210 hours, repeat the maintenance intervals starting from 6 months or
90 hours.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special
tools, data and technical skills.
No. ITEMCHECKS AND
MAINTENANCE JOBSWHICH-
EVER
COMES
FIRSTINITIAL EVERY
month 1 6 12
hours 30 90 150
1 * Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.√
√
2 Spark plugCheck condition.
Adjust gap and clean.√
√
3 * Valve clearanceCheck and adjust valve clearance when engine is
cold.√
4 * Air filter elementClean with solvent.
Replace if necessary.√
√
5 * Breather systemCheck ventilation hose for cracks or damage.
Replace if necessary.√
√
√
6 * CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.√
√
√
7 Exhaust systemCheck for leakage.
Tighten if necessary.
Replace gasket if necessary.√
√
8 Engine oil Change (warm engine before draining).
√
√
√
9 ClutchCheck operation.
Adjust or replace cable.√
√
√
10 * Front brakeCheck operation.
Adjust brake lever free play and replace brake shoes
if necessary.√
√
√
11 * Rear brakeCheck operation.
Adjust brake pedal free play and replace brake shoes
if necessary.√
√
√
12 * WheelsCheck runout, spoke tightness and for damage.
Tighten spokes if necessary.√
√
√
13 * TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√
√
14 * Wheel bearingsCheck bearings for smooth operation.
Replace if necessary.√
√
15 * SwingarmCheck swingarm pivoting point for play.
Correct if necessary.
Lubricate with lithium soap based grease.√
√
√
16 Drive chainCheck chain slack/alignment and condition.
Adjust and lubricate chain.Every ride
3

3 - 3
INSP
ADJ
PRE-OPERATION INSPECTION AND MAINTENANCE
PRE-OPERATION INSPECTION AND MAINTENANCE
Before riding for break-in operation or practice, make sure the machine is in good operating condi-
tion.
Before using this machine, check the following points.
GENERAL INSPECTION AND MAINTENANCE
Item Routine Page
Brake Check operation/adjustment. P3-12
Engine oil Change oil as required. P3-6 ~ 8
Drive chain Check alignment/adjustment/lubrication. P3-13 ~ 15
Spark plug Check color/condition. P3-23
Throttle Check for proper throttle cable operation. P3-4
Air filter Foam type – must be clean and damp oil always P3-4 ~ 5
Wheels and tires Check pressure/runout/spoke tightness/bead stopper/axle nuts. P3-17 ~ 20
Fittings/fasteners Check all – tighten as necessary. P2-13

INSP
ADJ

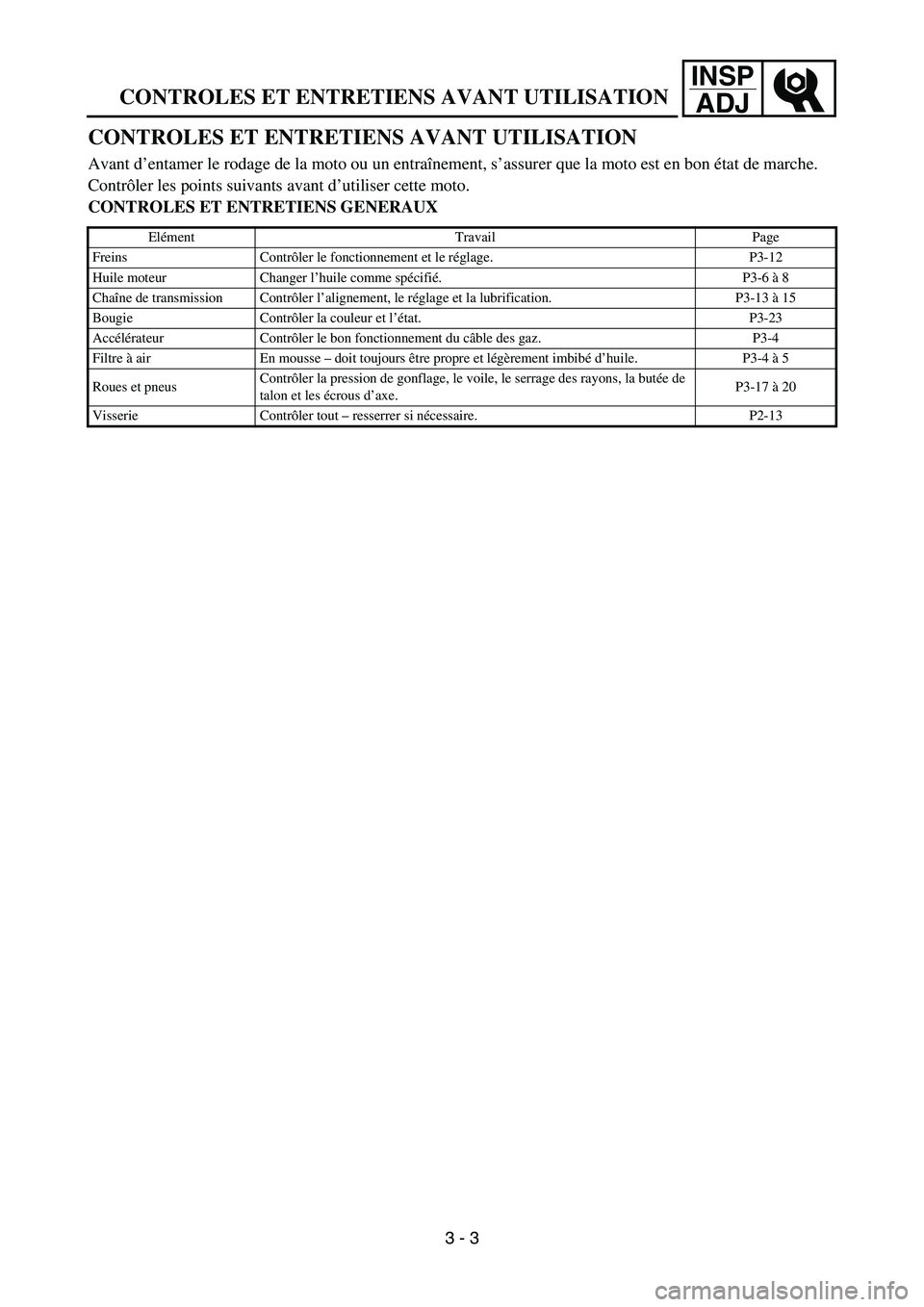

CONTROLES ET ENTRETIENS AVANT UTILISATION
CONTROLES ET ENTRETIENS AVANT UTILISATION
Avant d’entamer le rodage de la moto ou un entraînement, s’assurer que la moto est en bon état de marche.
Contrôler les points suivants avant d’utiliser cette moto.
CONTROLES ET ENTRETIENS GENERAUX
Elément Travail Page
Freins Contrôler le fonctionnement et le réglage. P3-12
Huile moteur Changer l’huile comme spécifié. P3-6 à 8
Chaîne de transmission Contrôler l’alignement, le réglage et la lubrification. P3-13 à 15
Bougie Contrôler la couleur et l’état. P3-23
Accélérateur Contrôler le bon fonctionnement du câble des gaz. P3-4
Filtre à air En mousse – doit toujours être propre et légèrement imbibé d’huile. P3-4 à 5
Roues et pneusContrôler la pression de gonflage, le voile, le serrage des rayons, la butée de
talon et les écrous d’axe.P3-17 à 20
Visserie Contrôler tout – resserrer si nécessaire. P2-13
3 - 3

3 - 8
INSP
ADJ

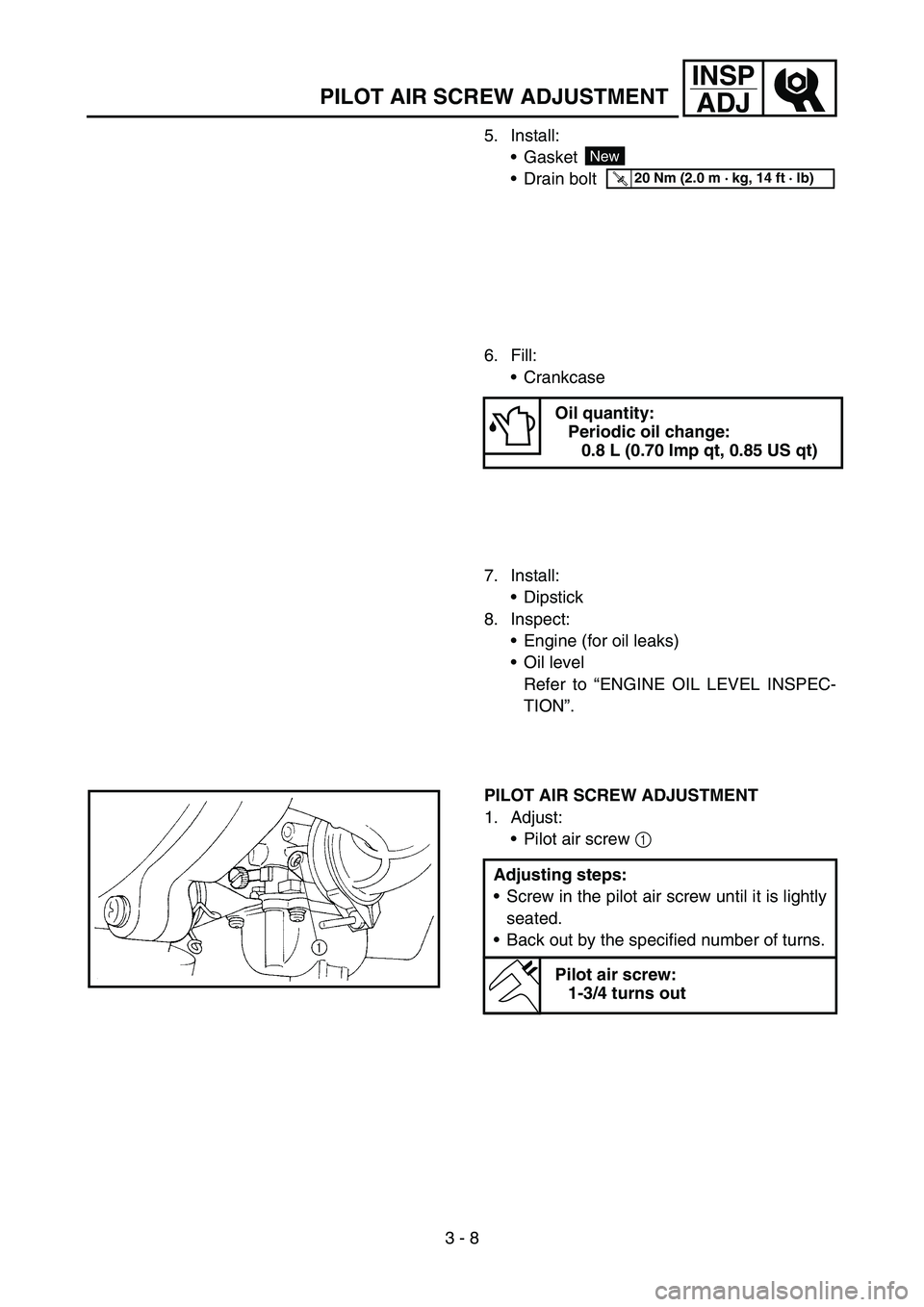

PILOT AIR SCREW ADJUSTMENT
5. Install:
Gasket
Drain bolt
New
T R..20 Nm (2.0 m · kg, 14 ft · lb)
6. Fill:
Crankcase
Oil quantity:
Periodic oil change:
0.8 L (0.70 Imp qt, 0.85 US qt)
7. Install:
Dipstick
8. Inspect:
Engine (for oil leaks)
Oil level
Refer to “ENGINE OIL LEVEL INSPEC-
TION”.
PILOT AIR SCREW ADJUSTMENT
1. Adjust:
Pilot air screw 1
Adjusting steps:
Screw in the pilot air screw until it is lightly
seated.
Back out by the specified number of turns.
Pilot air screw:
1-3/4 turns out
