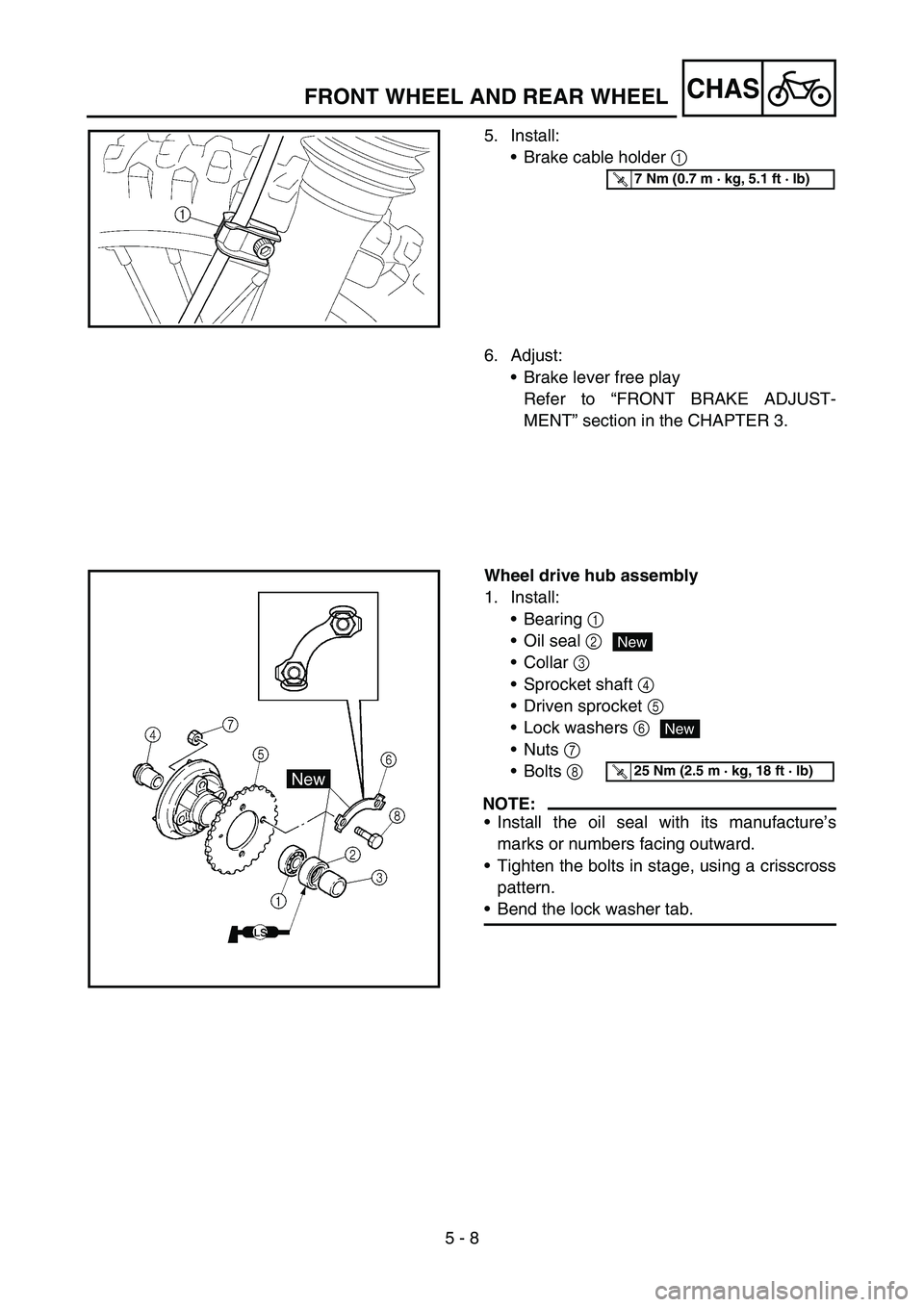

CHASFRONT WHEEL AND REAR WHEEL
5. Install:
Brake cable holder 1
T R..7 Nm (0.7 m · kg, 5.1 ft · lb)
6. Adjust:
Brake lever free play
Refer to “FRONT BRAKE ADJUST-
MENT” section in the CHAPTER 3.
Wheel drive hub assembly
1. Install:
Bearing 1
Oil seal 2
Collar 3
Sprocket shaft 4
Driven sprocket 5
Lock washers 6
Nuts 7
Bolts 8
NOTE:
Install the oil seal with its manufacture’s
marks or numbers facing outward.
Tighten the bolts in stage, using a crisscross
pattern.
Bend the lock washer tab.
New
New
T R..25 Nm (2.5 m · kg, 18 ft · lb)
