Page 13 of 82

SAFETY INFORMATION
1-2
1 Loading and accessories
Adding accessories to your motorcycle
can adversely affect stability and han-
dling if the weight distribution of the
motorcycle is changed. To avoid the
possibility of an accident, use extreme
caution when adding accessories to
your motorcycle. Use extra care when
riding a motorcycle that has added ac-
cessories. Here are some general
guidelines to follow if adding accesso-
ries to your motorcycle:
Loading
The weight of the operator must
not exceed 40 kg (88 lb).
Accessory weight should be kept
as low and close to the motorcycle
as possible. Make sure to distrib-
ute the weight as evenly as possi-
ble on both sides of the motorcycle
to minimize imbalance or instabili-
ty.
Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories are securely attached to
the motorcycle before riding.
Check accessory mounts fre-
quently.
Never attach any large or heavy
items to the handlebar, front fork,
or front fender.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep these guidelines in mind for
mounting accessories in addition to
those provided under “Loading”.
Never install accessories or that
would impair the performance of
your motorcycle. Carefully inspect
the accessory before using it to
make sure that it does not in any
way reduce ground clearance or
cornering clearance, limit suspen-
sion travel, steering travel or con-
trol operation.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improperweight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.
Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
engine power.
U3P281E0.book Page 2 Monday, April 17, 2006 11:26 AM
Page 61 of 82

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U3P281E0.book Page 23 Monday, April 17, 2006 11:26 AM
Page 65 of 82

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 a jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360

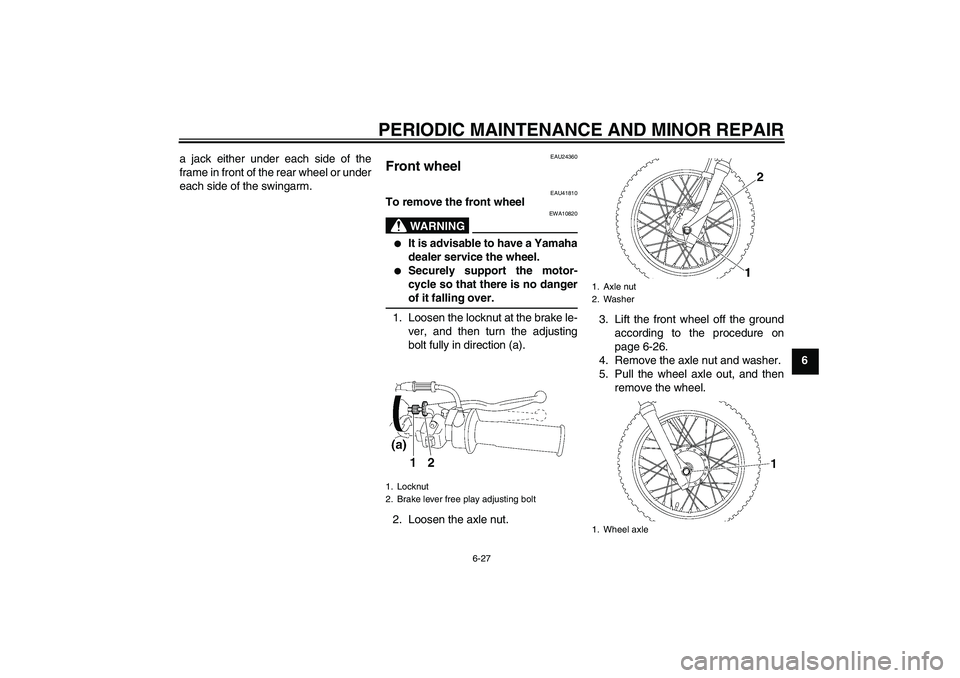

Front wheel
EAU41810
To remove the front wheel
WARNING
EWA10820
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Loosen the locknut at the brake le-
ver, and then turn the adjusting
bolt fully in direction (a).
2. Loosen the axle nut.3. Lift the front wheel off the ground
according to the procedure on
page 6-26.
4. Remove the axle nut and washer.
5. Pull the wheel axle out, and then
remove the wheel.
1. Locknut
2. Brake lever free play adjusting bolt
1. Axle nut
2. Washer
1. Wheel axle
U3P281E0.book Page 27 Monday, April 17, 2006 11:26 AM
Page 66 of 82

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU41691

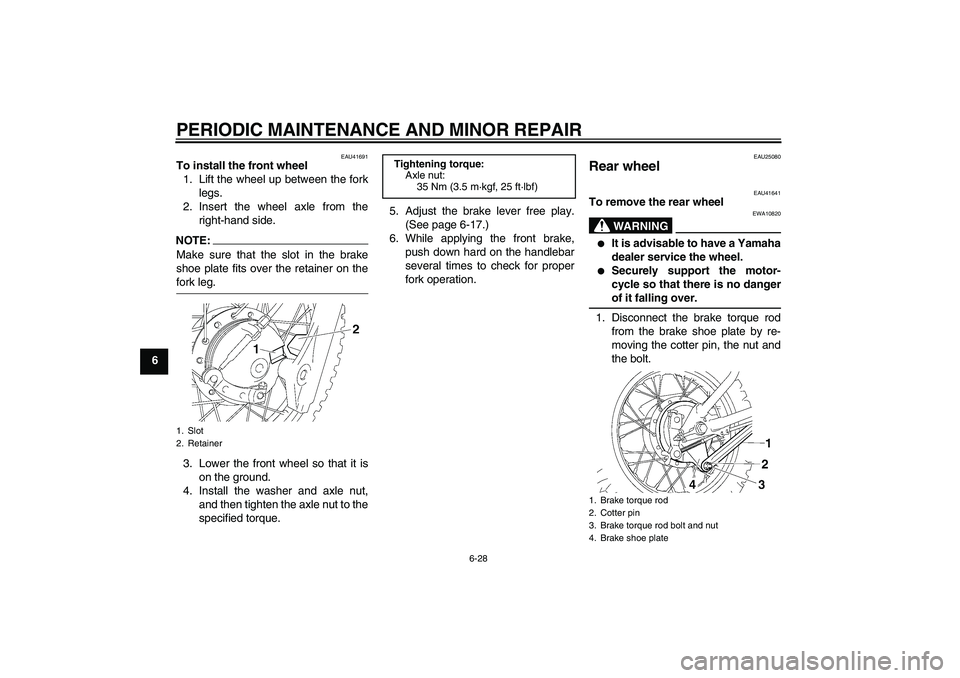

To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle from the
right-hand side.NOTE:Make sure that the slot in the brake
shoe plate fits over the retainer on thefork leg.
3. Lower the front wheel so that it is
on the ground.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.5. Adjust the brake lever free play.
(See page 6-17.)
6. While applying the front brake,
push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU41641
To remove the rear wheel
WARNING
EWA10820
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no dangerof it falling over.
1. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the cotter pin, the nut and
the bolt.
1. Slot
2. Retainer
Tightening torque:
Axle nut:
35 Nm (3.5 m·kgf, 25 ft·lbf)
1. Brake torque rod
2. Cotter pin
3. Brake torque rod bolt and nut
4. Brake shoe plate
U3P281E0.book Page 28 Monday, April 17, 2006 11:26 AM
