6-40
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9 2. Remove the brake pedal free
play adjusting nut, and then dis-
connect the brake rod from the
brake camshaft lever.
3. Turn the drive chain adjusting
plate on each side of the
swingarm fully in direction a.
4. Lift the rear wheel off the ground
according to the procedure on
page 6-37.
5. Remove the axle nut, and then
pull the wheel axle out.
6. Push the wheel forward, and
then remove the drive chain from
the rear sprocket.
NOTE:
The drive chain does not need to be
disassembled in order to remove and
install the wheel.7. Remove the wheel.
EAU03520
To install the rear wheel
1. Insert the wheel axle from the
left-hand side.NOTE:
Make sure that the drive chain adjust-
ing plates are installed with the
punched sides facing to the outside
and that the slot in the brake shoe
plate fits over the retainer on the
swingarm.2. Install the drive chain onto the
rear sprocket, and then adjust
the drive chain slack. (See page
6-26 for drive chain slack adjust-
ment procedures.)3. Install the axle nut, and then
lower the rear wheel so that it is
on the ground.
4. Tighten the axle nut to the speci-
fied torque.
5. Install the brake rod onto the
brake camshaft lever, and then
install the brake pedal free play
adjusting nut onto the brake rod.
6. Adjust the brake pedal free play.
(See page 6-21 for brake pedal
free play adjustment proce-
dures.)
EW000103
wAfter adjusting the brake pedal
free play, check the operation of
the brake light.
Tightening torque:
Axle nut:
90 Nm (9.0 mákg)
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 69

6-41
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU01008

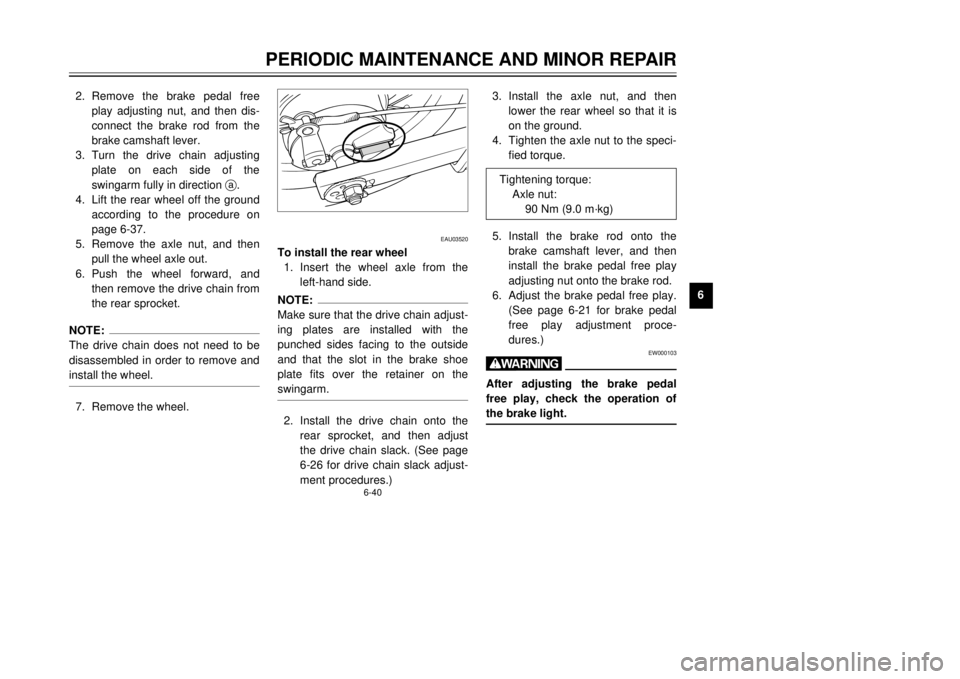

TroubleshootingAlthough Yamaha motorcycles
receive a thorough inspection before
shipment from the factory, trouble
may occur during operation. Any
problem in the fuel, compression, or
ignition systems, for example, can
cause poor starting and loss of
power.
The following troubleshooting chart
represents a quick and easy proce-
dure for checking these vital systems
yourself. However, should your
motorcycle require any repair, take it
to a Yamaha dealer, whose skilled
technicians have the necessary tools,
experience, and know-how to service
the motorcycle properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life
and can lead to expensive repair
bills.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 70

6-42
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
56
7
8
9
EAU03009
Troubleshooting chart
EW000125
wKeep away open flames and do not smoke while checking or working on the fuel system.1. Fuel
2. Compression
3. Ignition
4. Battery
Use the electric starter.Remove spark
There is compression.
Go to ignition check.
No compression.
Ask a Yamaha dealer to inspect.Wet.
Dry.Wipe clean with dry cloth and Open throttle half-way and start
Ask a Yamaha dealer to inspect.
Engine turns over
Engine turns overBattery good.
Check fluid, recharge,
Use the electric starter.Check if there is fuel
Enough fuel.
No fuel.
Go to compression check.Supply fuel.
in the fuel tank.
electrodes. plug and check
quickly.
slowly. check connections.Engine doesn’t start, go to battery
check.the engine. correct spark gap or replace plug.
Engine doesn’t start, ask a Yamahadealer to inspect.
Engine doesn’t start, go to compression check.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 71

7-1
EAU03521
MOTORCYCLE CARE AND STORAGE
1
2
3
4
5
67
8
9
CareWhile the open design of a motorcy-
cle reveals the attractiveness of the
technology, it also makes it more vul-
nerable. Rust and corrosion can
develop even if high-quality compo-
nents are used. A rusty exhaust pipe
may go unnoticed on a car, however,
it detracts from the overall appear-
ance of a motorcycle. Frequent and
proper care does not only comply
with the terms of the warranty, but it
will also keep your motorcycle looking
good, extend its life and optimize its
performance.Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and cov-
ers as well as all electrical cou-
plers and connectors, including
the spark plug cap, are tightly
installed.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such
products onto seals, gaskets,
sprockets, the drive chain and
wheel axles. Always rinse the dirt
and degreaser off with water.Cleaning
ECA00010
cC8Avoid using strong acidic
wheel cleaners, especially on
spoked wheels. If such prod-
ucts are used on hard-to-
remove dirt, do not leave the
cleaner on the affected area
any longer than instructed.
Also, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.
8Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use
only a soft, clean cloth or
sponge with mild detergent
and water to clean plastic.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 72

MOTORCYCLE CARE AND STORAGE
1
2
3
4
5
67
8
9
7-2
8Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abra-
sive cleaning products, sol-
vent or thinner, fuel (gasoline),
rust removers or inhibitors,
brake fluid, antifreeze or elec-
trolyte.
8Do not use high-pressure
washers or steam-jet cleaners
since they cause water seep-
age and deterioration in the
following areas: seals (of
wheel and swingarm bearings,
fork and brakes), electric com-
ponents (couplers, connec-
tors, instruments, switches
and lights), breather hoses
and vents.8For motorcycles equipped
with a windshield: Do not use
strong cleaners or hard
sponges as they will cause
dulling or scratching. Some
cleaning compounds for plas-
tic may leave scratches on the
windshield. Test the product
on a small hidden part of the
windshield to make sure that it
does not leave any marks. If
the windshield is scratched,
use a quality plastic polishing
compound after washing.
After normal useRemove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottle-
brush for hard-to-reach areas.
Stubborn dirt and insects will come
off more easily if the area is covered
with a wet cloth for a few minutes
before cleaning.After riding in the rain, near the sea
or on salt-sprayed roadsSince sea salt or salt sprayed on
roads during winter are extremely
corrosive in combination with water,
carry out the following steps after
each ride in the rain, near the sea or
on salt-sprayed roads.NOTE:
Salt sprayed on roads in the winter
may remain well into spring.1. Clean the motorcycle with cold
water and a mild detergent, after
the engine has cooled down.
ECA00012
cCDo not use warm water since it
increases the corrosive action of
the salt.2. Apply a corrosion protection
spray on all metal, including
chrome- and nickel-plated, sur-
faces to prevent corrosion.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 73

7-3
MOTORCYCLE CARE AND STORAGE
1
2
3
4
5
67
8
9After cleaning
1. Dry the motorcycle with a
chamois or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally
induced discoloring of stainless-
steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal, includ-
ing chrome- and nickel-plated,
surfaces.
5. Use spray oil as a universal
cleaner to remove any remaining
dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.8. Let the motorcycle dry complete-
ly before storing or covering it.
EWA00001
w8Make sure that there is no oil
or wax on the brakes or tires.
If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild
detergent.
8Before operating the motorcy-
cle test its braking perfor-
mance and cornering behav-
ior.
ECA00013
cC8Apply spray oil and wax spar-
ingly and make sure to wipe
off any excess.
8Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
8Avoid using abrasive polish-
ing compounds as they will
wear away the paint.NOTE:
Consult a Yamaha dealer for advice
on what products to use.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 74

7-4
MOTORCYCLE CARE AND STORAGE
1
2
3
4
5
67
8
9
StorageShort-term
Always store your motorcycle in a
cool, dry place and, if necessary, pro-
tect it against dust with a porous
cover.
ECA00014
cC8Storing the motorcycle in a
poorly ventilated room or cov-
ering it with a tarp, while it is
still wet, will allow water and
humidity to seep in and cause
rust.
8To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
Long-term
Before storing your motorcycle for
several months:
1. Follow all the instructions in the
ÒCareÓ section of this chapter.
2. For motorcycles equipped with a
fuel cock that has an ÒOFFÓ posi-
tion: Turn the fuel cock lever to
ÒOFFÓ.
3. Drain the carburetor float cham-
ber by loosening the drain bolt;
this will prevent fuel deposits
from building up. Pour the
drained fuel into the fuel tank.
4. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
5. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap and
spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from
the spark plug, and then install
the spark plug and the spark
plug cap.
EWA00003
wTo prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turn-
ing the engine over.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 75

7-5
MOTORCYCLE CARE AND STORAGE
1
2
3
4
5
67
8
96. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the
sidestand/centerstand.
7. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground.
Alternatively, turn the wheels a
little every month in order to pre-
vent the tires from becoming
degraded in one spot.
8. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
9. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a
month. Do not store the battery
in an excessively cold or warm
place (less than 0 ¡C or more
than 30 ¡C). For more informa-
tion on storing the battery, see
page 6-33.
NOTE:
Make any necessary repairs before
storing the motorcycle.
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 76

8-1
EAU01038
SPECIFICATIONS
1
2
3
4
5
6
78
9
Specifications
Model TW125
Dimensions
Overall length 2,140 mm
Overall width 810 mm
Overall height 1,120 mm
Seat height 805 mm
Wheelbase 1,330 mm
Ground clearance 260 mm
Minimum turning radius 2,100 mm
Basic weight (with oil and full
fuel tank)125 kg
Engine
Engine type Air-cooled 4-stroke, SOHC
Cylinder arrangement Forward inclined
single cylinder
Displacement 124 cm
3
Bore ´Stroke 57.0 ´48.8 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Type
Recommended engine oil
classification API Service SE, SF, SG type
or higher
cCBe sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled ÒEnergy
ConservingÓ) contain anti-friction additives which will cause
clutch and/or starter clutch slippage, resulting in reduced
component life and poor engine performance.
Capacity
Without oil filter element
removal 1.0 L
With oil filter element removal 1.1 L
Total amount (dry engine) 1.3 L
Air filterWet type element
–10° 0° 10° 20° 30°
40°
SAE 10W/30
SAE 10W/40
SAE 20W/40
SAE 20W/50
–20°
SAE 15W/40 50°C
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 77

8-2
SPECIFICATIONS
1
2
3
4
5
6
78
9
Fuel
Type Regular unleaded gasoline
Fuel tank capacity 7.0 L
Reserve amount 1.0 L
Carburetor
Manufacturer TEIKEI
Model ´quantity Y24P ´1
Spark plug
Manufacturer/Type NGK/DR8EA
Gap 0.6Ð0.7 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Spur gear
Primary reduction ratio 74/20 (3.700)
Secondary reduction system Chain drive
Secondary reduction ratio 3.571
Number of drive chain
sprocket teeth (rear/front) 50/14
Transmission type Constant mesh 5-speed
Operation Left foot operationGear ratio 1st 2.250
2nd 1.476
3rd 1.125
4th 0.926
5th 0.793
Chassis
Frame type Diamond
Caster angle 26¡
Trail 95 mm
Tires
Type With tube
Front
Size 130/80-18 66P
Manufacturer/ BRIDGESTONE / TW31
model
Rear
Size 180/80-14M/C 78P
Manufacturer/ BRIDGESTONE / TW34
model
5EK-9-E2 (TW125)<3.3Passport> 5/23/00 9:47 AM Page 78
