light YAMAHA TW125 2004 Owners Manual

TABLE OF CONTENTS
SAFETY INFORMATION ............. 1-1
DESCRIPTION ............................. 2-1
Left view ..................................... 2-1
Right view................................... 2-2
Controls and instruments ........... 2-3
INSTRUMENT AND CONTROL
FUNCTIONS ................................. 3-1
Main switch ............................... 3-1
Indicator lights ........................... 3-1
Speedometer unit ...................... 3-2
Handlebar switches ................... 3-3
Clutch lever ............................... 3-4
Shift pedal ................................. 3-4
Brake lever ................................ 3-4
Brake pedal ............................... 3-5
Fuel tank cap ............................. 3-5
Fuel ........................................... 3-6
Fuel cock ................................... 3-7
Starter (choke) knob “ ” .......... 3-8
Steering lock ............................. 3-8
Seat ........................................... 3-9
Helmet holder ............................ 3-9
Shock absorber ....................... 3-10
Carrier ..................................... 3-10
Luggage strap holders ............ 3-10
Sidestand ................................ 3-11Ignition circuit cut-off system ... 3-11
PRE-OPERATION CHECKS ........ 4-1
Pre-operation check list ............ 4-2
OPERATION AND IMPORTANT
RIDING POINTS ........................... 5-1
Starting a cold engine ............... 5-1
Starting a warm engine ............. 5-2
Shifting ...................................... 5-2
Tips for reducing fuel
consumption ............................ 5-3
Engine break-in ......................... 5-4
Parking ...................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR ............................ 6-1
Owner’s tool kit ......................... 6-1
Periodic maintenance and
lubrication chart ....................... 6-2
Removing and installing
panels ..................................... 6-5
Checking the spark plug ........... 6-6
Engine oil and oil filter
element ................................... 6-7
Cleaning the air filter element
and check hose ..................... 6-10
Adjusting the carburetor .......... 6-12Adjusting the engine idling
speed .................................... 6-12
Adjusting the throttle cable free
play ....................................... 6-13
Adjusting the valve
clearance .............................. 6-13
Tires ........................................ 6-13
Spoke wheels .......................... 6-16
Adjusting the clutch lever free
play ....................................... 6-16
Adjusting the brake lever free
play ....................................... 6-17
Adjusting the brake pedal
position and free play ............ 6-18
Adjusting the rear brake light
switch .................................... 6-19
Checking the front brake pads
and rear brake shoes ............ 6-19
Checking the brake fluid
level ....................................... 6-20
Changing the brake fluid ......... 6-21
Drive chain slack ..................... 6-21
Lubricating the drive chain ...... 6-23
Checking and lubricating the
cables .................................... 6-23
Checking and lubricating the
throttle grip and cable ........... 6-24

✹✺✬✲✥ ✤



TABLE OF CONTENTS
Checking and lubricating the
brake and shift pedals ........... 6-24
Checking and lubricating the
brake and clutch levers ......... 6-24
Checking and lubricating the
sidestand ............................... 6-25
Lubricating the rear
suspension ............................ 6-25
Checking the front fork ............ 6-25
Checking the steering ............. 6-26
Checking the wheel
bearings ................................ 6-27
Battery ..................................... 6-27
Replacing the fuse .................. 6-28
Replacing the headlight bulb ... 6-29
Replacing the tail/brake light
bulb ....................................... 6-31
Replacing a turn signal light
bulb ....................................... 6-31
Supporting the motorcycle ...... 6-32
Front wheel ............................. 6-33
Rear wheel .............................. 6-34
Troubleshooting ...................... 6-36
Troubleshooting chart ............. 6-37
MOTORCYCLE CARE AND
STORAGE..................................... 7-1
Care .......................................... 7-1Storage ..................................... 7-3
SPECIFICATIONS ....................... 8-1
CONSUMER INFORMATION ....... 9-1
Identification numbers ............... 9-1

✹✺✬✲✥ ✥



SAFETY INFORMATION
1-3
1
not exceed the maximum load limit of
180 kg (397 lb) . When loading within
this weight limit, keep the following in
mind:

Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Make
sure to distribute the weight as
evenly as possible on both sides of
the motorcycle to minimize imbal-
ance or instability.

Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.

Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items, in-
cluding such cargo as sleeping
bags, duffel bags, or tents, can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories havebeen specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be re-
sponsible for the proper selection, in-
stallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any ac-
cessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.

Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.

Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.

Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-
tor and may limit control ability,
therefore, such accessories are
not recommended.

Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the

✹✺✬✲✥ ✦



SAFETY INFORMATION
1-4
1
motorcycle’s electrical system an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas

GASOLINE IS HIGHLY FLAMMA-
BLE:

Always turn the engine off when
refueling.

Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.

Always turn the engine off before
leaving the motorcycle unattended
and remove the key from the main
switch. When parking the motorcy-cle, note the following:

The engine and exhaust system
may be hot, therefore, park the
motorcycle in a place where pe-
destrians or children are not like-
ly to touch these hot areas.

Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.

Do not park the motorcycle near
a flammable source (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.

When transporting the motorcycle
in another vehicle, make sure that
it is kept upright and that the fuel
cock(s) are turned to “ON” or
“RES” (for vacuum type)/“OFF”
(for manual type). If the motorcycle
should lean over, gasoline may
leak out of the carburetor or fuel
tank.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into youreyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.

✹✺✬✲✥ ✧



2-1
1
2
3
4
5
6
7
8
9

DESCRIPTION
EAU10410
Left view
3
456
7
8 9
1
2

1. Headlight (page 6-29)
2. Steering lock (page 3-8)
3. Fuel tank (page 3-5)
4. Fuel cock (page 3-7)
5. Helmet holder (page 3-9)
6. Luggage strap holder (page 3-10)
7. Drive chain slack adjusting plate
8. Air filter element (page 6-10)9. Shift pedal (page 3-4)

✹✺✬✲✥ ✤



DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430

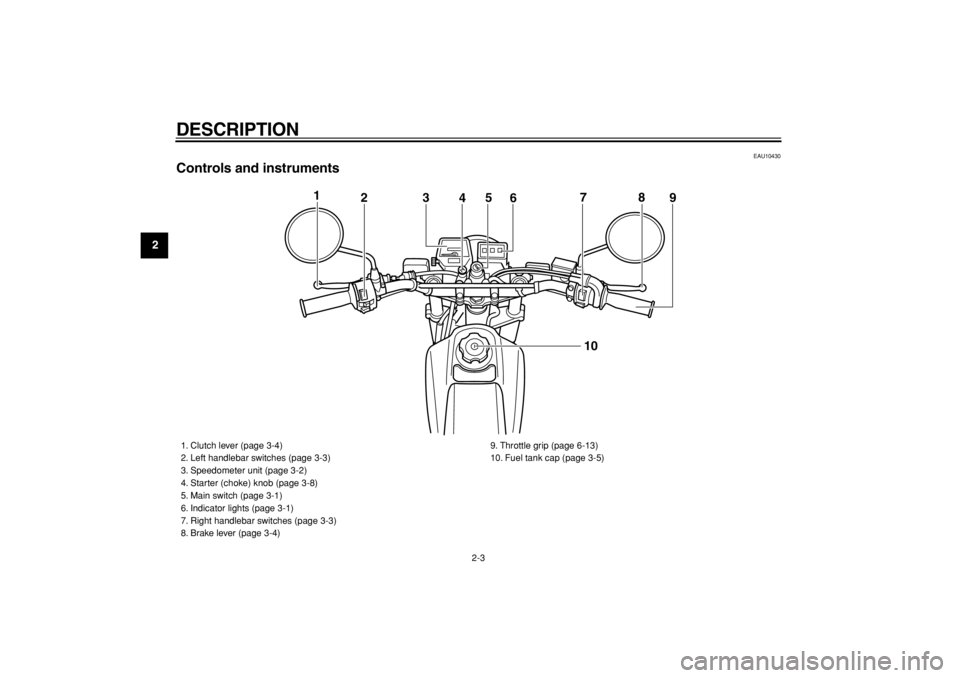

Controls and instruments
1
23
45
678
9
10

1. Clutch lever (page 3-4)
2. Left handlebar switches (page 3-3)
3. Speedometer unit (page 3-2)
4. Starter (choke) knob (page 3-8)
5. Main switch (page 3-1)
6. Indicator lights (page 3-1)
7. Right handlebar switches (page 3-3)
8. Brake lever (page 3-4)9. Throttle grip (page 6-13)
10. Fuel tank cap (page 3-5)

✹✺✬✲✥ ✦



INSTRUMENT AND CONTROL FUNCTIONS
3-1
2
34
5
6
7
8
9

EAU10450
Main switch
The main switch controls the ignition
and lighting systems. The various main
switch positions are described below.
EAU10570
ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.
NOTE:

The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10980
Indicator lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
OFFON

1. Turn signal indicator light “ ”
2. High beam indicator light “ ”
3. Neutral indicator light “ ”
3
12

✹✺✬✲✥ ✤



INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9

EAU12342
Handlebar switches
LeftRight
EAU12400
Dimmer switch “/”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
3 1
2

1. Engine stop switch “ / ”
2. Start switch “ ”
1
2

✹✺✬✲✥ ✦



INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9

EAU13600
Starter (choke) knob “”
Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the knob in direction (a) to turn on
the starter (choke).
Move the knob in direction (b) to turn off
the starter (choke).
EAU13770
Steering lock
To lock the steering
1. Turn the handlebar all the way to
the right.
2. Open the steering lock cover, and
then insert the steering lock key.
3. Turn the key 1/8 turn counterclock-
wise, push it in while turning the
handlebar slightly to the left, and
then turn the key 1/8 turn clock-
wise.
4. Check that the steering is locked,
remove the key, and then close the
lock cover.
To unlock the steering
1. Open the steering lock cover, and
then insert the steering lock key.
2. Push the key in, turn it 1/8 turn
counterclockwise so that it moves
out, and then release it.
3. Remove the key, and then close
the lock cover.

1. Starter (choke) knob “”
1
(a)
(b)

1. Steering lock cover
2. Steering lock
21

✹✺✬✲✥ ✫



PRE-OPERATION CHECKS
4-3
2
3
45
6
7
8
9

Drive chain

Check chain slack.

Adjust if necessary.

Check chain condition.

Lubricate if necessary.6-21, 6-23
Wheels and tires

Check for damage.

Check tire condition and tread depth.

Check air pressure.

Correct if necessary.6-13, 6-16
Brake and shift pedals

Make sure that operation is smooth.

Lubricate pedal pivoting points if necessary.6-24
Brake and clutch levers

Make sure that operation is smooth.

Lubricate lever pivoting points if necessary.6-24
Sidestand

Make sure that operation is smooth.

Lubricate pivot if necessary.6-25
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened.

Tighten if necessary.—
Instruments, lights, signals
and switches

Check operation.

Correct if necessary.—
Sidestand switch

Check operation of ignition circuit cut-off system.

If system is defective, have Yamaha dealer check vehicle.3-11
ITEM CHECKS PAGE

✹✺✬✲✥ ✦
