PRE-OPERATION CHECKS
4-2
1
2
3
4
5
6
7
8
9

EAU15602
Pre-operation check list
ITEM CHECKS PAGE
Fuel

Check fuel level in fuel tank.

Refuel if necessary.

Check fuel line for leakage.3-6
Engine oil

Check oil level in engine.

If necessary, add recommended oil to specified level.

Check vehicle for oil leakage.6-7
Front brake

Check operation.

If soft or spongy, have Yamaha dealer bleed hydraulic system.

Check lever free play.

Adjust if necessary.

Check brake pads for wear.

Replace if necessary.

Check fluid level in reservoir.

If necessary, add recommended brake fluid to specified level.

Check hydraulic system for leakage.6-17, 6-19, 6-20
Rear brake

Check operation.

Check pedal free play.

Adjust if necessary.6-18, 6-19
Clutch

Check operation.

Lubricate cable if necessary.

Check lever free play.

Adjust if necessary.6-16
Throttle grip

Make sure that operation is smooth.

Check cable free play.

If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-13, 6-24
Control cables

Make sure that operation is smooth.

Lubricate if necessary.6-23

✹✺✬✲✥ ✥



PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
2
3
4
5
67
8
9
crankcase.
NOTE:

The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter element cleaning)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engineto collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
CAUTION:

ECA11000
When removing the engine oil drain
bolt, the O-ring, compression
spring, and oil strainer will fall out.
Take care not to lose these parts.
1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
2
3 1

1. Engine oil filler cap
1

1. Engine oil drain bolt
1

✹✺✬✲✥ ✫



PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
2
3
4
5
67
8
9
11. Install the oil strainer, compression
spring, O-ring and engine oil drain
bolt, and then tighten the drain bolt
to the specified torque.
12. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:

ECA11620

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Donot use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-
rial enters the crankcase.
13. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
14. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20830
Cleaning the air filter element
and check hose
The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas. In addition, the air
filter check hose must be frequently
checked and cleaned if necessary.
To clean the air filter element
1. Remove panel A. (See page 6-5.)
2. Remove the air filter case cover by
removing the screws.
3. Pull the air filter element out.
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31.1 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element removal:
1.00 L (1.06 US qt)
(0.88 Imp.qt)
With oil filter element removal:
1.10 L (1.16 US qt)
(0.97 Imp.qt)

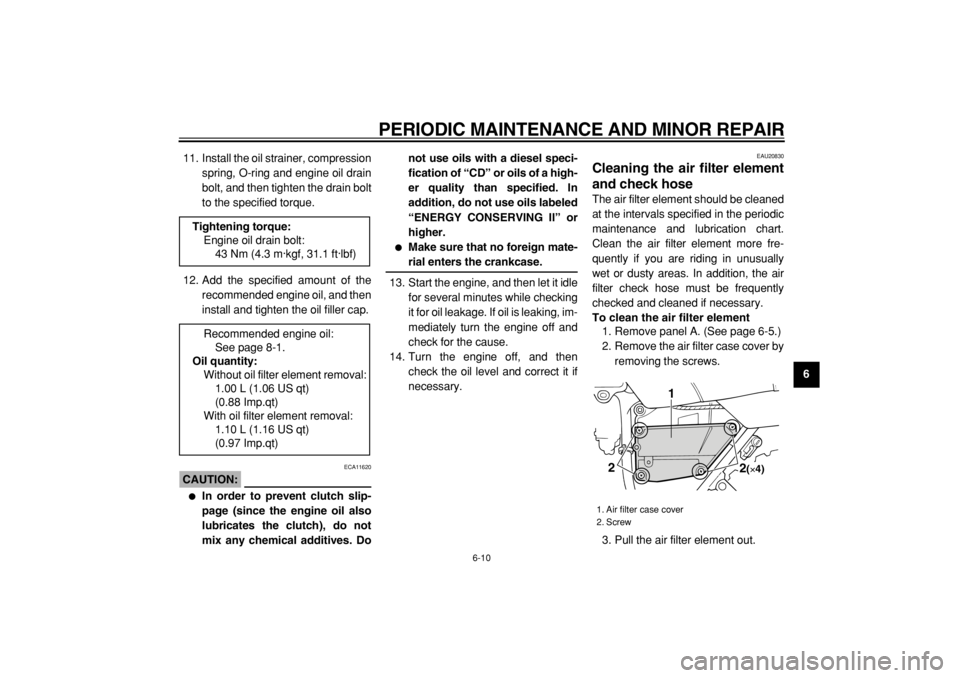

1. Air filter case cover
2. Screw
1
2
2(×4)

✹✺✬✲✥ ✤✣



PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
1
2
3
4
5
6
7
8
9
4. Remove the sponge material from
the air filter element frame, clean it
with solvent, and then squeeze the
remaining solvent out.
5. Apply oil of the recommended type
to the entire surface of the spongematerial, and then squeeze the ex-
cess oil out.
NOTE:

The sponge material should be wet but
not dripping.
6. Pull the sponge material over the
air filter element frame.
7. Insert the element into the air filter
case.
CAUTION:

ECA10480

Make sure that the air filter ele-
ment is properly seated in the
air filter case.

The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
8. Install the air filter case cover by in-
stalling the screws.
9. Install the panel.
To clean the air filter check hose
1. Check the hose at the bottom of
the air filter case for accumulated
dirt or water.
2. If dirt or water is visible, remove
the hose, clean it, and then install
it.

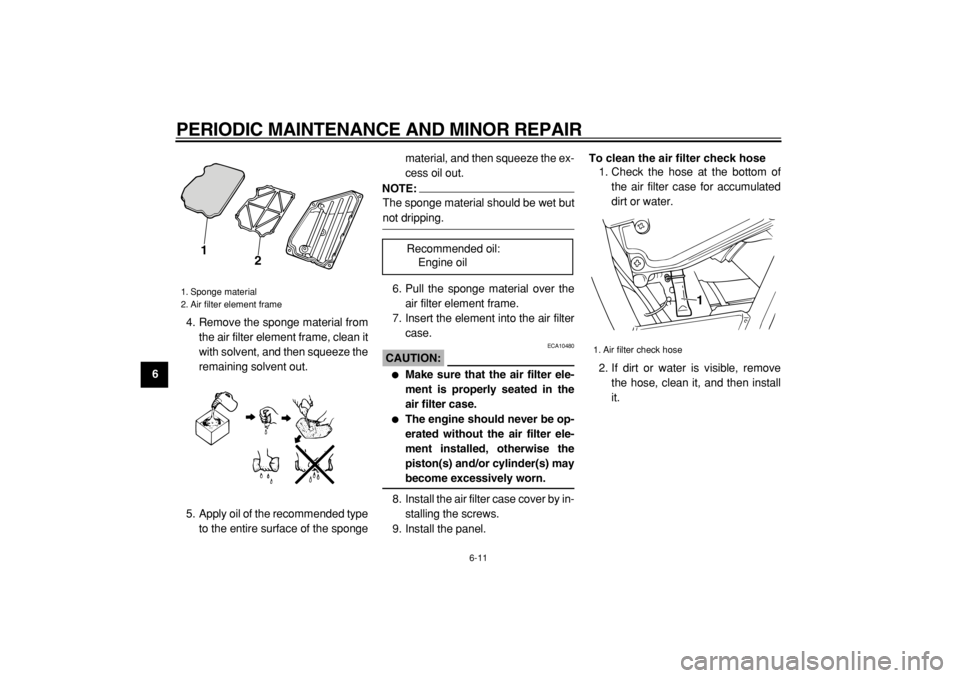

1. Sponge material
2. Air filter element frame
1
2

Recommended oil:
Engine oil
1. Air filter check hose
1

✹✺✬✲✥ ✤✤



PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
2
3
4
5
67
8
9
peared, have a Yamaha dealer replace
the brake pads as a set.

EAU22540
Rear brake shoes
The rear brake is provided with a wear
indicator, which allows you to check the
brake shoe wear without having to dis-
assemble the brake. To check the
brake shoe wear, check the position of
the wear indicator while applying the
brake. If a brake shoe has worn to the
point that the wear indicator reaches
the wear limit line, have a Yamaha
dealer replace the brake shoes as a
set.
EAU32341
Checking the brake fluid level
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:

When checking the fluid level,
make sure that the top of the mas-ter cylinder is level by turning the
handlebars.

Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.

Be careful that water does not en-
ter the master cylinder when refill-
ing. Water will significantly lower
the boiling point of the fluid and
may result in vapor lock.

Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.

As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the

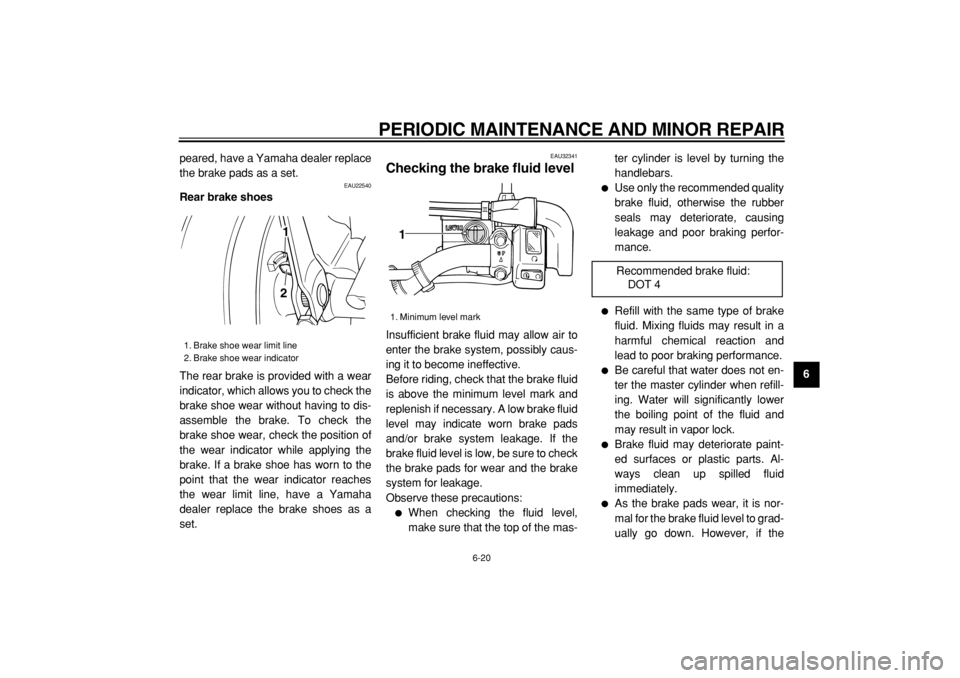

1. Brake shoe wear limit line
2. Brake shoe wear indicator
21

1. Minimum level mark
1

Recommended brake fluid:
DOT 4

✹✺✬✲✥ ✥✣



PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
1
2
3
4
5
6
7
8
9

EAU23011
Lubricating the drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
CAUTION:

ECA10580
The drive chain must be lubricated
after washing the motorcycle or
riding in the rain.
1. Remove all dirt and mud from the
drive chain with a brush or cloth.
NOTE:

For a thorough cleaning, have a
Yamaha dealer remove the drive chain
and soak it in solvent.
2. Spray Yamaha Chain and Cable
Lube or a high-quality spray-type
drive chain lubricant on both sides
and on the middle of the chain,
making sure that all side plates
and rollers have been sufficientlyoiled.
EAU23100
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING

EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.
Recommended lubricant:
Engine oil

✹✺✬✲✥ ✥✦



PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
1
2
3
4
5
6
7
8
9

EAU23200
Checking and lubricating the
sidestand

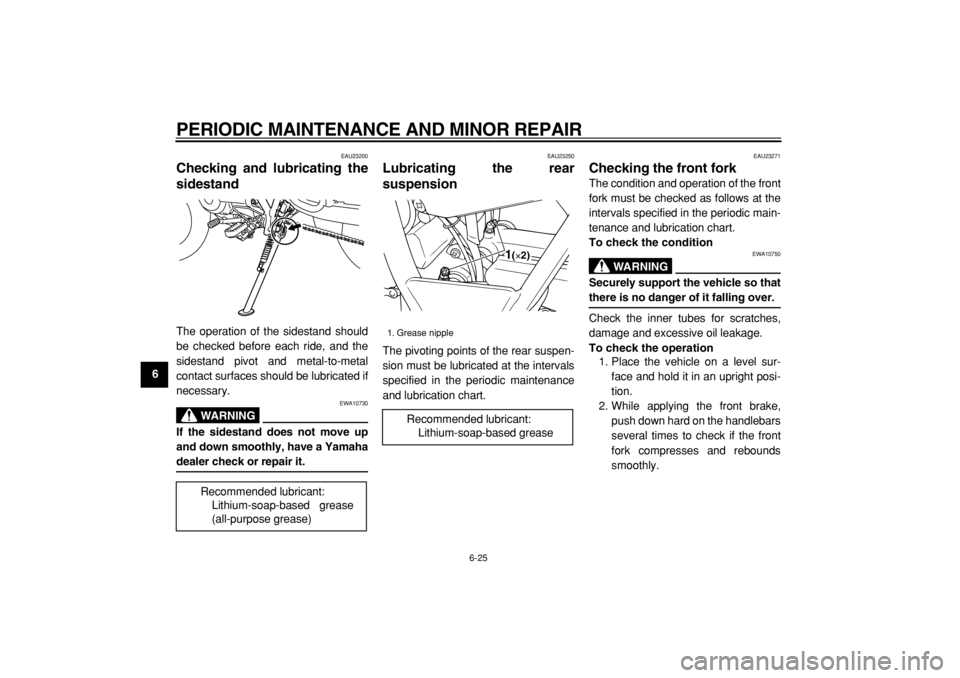

The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING

EWA10730
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it.
EAU23250
Lubricating the rear
suspension
The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU23271
Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)

1. Grease nipple
Recommended lubricant:
Lithium-soap-based grease1(×2)

✹✺✬✲✥ ✥




SPECIFICATIONS
8-1
2
3
4
5
6
7
89

EAU26333
Dimensions:
Overall length:
2135 mm (84.1 in)
Overall width:
820 mm (32.3 in)
Overall height:
1120 mm (44.1 in)
Seat height:
820 mm (32.3 in)
Wheelbase:
1350 mm (53.1 in)
Ground clearance:
255 mm (10.04 in)
Minimum turning radius:
2100 mm (82.7 in)
Weight:
With oil and fuel:
127.0 kg (280 lb)
Engine:
Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
125.0 cm
3

(7.63 cu.in)
Bore
×
stroke:
57.0
×
48.8 mm (2.24
×
1.92 in)
Compression ratio:
10.00 :1
Starting system:
Electric starter
Lubrication system:
Wet sump

Engine oil:
Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element removal:
1.00 L (1.06 US qt) (0.88 Imp.qt)
With oil filter element removal:
1.10 L (1.16 US qt) (0.97 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
7.0 L (1.85 US gal) (1.54 Imp.gal)
Fuel reserve amount:
1.7 L (0.45 US gal) (0.37 Imp.gal)
Carburetor:
Manufacturer:
TEIKEI
Type x quantity:
MV28 x 1
Spark plug(s):
Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
74/20 (3.700)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
51/14 (3.643)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
36/16 (2.250)
2nd:
31/21 (1.476)
3rd:
27/24 (1.125)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40

✹✺✬✲✥ ✤



SPECIFICATIONS
8-2
1
2
3
4
5
6
7
8
9

4th:
25/27 (0.926)
5th:
23/29 (0.793)
Chassis:
Frame type:
Diamond
Caster angle:
25.8 °
Trail:
93.0 mm (3.66 in)
Front tire:
Type:
With tube
Size:
130/80-18M/C 66P
Manufacturer/model:
BRIDGESTONE/TW-203
Rear tire:
Type:
With tube
Size:
180/80-14M/C 78P
Manufacturer/model:
BRIDGESTONE/TW-204
Loading:
Maximum load:
180 kg (397 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
150 kPa (22 psi) (1.50 kgf/cm
2

)
Rear:
150 kPa (22 psi) (1.50 kgf/cm
2

)
Loading condition:
90–180 kg (198–397 lb)
Front:
150 kPa (22 psi) (1.50 kgf/cm
2

)
Rear:
175 kPa (25 psi) (1.75 kgf/cm
2

)
Front wheel:
Wheel type:
Spoke wheel
Rim size:
18x2.50
Rear wheel:
Wheel type:
Spoke wheel
Rim size:
14M/C x MT4.50
Front brake:
Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Drum brake
Operation:
Right foot operation
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
150.0 mm (5.91 in)
Rear suspension:
Type:
Swingarm (monocross)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
150.0 mm (5.91 in)
Electrical system:
Ignition system:
C.D.I.
Charging system:
A.C. magneto
Battery:
Model:
GT6B-3
Voltage, capacity:
12 V, 6.0 Ah
Headlight:
Bulb type:
Halogen bulb

✹✺✬✲✥ ✥
