EAU25871

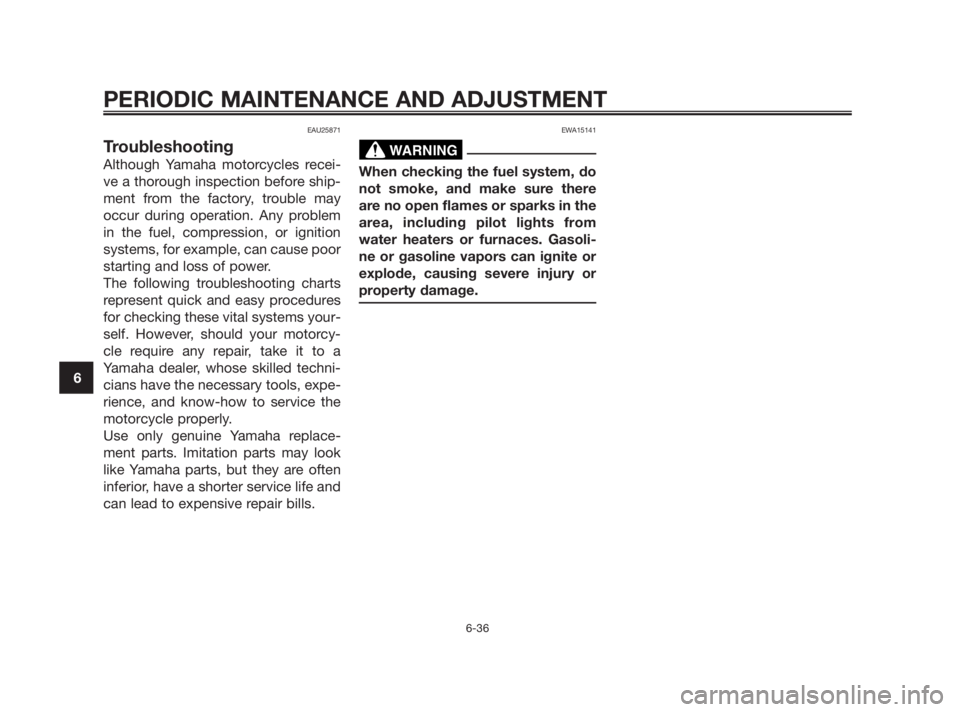

Troubleshooting
Although Yamaha motorcycles recei-
ve a thorough inspection before ship-
ment from the factory, trouble may
occur during operation. Any problem
in the fuel, compression, or ignition
systems, for example, can cause poor
starting and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcy-
cle require any repair, take it to a
Yamaha dealer, whose skilled techni-
cians have the necessary tools, expe-
rience, and know-how to service the
motorcycle properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
EWA15141
When checking the fuel system, do
not smoke, and make sure there
are no open flames or sparks in the
area, including pilot lights from
water heaters or furnaces. Gasoli-
ne or gasoline vapors can ignite or
explode, causing severe injury or
property damage.
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
5WX-F819D-E3 15/11/08 15:27 Página 72

Dimensions:Overall length:
2202 mm (86.7 in)
Overall width:
689 mm (27.1 in)
Overall height:
1175 mm (46.3 in)
Seat height:
820 mm (32.3 in)
Wheelbase:
1341 mm (52.8 in)
Ground clearance:
151 mm (5.94 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:With oil and fuel:
124.0 kg (273 lb)
Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.7 cm
3
Bore x stroke:
40.3 x 39.0 mm (1.59 x 1.54 in)
Compression ratio:
11.50 :1
Starting system:
Electric starter
Lubrication system:
Separate lubrication (Yamaha autolube)Type:
YAMALUBE 2 or 2-stroke engine oil
(JASO FC grade) or (ISO EG-C or EG-D
grade)
Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)
Transmission oil:Oil change quantity:
0.75 L (0.79 US qt, 0.66 Imp.qt)
Type:
SAE 10W-30 type SE motor oil
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.29 L (0.31 US qt, 0.26 Imp.qt)
Radiator capacity (including all routes):
0.70 L (0.74 US qt, 0.62 Imp.qt)
Air filter:Air filter element:
Wet element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
13.8 L (3.65 US gal, 3.04 Imp.gal)
Fuel reserve amount:
2.2 L (0.58 US gal, 0.48 Imp.gal)
Carburetor:Manufacturer:
DELL’ORTO
Type x quantity:
PHBN 16 x 1
Spark plug (s):Manufacturer/model:
NGK / BR9 ES
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:Clutch type:
Wet, multiple-disc
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
71/20 (3.55)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
60/11 (5.45)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio:1st:
36/12 (3.00)
2nd:
33/16 (2.062)
3rd:
29/19 (1.526)
4th:
27/22 (1.227)
5th:
25/24 (1.041)
6th:
24/25 (0.960)
SPECIFICATIONS
8-1
8
5WX-F819D-E3 15/11/08 15:27 Página 79
