coolant reservoir YAMAHA TZR50 2011 Owners Manual

EAU10410

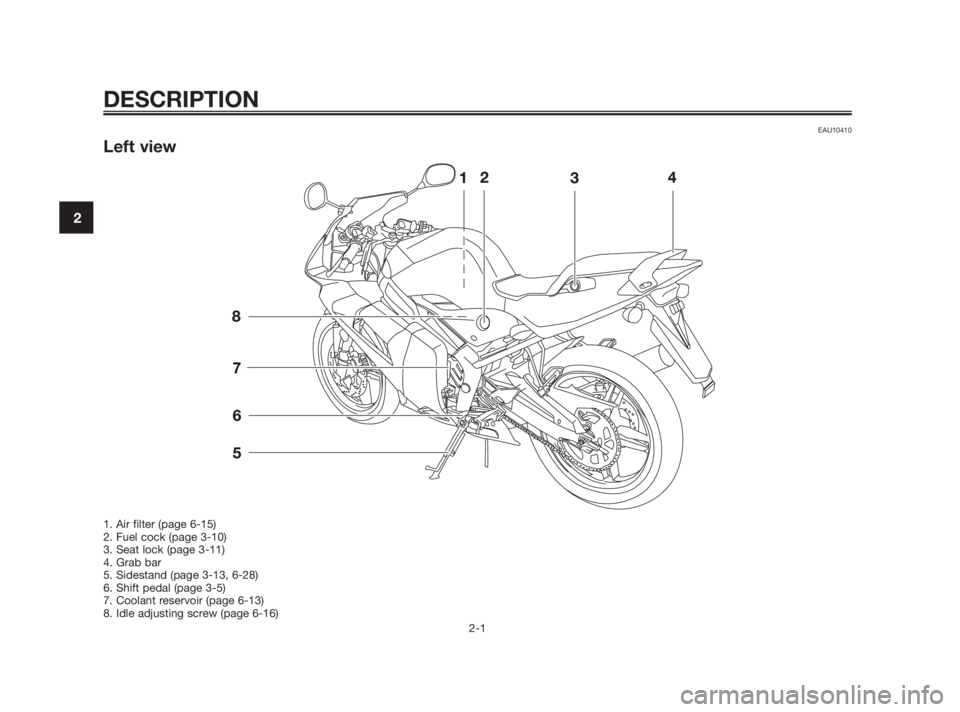

Left view
DESCRIPTION
2-1
2
1. Air filter (page 6-15)
2. Fuel cock (page 3-10)
3. Seat lock (page 3-11)
4. Grab bar
5. Sidestand (page 3-13, 6-28)
6. Shift pedal (page 3-5)
7. Coolant reservoir (page 6-13)
8. Idle adjusting screw (page 6-16)
5WX-F819D-E3 15/11/08 15:27 Página 12

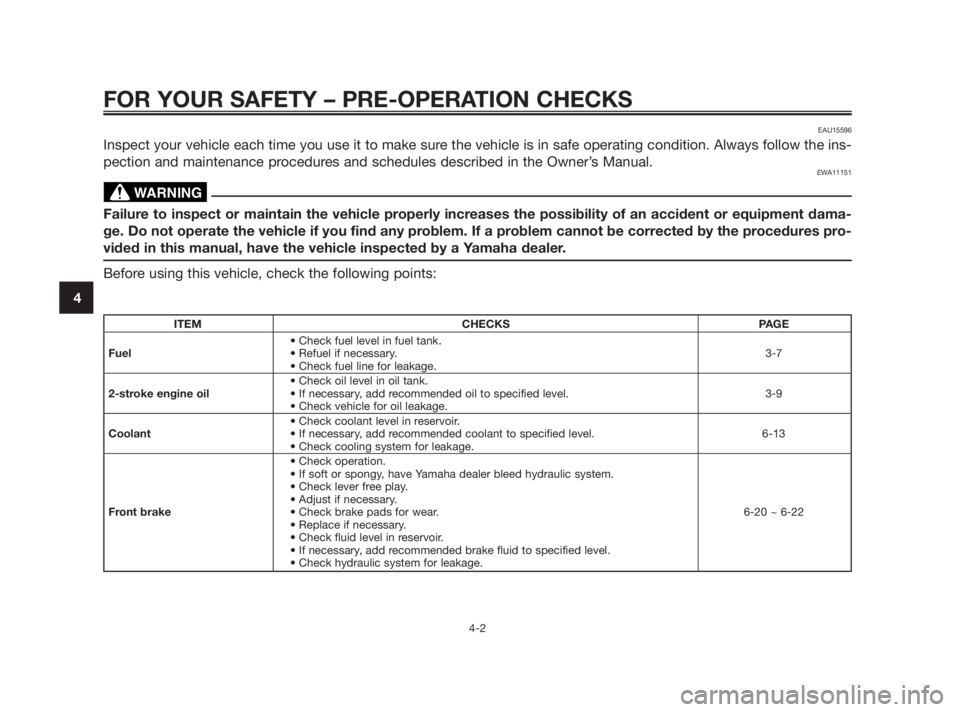

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-7
• Check fuel line for leakage.
• Check oil level in oil tank.
2-stroke engine oil• If necessary, add recommended oil to specified level. 3-9
• Check vehicle for oil leakage.
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 6-13
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
Front brake• Check brake pads for wear. 6-20 ~ 6-22
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the ins-
pection and maintenance procedures and schedules described in the Owner’s Manual.
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment dama-
ge. Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures pro-
vided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
WARNING
5WX-F819D-E3 15/11/08 15:27 Página 30

EAU20070

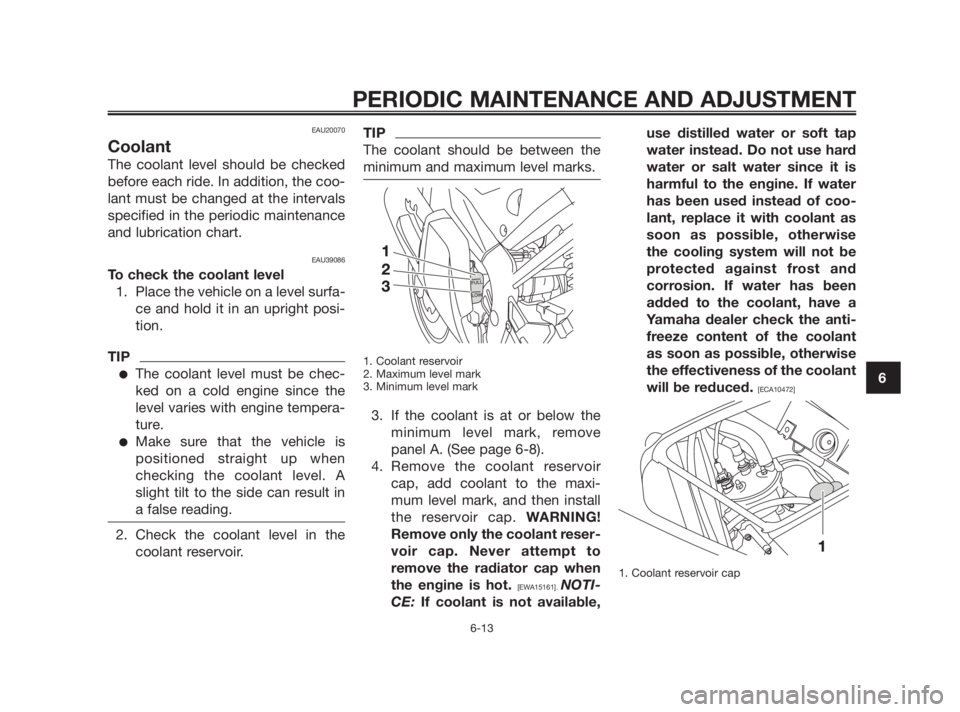

Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU39086
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
TIP
●The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
●Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level in the
coolant reservoir.
TIP
The coolant should be between the
minimum and maximum level marks.
1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
3. If the coolant is at or below the
minimum level mark, remove
panel A. (See page 6-8).
4. Remove the coolant reservoir
cap, add coolant to the maxi-
mum level mark, and then install
the reservoir cap. WARNING!
Remove only the coolant reser-
voir cap. Never attempt to
remove the radiator cap when
the engine is hot.
[EWA15161]. NOTI-
CE: If coolant is not available,use distilled water or soft tap
water instead. Do not use hard
water or salt water since it is
harmful to the engine. If water
has been used instead of coo-
lant, replace it with coolant as
soon as possible, otherwise
the cooling system will not be
protected against frost and
corrosion. If water has been
added to the coolant, have a
Yamaha dealer check the anti-
freeze content of the coolant
as soon as possible, otherwise
the effectiveness of the coolant
will be reduced.
[ECA10472]
1. Coolant reservoir cap
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
5WX-F819D-E3 15/11/08 15:27 Página 49

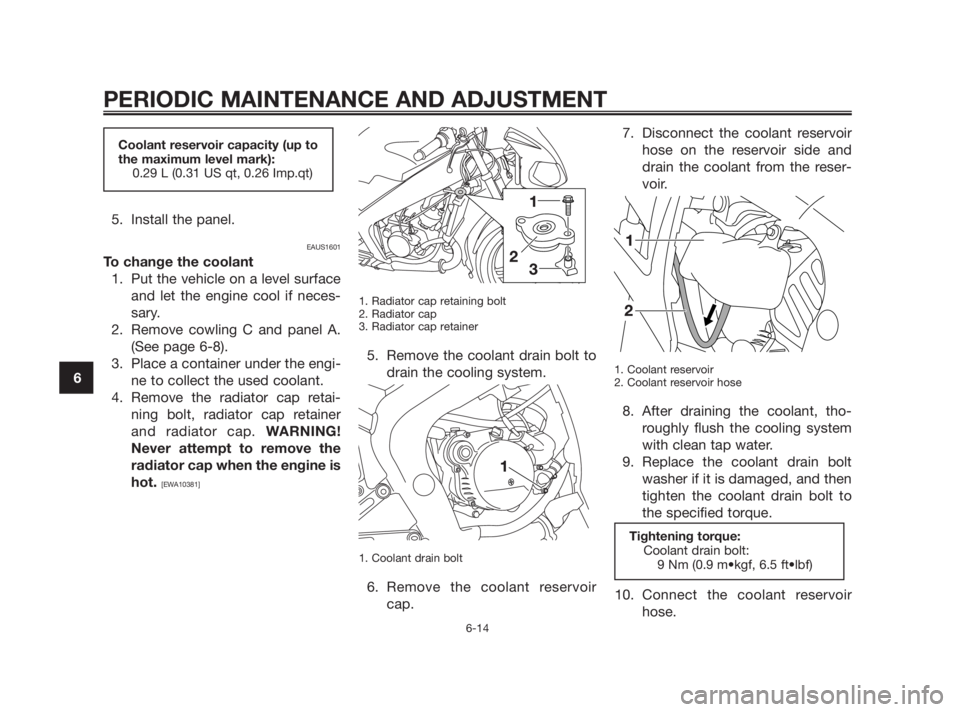

5. Install the panel.
EAUS1601
To change the coolant
1. Put the vehicle on a level surface
and let the engine cool if neces-
sary.
2. Remove cowling C and panel A.
(See page 6-8).
3. Place a container under the engi-
ne to collect the used coolant.
4. Remove the radiator cap retai-
ning bolt, radiator cap retainer
and radiator cap. WARNING!
Never attempt to remove the
radiator cap when the engine is
hot.
[EWA10381]
1. Radiator cap retaining bolt
2. Radiator cap
3. Radiator cap retainer
5. Remove the coolant drain bolt to
drain the cooling system.
1. Coolant drain bolt
6. Remove the coolant reservoir
cap.7. Disconnect the coolant reservoir
hose on the reservoir side and
drain the coolant from the reser-
voir.
1. Coolant reservoir
2. Coolant reservoir hose
8. After draining the coolant, tho-
roughly flush the cooling system
with clean tap water.
9. Replace the coolant drain bolt
washer if it is damaged, and then
tighten the coolant drain bolt to
the specified torque.
10. Connect the coolant reservoir
hose.
Tightening torque:
Coolant drain bolt:
9 Nm (0.9 m•kgf, 6.5 ft•lbf)
Coolant reservoir capacity (up to
the maximum level mark):
0.29 L (0.31 US qt, 0.26 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
5WX-F819D-E3 15/11/08 15:27 Página 50

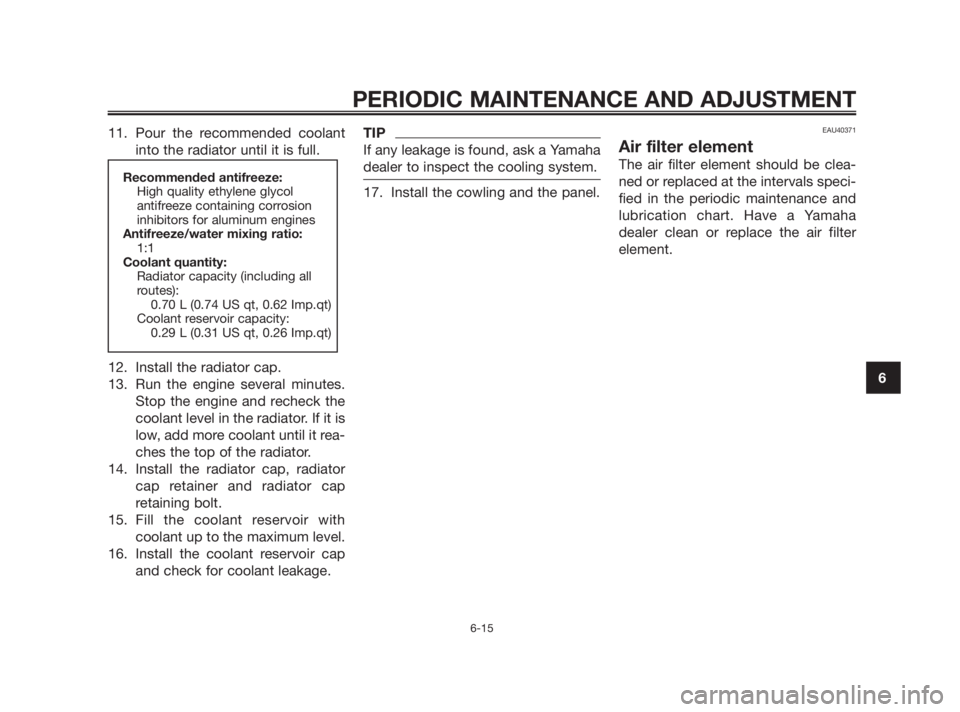

11. Pour the recommended coolant
into the radiator until it is full.
12. Install the radiator cap.
13. Run the engine several minutes.
Stop the engine and recheck the
coolant level in the radiator. If it is
low, add more coolant until it rea-
ches the top of the radiator.
14. Install the radiator cap, radiator
cap retainer and radiator cap
retaining bolt.
15. Fill the coolant reservoir with
coolant up to the maximum level.
16. Install the coolant reservoir cap
and check for coolant leakage.TIP
If any leakage is found, ask a Yamaha
dealer to inspect the cooling system.
17. Install the cowling and the panel.
EAU40371
Air filter element
The air filter element should be clea-
ned or replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart. Have a Yamaha
dealer clean or replace the air filter
element.Recommended antifreeze:
High quality ethylene glycol
antifreeze containing corrosion
inhibitors for aluminum engines
Antifreeze/water mixing ratio:
1:1
Coolant quantity:
Radiator capacity (including all
routes):
0.70 L (0.74 US qt, 0.62 Imp.qt)
Coolant reservoir capacity:
0.29 L (0.31 US qt, 0.26 Imp.qt)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
5WX-F819D-E3 15/11/08 15:27 Página 51

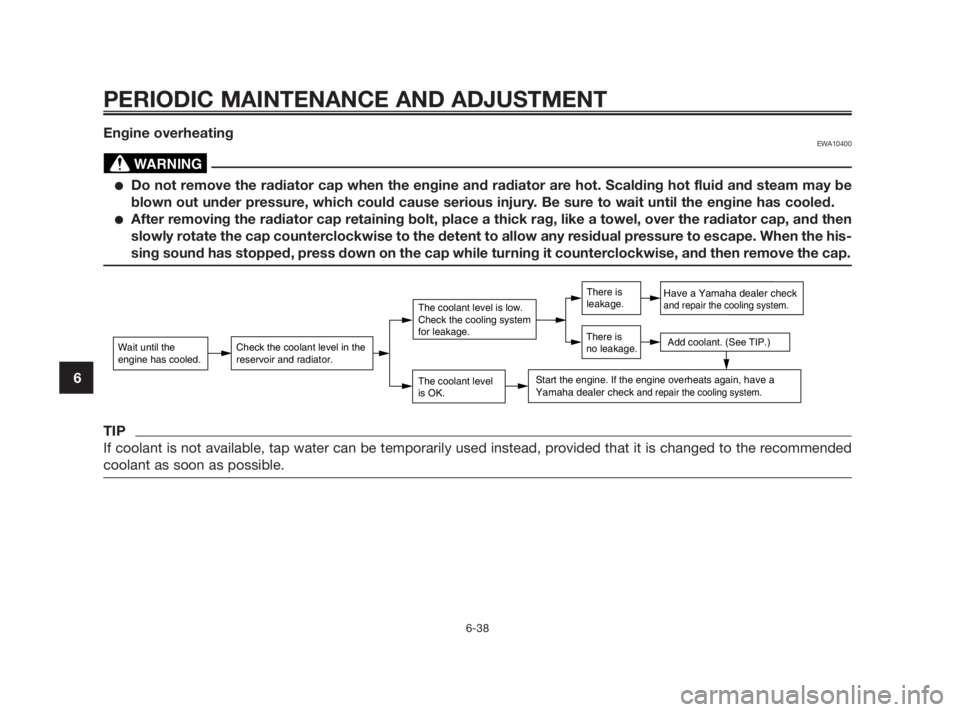

Engine overheatingEWA10400
●Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
●After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the his-
sing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
Wait until the
engine has cooled.Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.
The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.
Add coolant. (See TIP.)
Start the engine. If the engine overheats again, have a
Yamaha dealer check and repair the cooling system.
There is
leakage.
There is
no leakage.
WARNING
PERIODIC MAINTENANCE AND ADJUSTMENT
6-38
6
5WX-F819D-E3 15/11/08 15:27 Página 74

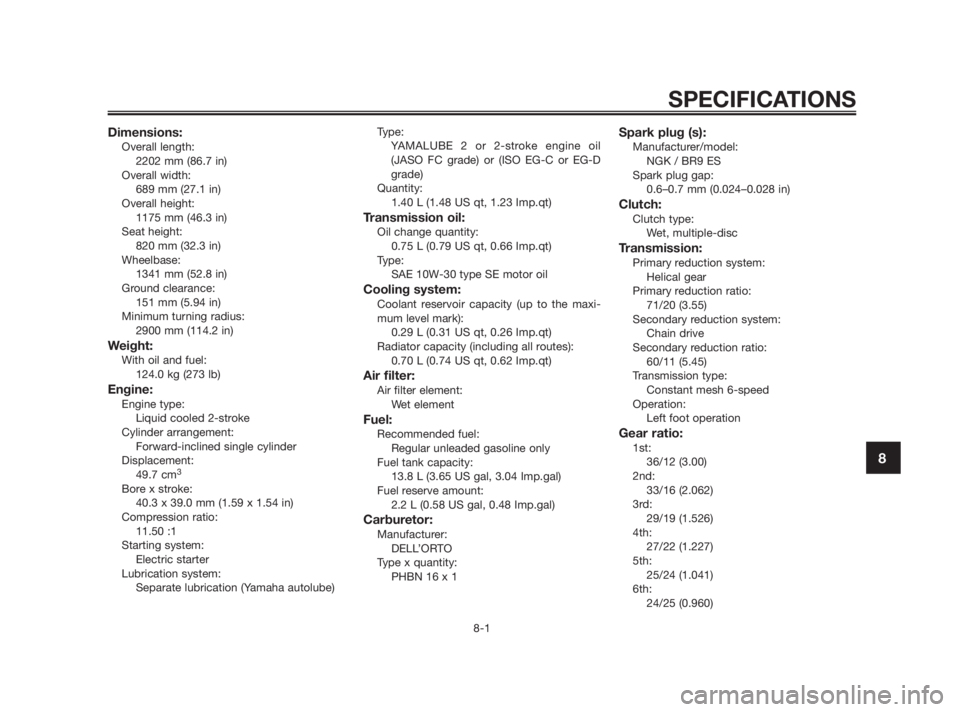

Dimensions:Overall length:
2202 mm (86.7 in)
Overall width:
689 mm (27.1 in)
Overall height:
1175 mm (46.3 in)
Seat height:
820 mm (32.3 in)
Wheelbase:
1341 mm (52.8 in)
Ground clearance:
151 mm (5.94 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:With oil and fuel:
124.0 kg (273 lb)
Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.7 cm
3
Bore x stroke:
40.3 x 39.0 mm (1.59 x 1.54 in)
Compression ratio:
11.50 :1
Starting system:
Electric starter
Lubrication system:
Separate lubrication (Yamaha autolube)Type:
YAMALUBE 2 or 2-stroke engine oil
(JASO FC grade) or (ISO EG-C or EG-D
grade)
Quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)
Transmission oil:Oil change quantity:
0.75 L (0.79 US qt, 0.66 Imp.qt)
Type:
SAE 10W-30 type SE motor oil
Cooling system:Coolant reservoir capacity (up to the maxi-
mum level mark):
0.29 L (0.31 US qt, 0.26 Imp.qt)
Radiator capacity (including all routes):
0.70 L (0.74 US qt, 0.62 Imp.qt)
Air filter:Air filter element:
Wet element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
13.8 L (3.65 US gal, 3.04 Imp.gal)
Fuel reserve amount:
2.2 L (0.58 US gal, 0.48 Imp.gal)
Carburetor:Manufacturer:
DELL’ORTO
Type x quantity:
PHBN 16 x 1
Spark plug (s):Manufacturer/model:
NGK / BR9 ES
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:Clutch type:
Wet, multiple-disc
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
71/20 (3.55)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
60/11 (5.45)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
Gear ratio:1st:
36/12 (3.00)
2nd:
33/16 (2.062)
3rd:
29/19 (1.526)
4th:
27/22 (1.227)
5th:
25/24 (1.041)
6th:
24/25 (0.960)
SPECIFICATIONS
8-1
8
