Page 82 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6
1. Turn signal socket (x2)
2. Tail/brake socket (x2)
3. Remove the socket (together with
the bulb) by turning it
counterclockwise.
4. Remove the defective bulb by
pushing it in and turning it
counterclockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it
clockwise until it stops.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the panel.
1. Bulb socket
2. Screw
EAUM0062
Replacing the license plate
light bulb
1. Remove the license plate light
cover by removing the screw.
2. Remove the socket (together with
the bulb) by pulling it out.
3. Remove the defective bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by pushing it in.
6. Install the license plate light cover
by installing the screw.
EAU03087
Troubleshooting
Although Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems
yourself. However, should your scoo-
ter require any repair, take it to a
Yamaha dealer, whose skilled
technicians have the necessary tools,
experience, and know-how to service
the scooter properly.
Use only genuine Yamaha replacement
parts. Imitation parts may look like
Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
6-35
21
ZAUM0467
1
2
ZAUM0586
Page 92 of 104

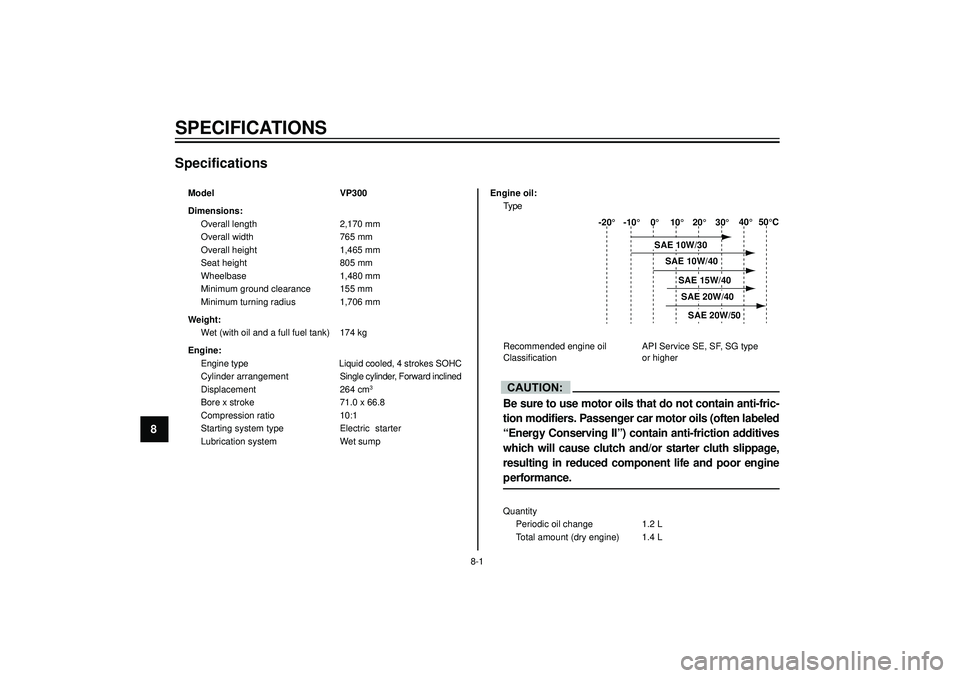

SPECIFICATIONS
8
Model VP300
Dimensions:
Overall length 2,170 mm
Overall width 765 mm
Overall height 1,465 mm
Seat height 805 mm
Wheelbase 1,480 mm
Minimum ground clearance 155 mm
Minimum turning radius 1,706 mm
Weight:
Wet (with oil and a full fuel tank) 174 kg
Engine:
Engine type Liquid cooled, 4 strokes SOHC
Cylinder arrangementSingle cylinder, Forward inclined
Displacement 264 cm
3
Bore x stroke 71.0 x 66.8
Compression ratio 10:1
Starting system type Electric starter
Lubrication system Wet sump
Specifications
Engine oil:
Type
-20°-10°10°20°30°40°50°C
0°
SAE 10W/30
SAE 10W/40
SAE 15W/40
SAE 20W/40
SAE 20W/50
Recommended engine oil API Service SE, SF, SG type
Classification or higher
CAUTION:
8-1
Be sure to use motor oils that do not contain anti-fric-
tion modifiers. Passenger car motor oils (often labeled
“Energy Conserving II”) contain anti-friction additives
which will cause clutch and/or starter cluth slippage,
resulting in reduced component life and poor engine
performance.
Quantity
Periodic oil change 1.2 L
Total amount (dry engine) 1.4 L
