YAMAHA VERSITY 300 2005 Workshop Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6


Be sure no foreign material en-ters the crankcase.
7. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
8. Reset the oil change indicator.
(See page 3-2.)
EAU20060
Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm it up by
riding the scooter for several min-
utes, and then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the oil filler cap and drain
bolt to drain the oil from the final
transmission case.5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
1. Final transmission oil filler cap
1. Final transmission oil drain bolt
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m·kgf, 15.9 ft·lbf)
1
ZAUM0441

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
66. Add the specified amount of the
recommended final transmission
oil, and then install and tighten the
oil filler cap.
WARNING
EWA11310


Make sure that no foreign mate-
rial enters the final transmission
case.


Make sure that no oil gets on thetire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU20230
To check the coolant level
The coolant reservoir is located under
the battery cover. (See page 6-7.)
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:

The coolant level must be checked
on a cold engine since the level
varies with engine temperature.


Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
reservoir cap, add coolant to the
maximum level mark, and then in-
stall the reservoir cap.
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.25 L (0.26 US qt) (0.22 Imp.qt)
1. Maximum level mark
2. Minimum level mark
1
2
ZAUM0444

PERIODIC MAINTENANCE AND MINOR REPAIR
6-14

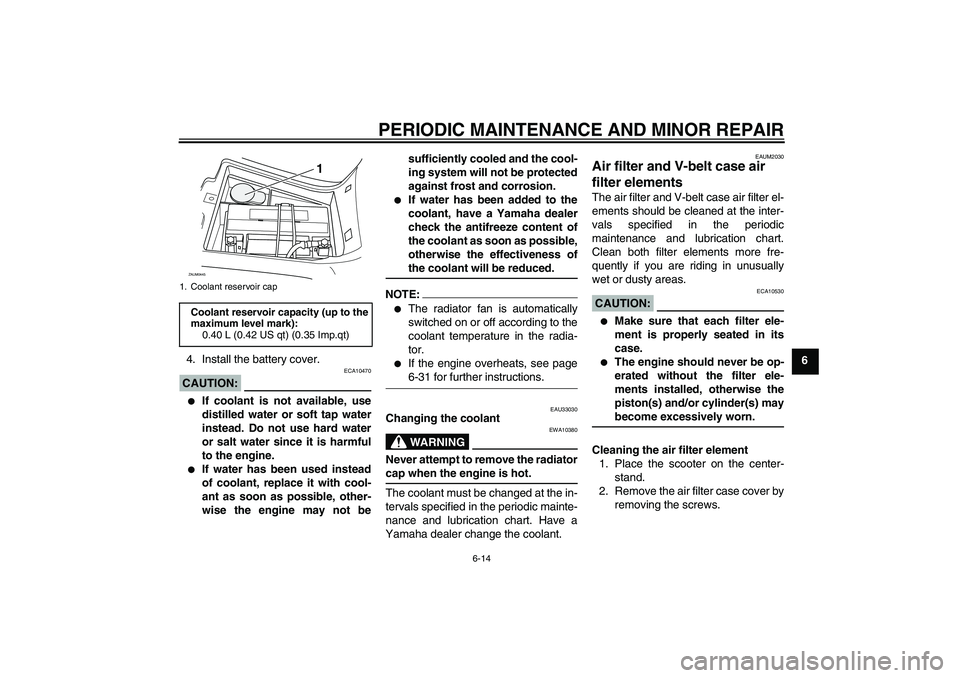

6 4. Install the battery cover.
CAUTION:
ECA10470


If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.


If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the engine may not besufficiently cooled and the cool-
ing system will not be protected
against frost and corrosion.


If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.
NOTE:

The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.


If the engine overheats, see page6-31 for further instructions.
EAU33030
Changing the coolant
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
EAUM2030
Air filter and V-belt case air
filter elements The air filter and V-belt case air filter el-
ements should be cleaned at the inter-
vals specified in the periodic
maintenance and lubrication chart.
Clean both filter elements more fre-
quently if you are riding in unusually
wet or dusty areas.CAUTION:
ECA10530


Make sure that each filter ele-
ment is properly seated in its
case.


The engine should never be op-
erated without the filter ele-
ments installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
Cleaning the air filter element
1. Place the scooter on the center-
stand.
2. Remove the air filter case cover by
removing the screws.
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark):
0.40 L (0.42 US qt) (0.35 Imp.qt)
1
ZAUM0445

PERIODIC MAINTENANCE AND MINOR REPAIR
6-15

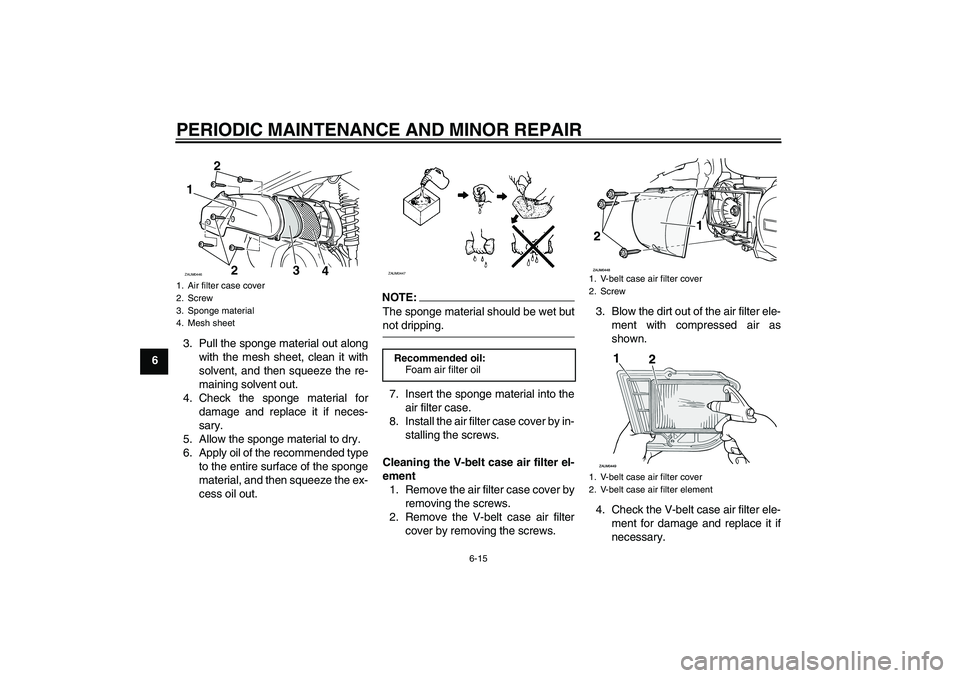

63. Pull the sponge material out along
with the mesh sheet, clean it with
solvent, and then squeeze the re-
maining solvent out.
4. Check the sponge material for
damage and replace it if neces-
sary.
5. Allow the sponge material to dry.
6. Apply oil of the recommended type
to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.
NOTE:The sponge material should be wet butnot dripping.
7. Insert the sponge material into the
air filter case.
8. Install the air filter case cover by in-
stalling the screws.
Cleaning the V-belt case air filter el-
ement
1. Remove the air filter case cover by
removing the screws.
2. Remove the V-belt case air filter
cover by removing the screws.3. Blow the dirt out of the air filter ele-
ment with compressed air as
shown.
4. Check the V-belt case air filter ele-
ment for damage and replace it if
necessary.
1. Air filter case cover
2. Screw
3. Sponge material
4. Mesh sheet1
2 2
3
4
ZAUM0446
Recommended oil:
Foam air filter oilZAUM0447
1. V-belt case air filter cover
2. Screw
1. V-belt case air filter cover
2. V-belt case air filter element

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16

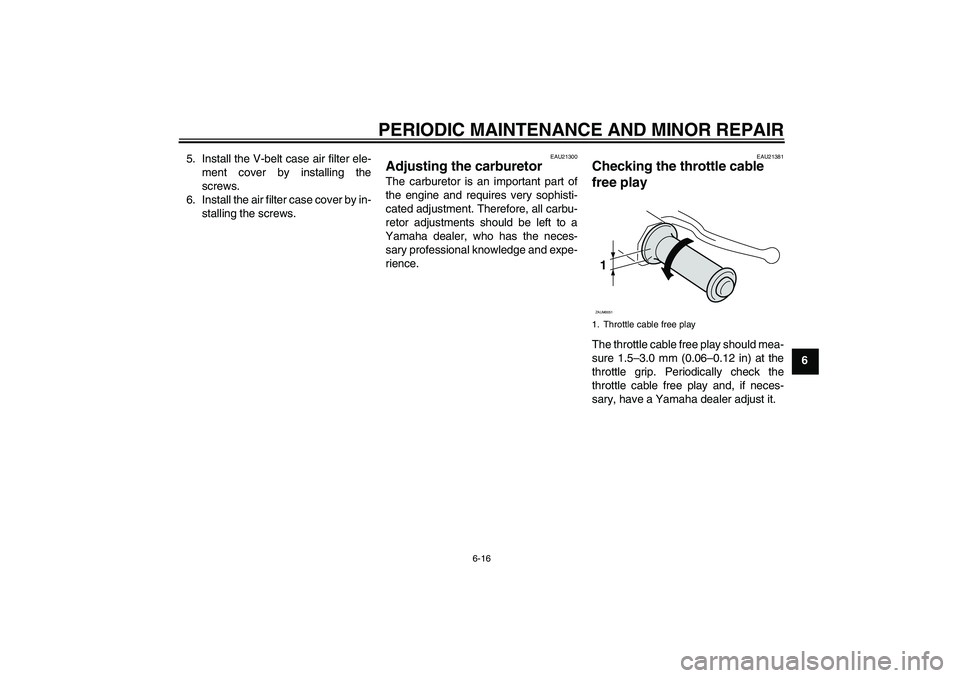

6 5. Install the V-belt case air filter ele-
ment cover by installing the
screws.
6. Install the air filter case cover by in-
stalling the screws.
EAU21300
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, all carbu-
retor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience.
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 1.5–3.0 mm (0.06–0.12 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.1. Throttle cable free play1ZAUM0051

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU21401

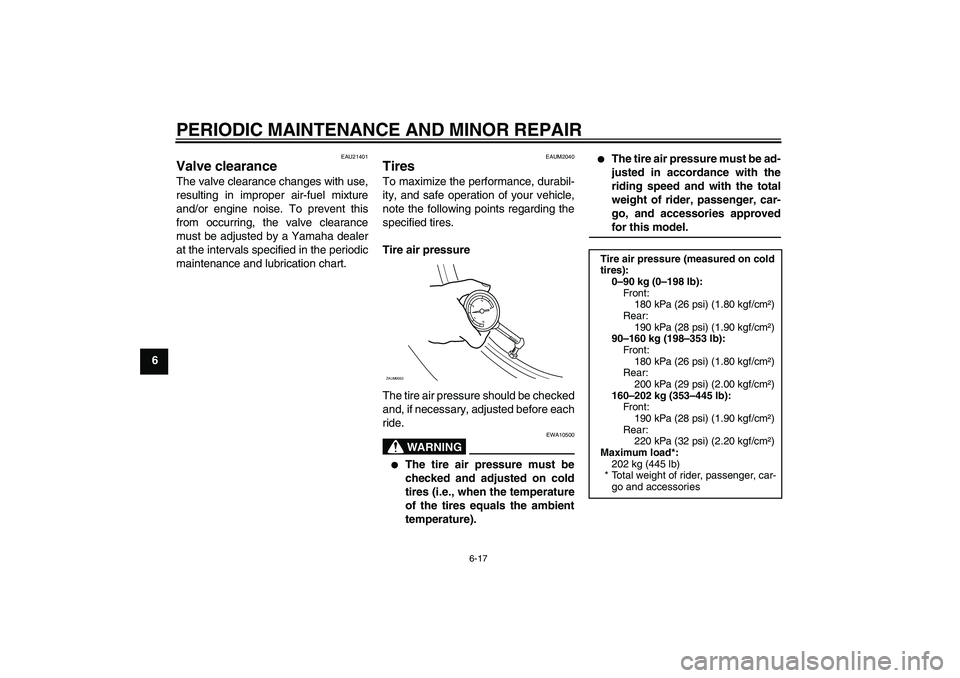

Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAUM2040
Tires To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
ZAUM0053
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
180 kPa (26 psi) (1.80 kgf/cm²)
Rear:
190 kPa (28 psi) (1.90 kgf/cm²)
90–160 kg (198–353 lb):
Front:
180 kPa (26 psi) (1.80 kgf/cm²)
Rear:
200 kPa (29 psi) (2.00 kgf/cm²)
160–202 kg (353–445 lb):
Front:
190 kPa (28 psi) (1.90 kgf/cm²)
Rear:
220 kPa (32 psi) (2.20 kgf/cm²)
Maximum load*:
202 kg (445 lb)
* Total weight of rider, passenger, car-
go and accessories

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6

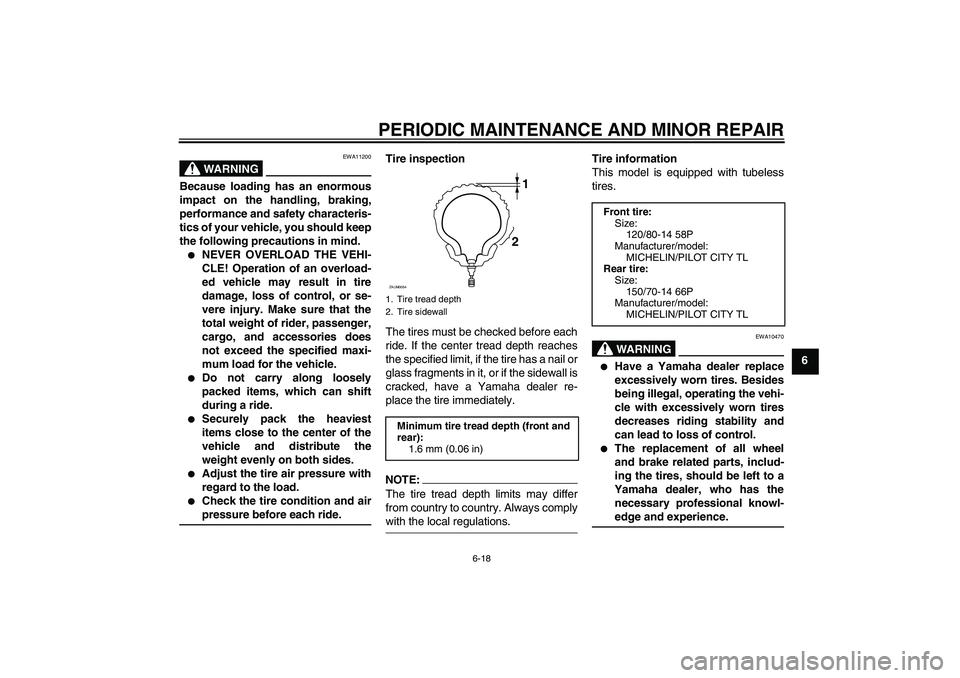

WARNING
EWA11200
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your vehicle, you should keep
the following precautions in mind.

NEVER OVERLOAD THE VEHI-
CLE! Operation of an overload-
ed vehicle may result in tire
damage, loss of control, or se-
vere injury. Make sure that the
total weight of rider, passenger,
cargo, and accessories does
not exceed the specified maxi-
mum load for the vehicle.


Do not carry along loosely
packed items, which can shift
during a ride.


Securely pack the heaviest
items close to the center of the
vehicle and distribute the
weight evenly on both sides.


Adjust the tire air pressure with
regard to the load.


Check the tire condition and airpressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.Tire information
This model is equipped with tubeless
tires.
WARNING
EWA10470


Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.


The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
1. Tire tread depth
2. Tire sidewall
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1
2
ZAUM0054
Front tire:
Size:
120/80-14 58P
Manufacturer/model:
MICHELIN/PILOT CITY TL
Rear tire:
Size:
150/70-14 66P
Manufacturer/model:
MICHELIN/PILOT CITY TL

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU21960

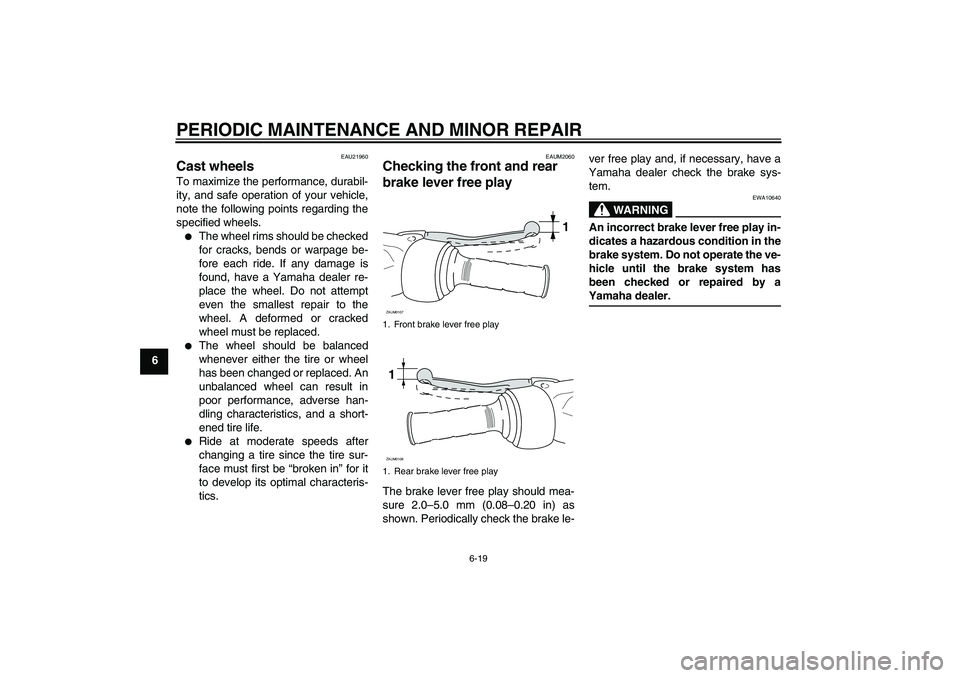

Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.

The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.


The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.


Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAUM2060
Checking the front and rear
brake lever free play The brake lever free play should mea-
sure 2.0–5.0 mm (0.08–0.20 in) as
shown. Periodically check the brake le-ver free play and, if necessary, have a
Yamaha dealer check the brake sys-
tem.
WARNING
EWA10640
An incorrect brake lever free play in-
dicates a hazardous condition in the
brake system. Do not operate the ve-
hicle until the brake system has
been checked or repaired by aYamaha dealer.
1. Front brake lever free play
1. Rear brake lever free play
1
ZAUM01071ZAUM0108

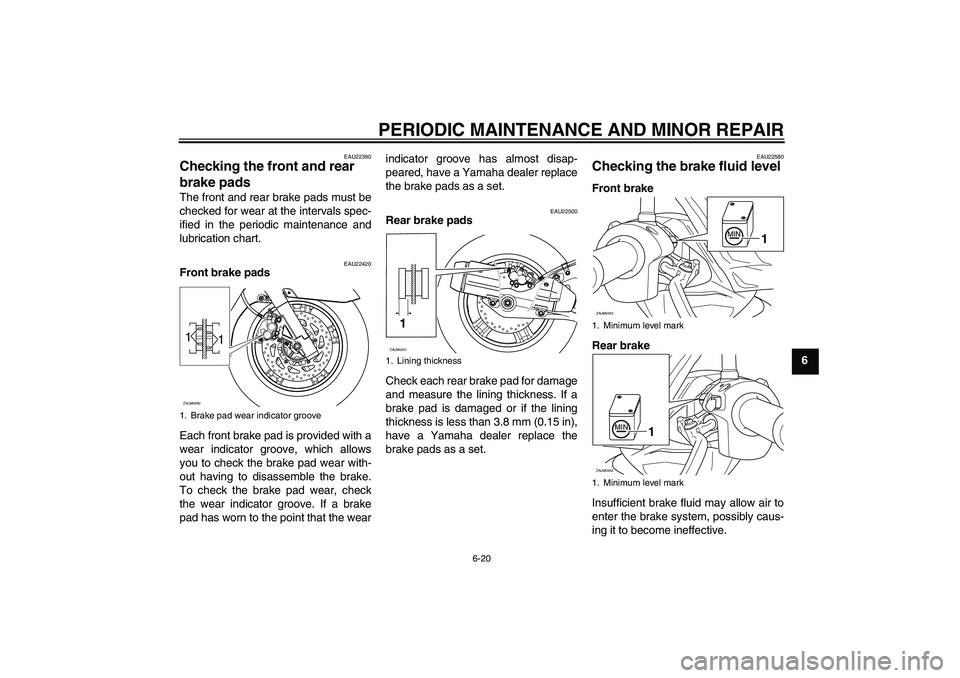

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22420
Front brake pads
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator groove. If a brake
pad has worn to the point that the wearindicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 3.8 mm (0.15 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU22580
Checking the brake fluid level Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
1. Brake pad wear indicator grooveZAUM05921
1
1. Lining thickness
1ZAUM0451
1. Minimum level mark
1. Minimum level mark
MIN
1
ZAUM0453
MIN
1
ZAUM0452

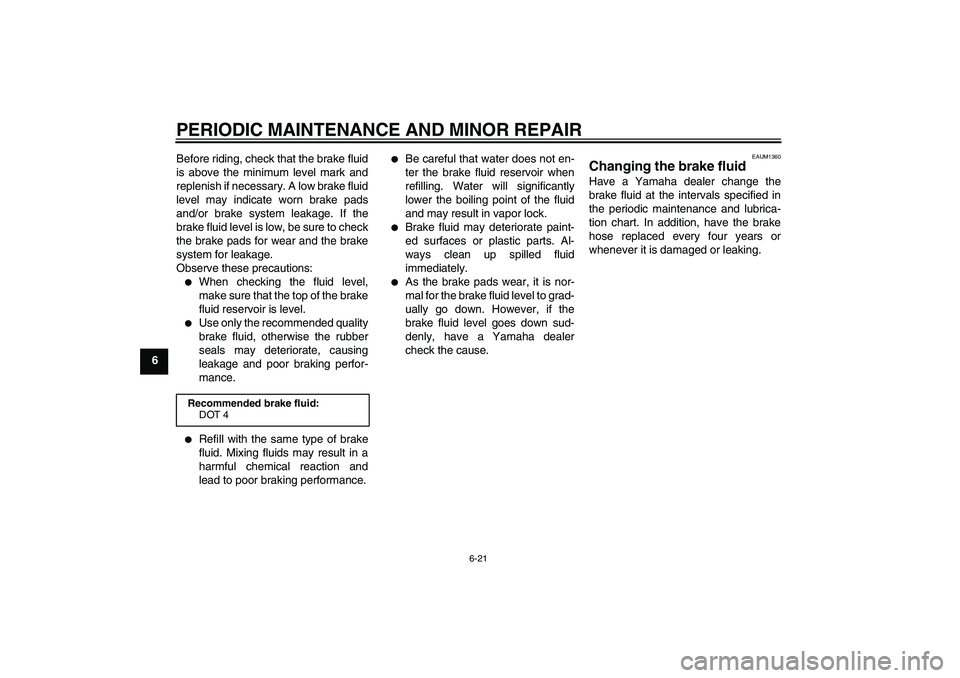

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:


When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.


Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.


Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.


As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAUM1360
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the brake
hose replaced every four years or
whenever it is damaged or leaking.
Recommended brake fluid:
DOT 4
