SAFETY INFORMATION
1-4
1


Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade-
quate ventilation.


Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:
The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes-
trians or children are not likely to
touch these hot areas.
Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.
Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.


If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into youreyes, see your doctor immediately.
If any gasoline spills on your skin
or clothing, immediately wash the
affected area with soap and water
and change your clothes.
EAU10371
Further safe-riding points

Be sure to signal clearly when
making turns.


Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.


Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.


Be careful when passing parked
cars. A driver might not see you
and open a door in your path.


Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.


The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.

SAFETY INFORMATION
1-5
1

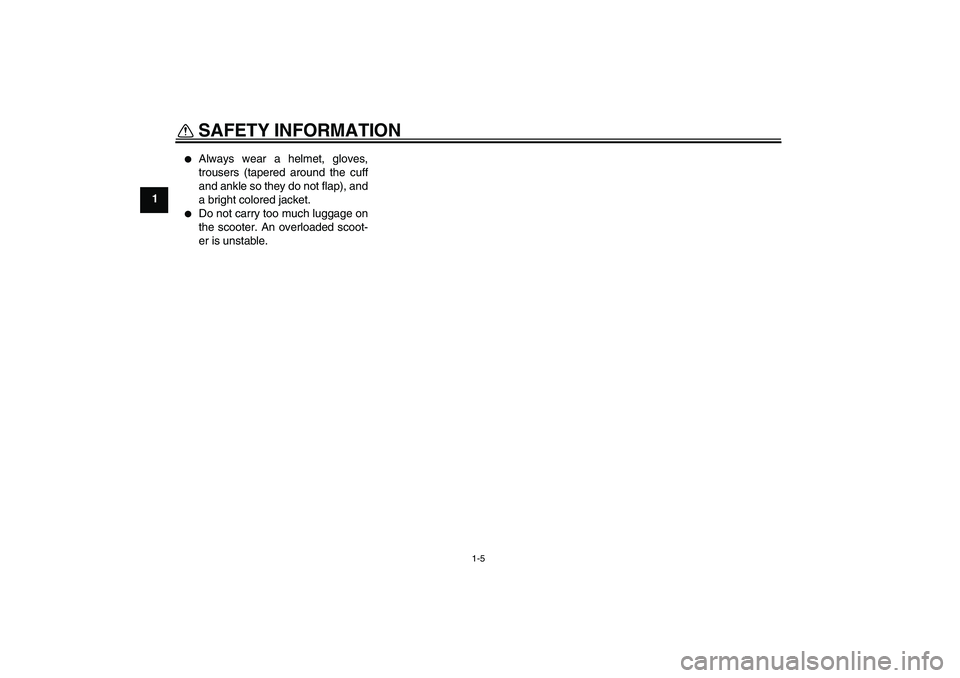

Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a bright colored jacket.


Do not carry too much luggage on
the scooter. An overloaded scoot-
er is unstable.

DESCRIPTION
2-1
2
EAU10410

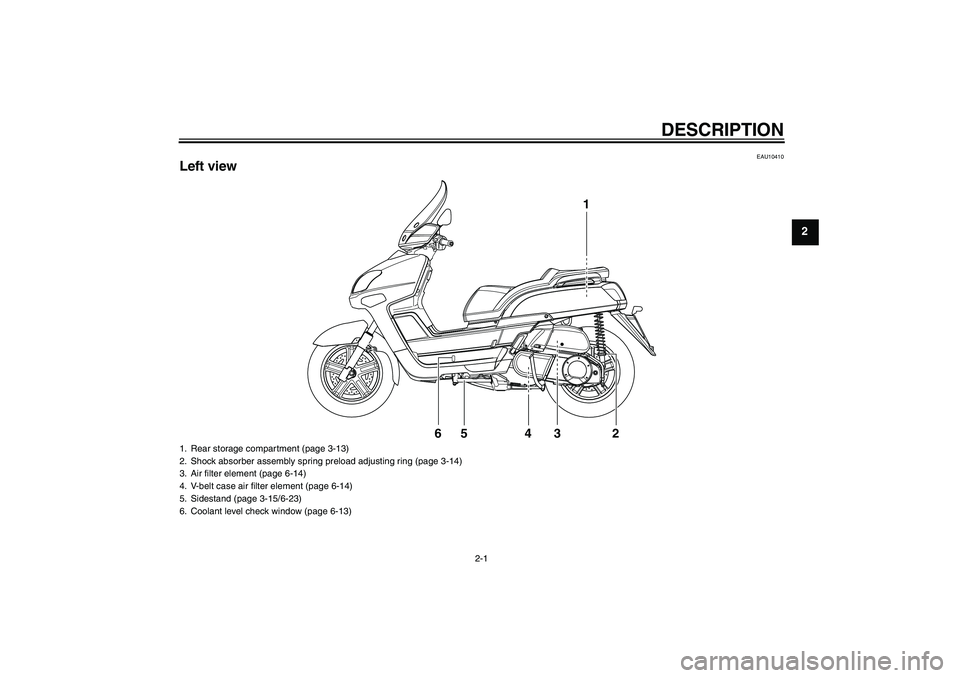

Left view
1
65 4 3 2
1. Rear storage compartment (page 3-13)
2. Shock absorber assembly spring preload adjusting ring (page 3-14)
3. Air filter element (page 6-14)
4. V-belt case air filter element (page 6-14)
5. Sidestand (page 3-15/6-23)
6. Coolant level check window (page 6-13)

DESCRIPTION
2-2
2
EAU10420

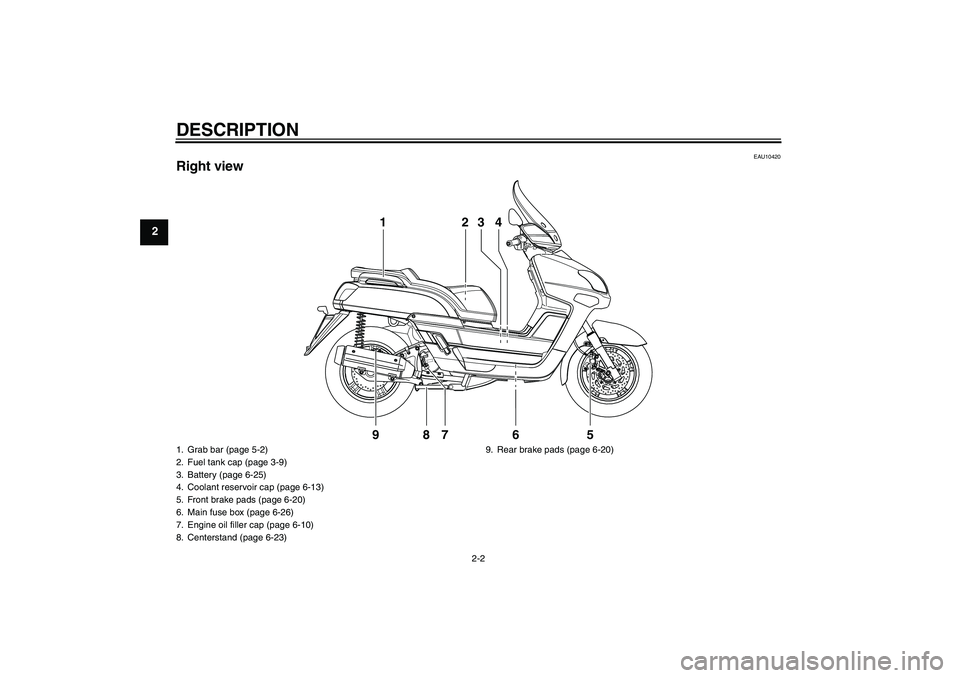

Right view
1
987 6 523 4
1. Grab bar (page 5-2)
2. Fuel tank cap (page 3-9)
3. Battery (page 6-25)
4. Coolant reservoir cap (page 6-13)
5. Front brake pads (page 6-20)
6. Main fuse box (page 6-26)
7. Engine oil filler cap (page 6-10)
8. Centerstand (page 6-23)9. Rear brake pads (page 6-20)

DESCRIPTION
2-3
2
EAU10430

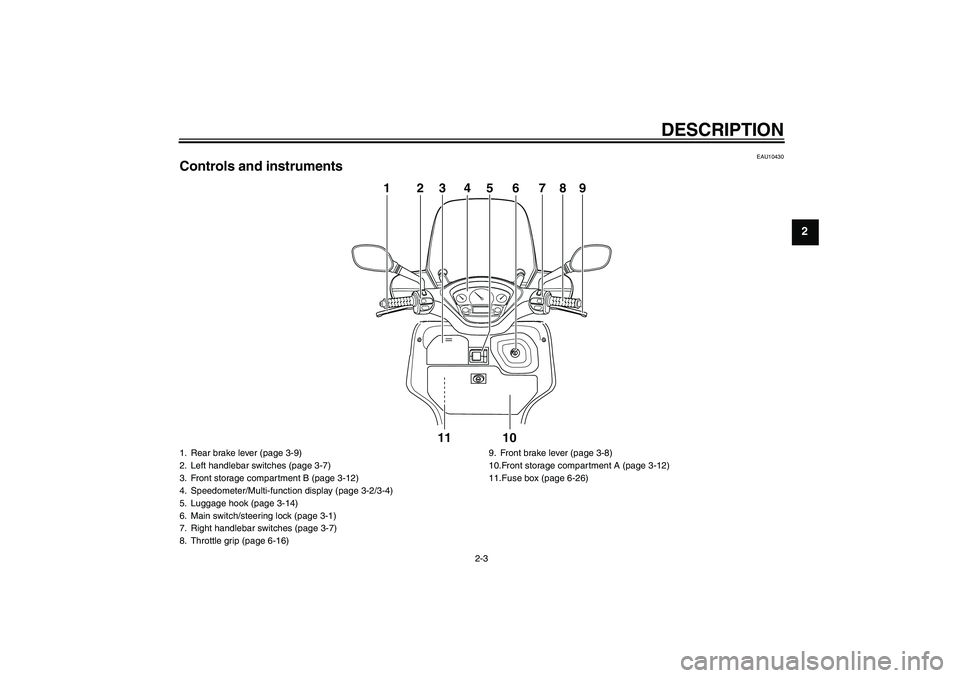

Controls and instruments
PUSHOPEN
11 10 123456789
1. Rear brake lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Front storage compartment B (page 3-12)
4. Speedometer/Multi-function display (page 3-2/3-4)
5. Luggage hook (page 3-14)
6. Main switch/steering lock (page 3-1)
7. Right handlebar switches (page 3-7)
8. Throttle grip (page 6-16)9. Front brake lever (page 3-8)
10.Front storage compartment A (page 3-12)
11.Fuse box (page 6-26)

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU34121
ON “”
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.NOTE:The headlights come on automatically
when the engine is started and stay on
until the key is turned to “” or the sid-estand is moved down.
EAU10660
OFF “”
All electrical systems are off. The key
can be removed.
EAU10680
LOCK “”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “” posi-
tion, and then turn it to “” while
still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to “”
while still pushing it.
WARNING
EWA10060
Never turn the key to “” or “”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result inloss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “” or “”.
PUSHOPEN
ZAUM0253

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU10980

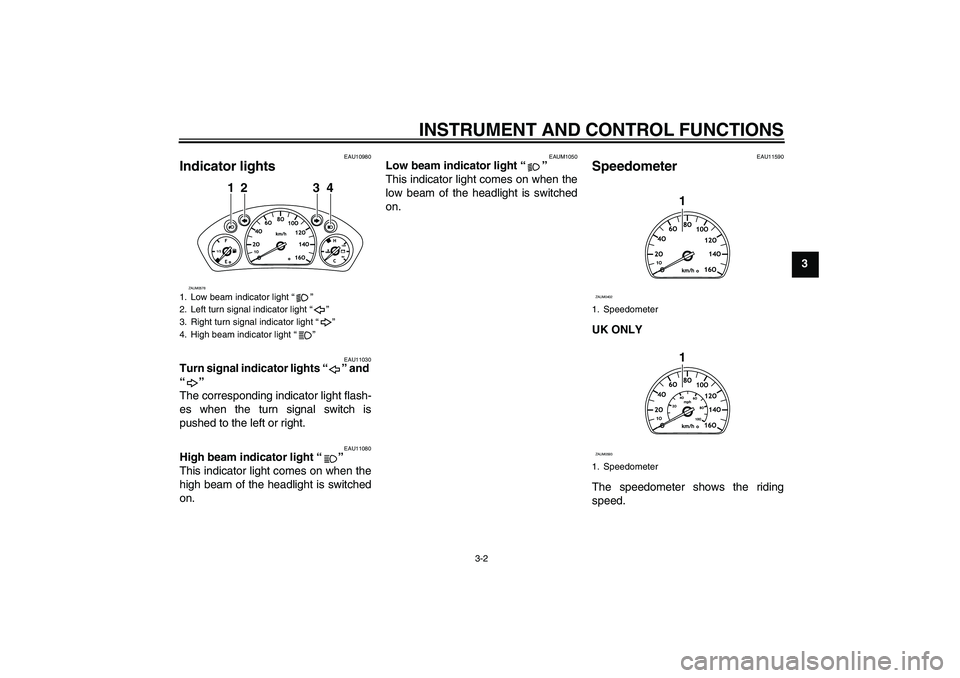

Indicator lights
EAU11030
Turn signal indicator lights “ ” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUM1050
Low beam indicator light “ ”
This indicator light comes on when the
low beam of the headlight is switched
on.
EAU11590
Speedometer UK ONLY
The speedometer shows the riding
speed.
1. Low beam indicator light “ ”
2. Left turn signal indicator light “ ”
3. Right turn signal indicator light “ ”
4. High beam indicator light “ ”
12 34
ZAUM0578
1. Speedometer
1. Speedometer
1
ZAUM0402
1
ZAUM0593

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAUM1470
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the remaining fuel in
the tank reaches approximately 1.9 L
(0.50 US gal) (0.42 Imp.gal), the fuel
level warning light will come on and the
multi-function display will automatically
change to the “Trip/fuel” mode. (See
page 3-4.) If this occurs, refuel as soon
as possible.NOTE:Do not allow the fuel tank to empty itselfcompletely.
EAUM1101
Battery voltage/coolant
temperature gauge When the key is turned to “”, this
gauge indicates the battery voltage lev-
el before the engine was stopped.NOTE:If the needle drops to the “9V” (low)
mark, have a Yamaha dealer check thebattery.
When the key is turned to “”, this
gauge indicates the coolant tempera-
ture. If the needle reaches the red
zone, stop the scooter and allow the
engine to cool. (See page 6-31.)
CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
1. Fuel gauge
2. Fuel level warning light
1
2
ZAUM0403
1. High level
2. Low level
1
2
ZAUM0579
1. Red zone
1
ZAUM0580

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAUM2050

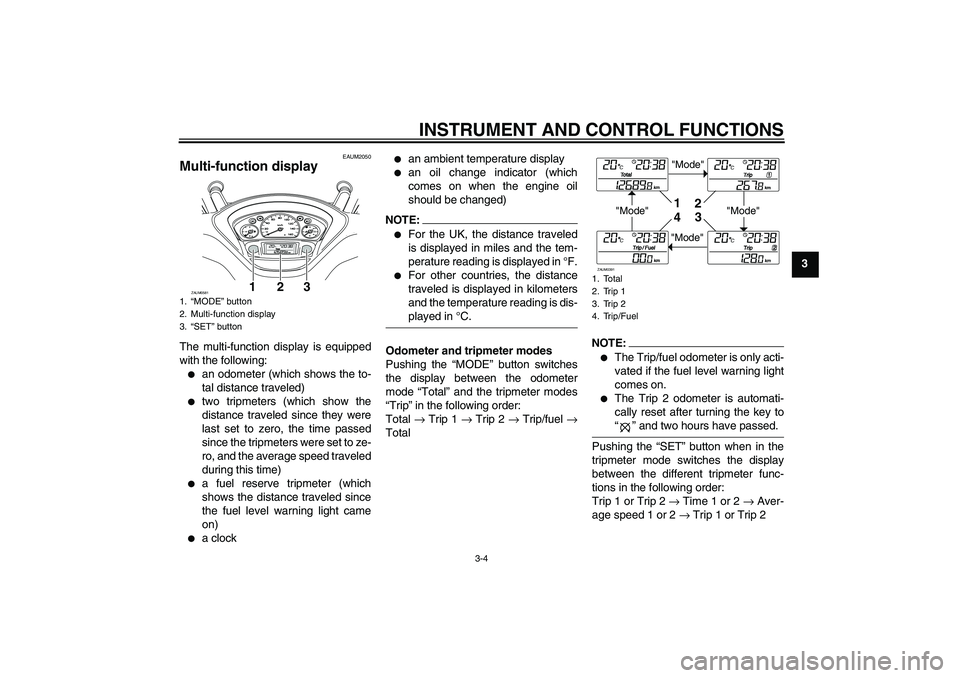

Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to ze-
ro, and the average speed traveled
during this time)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a clock


an ambient temperature display


an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:

For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in °F.


For other countries, the distance
traveled is displayed in kilometers
and the temperature reading is dis-played in °C.
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter modes
“Trip” in the following order:
Total → Trip 1 → Trip 2 → Trip/fuel →
Total
NOTE:

The Trip/fuel odometer is only acti-
vated if the fuel level warning light
comes on.


The Trip 2 odometer is automati-
cally reset after turning the key to“” and two hours have passed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2 → Time 1 or 2 → Aver-
age speed 1 or 2 → Trip 1 or Trip 2
1.“MODE” button
2. Multi-function display
3.“SET” button
1
23
ZAUM0581
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
"Mode"
"Mode"
"Mode"
"Mode"1
2
3
4
ZAUM0391

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3

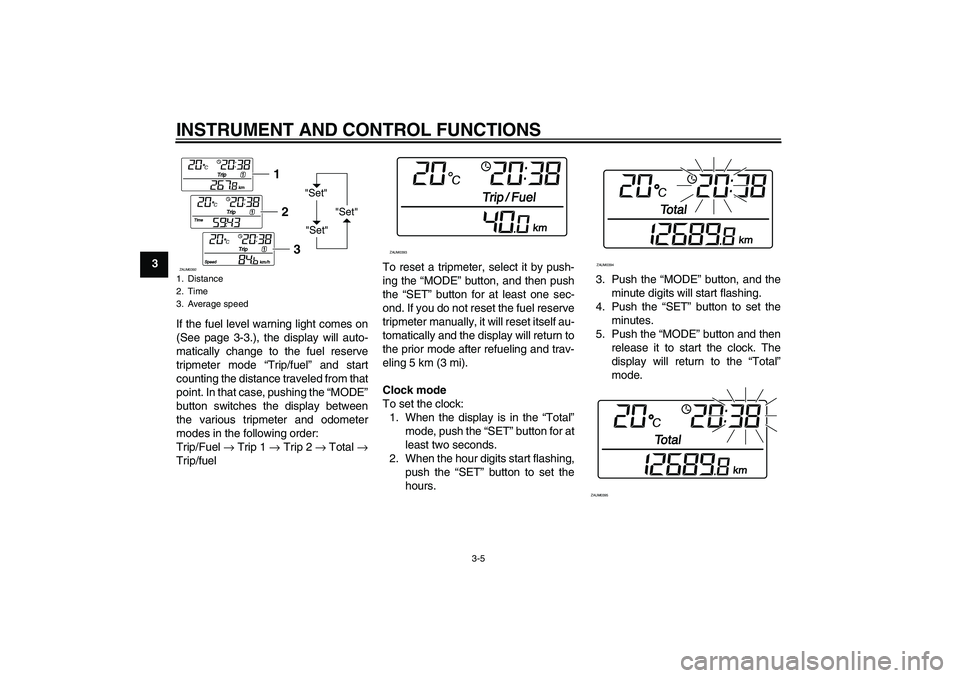

If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from that
point. In that case, pushing the “MODE”
button switches the display between
the various tripmeter and odometer
modes in the following order:
Trip/Fuel → Trip 1 → Trip 2 → Total →
Trip/fuelTo reset a tripmeter, select it by push-
ing the “MODE” button, and then push
the “SET” button for at least one sec-
ond. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for at
least two seconds.
2. When the hour digits start flashing,
push the “SET” button to set the
hours.3. Push the “MODE” button, and the
minute digits will start flashing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and then
release it to start the clock. The
display will return to the “Total”
mode.
1. Distance
2. Time
3. Average speed
"Set"
"Set""Set"
12
3
ZAUM0392
ZAUM0393
ZAUM0394ZAUM0395
