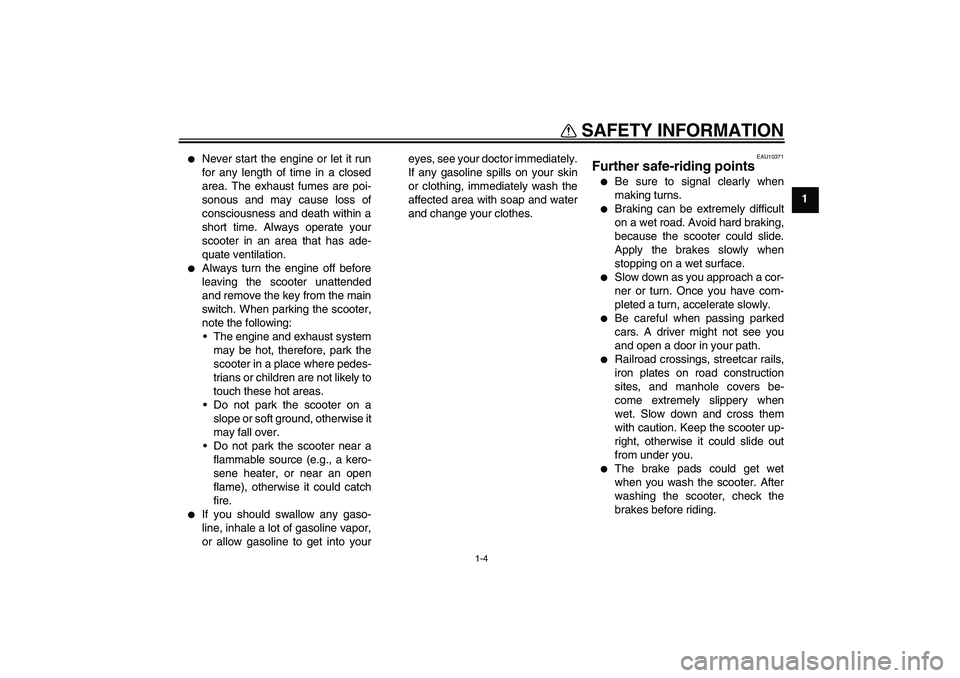

Page 11 of 84
SAFETY INFORMATION
1-4
1
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade-
quate ventilation.
Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:
The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes-
trians or children are not likely to
touch these hot areas.
Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.
Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into youreyes, see your doctor immediately.
If any gasoline spills on your skin
or clothing, immediately wash the
affected area with soap and water
and change your clothes.
EAU10371
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.
Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.
The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.

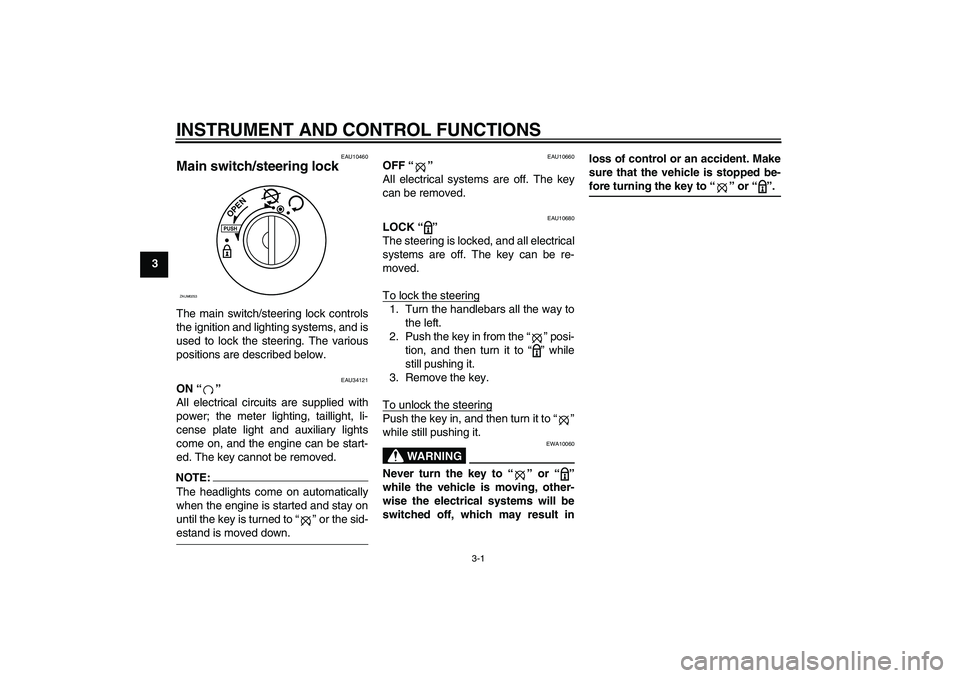

Page 16 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU34121
ON “”
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.NOTE:The headlights come on automatically
when the engine is started and stay on
until the key is turned to “” or the sid-estand is moved down.
EAU10660
OFF “”
All electrical systems are off. The key
can be removed.
EAU10680
LOCK “”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering1. Turn the handlebars all the way to
the left.
2. Push the key in from the “” posi-
tion, and then turn it to “” while
still pushing it.
3. Remove the key.
To unlock the steeringPush the key in, and then turn it to “”
while still pushing it.
WARNING
EWA10060
Never turn the key to “” or “”
while the vehicle is moving, other-
wise the electrical systems will be
switched off, which may result inloss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “” or “”.
PUSHOPEN
ZAUM0253

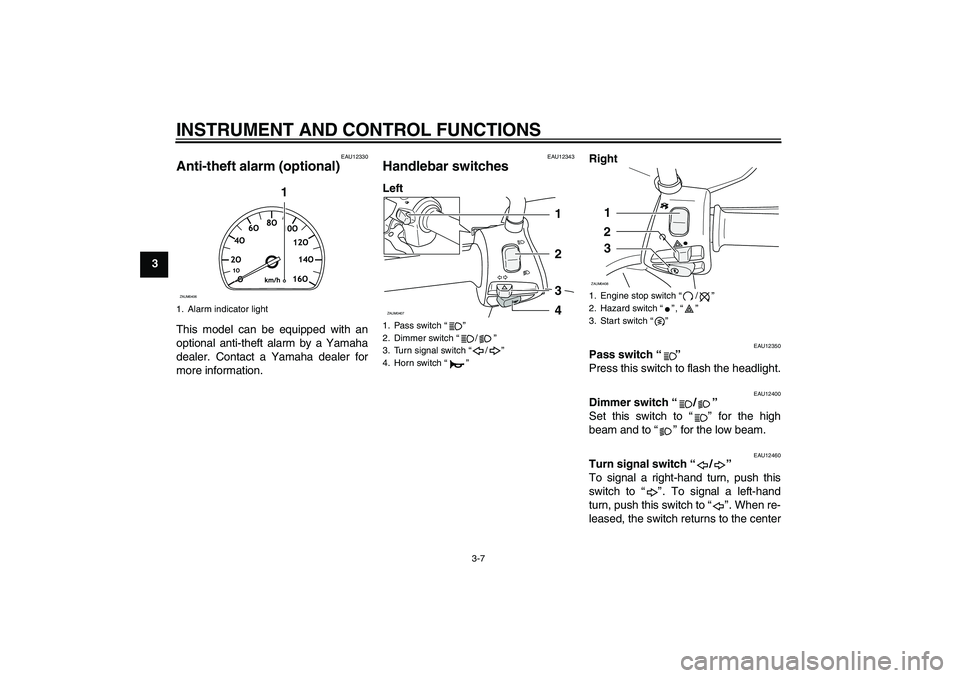

Page 22 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU12330
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12343
Handlebar switches LeftRight
EAU12350
Pass switch “”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
1. Alarm indicator light
1
ZAUM0406
1. Pass switch “”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
1234
ZAUM0407
1. Engine stop switch “/”
2. Hazard switch “”, “”
3. Start switch “”
1
2
3
ZAUM0408

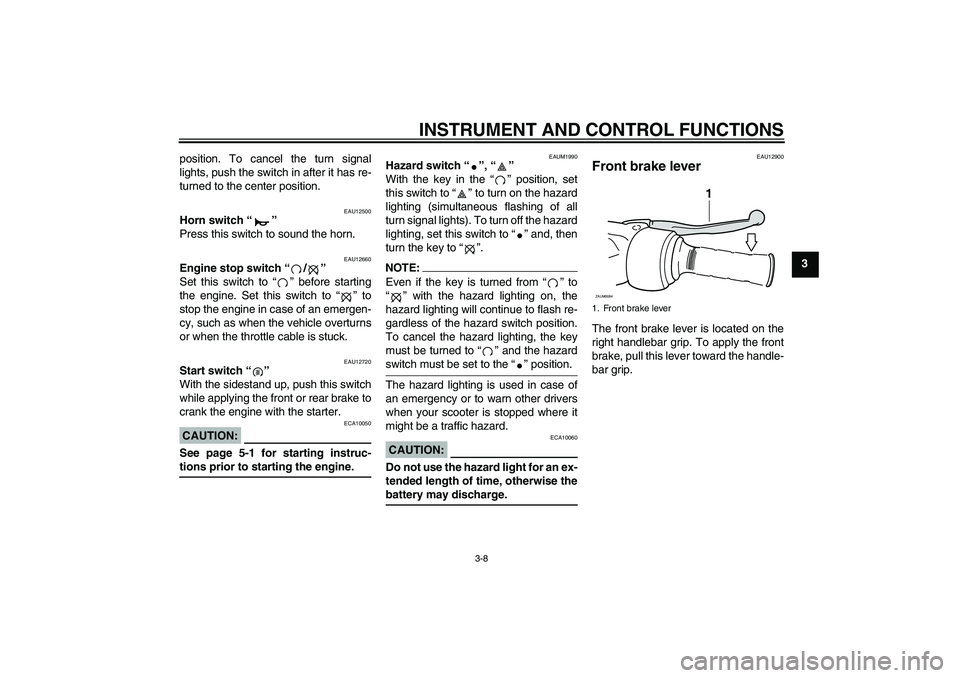

Page 23 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3 position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12720
Start switch “”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAUM1990
Hazard switch “”, “”
With the key in the “” position, set
this switch to “” to turn on the hazard
lighting (simultaneous flashing of all
turn signal lights). To turn off the hazard
lighting, set this switch to “” and, then
turn the key to “”.NOTE:Even if the key is turned from “” to
“” with the hazard lighting on, the
hazard lighting will continue to flash re-
gardless of the hazard switch position.
To cancel the hazard lighting, the key
must be turned to “” and the hazardswitch must be set to the “” position.
The hazard lighting is used in case of
an emergency or to warn other drivers
when your scooter is stopped where it
might be a traffic hazard.CAUTION:
ECA10060
Do not use the hazard light for an ex-
tended length of time, otherwise thebattery may discharge.
EAU12900
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.1. Front brake lever
1
ZAUM0084

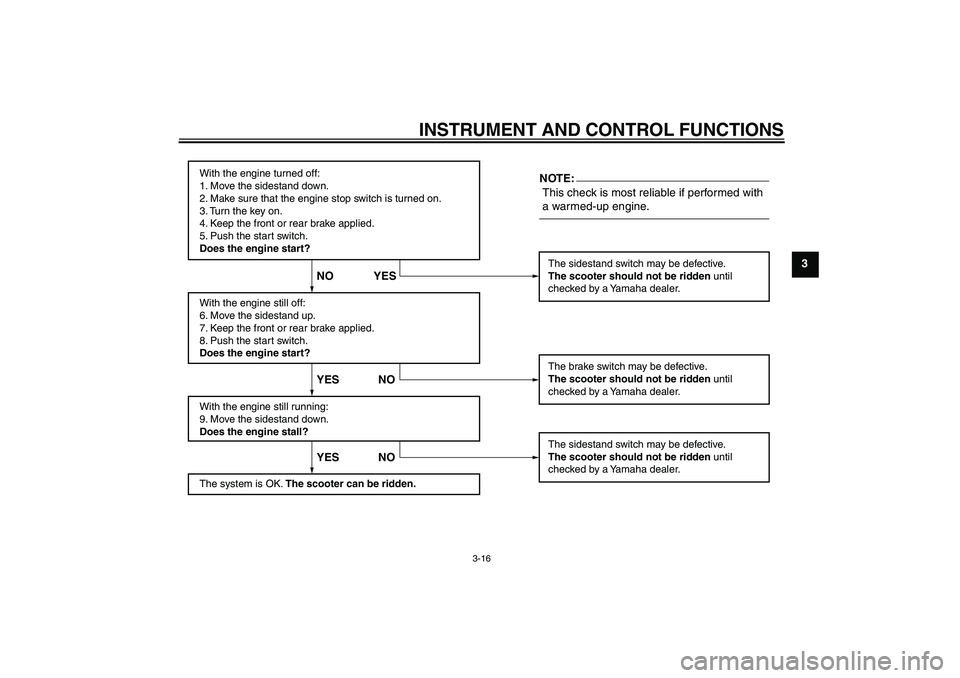

Page 31 of 84
INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.
This check is most reliable if performed with
a warmed-up engine.The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The brake switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YESNOTE:

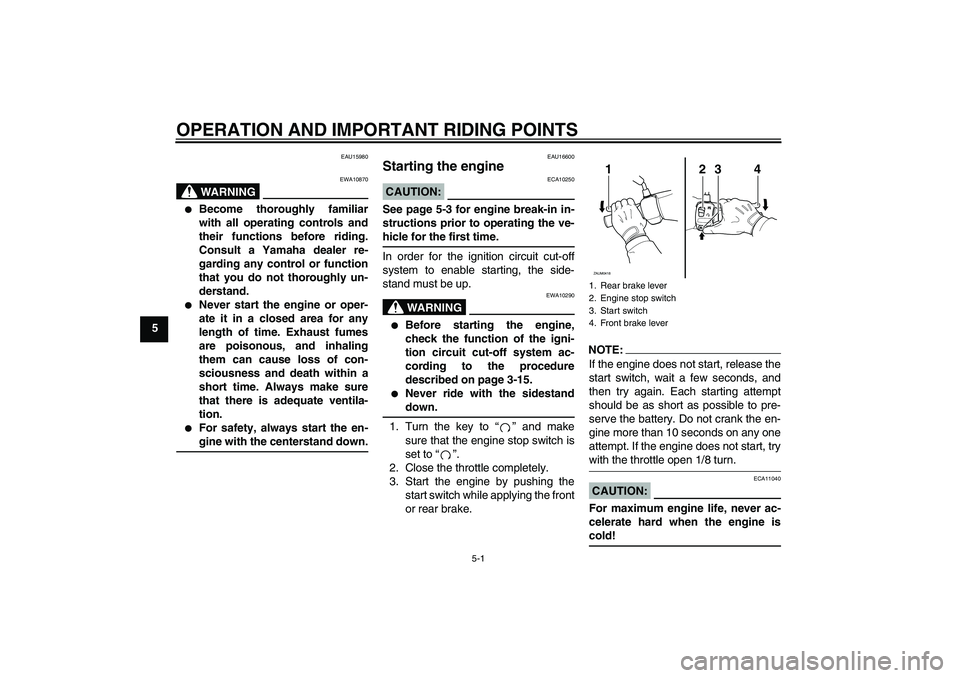

Page 36 of 84
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15980
WARNING
EWA10870
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
For safety, always start the en-gine with the centerstand down.
EAU16600
Starting the engine CAUTION:
ECA10250
See page 5-3 for engine break-in in-
structions prior to operating the ve-hicle for the first time.
In order for the ignition circuit cut-off
system to enable starting, the side-
stand must be up.
WARNING
EWA10290
Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-15.
Never ride with the sidestanddown.
1. Turn the key to “” and make
sure that the engine stop switch is
set to “”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the front
or rear brake.
NOTE:If the engine does not start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt. If the engine does not start, trywith the throttle open 1/8 turn.CAUTION:
ECA11040
For maximum engine life, never ac-
celerate hard when the engine iscold!1. Rear brake lever
2. Engine stop switch
3. Start switch
4. Front brake lever
1234
ZAUM0418

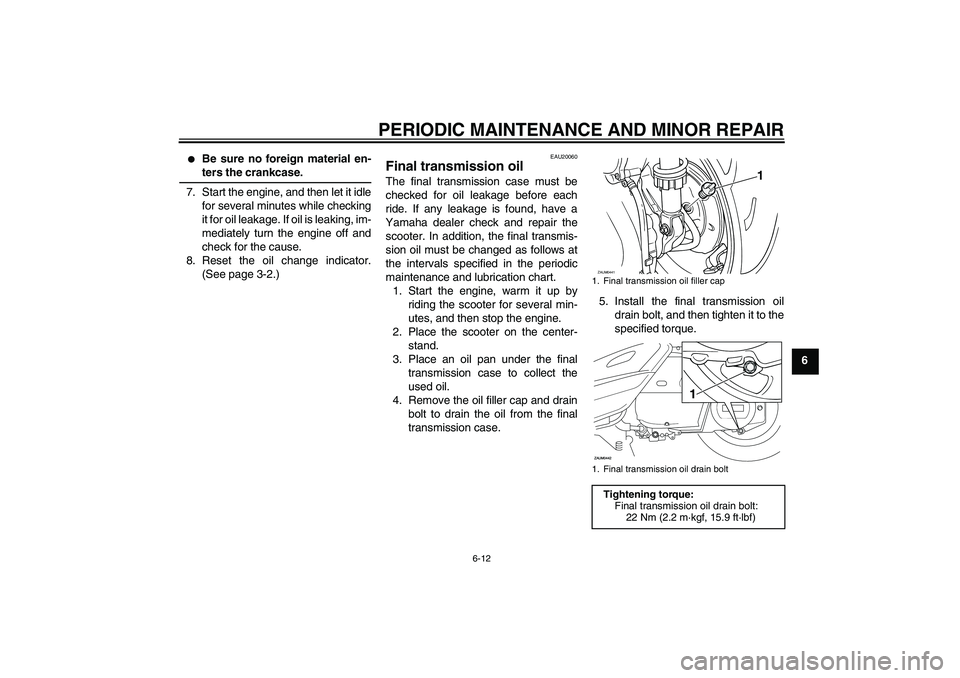

Page 51 of 84
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6
Be sure no foreign material en-ters the crankcase.
7. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
8. Reset the oil change indicator.
(See page 3-2.)
EAU20060
Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm it up by
riding the scooter for several min-
utes, and then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the oil filler cap and drain
bolt to drain the oil from the final
transmission case.5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
1. Final transmission oil filler cap
1. Final transmission oil drain bolt
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m·kgf, 15.9 ft·lbf)
1
ZAUM0441

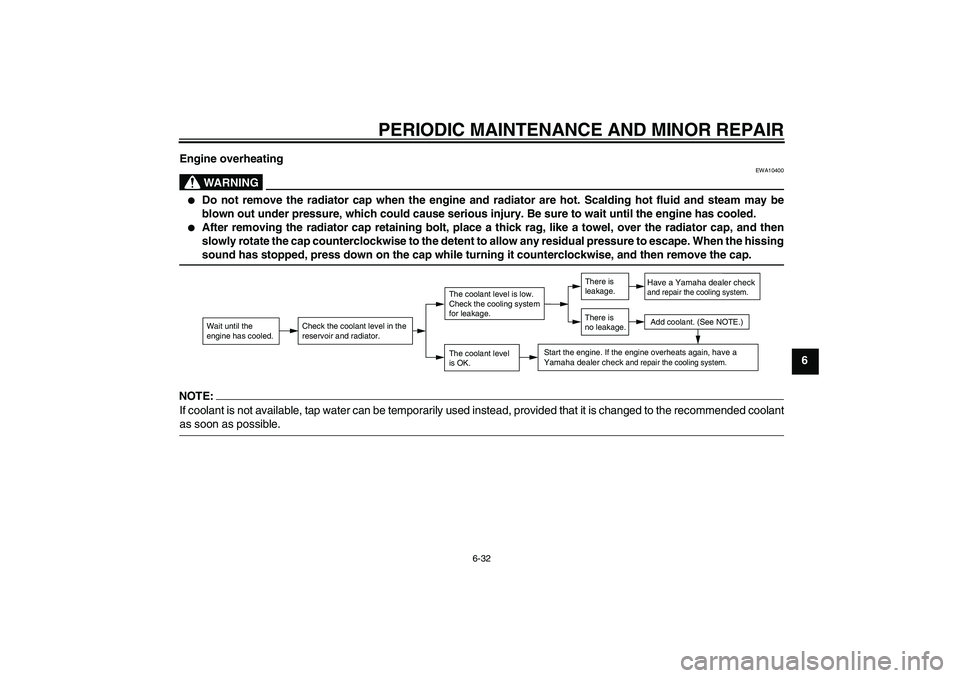

Page 71 of 84
PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6 Engine overheating
WARNING
EWA10400
Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hissingsound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
NOTE:If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See NOTE.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
Page 81 of 84
INDEX
AAcceleration and deceleration ................ 5-2
Air filter and V-belt case air filter
elements, cleaning ............................. 6-14
Anti-theft alarm (optional) ....................... 3-7
Anti-theft device housing ...................... 3-13
Auxiliary DC jack .................................. 3-17BBattery .................................................. 6-25
Battery voltage/coolant temperature
gauge ................................................... 3-3
Brake fluid, changing ............................ 6-21
Brake fluid level, checking .................... 6-20
Brake lever, front .................................... 3-8
Brake lever, rear ..................................... 3-9
Brake levers, lubricating ....................... 6-22
Braking ................................................... 5-2CCables, checking and lubricating .......... 6-22
Carburetor,adjusting ............................. 6-16
Care ........................................................ 7-1
Catalytic converter ................................ 3-11
Centerstand and sidestand, checking
and lubricating .................................... 6-23
Coolant ................................................. 6-13
Cowlings and panels, removing and
installing ............................................... 6-5DDimmer switch ........................................ 3-7
Display, multi-function ............................ 3-4EEngine break-in ...................................... 5-3
Engine oil .............................................. 6-10
Engine stop switch.................................. 3-8
FFinal transmission oil.............................6-12
Front and rear brake lever free play,
checking .............................................. 6-19
Front and rear brake pads, checking .... 6-20
Front fork, checking...............................6-23
Fuel ....................................................... 3-10
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-3
Fuel tank cap........................................... 3-9
Fuses, replacing .................................... 6-26HHandlebar switches ................................. 3-7
Hazard switch.......................................... 3-8
Headlight bulb, replacing....................... 6-27
High beam indicator light......................... 3-2
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-15
Indicator lights .........................................3-2KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-30
Low beam indicator light ......................... 3-2
Luggage hook ....................................... 3-14MMain switch/steering lock ........................ 3-1
Model label .............................................. 9-2PParking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-7Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2
SSafe-riding points .................................... 1-4
Safety information ................................... 1-1
Seat ...................................................... 3-11
Shock absorber assemblies,
adjusting ............................................. 3-14
Sidestand .............................................. 3-15
Spark plug, checking .............................. 6-9
Specifications.......................................... 8-1
Speedometer .......................................... 3-2
Starting off .............................................. 5-2
Starting the engine.................................. 5-1
Start switch ............................................. 3-8
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Storage compartment .................. 3-12, 3-13TTail/brake light bulb or rear turn signal
light bulb, replacing............................. 6-29
Throttle cable free play, checking ......... 6-16
Throttle grip and cable, checking and
lubricating ........................................... 6-22
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-30
Troubleshooting charts ......................... 6-31
Turn signal indicator lights ...................... 3-2
Turn signal light bulb (front),
replacing ............................................. 6-28
Turn signal switch ................................... 3-7
