EBU25960
1-SPECIFICATIONS
Dimensions:Overall length:3100 mm (122.0 in)
Overall width: 1625 mm (64.0 in)
Overall height:
1925 mm (75.8 in)
Seat height: 793 mm (31.2 in)
Wheelbase: 2135 mm (84.1 in)
Ground clearance:
300 mm (11.8 in)
Minimum turning radius: 4500 mm (177 in)Weight:Curb weight:
635.0 kg (1400 lb)Noise and vibration level:Noise level (77/311/EEC):YXM700PSE 83.0 dB(A) (EUR)(FRA)(GBR)
A-weighted sound power level:
YXM700PSE 93.0 dB(A) (EUR)(FRA)(GBR)
Vibration on seat (EN1032, ISO5008): YXM700PSE Will not exceed 0.5 m/s² (EUR)(FRA)(GBR)
Vibration on handle (EN1032, ISO5008): YXM700PSE Will not exceed 2.5 m/s² (EUR)(FRA)(GBR)
Engine:Engine type:Liquid cooled 4-stroke, SOHC
Cylinder arrangement: Single cylinder
Displacement:
686 cm³
Bore × stroke:
102.0 × 84.0 mm (4.02 × 3.31 in)
Compression ratio: 10.0 : 1
Starting system:
Electric starter
Lubrication system: Wet sump
1XP7B_EE.book Page 1 Tuesday, February 4, 2014 3:40 PM

10-2
10
11
12
13
14 Engine oil:
Recommended brand:
YAMALUBE
Type:
SAE 5W-30, 10W-30, 10W-40, 15W-40, 20W-40 or 20W-
50
Recommended engine oil grade: API service SG type or higher, JASO standard MA
Engine oil quantity: Without oil filter cartridge replacement:
2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity: 0.40 L (0.42 US qt, 0.35 Imp.qt)
Differential gear oil:Type:SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.18 L (0.19 US qt, 0.16 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator capacity (including all routes):
2.74 L (2.90 US qt, 2.41 Imp.qt)Air filter:Air filter element:Wet elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity: 36.7 L (9.70 US gal, 8.07 Imp.gal)Fuel injection:Throttle body:ID mark:
1XD1 00Spark plug (s):Manufacturer/model: NGK/CPR7EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, centrifugal automatic
0 10 30 50 70 90 110 130 ˚F
–20 –10 0 10 20 30 40 50 ˚CSAE 5W-30
SAE 10W-30
SAE 10W-40
SAE 15W-40
SAE 20W-40SAE 20W-50
1XP7B_EE.book Page 2 Tuesday, February 4, 2014 3:40 PM

10-3
1
2
3
4
5
6
7
8
910
11
12
13
14
Transmission:
Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio: 41/21 × 17/12 × 33/9 (10.142)
Transmission type: V-belt automatic
Operation:
Right hand operation
Reverse gear: 23/14 × 28/23 (2.000)
Low range: 31/16 (1.938)
High range:
30/21 (1.429)Chassis:Frame type:Steel tube frame
Caster angle:
3.7 °
Trail: 19.0 mm (0.75 in)Front tire:Type:
Tubeless
Size: 25 × 8-12NHS
Manufacturer/model: MAXXIS/MU09
Rear tire:Type:Tubeless
Size:
25 × 10-12NHS
Manufacturer/model: MAXXIS/MU10Loading:Maximum loading limit:
445 kg (981 lb)
(Total weight of rider, passengers, cargo, accessories,
and tongue)Tire air pressure (measured on cold tires):Recommended:Vehicle load:0 – 300 kg (0 – 661 lb):Front:
75.0 kPa (0.750 kgf/cm
2, 11 psi)
Rear: 90.0 kPa (0.900 kgf/cm2, 13 psi)
Vehicle load: 300 kg – maximum (661 lb – maximum):Front:
75.0 kPa (0.750 kgf/cm2, 11 psi)
Rear: 125.0 kPa (1.250 kgf/cm2, 18 psi)
Minimum: Vehicle load:0 – 300 kg (0 – 661 lb):
Front: 70.0 kPa (0.700 kgf/cm2, 10 psi)
Rear:
85.0 kPa (0.850 kgf/cm2, 12 psi)
1XP7B_EE.book Page 3 Tuesday, February 4, 2014 3:40 PM

10-4
10
11
12
13
14
Vehicle load: 300 kg – maximum (661 lb – maximum):
Front:70.0 kPa (0.700 kgf/cm
2, 10 psi)
Rear:
120.0 kPa (1.200 kgf/cm2, 17 psi)
Front wheel:Wheel type:Cast wheel
Rim size:
12 × 6.0ATRear wheel:Wheel type:
Cast wheel
Rim size:
12 × 7.5ATFront brake:Type:
Disc brake
Operation:
Unified brake
Recommended fluid: DOT 4Rear brake:Type:
Disc brake
Operation: Unified brake
Recommended fluid: DOT 4
Front suspension:Type:Double wishbone
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel: 205 mm (8.1 in)Rear suspension:Type:
Double wishbone
Spring/shock absorber type: Coil spring/gas-oil damper
Wheel travel: 205 mm (8.1 in)Electrical system:Ignition system:TCI
Charging system: AC magnetoBattery:Model:U1-H11L
Voltage, capacity: 12 V, 28.0 AhHeadlight:Bulb type:Halogen bulbBulb voltage, wattage
× quantity:
Headlight:
12 V, 35.0/35.0 W × 2
Tail/brake light: 12 V, 5.0/21.0 W × 2
1XP7B_EE.book Page 4 Tuesday, February 4, 2014 3:40 PM

10-5
1
2
3
4
5
6
7
8
910
11
12
13
14
Neutral indicator light:LED
Reverse indicator light: LED
Coolant temperature warning light:
LED
Engine trouble warning light: LED
Parking brake indicator light: LED
On-Command four-wheel-drive/differential gear lock indica-
tor: LCD
High-range indicator light:
LED
Low-range indicator light: LED
Differential gear lock indicator light: LED
EPS warning light:
LED
Helmet/Seat belt indicator light: 14 V, 0.85 W × 2Fuses:Main fuse:
40.0 A
Fuel injection system fuse: 10.0 A
EPS fuse: 40.0 A
Headlight fuse:
15.0 A Signaling system fuse:
10.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse:
10.0 A
Backup fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Radiator fan fuse:
25.0 A
For Europe only
The figures quoted are emission levels and
are not necessarily safe working levels. Whilst
there is a correlation between the emission
and exposure levels, this cannot be used reli-
ably to determine whether or not further pre-
cautions are required.
Factors that influence the actual level of expo-
sure of work-force include the characteristics
of the work room, the other sources of noise,
etc. i.e. the number of machines and other ad-
jacent processes, and the length of time for
which an operator is exposed to the noise.
Also the permissible exposure level can vary
1XP7B_EE.book Page 5 Tuesday, February 4, 2014 3:40 PM

10-6
10
11
12
13
14
from country. This information, however, will
enable the user of the machine to make a bet-
ter evaluation of the hazard and risk.1XP7B_EE.book Page 6 Tuesday, February 4, 2014 3:40 PM

11-1
1
2
3
4
5
6
7
8
9
1011
12
13
14
1-CONSUMER INFORMATION
EVU00090Identification number recordsRecord the vehicle identification number and
model label information in the spaces provid-
ed for assistance when ordering spare parts
from a Yamaha dealer or for reference, in
case the vehicle is stolen.1. VEHICLE IDENTIFICATION NUMBER:ACA-02E2. MODEL LABEL INFORMATION:ACA-01E

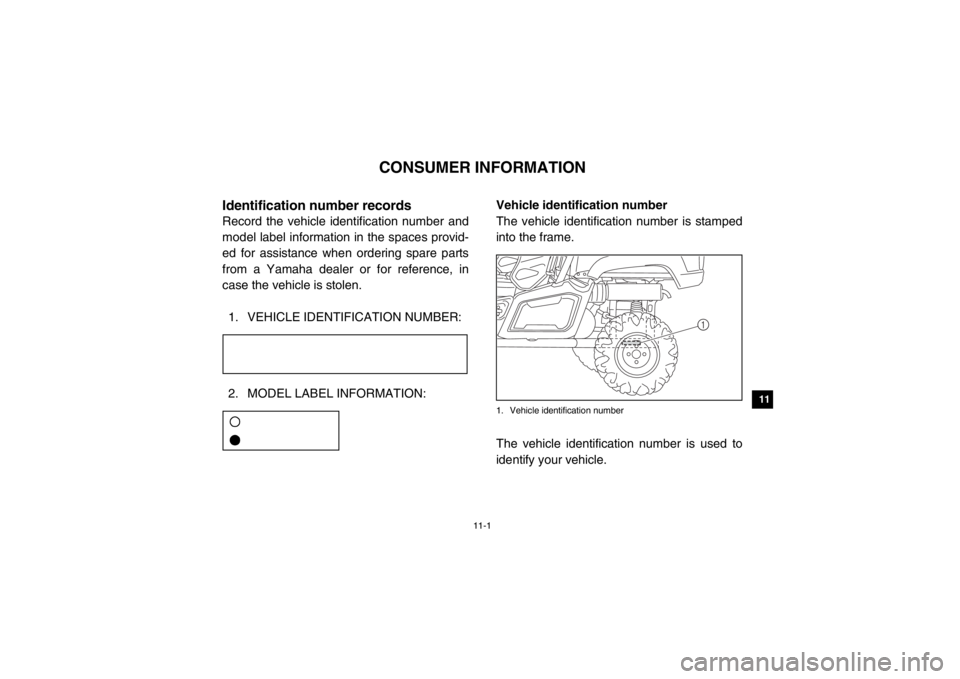

EVU00110Vehicle identification number
The vehicle identification number is stamped
into the frame.1. Vehicle identification numberThe vehicle identification number is used to
identify your vehicle.
1
1XP7B_EE.book Page 1 Tuesday, February 4, 2014 3:40 PM

11-2
11
12
13
14

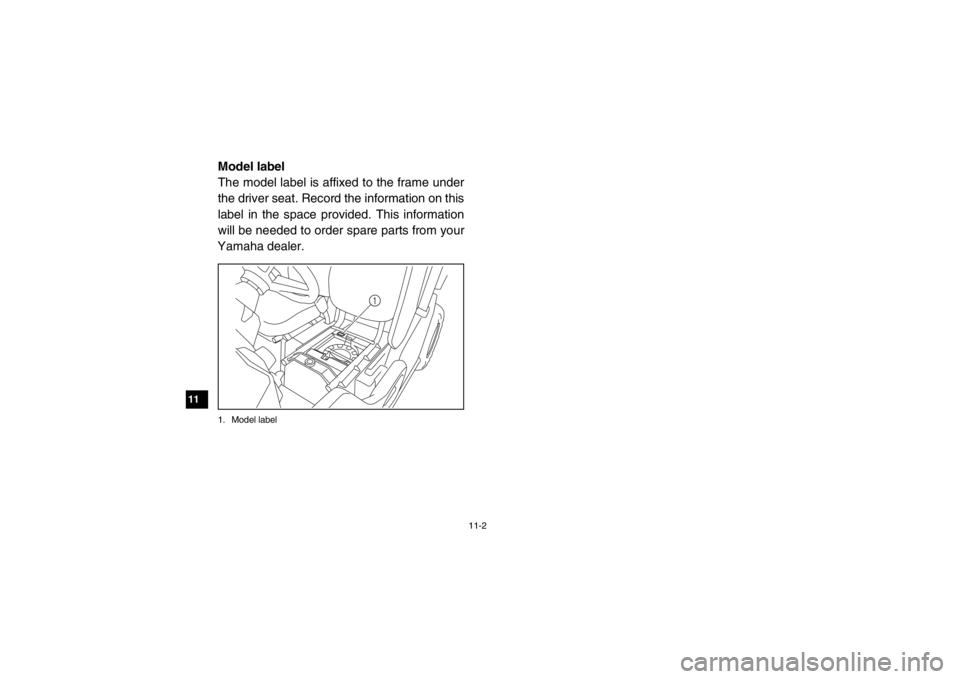

EVU00121Model label
The model label is affixed to the frame under
the driver seat. Record the information on this
label in the space provided. This information
will be needed to order spare parts from your
Yamaha dealer.1. Model label
1
