YAMAHA VIKING 2017  Owners Manual 8-22
8

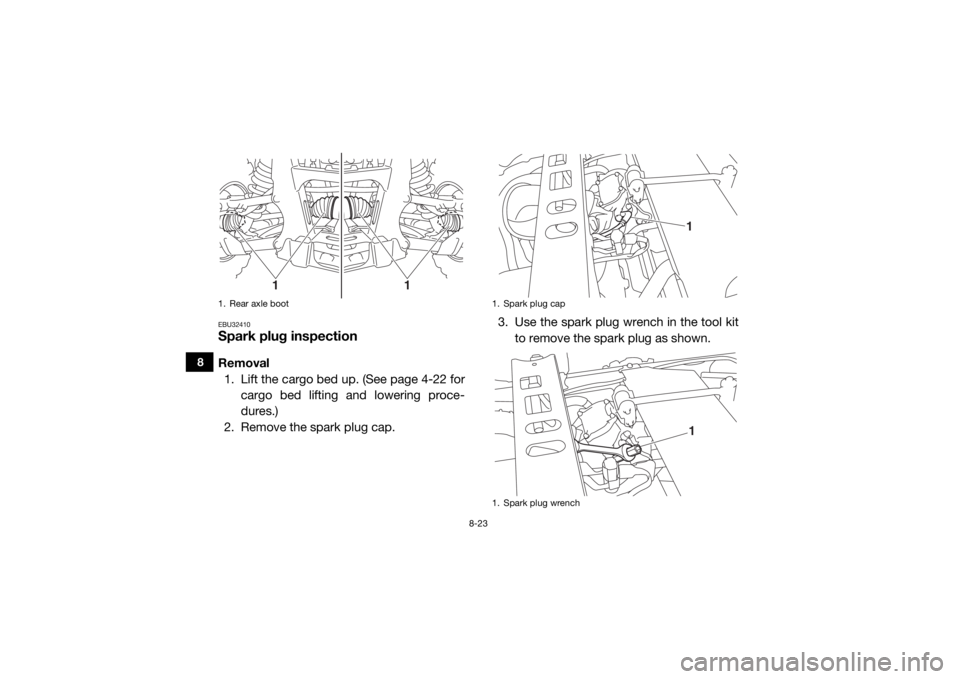

Changing the coolant
The coolant must be changed by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.
Adding water instead of coolant lowers the
anti

Page 122 of 172

YAMAHA VIKING 2017  Owners Manual 8-23
8

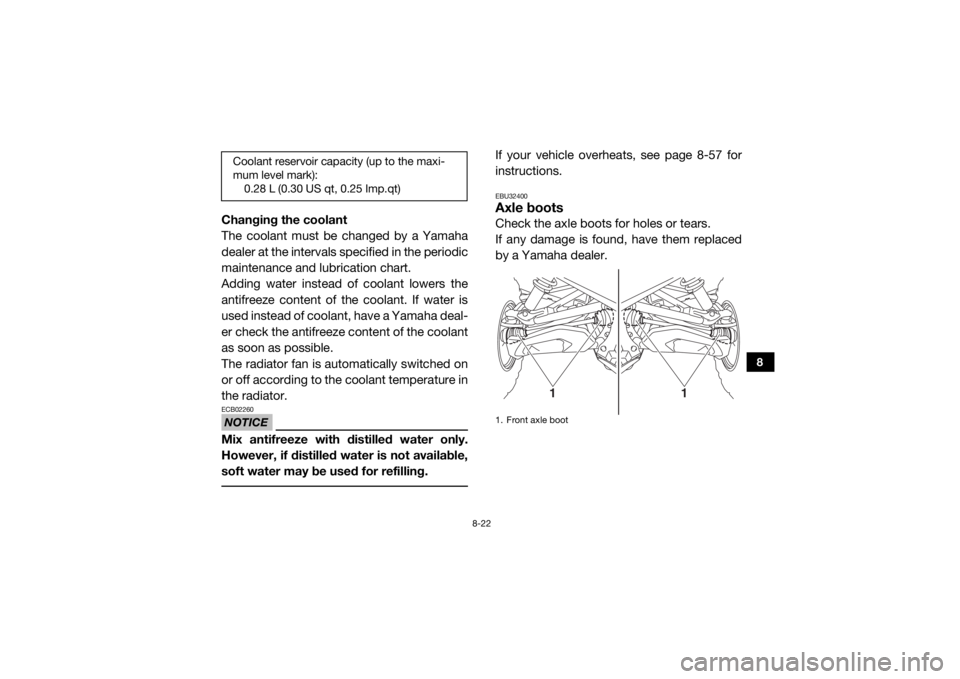

EBU32410Spark plug inspectionRemoval1. Lift the cargo bed up. (See page 4-22 for cargo bed lifting and lowering proce-
dures.)
2. Remove the spark plug cap. 3. Use the spark plug wrench in the

Page 123 of 172

YAMAHA VIKING 2017  Owners Manual 8-24
8
Inspection
The spark plug is an important engine com-
ponent and is easy to inspect. The condition
of the spark plug can indicate the condition of
the engine.
The ideal color of the porcelain i

Page 124 of 172

YAMAHA VIKING 2017  Owners Manual 8-25
8
rect torque is one-quarter to one-half turn
past finger tight. Have the spark plug
tightened to the specified torque as soon
as possible.
3. Install the spark plug cap.
4. Lower the cargo bed.

Page 125 of 172

YAMAHA VIKING 2017  Owners Manual 8-26
8

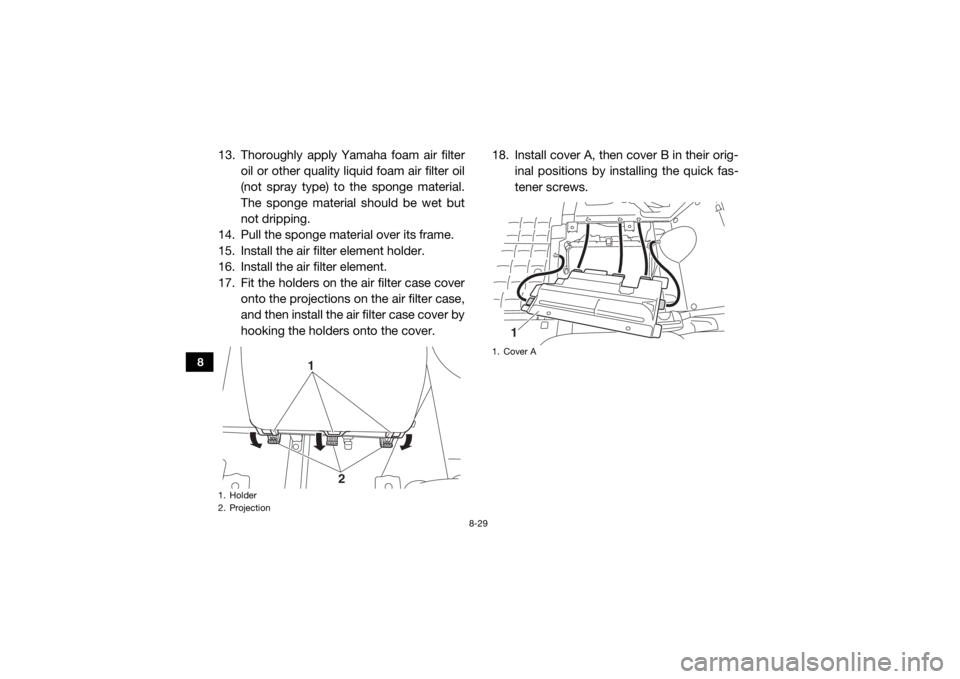

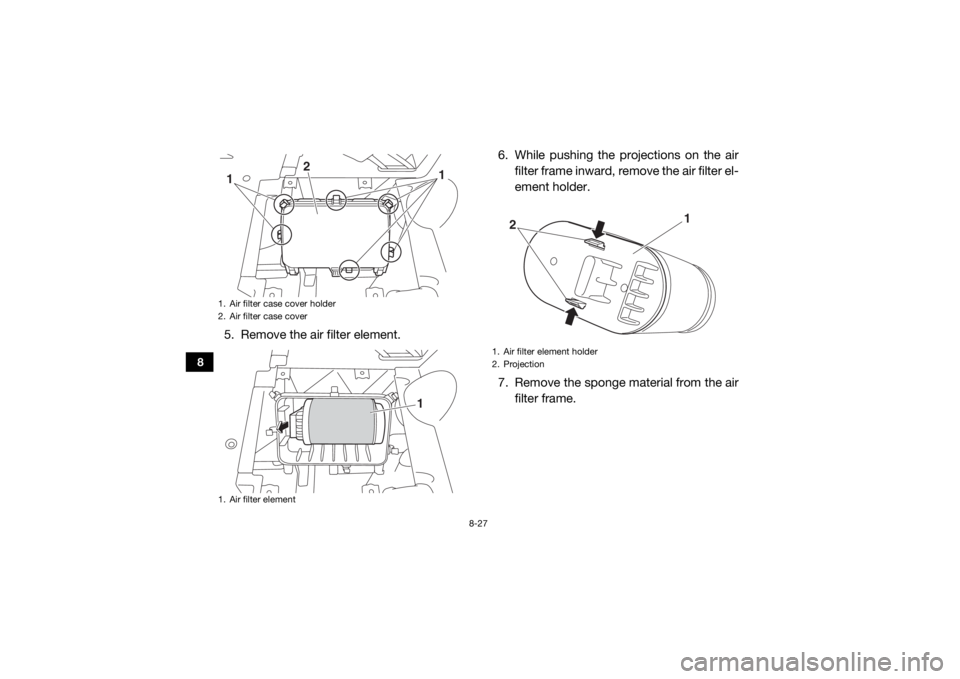

3. Remove covers A and B by removing thequick fastener screws. 4. Remove the air filter case cover by un-
hooking the holders.1. Center passenger seat
2. Rubber damper
3. Bolt
1
2
3
3
1. Quick

Page 126 of 172

YAMAHA VIKING 2017  Owners Manual 8-27
8

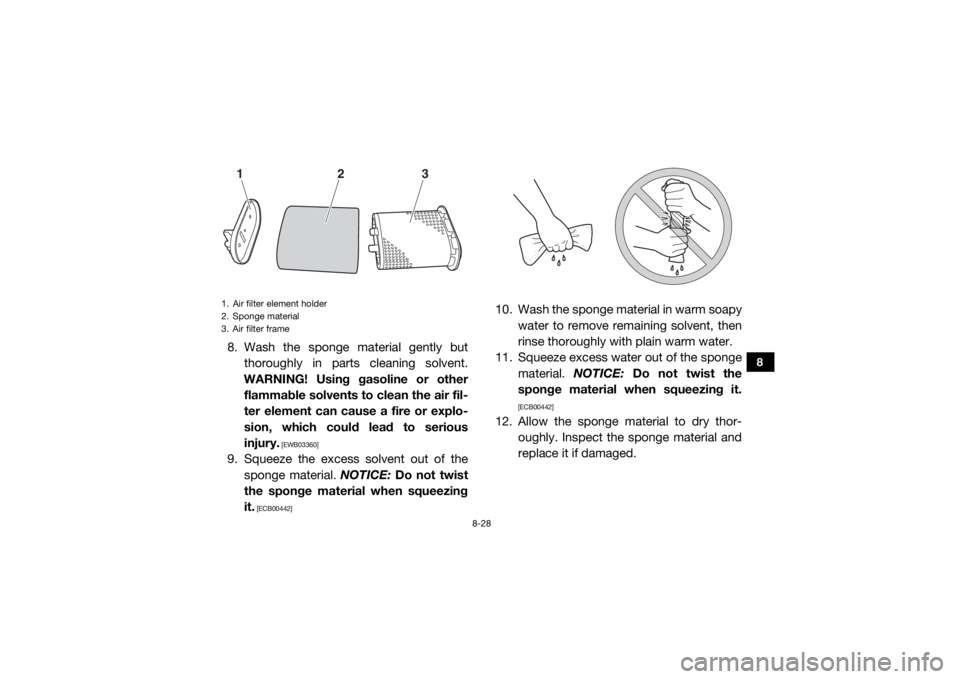

5. Remove the air filter element.6. While pushing the projections on the air
filter frame inward, remove the air filter el-
ement holder.
7. Remove the sponge material from the air filter frame

Page 127 of 172

YAMAHA VIKING 2017  Owners Manual 8-28
8
8. Wash the sponge material gently butthoroughly in parts cleaning solvent.
WARNING! Using gasoline or other flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion

Page 128 of 172

YAMAHA VIKING 2017  Owners Manual 8-29
8

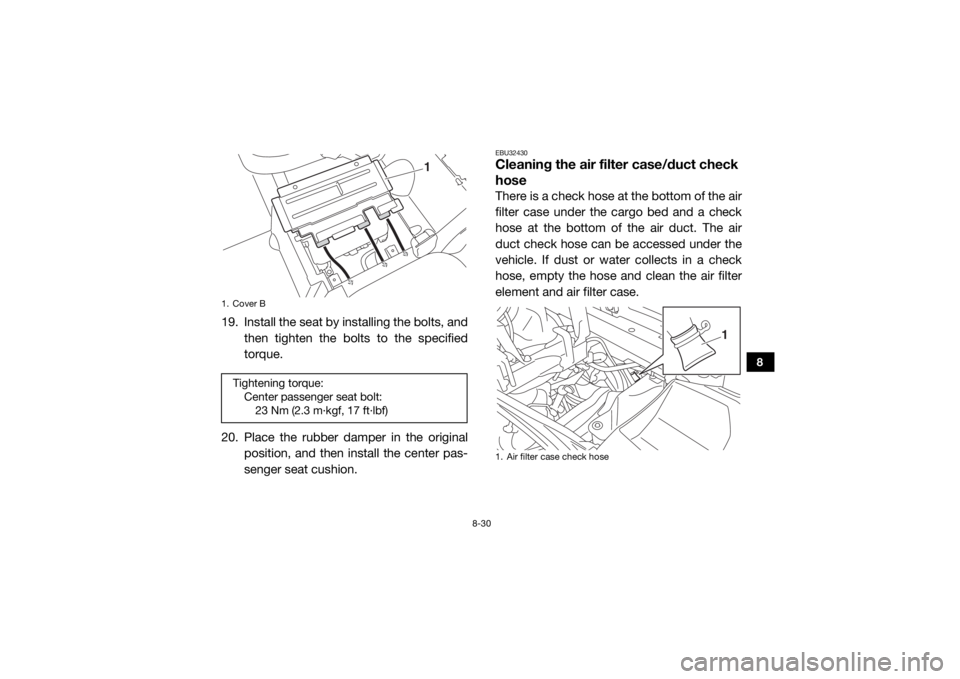

13. Thoroughly apply Yamaha foam air filteroil or other quality liquid foam air filter oil
(not spray type) to the sponge material.
The sponge material should be wet but
not dripping.
14. Pull

Page 129 of 172

YAMAHA VIKING 2017  Owners Manual 8-30
8

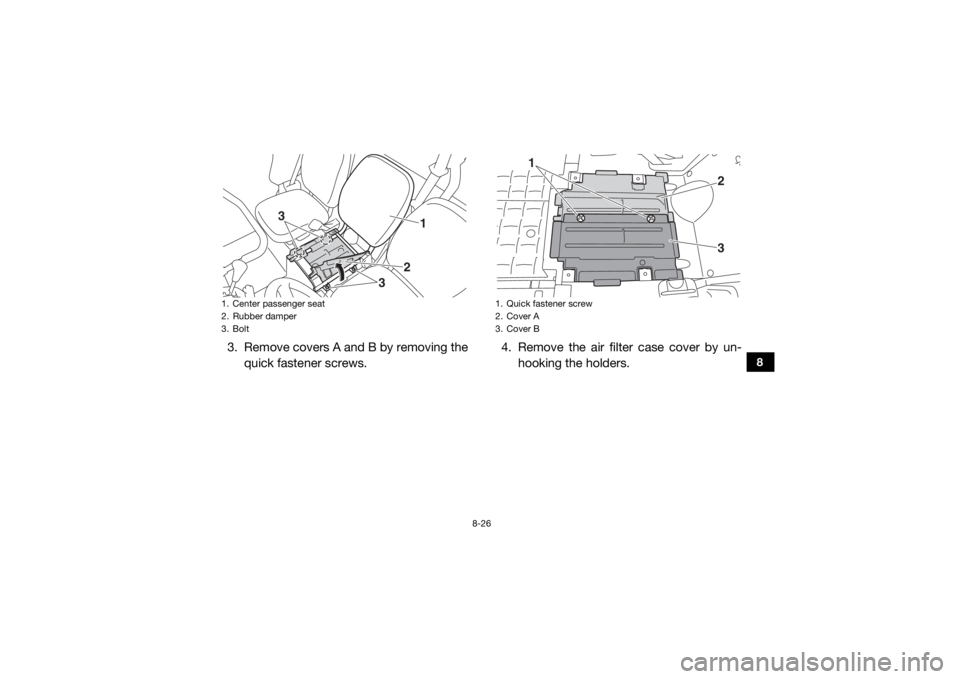

19. Install the seat by installing the bolts, andthen tighten the bolts to the specified
torque.
20. Place the rubber damper in the original position, and then install the center pas-
senger se

Page 130 of 172

YAMAHA VIKING 2017  Owners Manual 8-31
8

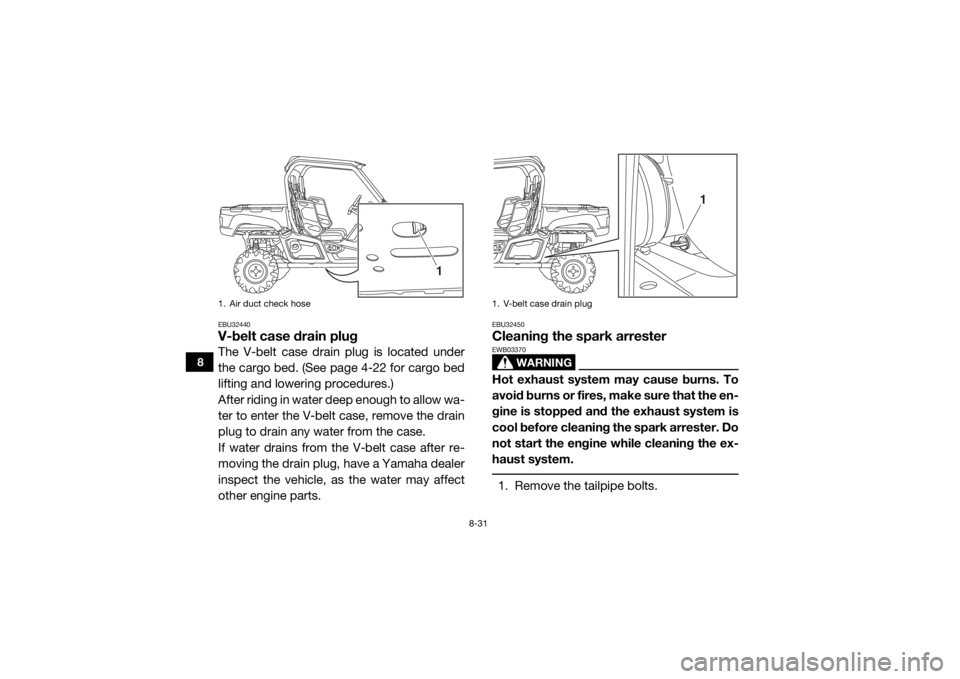

EBU32440V-belt case drain plugThe V-belt case drain plug is located under
the cargo bed. (See page 4-22 for cargo bed
lifting and lowering procedures.)
After riding in water deep enough to allo
