8-42
8
EBU33030Wheel installation1. Install the wheel and the nuts.TIPFor YXM70VPXH / YXM70VPHH: tapered
nuts are used for both the front and rear
wheels. Install the nuts with their tapered side
towards the wheel. YXM70VPXH / YXM70VPHH2. Lower the vehicle so that the wheel is on the ground. 3. Tighten the wheel nuts in a crisscross
pattern to the specified torque.
WARNING
EWB03400Do not reverse the rims on your Yamaha
Viking to widen the track width. Installing
wheels improperly increases the risk of
wheel failure and accidents. EBU32640BatteryThe battery is located under the hood. (See
page 8-10 for hood removal and installation
procedures.)
This model is equipped with a VRLA (Valve
Regulated Lead Acid) battery. There is no
need to check the electrolyte or to add dis-
1. Tapered nut
1
Tightening torques:Front wheel nut:75 Nm (7.5 m·kgf, 54 ft·lbf)
Rear wheel nut: 75 Nm (7.5 m·kgf, 54 ft·lbf)
UB427BE0.book Page 42 Friday, February 5, 2016 2:14 PM
Page 142 of 172
8-43
8
tilled water. However, the battery lead con-
nections need to be checked and, if
necessary, tightened.
WARNING
EWB03410Avoid battery contact with skin, eyes, or
clothing. Shield eyes when working near
batteries. Keep out of reach of children.
You could be poisoned or severely burned
by the sulfuric acid in battery electrolyte. In
case of accidental contact with battery
electrolyte:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Get prompt
medical attention.
EYES: Flush with water for 15 minutes and
get prompt medical attention.
WARNING
EWB03420Batteries may produce explosive gases.
Ventilate when charging or using in a
closed space. Keep batteries away from
sparks, flames, cigarettes, or other sourc-
es of ignition. To remove the battery
1. Turn the key to “ ” (off).
2. Remove the hood. (See page 8-10 for hood removal and installation proce-
dures.)
3. Remove the air intake duct panel by re-
moving the quick fastener screws.
UB427BE0.book Page 43 Friday, February 5, 2016 2:14 PM
Page 143 of 172
8-44
8
4. Unhook the battery bands.
5. Disconnect the negative battery lead first,then the positive battery lead by remov-
ing their bolt. NOTICE: When removing
the battery, the main switch must be
off, and the negative lead must be dis-
connected before the positive lead.
[ECB01002]
6. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as
soon as possible if it seems to have dis-
charged. Keep in mind that the battery tends
to discharge more quickly if the vehicle is
equipped with optional electrical accessories.
1. Quick fastener screw
2. Air intake duct panel
2
1
1. Positive battery lead (red)
2. Battery band
3. Negative battery lead (black)
2
1
3
UB427BE0.book Page 44 Friday, February 5, 2016 2:14 PM
Page 144 of 172
8-45
8
NOTICEECB00932To charge a VRLA (Valve Regulated Lead
Acid) battery, a special (constant-voltage)
battery charger is required. Using a con-
ventional battery charger will damage the
battery. To store the battery
If the vehicle will not be used for more than
one month, remove the battery, fully charge
it, and then place it in a cool, dry place.
If the battery will be stored for more than
two months, check it at least once a month
and fully charge it if necessary.NOTICEECB00941Always keep the battery charged. Storing
a discharged battery can cause perma-
nent battery damage.
To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment.
2. Connect the positive battery lead first,
then the negative battery lead by install-
ing their bolt. NOTICE: When installing
the battery, the main switch must be
off, and the positive lead must be con-
nected before the negative lead.
[ECB01111]
1. Positive battery lead (red)
2. Battery band
3. Negative battery lead (black)
2
1
3
UB427BE0.book Page 45 Friday, February 5, 2016 2:14 PM
Page 145 of 172
8-46
8
3. Hook the battery bands.
4. Install the air intake duct panel by install-ing the quick fastener screws.
5. Install the hood.EBU32650Jump-startingJump-starting the vehicle should be avoided.
The battery should be removed and charged
instead.
WARNING
EWB03430To avoid battery explosion and/or serious
damage to the electrical system:
Do not connect the negative lead of the
jumper cable to the negative terminal of
the battery.
Do not touch the positive lead of the
jumper cable to the negative lead.
Do not reverse the polarity of the jumper
cables when connecting to the batteries. However, if the vehicle must be jump-started,
proceed as follows. 1. Turn the key to “ ” (off).
2. Remove the hood. (See page 8-10 for
hood removal and installation proce-
dures.)
3. Using a charged 12-volt battery, connect the positive lead of the jumper cable to
the positive terminal of the battery in the
vehicle and the other end of the positive
lead to the positive terminal of the
charged battery.
1. Jumper cable positive lead
1
UB427BE0.book Page 46 Friday, February 5, 2016 2:14 PM
Page 146 of 172
8-47
8
4. Connect the negative lead of the jumpercable to the negative terminal of the
charged battery and the other end of the
negative lead to an unpainted metal sur-
face of the frame of the vehicle to be
started.
5. Start the engine. (Refer to “Starting the engine” on page 6-2.)
6. After the engine starts, disconnect the
negative lead of the jumper cable from
the frame and charged battery, and then disconnect the positive lead of the jump-
er cable from the charged battery and the
battery in the vehicle.
7. Install the hood.
EBU33100Fuse replacementThe main fuse, the fuel injection system fuse,
the EPS fuse, and the fuse box are located
under the hood. (See page 8-10 for hood re-
moval and installation procedures.)
1. Jumper cable negative lead
1
UB427BE0.book Page 47 Friday, February 5, 2016 2:14 PM
Page 147 of 172
8-48
8
If a fuse is blown, replace it as follows.1. Turn the key to “ ” (off) and turn off the
electrical circuit in question.
1. Fuse box
2. Main fuse
3. EPS fuse
4. Fuel injection system fuse
5. Fuel injection system spare fuse
1 3
2
4
5
1. Backup fuse “BACK UP” (for clock)
2. Ignition fuse “IGNITION”
3. Four-wheel-drive motor fuse “DIFF”
4. Auxiliary DC jack fuse “TERMINAL”
5. Signaling system fuse “SIGNAL”
6. Headlight fuse “HEAD”
7. Spare fuse
8. Radiator fan motor fuse “FAN”
1
2
3
4
5
6
8
7
7
UB427BE0.book Page 48 Friday, February 5, 2016 2:14 PM
Page 148 of 172
8-49
8
NOTICEECB00641To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse. 2. Remove the hood. (See page 8-10 forhood removal and installation proce-
dures.)
3. Remove the blown fuse, and then install a new fuse of the specified amperage.
WARNING! Always use a fuse of the specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
[EWB03440]
Specified fuses: Main fuse:40.0 A
Fuel injection system fuse: 10.0 A
Headlight fuse: 15.0 A
Ignition fuse: 10.0 A
Auxiliary DC jack fuse: 10.0 A
Signaling system fuse: 10.0 A
Four-wheel-drive motor fuse: 10.0 A
Radiator fan motor fuse: 25.0 A
Backup fuse: 10.0 A
EPS fuse: 40.0 A
UB427BE0.book Page 49 Friday, February 5, 2016 2:14 PM
Page 149 of 172
8-50
8
4. Turn the key to “ ” (on) and turn on theelectrical circuit in question to check if
the device operates. If the fuse blows
again immediately, have a Yamaha dealer
check the electrical system.
5. Install the hood.EBU32670Replacing a headlight bulbIf a headlight bulb burns out, replace it as fol-
lows.
1. Remove the cover at the rear of the head- light by pulling it off. 2. Remove the headlight bulb cover by pull-
ing it off.
3. Disconnect the headlight coupler.1. Cover at the rear of the headlight
1
1. Headlight bulb cover
1
UB427BE0.book Page 50 Friday, February 5, 2016 2:14 PM
Page 150 of 172
8-51
8
4. Unhook the headlight bulb holder.5. Wait for the headlight bulb to cool before
touching or removing it. Remove the
burnt-out bulb by pulling it out.
6. Place a new headlight bulb into position, and then secure it with the bulb holder.
NOTICE: Do not touch the glass part of
the headlight bulb to keep it free from
oil, otherwise the transparency of the
glass, the luminosity of the bulb, and
the bulb life will be adversely affected.
Thoroughly clean off any dirt and fin-
gerprints on the headlight bulb using a
cloth moistened with alcohol or thin-
ner.
[ECB00652]

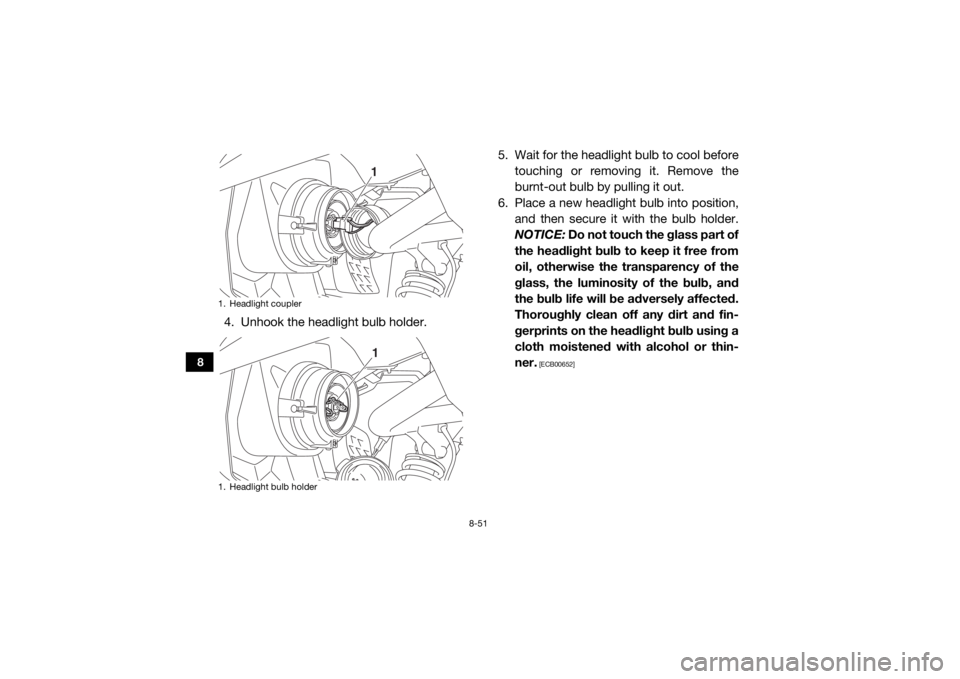

1. Headlight coupler
1. Headlight bulb holder
11
