YAMAHA VIKING 2017 Owner's Manual

1-13
1
YAMAHAB42-F1696-10
WARNING
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 lb) ~ 300 kg (661 lbs)
Recommended: FRONT: REAR:
Minimum: FRONT: REAR:75 kPa
100 kPa
70 kPa
95 kPa
VEHICLE LOAD of 300 kg (661 lbs) ~ 411 kg (906 lbs)Recommended: FRONT: REAR:
Minimum: FRONT: REAR:75 kPa
125 kPa
70 kPa
120 kPa (11 psi)
(15 psi)
(10 psi)
(14 psi)
(11 psi)
(18 psi)
(10 psi)
(17 psi)
*Vehicle load is weight of operator, passengers,
accessories, cargo, and (if applicable) trailer tongue
weight. Do not exceed maximum vehicle load.Gross Vehicle Weight Rating: 1080 kg (2381 lbs)
maximum including vehicle, weight of operator,
passengers, accessories, cargo, and (if applicable)
trailer tongue weight.OPERATING TIRE PRESSURE: With tires cold, set as follows.
WARNING
Storage should not exceed 10 lbs (4.5 kg)Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.
1XP-F151F-00
1HP-F2259-21
5 6 YXM70VPSH
7
UB427BE0.book Page 13 Friday, February 5, 2016 2:14 PM

1-14
1

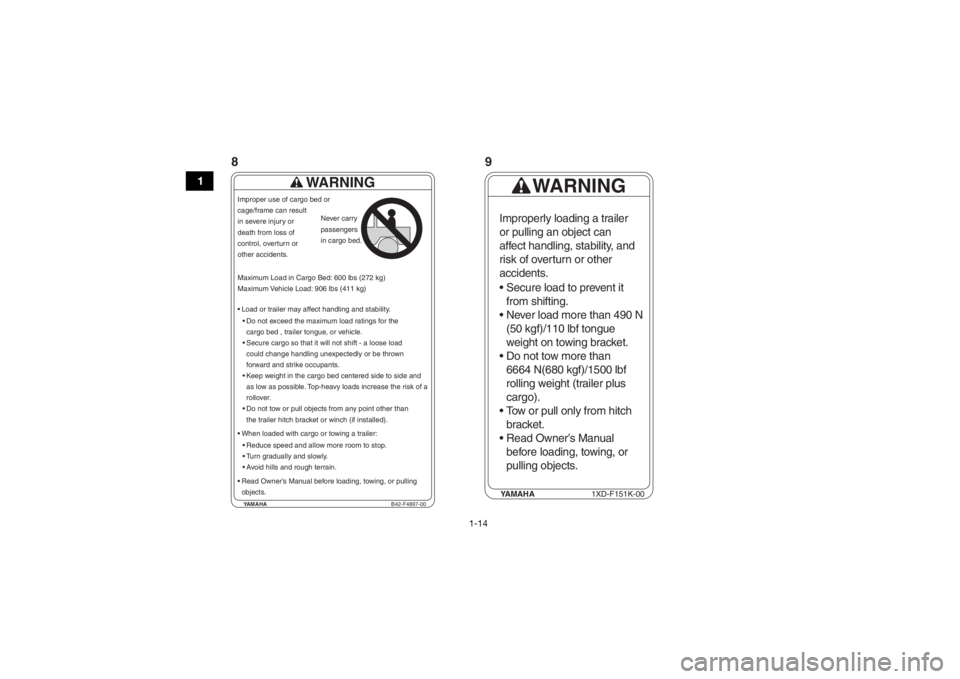

YAMAHAB42-F4897-00
WARNING
Load or trailer may affect handling and stability.
Do not exceed the maximum load ratings for thecargo bed , trailer tongue, or vehicle.
When loaded with cargo or towing a trailer: Reduce speed and allow more room to stop.
Turn gradually and slowly.
Avoid hills and rough terrain. Secure cargo so that it will not shift - a loose loadcould change handling unexpectedly or be thrown
forward and strike occupants.
Keep weight in the cargo bed centered side to side and as low as possible. Top-heavy loads increase the risk of a
rollover.
Do not tow or pull objects from any point other than the trailer hitch bracket or winch (if installed).
Read Owner’s Manual before loading, towing, or pulling objects.
Improper use of cargo bed or
cage/frame can result
in severe injury or
death from loss of
control, overturn or
other accidents.
Maximum Load in Cargo Bed: 600 lbs (272 kg)
Maximum Vehicle Load: 906 lbs (411 kg)
Never carry
passengers
in cargo bed.
YAMAHA
1XD-F151K-00
WARNING
Improperly loading a trailer
or pulling an object can
affect handling, stability, and
risk of overturn or other
accidents.
Secure load to prevent it
from shifting.
Never load more than 490 N (50 kgf)/110 lbf tongue
weight on towing bracket.
Do not tow more than 6664 N(680 kgf)/1500 lbf
rolling weight (trailer plus
cargo).
Tow or pull only from hitch bracket.
Read Owner’s Manual before loading, towing, or
pulling objects.
89
UB427BE0.book Page 14 Friday, February 5, 2016 2:14 PM

1-15
1
YAMAHA5UG-F151J-00
MAX 7.3 INCH
(185MM)
Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
YAMAHA
1XD-F1568-00
WARNING
DRIVERDRIVERUNDERUNDER1616DRIVER
UNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passengers must be able to reach the center handhold
while keeping feet flat on floor and sitting
upright with back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 2 passengers.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

10
11
12
UB427BE0.book Page 15 Friday, February 5, 2016 2:14 PM

1-16
1
1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.13
UB427BE0.book Page 16 Friday, February 5, 2016 2:14 PM

2-1
2
EBU31150
SAFETY INFORMATION
SAFETY INFORMATION
EBU33300Be a responsible owner
As the vehicle’s owner, you are responsible for the safe and proper operation of your Yamaha
Viking. While understanding all parts of this ma nual are important for vehicle ownership, be sure
to read this chapter and the inst ructions in Chapter 7 before operating your Yamaha Viking. Also
use these two chapters and the labels on the vehicle to instruct new operators and passengers.
Do not allow anyone else to operate your vehicle or ride as a passenger if you are unsure that
he/she is willing and able to follow these instructions.
Get to know your vehicle
This off-road vehicle will handle and maneuver differently from cars, ATVs, go-carts, golf-cars
and grounds-keeping vehicles. Follow these instruct ions to reduce your risk of an accident and
to reduce the risk of serious injury or death in the event of an accident.UB427BE0.book Page 1 Friday, February 5, 2016 2:14 PM

2-2
2
Before you operate your Yamaha Viking
Prepare yourself and your passengers:
• This vehicle is intended for use only by an operator 16 or older with a valid motor vehicle li-
cense. Check country laws fo r minimum age requirements.
• This vehicle is designed to carry the driver and two passengers. Never carry passengers in the cargo bed.
• The driver and passengers should wear seat belts properly.
• The driver and passengers must be able to put both feet flat on the floorboard while seated
upright with their backs against the backrests. The passengers must be able to reach and
hold the passenger handhold within the cage/frame.
• The driver and passengers should wear an approved motorcycle helmet that fits properly. The driver and passengers should also wear eye protection (goggles or a face shield), gloves,
over-the-ankle boots, long-sleeved shirt or jacket, and long pants.
DRIVER
UNDER
16
UB427BE0.book Page 2 Friday, February 5, 2016 2:14 PM

2-3
2
• Do not drive or ride as a passenger after using drugs or alcohol.
Prepare your vehicle
Perform the pre-operation checks each time you use the vehicle to make sure it is in safe oper-
ating condition. Failure to inspect or maintain the vehicle properly increases the possibility of an
accident or equipment damage. See page 5-1 for a list of pre-operation checks.
Prepare your load or trailer
Carrying loads, towing a trailer, or pulling object s can affect handling, stability, and cause the risk
of overturns or other accidents.
 Read Chapter 6 before loading, towing, or pulling objects.
 Do not overload the vehicle or trailer. Refer to label in cargo bed for cargo bed load limit. Refer
to label next to hitch for tongue weight and trailer load limits.
 Keep weight in the cargo bed centered side to side, and as low and as far forward as possible.
 Secure cargo so that it will not shift – a loose load could change handling unexpectedly or be
thrown forward and strike occupants.
While using your Yamaha Viking
 Keep your body completely inside the vehicle at all times. Keep both hands on the steering
wheel. Be sure the passengers are seated, belt ed, and holding onto the passenger handhold.
Close doors before driving. Any part of your body (arms, legs, and head) outside the vehicle
can be struck by objects your vehicle is passing or crushed by the vehicle cage/frame in a roll-
over accident.
 Watch for branches, brush, or other hazards that could enter the vehicle.
UB427BE0.book Page 3 Friday, February 5, 2016 2:14 PM

2-4
2
Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control,
including rollovers. The Viking has higher gro und clearance and other features to handle rug-
ged terrain, and, as a result, can overturn in situations where some other vehicles may not.
 Avoid rollovers:
• Use care when turning:
• Turning the steering wheel too far or too fast can result in a rollover.
• Avoid sideways sliding, skidding, or back-wheel sliding, and never do donuts.
• Slow down before entering a turn and avoid hard braking in a turn.
• When making tight turns from a stop or at sl ow speeds, avoid sudden or hard acceleration.
• Drive straight up and down inclines, not across them. If crossing a hill is unavoidable, drive
slowly and turn downhill immediately if you feel the vehicle may tip.
• Avoid paved surfaces. Turn gradually and go slowly if you must drive on pavement. This vehicle is designed for off-road use only.UB427BE0.book Page 4 Friday, February 5, 2016 2:14 PM

2-5
2
If you think or feel that the vehicle may tip or roll, keep your body completely inside the protec-
tive structure of the vehicle:
• Brace yourself by pressing your feet firmly on the floorboard and keep a firm grip on the
steering wheel or passenger handhold.
• Do not put your hands or feet outside of the vehicle for any reason. Your arm or leg could be
crushed.
• Do not try to stop a vehicle tipover using your arm or leg.
 Do not operate this vehicle on any public street , road, or highway, even if dirt or gravel.
 Do not operate the vehicle in fast-flowing water or water deeper than 37 cm (15 in). If you must
cross shallow, slow-moving water, choose your path carefully to avoid sharp drop-offs, large
rocks, or slippery surfaces. Operating this vehi cle through deep or fast-flowing water can lead
to loss of control or overturn. To reduce your risk of drowning or other injuries, use care when
crossing through water.
 When loaded with cargo or towing a trailer:
• Reduce speed, operate in low gear only, and allow more room to stop.
• Avoid hills and rough terrain. Use extreme cautio n when towing or carrying a load on inclines.
• Load trailer properly and use extra care when towing or pulling.
 Do not tow or pull objects from any part of the vehicle other than the trailer hitch bracket or
winch (if installed).
Avoid carbon monoxide poisoning
All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nausea, confusion, an d eventually death.UB427BE0.book Page 5 Friday, February 5, 2016 2:14 PM

2-6
2
Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not
see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you
can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide
can linger for hours or days in enclosed or poorly-ventilated areas. If you experience any symp-
toms of carbon monoxide poisoning, leave the area immediately, get fresh air, and SEEK MED-
ICAL TREATMENT.
 Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open win-
dows and doors, carbon monoxide can rapidly reach dangerous levels.
 Do not run engine in poorly ventilated or part ially enclosed areas such as barns, garages, or
carports.
 Do not run engine outdoors where engine exhaus t can be drawn into a building through open-
ings such as windows and doors.
Genuine Yamaha Accessories
Choosing accessories for your Vi king is an important decision. Genuine Yamaha Accessories,
which are available only from a Yamaha dealer , have been designed, tested, and approved by
Yamaha for use on your Viking. Many companies with no connection to Yamaha manufacture parts and accessories or offer oth-
er modifications for Yamaha vehicl es. Yamaha is not in a position to test the products that these
aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the
use of accessories not sold by Yamaha or modifications not specifically recommended by
Yamaha, even if sold and installed by a Yamaha dealer.UB427BE0.book Page 6 Friday, February 5, 2016 2:14 PM
