1-13
1
YAMAHAB42-F1696-10

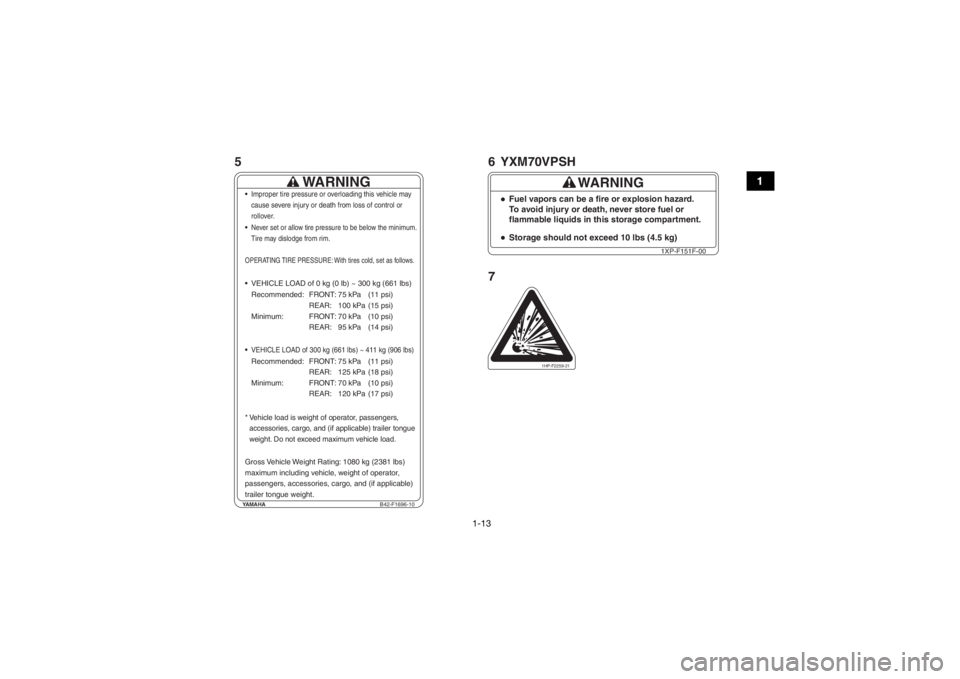

WARNING
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 lb) ~ 300 kg (661 lbs)
Recommended: FRONT: REAR:
Minimum: FRONT: REAR:75 kPa
100 kPa
70 kPa
95 kPa
VEHICLE LOAD of 300 kg (661 lbs) ~ 411 kg (906 lbs)Recommended: FRONT: REAR:
Minimum: FRONT: REAR:75 kPa
125 kPa
70 kPa
120 kPa (11 psi)
(15 psi)
(10 psi)
(14 psi)
(11 psi)
(18 psi)
(10 psi)
(17 psi)
*Vehicle load is weight of operator, passengers,
accessories, cargo, and (if applicable) trailer tongue
weight. Do not exceed maximum vehicle load.Gross Vehicle Weight Rating: 1080 kg (2381 lbs)
maximum including vehicle, weight of operator,
passengers, accessories, cargo, and (if applicable)
trailer tongue weight.OPERATING TIRE PRESSURE: With tires cold, set as follows.
WARNING
Storage should not exceed 10 lbs (4.5 kg)Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.
1XP-F151F-00
1HP-F2259-21
5 6 YXM70VPSH
7
