SAFETY INFORMATION
1-4

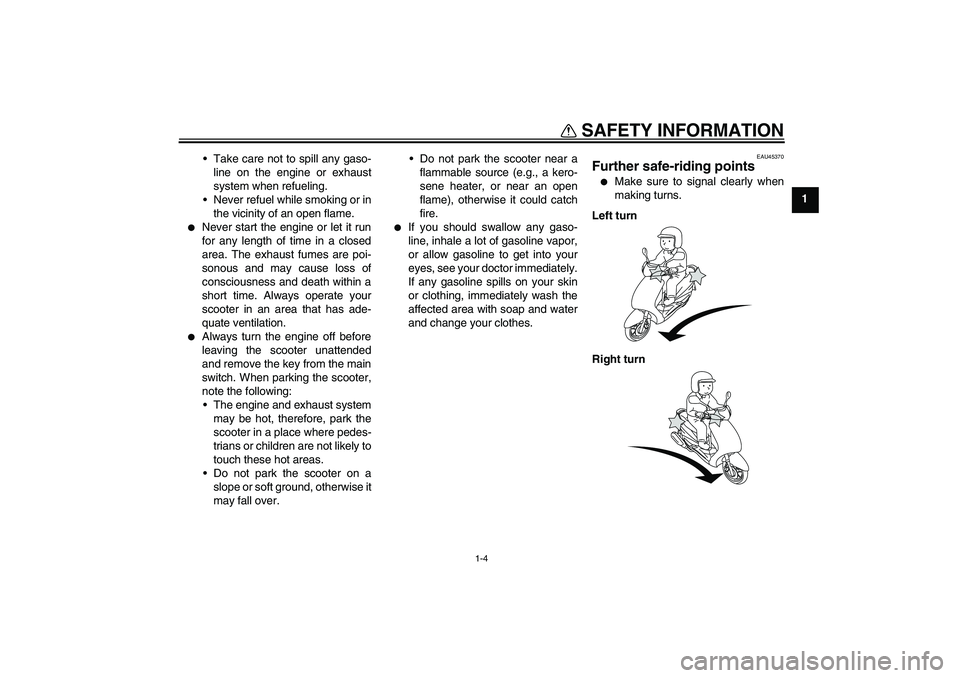

1 Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
Never refuel while smoking or in
the vicinity of an open flame.


Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
scooter in an area that has ade-
quate ventilation.


Always turn the engine off before
leaving the scooter unattended
and remove the key from the main
switch. When parking the scooter,
note the following:
The engine and exhaust system
may be hot, therefore, park the
scooter in a place where pedes-
trians or children are not likely to
touch these hot areas.
Do not park the scooter on a
slope or soft ground, otherwise it
may fall over.Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.


If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediately.
If any gasoline spills on your skin
or clothing, immediately wash the
affected area with soap and water
and change your clothes.
EAU45370
Further safe-riding points

Make sure to signal clearly when
making turns.
Left turn
Right turn
U4P7E1E0.book Page 4 Wednesday, December 12, 2007 9:37 AM

SAFETY INFORMATION
1-5
1

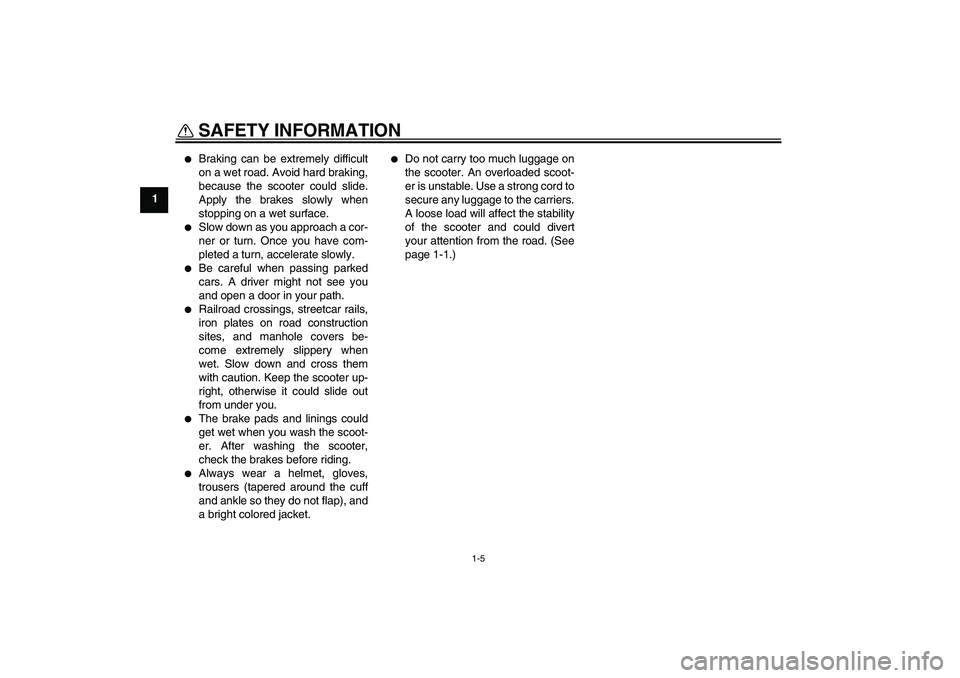

Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.


Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.


Be careful when passing parked
cars. A driver might not see you
and open a door in your path.


Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.


The brake pads and linings could
get wet when you wash the scoot-
er. After washing the scooter,
check the brakes before riding.


Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a bright colored jacket.


Do not carry too much luggage on
the scooter. An overloaded scoot-
er is unstable. Use a strong cord to
secure any luggage to the carriers.
A loose load will affect the stability
of the scooter and could divert
your attention from the road. (See
page 1-1.)
U4P7E1E0.book Page 5 Wednesday, December 12, 2007 9:37 AM

DESCRIPTION
2-1
2
EAU10410

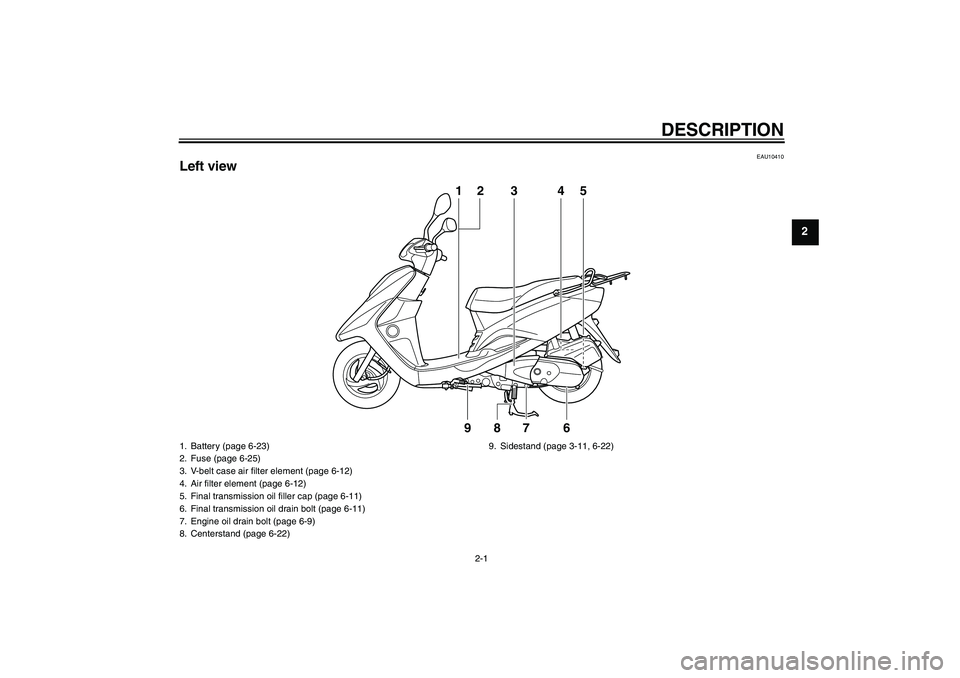

Left view
1
23
9
8
7
64
5
1. Battery (page 6-23)
2. Fuse (page 6-25)
3. V-belt case air filter element (page 6-12)
4. Air filter element (page 6-12)
5. Final transmission oil filler cap (page 6-11)
6. Final transmission oil drain bolt (page 6-11)
7. Engine oil drain bolt (page 6-9)
8. Centerstand (page 6-22)9. Sidestand (page 3-11, 6-22)
U4P7E1E0.book Page 1 Wednesday, December 12, 2007 9:37 AM

DESCRIPTION
2-2
2
EAU10420

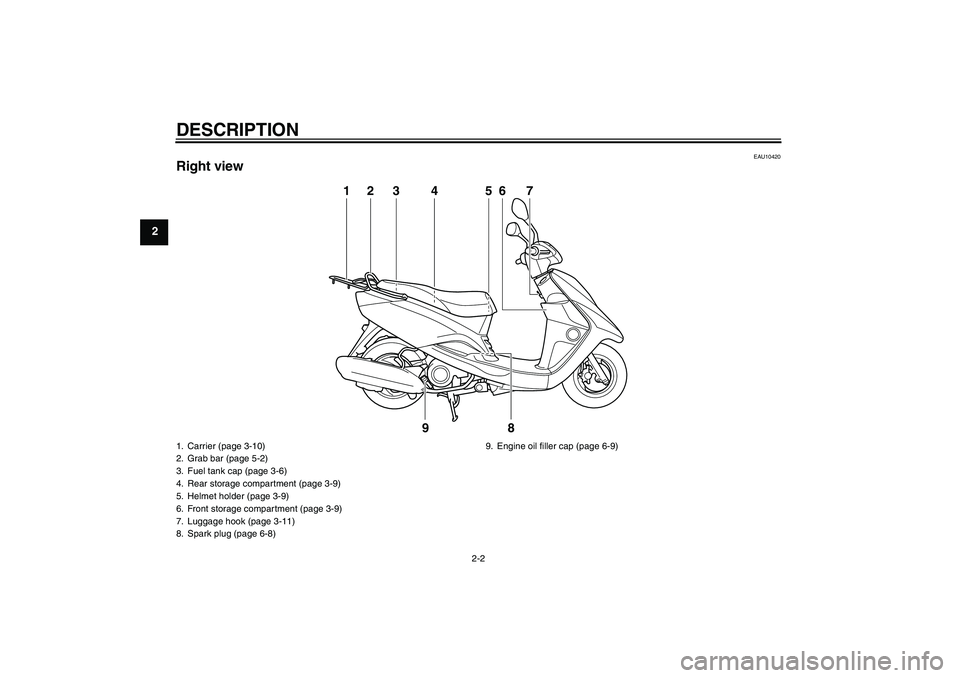

Right view
1
3
2
4
5
9
8
7
6
1. Carrier (page 3-10)
2. Grab bar (page 5-2)
3. Fuel tank cap (page 3-6)
4. Rear storage compartment (page 3-9)
5. Helmet holder (page 3-9)
6. Front storage compartment (page 3-9)
7. Luggage hook (page 3-11)
8. Spark plug (page 6-8)9. Engine oil filler cap (page 6-9)U4P7E1E0.book Page 2 Wednesday, December 12, 2007 9:37 AM

DESCRIPTION
2-3
2
EAU10430

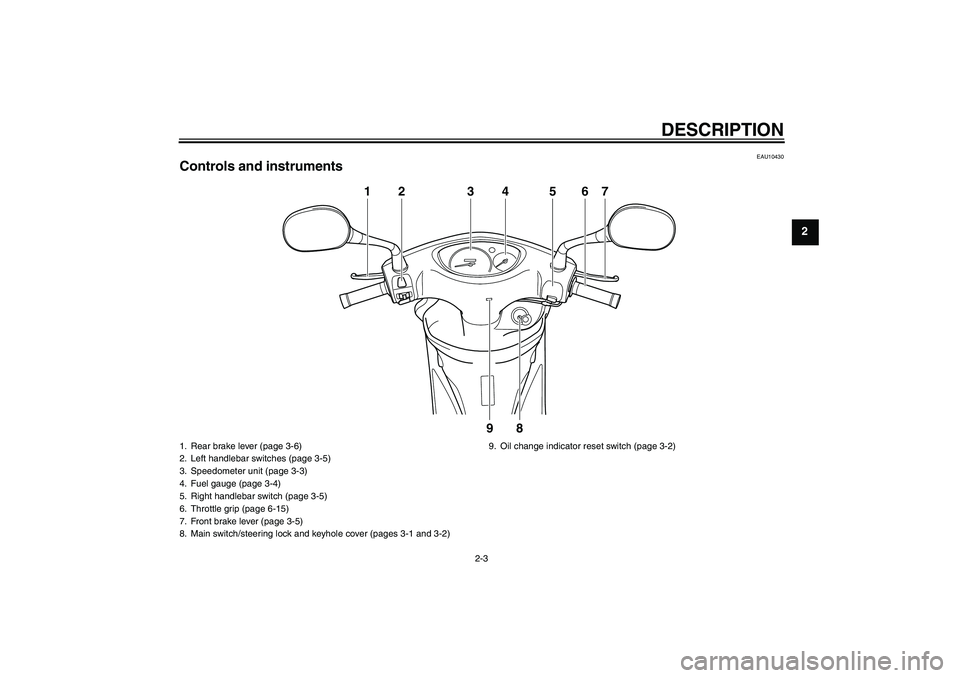

Controls and instruments
1
2
3
9
8
4
5
6
7
1. Rear brake lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Speedometer unit (page 3-3)
4. Fuel gauge (page 3-4)
5. Right handlebar switch (page 3-5)
6. Throttle grip (page 6-15)
7. Front brake lever (page 3-5)
8. Main switch/steering lock and keyhole cover (pages 3-1 and 3-2)9. Oil change indicator reset switch (page 3-2)
U4P7E1E0.book Page 3 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU45440

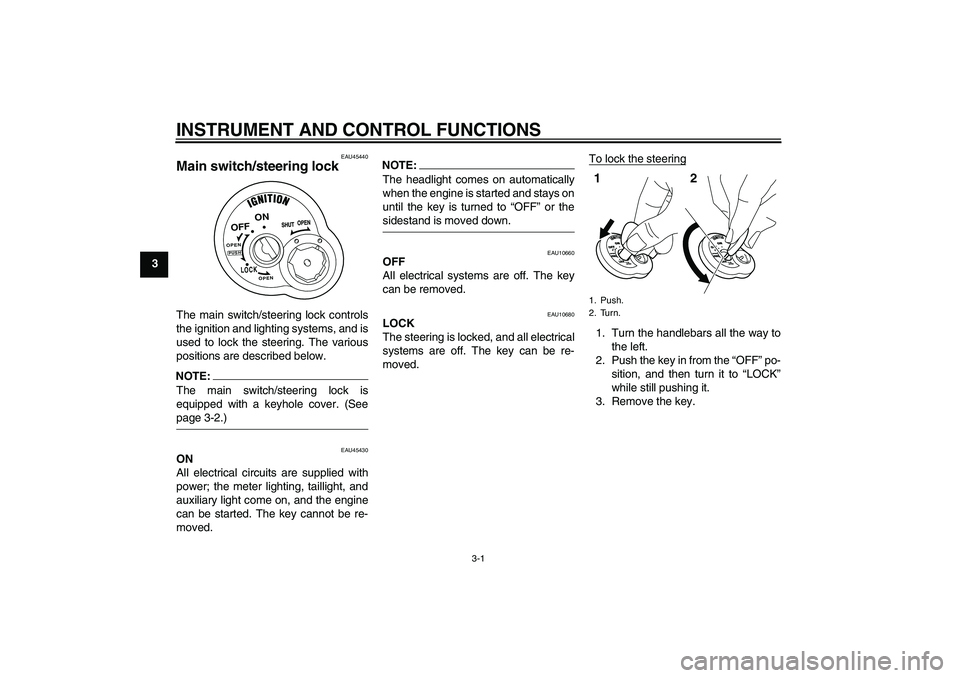

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.NOTE:The main switch/steering lock is
equipped with a keyhole cover. (Seepage 3-2.)
EAU45430
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.
NOTE:The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF” or thesidestand is moved down.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
ON
OPEN
OPENPUSH
LOCKOFF
1. Push.
2. Turn.12
U4P7E1E0.book Page 1 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-2

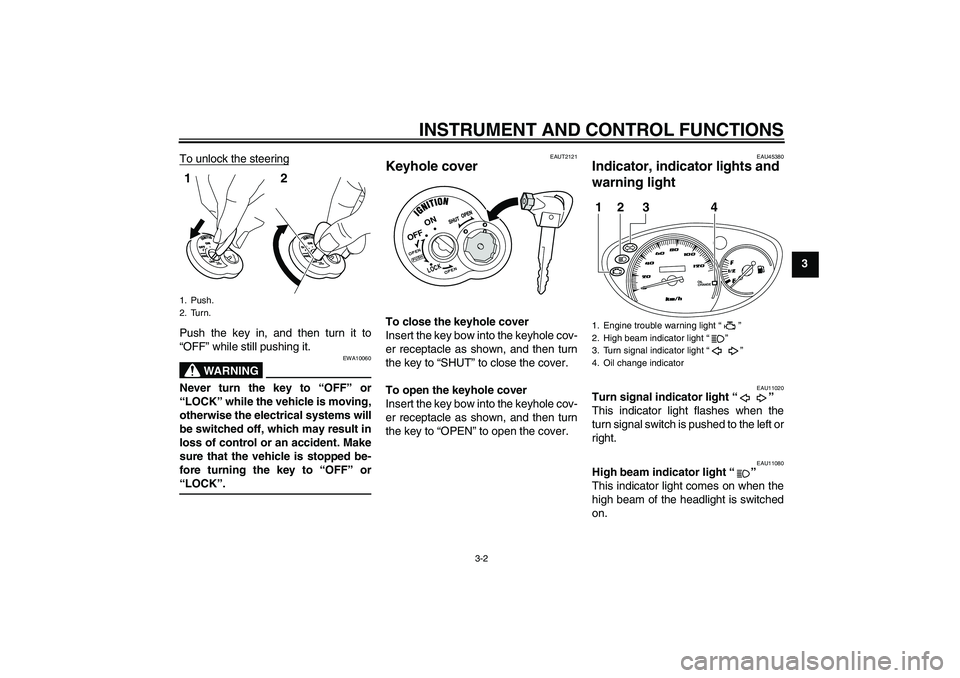

3 To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAUT2121
Keyhole cover To close the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to “SHUT” to close the cover.
To open the keyhole cover
Insert the key bow into the keyhole cov-
er receptacle as shown, and then turn
the key to “OPEN” to open the cover.
EAU45380
Indicator, indicator lights and
warning light
EAU11020
Turn signal indicator light“”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
1. Push.
2. Turn.12
ON
OPEN
OPENPUSH
LOCK
OFF
1. Engine trouble warning light“”
2. High beam indicator light“”
3. Turn signal indicator light“”
4. Oil change indicator
OIL
CHANGE
12 3 4
U4P7E1E0.book Page 2 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU45400
Oil change indicator
This indicator changes from green to
red every 2000 km (1200 mi) to indicate
that the engine oil should be changed.
After changing the engine oil, push the
oil change indicator reset switch in with
the main switch key.
If the engine oil is changed before the
2000 km (1200 mi) interval, the indica-
tor must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time.
NOTE:After resetting the oil change indicator
reset switch, the indicator changesfrom red to green.CAUTION:
ECA10280
After 1000 km (600 mi) of operation,the engine oil must be changed.
EAUT1931
Engine trouble warning light“”
This warning light flashes or stays on
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAUT1821
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
1. Oil change indicator
2. Oil change indicator reset switch1
2
1. Speedometer
2. Odometer
OIL
CHANGE2 1
U4P7E1E0.book Page 3 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12090
Self-diagnosis device This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on or flash. If this occurs, have a
Yamaha dealer check the vehicle.CAUTION:
ECA11170
To prevent engine damage, be sure
to consult a Yamaha dealer as soonas possible if this occurs.
EAU45630
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red line, refuel as soon as possible.NOTE:Turning the key to “OFF” cancels thefuel gauge reading.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
1. Fuel gauge
2. Red line
OIL
CHANGE
1
2
U4P7E1E0.book Page 4 Wednesday, December 12, 2007 9:37 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12347

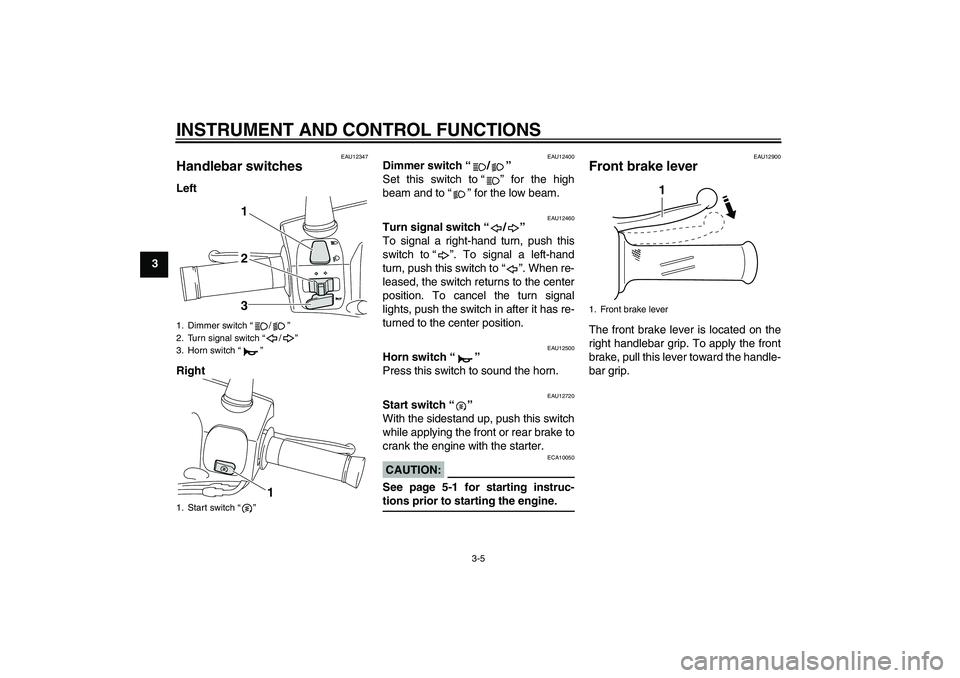

Handlebar switches Left
Right
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12720
Start switch“”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU12900
Front brake lever The front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
1. Dimmer switch“/”
2. Turn signal switch“/”
3. Horn switch“”
1. Start switch“”
2 13
1
1. Front brake lever
1
