check engine YAMAHA VITY 125 2010 Owners Manual

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
Further safe-riding points ................1-5
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Keyhole cover .................................3-2
Indicator, indicator lights and
warning light ................................3-2
Speedometer unit ...........................3-3
Self-diagnosis device ......................3-4
Fuel gauge ......................................3-4
Anti-theft alarm (optional) ...............3-4
Handlebar switches ........................3-5
Front brake lever ............................3-5
Rear brake lever .............................3-6
Fuel tank cap ..................................3-6
Fuel .................................................3-7
Catalytic converters ........................3-8
Seat ................................................3-8
Helmet holders ...............................3-9
Storage compartments .................3-10
Carrier ...........................................3-11
Luggage hook ...............................3-11
Sidestand ......................................3-11
Ignition circuit cut-off system ........3-12FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Starting off ...................................... 5-2
Acceleration and deceleration ........ 5-2
Braking ........................................... 5-3
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-4
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1

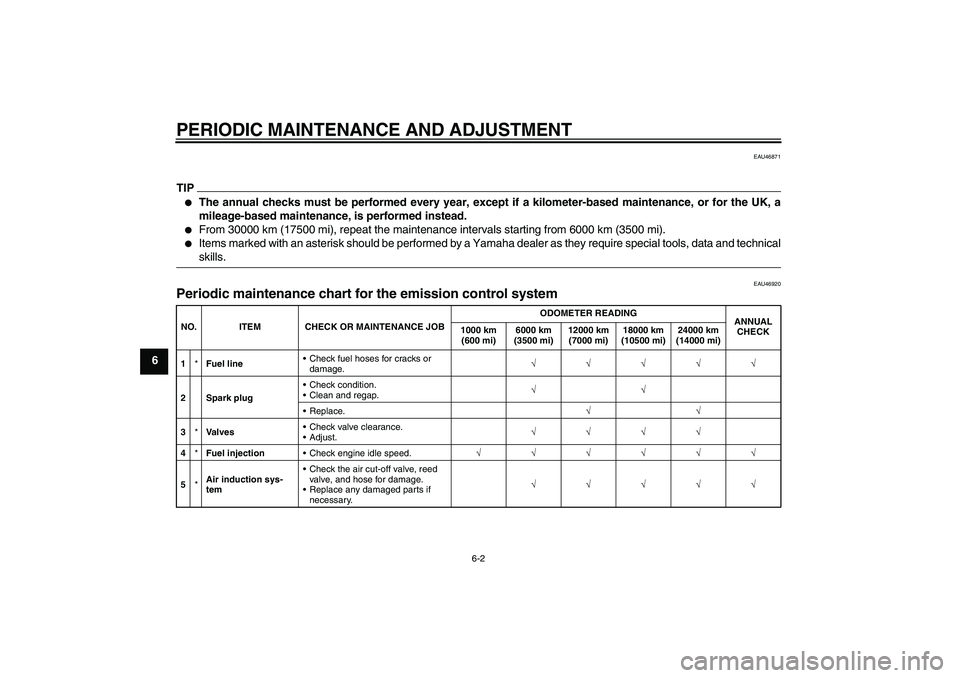

Periodic maintenance chart for
the emission control system ....... 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing cowlings
and panels .................................. 6-6
Checking the spark plug ................. 6-8
Engine oil ....................................... 6-9
Final transmission oil .................... 6-11
Air filter and V-belt case air filter
elements ................................... 6-12
Checking the throttle cable free
play ........................................... 6-14
Valve clearance ............................ 6-15
Tires ............................................. 6-15Cast wheels ................................. 6-17
Checking the front brake lever
free play .................................... 6-17
Adjusting the rear brake lever
free play .................................... 6-17
Checking the front brake pads
and rear brake shoes ............... 6-18
Checking the front brake fluid
level .......................................... 6-19
Changing the brake fluid .............. 6-20
Checking and lubricating
the cables ................................. 6-20
Checking and lubricating
the throttle grip and cable ......... 6-20
Lubricating the front and rear
brake levers .............................. 6-21
Checking and lubricating the
centerstand and sidestand ....... 6-21
Checking the front fork ................. 6-22
Checking the steering .................. 6-23
Checking the wheel bearings ....... 6-23
Battery ......................................... 6-23
Replacing the fuse ....................... 6-25
Replacing the headlight bulb ....... 6-25
Replacing a front turn signal light
bulb ........................................... 6-26
Rear turn signal light and tail/brake
light ........................................... 6-27
Replacing the auxiliary light
bulb ........................................... 6-27
Troubleshooting ........................... 6-28U4P7E2E0.book Page 1 Thursday, August 20, 2009 9:44 AM

SAFETY INFORMATION
1-3
1


Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.


Do not run engine outdoors where
engine exhaust can be drawn into
a building through openings such
as windows and doors.
Loading
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution of
the scooter is changed. To avoid the
possibility of an accident, use extreme
caution when adding cargo or accesso-
ries to your scooter. Use extra care
when riding a scooter that has added
cargo or accessories. Here, along with
the information about accessories be-
low, are some general guidelines to fol-
low if loading cargo to your scooter:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.When loading within this weight limit,
keep the following in mind:


Cargo and accessory weight
should be kept as low and close to
the scooter as possible. Securely
pack your heaviest items as close
to the center of the vehicle as pos-
sible and make sure to distribute
the weight as evenly as possible
on both sides of the scooter to min-
imize imbalance or instability.


Shifting weights can create a sud-
den imbalance. Make sure that ac-
cessories and cargo are securely
attached to the scooter before
riding. Check accessory mounts
and cargo restraints frequently.
Properly adjust the suspension
for your load (suspension-ad-
justable models only), and
check the condition and pres-
sure of your tires.Never attach any large or heavy
items to the handlebar, front
fork, or front fender. Such items
can create unstable handling or
a slow steering response.


This vehicle is not designed to
pull a trailer or to be attached to
a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail-
able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection to
Yamaha manufacture parts and acces-
sories or offer other modifications for
Yamaha vehicles. Yamaha is not in a
position to test the products that these
aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Maximum load:
167 kg (368 lb)
U4P7E2E0.book Page 3 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU45401
Oil change indicator
This indicator changes from green to
red every 2000 km (1200 mi) to indicate
that the engine oil should be changed.
After changing the engine oil, push the
oil change indicator reset switch in with
the main switch key.
If the engine oil is changed before the
2000 km (1200 mi) interval, the indica-
tor must be reset after the oil change for
the next periodic oil change to be indi-
cated at the correct time. NOTICE: Af-
ter 1000 km (600 mi) of operation, the
engine oil must be changed.
[ECA10281]
TIPAfter resetting the oil change indicator
reset switch, the indicator changes
from red to green.
EAUT1934
Engine trouble warning light“”
This warning light flashes or stays on if
an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. The warning light should come
on for a few seconds, and then go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAUT1821
Speedometer unit The speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows the riding speed.
The odometer shows the total distance
traveled.
1. Oil change indicator
2. Oil change indicator reset switch1
2
1. Speedometer
2. Odometer
OIL
CHANGE2 1
U4P7E2E0.book Page 3 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU12092
Self-diagnosis device This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on or flash. If this occurs,
have a Yamaha dealer check the vehi-
cle.NOTICE
ECA11170
To prevent engine damage, be sure
to consult a Yamaha dealer as soon
as possible if this occurs.
EAU45630
Fuel gauge The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
the red line, refuel as soon as possible.TIPTurning the key to “OFF” cancels the
fuel gauge reading.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
1. Fuel gauge
2. Red line
OIL
CHANGE
1
2
U4P7E2E0.book Page 4 Thursday, August 20, 2009 9:44 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
Turn the key on.
Put the sidestand up.Push the start switch while applying
either of the brake levers. The engine will
start.Put the sidestand down.
If the engine stalls:
The sidestand switch is OK.
• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U4P7E2E0.book Page 13 Thursday, August 20, 2009 9:44 AM

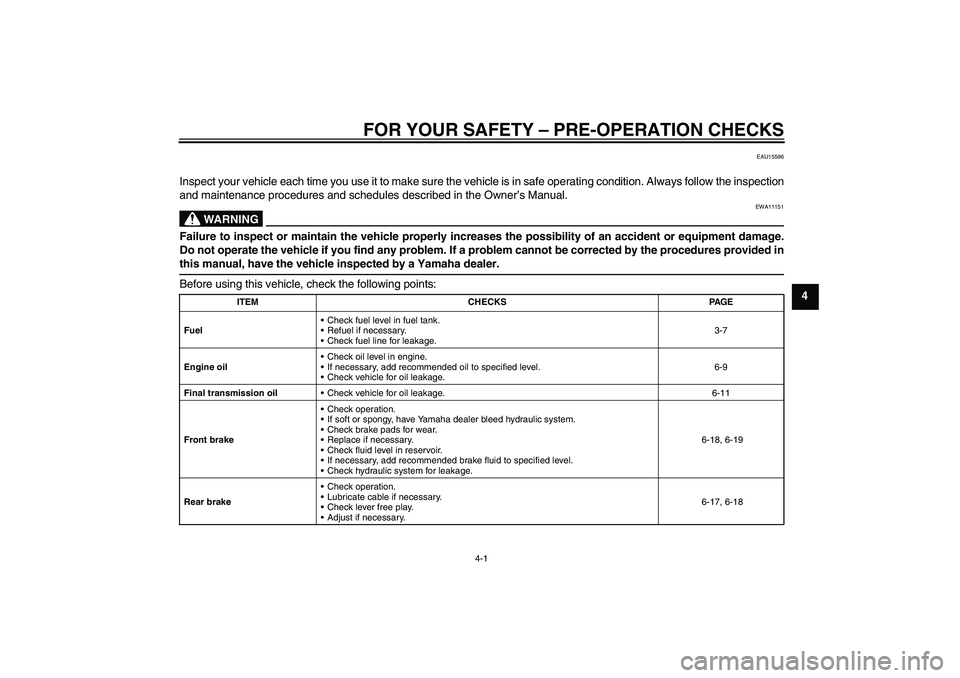

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-7
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
Final transmission oilCheck vehicle for oil leakage. 6-11
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage. 6-18, 6-19
Rear brakeCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary. 6-17, 6-18
U4P7E2E0.book Page 1 Thursday, August 20, 2009 9:44 AM

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU16830
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1000 km (600 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU45581
0–150 km (0–90 mi)
Avoid prolonged operation above 1/3
throttle.
150–500 km (90–300 mi)
Avoid prolonged operation above 1/2
throttle.
500–1000 km (300–600 mi)
Avoid prolonged operation above 3/4
throttle. NOTICE: After 1000 km (600
mi) of operation, be sure to changethe engine oil and final transmission
oil, and to clean the oil strainer.
[ECA16501]1000 km (600 mi) and beyond
The vehicle can now be operated nor-
mally.NOTICE
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17213
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10311


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them and be burned.


Do not park on a slope or on soft
ground, otherwise the vehicle
may overturn, increasing the
risk of a fuel leak and fire.


Do not park near grass or other
flammable materials which
might catch fire.
U4P7E2E0.book Page 4 Thursday, August 20, 2009 9:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU46871
TIP

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
EAU46920
Periodic maintenance chart for the emission control system NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2 Spark plugCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√√√
4*Fuel injectionCheck engine idle speed.√√√√√√
5*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
U4P7E2E0.book Page 2 Thursday, August 20, 2009 9:44 AM

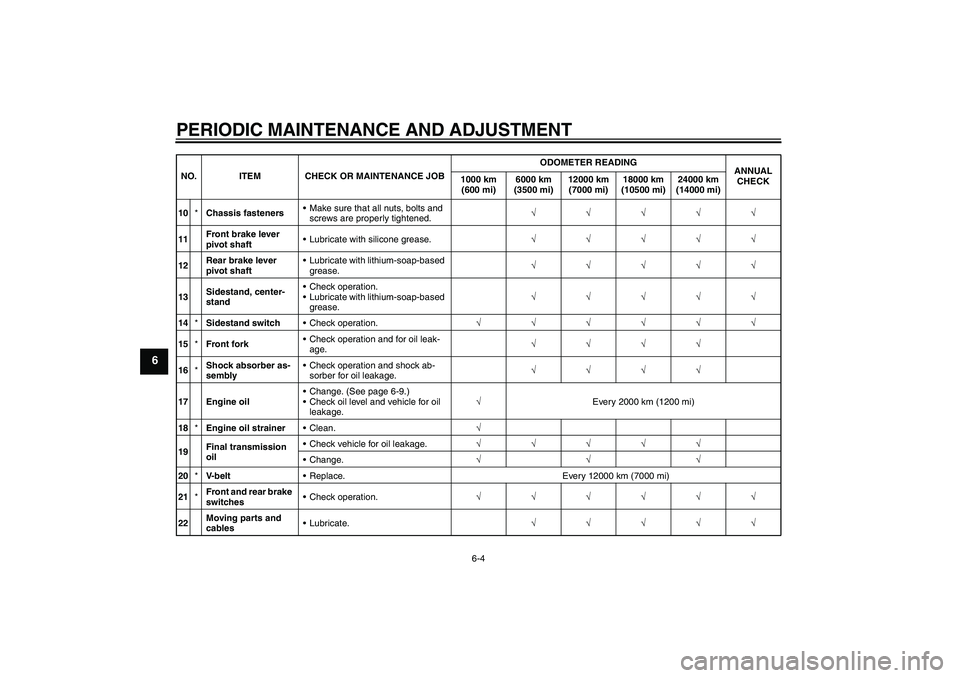

PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6
10*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
11Front brake lever
pivot shaftLubricate with silicone grease.√√√√√
12Rear brake lever
pivot shaftLubricate with lithium-soap-based
grease.√√√√√
13Sidestand, center-
standCheck operation.
Lubricate with lithium-soap-based
grease.√√√√√
14*Sidestand switchCheck operation.√√√√√√
15*Front forkCheck operation and for oil leak-
age.√√√√
16*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
17 Engine oilChange. (See page 6-9.)
Check oil level and vehicle for oil
leakage.√Every 2000 km (1200 mi)
18*Engine oil strainerClean.√
19Final transmission
oilCheck vehicle for oil leakage.√√√√√
Change.√√√
20*V- b e l tReplace. Every 12000 km (7000 mi)
21*Front and rear brake
switchesCheck operation.√√√√√√
22Moving parts and
cablesLubricate.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)U4P7E2E0.book Page 4 Thursday, August 20, 2009 9:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU45590
Checking the spark plug The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plug should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
To remove the spark plug
1. Place the vehicle on the center-
stand.
2. Remove panel A. (See page 6-6.)
3. Remove the spark plug cap.
4. Remove the spark plug as shown,
using the spark plug wrench,
which is located in the rear storage
compartment. (See page 3-10.)
To check the spark plug
1. Check that the porcelain insulator
around the center electrode of the
spark plug is a medium-to-light tan
(the ideal color when the vehicle is
ridden normally).
TIPIf the spark plug shows a distinctly dif-
ferent color, the engine could be oper-
ating improperly. Do not attempt to
diagnose such problems yourself. In-
stead, have a Yamaha dealer check
the vehicle.2. Check the spark plug for electrode
erosion and excessive carbon or
other deposits, and replace it if
necessary.
To install the spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
1. Spark plug wrench
1. Spark plug wrench
1
1
Specified spark plug:
NGK/CR7E
U4P7E2E0.book Page 8 Thursday, August 20, 2009 9:44 AM
