YAMAHA VMAX 2011 Owners Manual

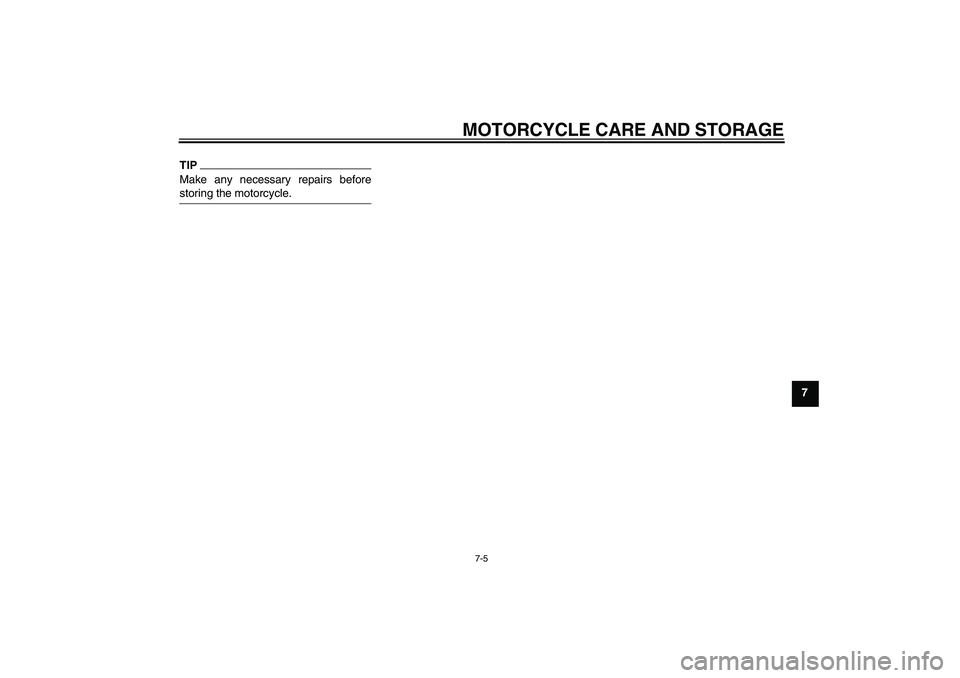

MOTORCYCLE CARE AND STORAGE
7-5
7
TIPMake any necessary repairs before
storing the motorcycle.
U2S3E2E0.book Page 5 Tuesday, September 21, 2010 10:43 AM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2395 mm (94.3 in)
Overall width:
820 mm (32.3 in)
Overall height:
1190 mm (46.9 in)
Seat height:
775 mm (30.5 in)
Wheelbase:
1700 mm (66.9 in)
Ground clearance:
140 mm (5.51 in)
Minimum turning radius:
3500 mm (137.8 in)Weight:Curb weight:
310 kg (683 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
V-type 4-cylinder
Displacement:
1679 cm³
Bore × stroke:
90.0 × 66.0 mm (3.54 × 2.60 in)
Compression ratio:
11.30 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-30, 10W-40, 10W-50, 15W-40,
20W-40 or 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
4.30 L (4.55 US qt, 3.78 Imp.qt)
With oil filter cartridge replacement:
4.70 L (4.97 US qt, 4.14 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil SAE
80 API GL-5
Quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.27 L (0.29 US qt, 0.24 Imp.qt)
Radiator capacity (including all routes):
3.75 L (3.96 US qt, 3.30 Imp.qt)Air filter:Air filter element:
Oil-coated paper elementFuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.9 L (1.03 US gal, 0.86 Imp.gal)Fuel injection:Throttle body:
ID mark:
2S31 00Spark plug(s):Manufacturer/model:
NGK/CR9EIA
Manufacturer/model:
DENSO/IU27D
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction ratio:
1.509 (86/57)
–20 –10 0
1020 30 40 50 C 10 30 50 70 90 110 0 130 F
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U2S3E2E0.book Page 1 Tuesday, September 21, 2010 10:43 AM

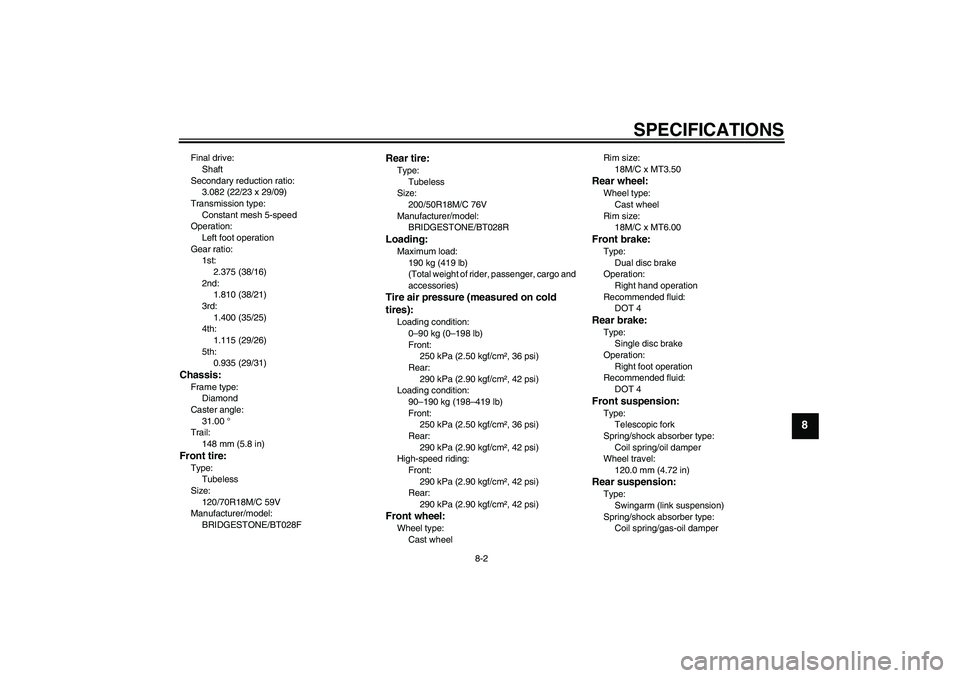

SPECIFICATIONS
8-2
8
Final drive:
Shaft
Secondary reduction ratio:
3.082 (22/23 x 29/09)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
2.375 (38/16)
2nd:
1.810 (38/21)
3rd:
1.400 (35/25)
4th:
1.115 (29/26)
5th:
0.935 (29/31)Chassis:Frame type:
Diamond
Caster angle:
31.00 °
Trail:
148 mm (5.8 in)Front tire:Type:
Tubeless
Size:
120/70R18M/C 59V
Manufacturer/model:
BRIDGESTONE/BT028F
Rear tire:Type:
Tubeless
Size:
200/50R18M/C 76V
Manufacturer/model:
BRIDGESTONE/BT028RLoading:Maximum load:
190 kg (419 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
Loading condition:
90–190 kg (198–419 lb)
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)
High-speed riding:
Front:
290 kPa (2.90 kgf/cm², 42 psi)
Rear:
290 kPa (2.90 kgf/cm², 42 psi)Front wheel:Wheel type:
Cast wheelRim size:
18M/C x MT3.50
Rear wheel:Wheel type:
Cast wheel
Rim size:
18M/C x MT6.00Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
U2S3E2E0.book Page 2 Tuesday, September 21, 2010 10:43 AM

SPECIFICATIONS
8-3
8
Wheel travel:
110.0 mm (4.33 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
YTZ14S
Voltage, capacity:
12 V, 11.2 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55 W × 1
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LEDTurn signal indicator light:
LED x 2
Fuel level warning light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Shift timing indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
15.0 A
Signaling system fuse:
7.5 A
Ignition fuse:
20.0 A
Parking lighting fuse:
7.5 A
Radiator fan fuse:
20.0 A
Sub radiator fan fuse:
7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 AABS motor fuse:
30.0 A
ABS solenoid fuse:
15.0 A
Backup fuse:
7.5 A
Electronic throttle valve fuse:
7.5 A
U2S3E2E0.book Page 3 Tuesday, September 21, 2010 10:43 AM

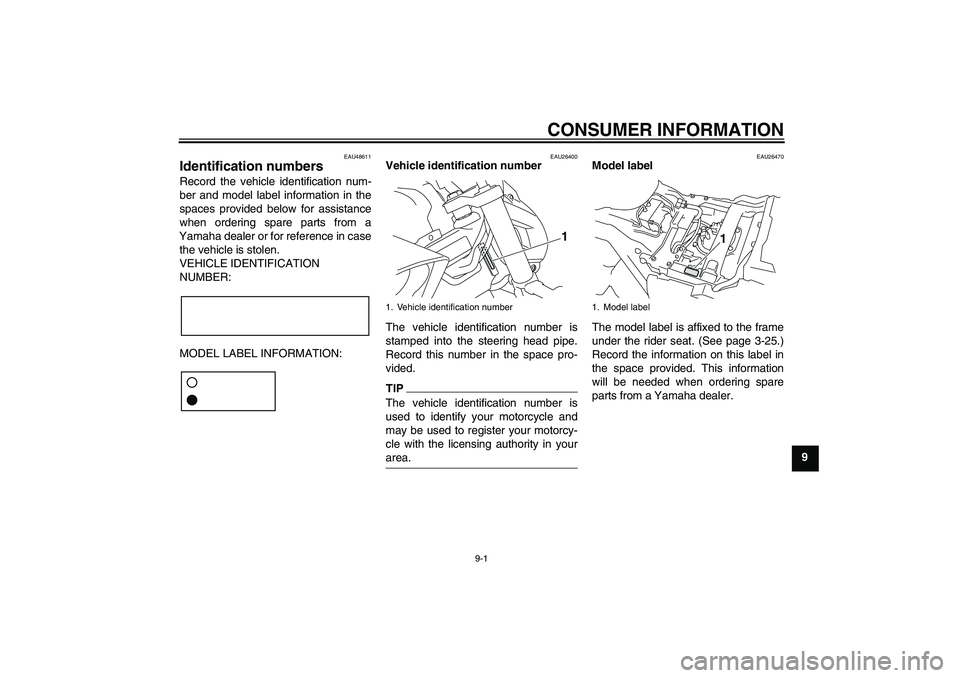

CONSUMER INFORMATION
9-1
9
EAU48611
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26470
Model label
The model label is affixed to the frame
under the rider seat. (See page 3-25.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1
1. Model label
1
U2S3E2E0.book Page 1 Tuesday, September 21, 2010 10:43 AM

INDEXAABS ....................................................... 3-20
ABS warning light.................................... 3-6
Air filter element .................................... 6-19
Anti-theft alarm (optional)...................... 3-17
Auxiliary light bulb, replacing ................ 6-38BBattery................................................... 6-30
Brake and clutch fluids, changing ......... 6-26
Brake and clutch levers,
checking and lubricating ..................... 6-27
Brake and shift pedals,
checking and lubricating ..................... 6-27
Brake fluid level, checking .................... 6-25
Brake lever ............................................ 3-19
Brake lever free play, checking ............. 6-23
Brake light switches .............................. 6-24
Brake pedal ........................................... 3-20CCables, checking and lubricating .......... 6-26
Care ........................................................ 7-1
Catalytic converters .............................. 3-24
Clutch lever .................................. 3-18, 6-23
Coolant.................................................. 6-16
Coolant temperature warning light .......... 3-5
Cowling and panels,
removing and installing ......................... 6-8DDimmer switch ...................................... 3-17EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ............ 6-11
Engine stop switch ................................ 3-18Engine trouble warning light ................... 3-5
EXUP system ....................................... 3-30
FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking .... 6-24
Front fork, adjusting .............................. 3-26
Front fork, checking .............................. 6-29
Fuel....................................................... 3-22
Fuel consumption, tips for reducing........ 5-3
Fuel level warning light ........................... 3-5
Fuel tank breather/overflow hose ......... 3-24
Fuel tank cap ........................................ 3-21
Fuses, replacing ................................... 6-33HHandlebar switches .............................. 3-17
Hazard switch ....................................... 3-18
Headlight bulb, replacing ...................... 6-34
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-18IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-31
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-6
Indicator lights and warning lights .......... 3-4LLicense plate light bulb, replacing ........ 6-37
Luggage strap holders .......................... 3-30MMain switch/steering lock........................ 3-2
Maintenance and lubrication, periodic .... 6-4
Maintenance, emission control
system .................................................. 6-3
Matte color, caution ................................ 7-1Model label .............................................. 9-1
Multi-function display............................... 3-8
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PParking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-17SSafety information ................................... 1-1
Seats ..................................................... 3-25
Shifting .................................................... 5-2
Shift pedal ............................................. 3-19
Shift timing indicator light ........................ 3-6
Shock absorber assembly, adjusting .... 3-28
Sidestand .............................................. 3-31
Sidestand, checking and lubricating...... 6-28
Spark plugs, checking ........................... 6-10
Specifications .......................................... 8-1
Speedometer unit .................................... 3-7
Starting the engine .................................. 5-1
Start switch............................................ 3-18
Steering, checking................................. 6-29
Storage.................................................... 7-4
Supporting the motorcycle .................... 6-39
Swingarm pivots, lubricating ................. 6-28TTail/brake light ....................................... 6-36
Throttle grip and cable,
checking and lubricating ..................... 6-26
Throttle grip free play, checking ............ 6-19
Tires ...................................................... 6-20
U2S3E2E0.book Page 1 Tuesday, September 21, 2010 10:43 AM

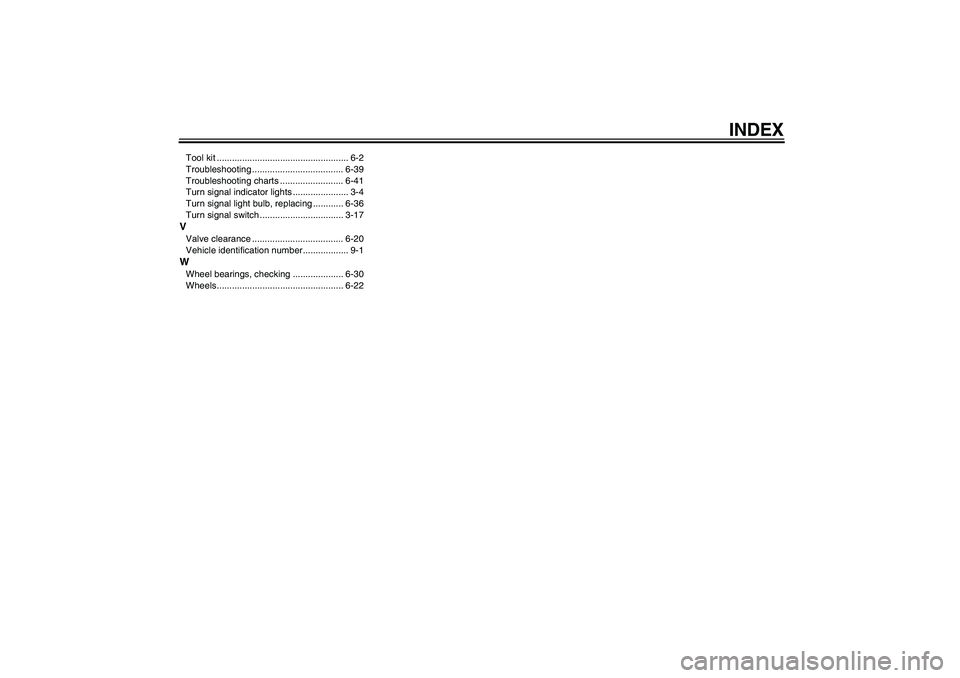

INDEX
Tool kit .................................................... 6-2
Troubleshooting .................................... 6-39
Troubleshooting charts ......................... 6-41
Turn signal indicator lights ...................... 3-4
Turn signal light bulb, replacing ............ 6-36
Turn signal switch ................................. 3-17VValve clearance .................................... 6-20
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-30
Wheels.................................................. 6-22
U2S3E2E0.book Page 2 Tuesday, September 21, 2010 10:43 AM

A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM

A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2010.09-0.3×1 CR
(E)
DIC183
