engine YAMAHA VX CRUISER 2010 Workshop Manual

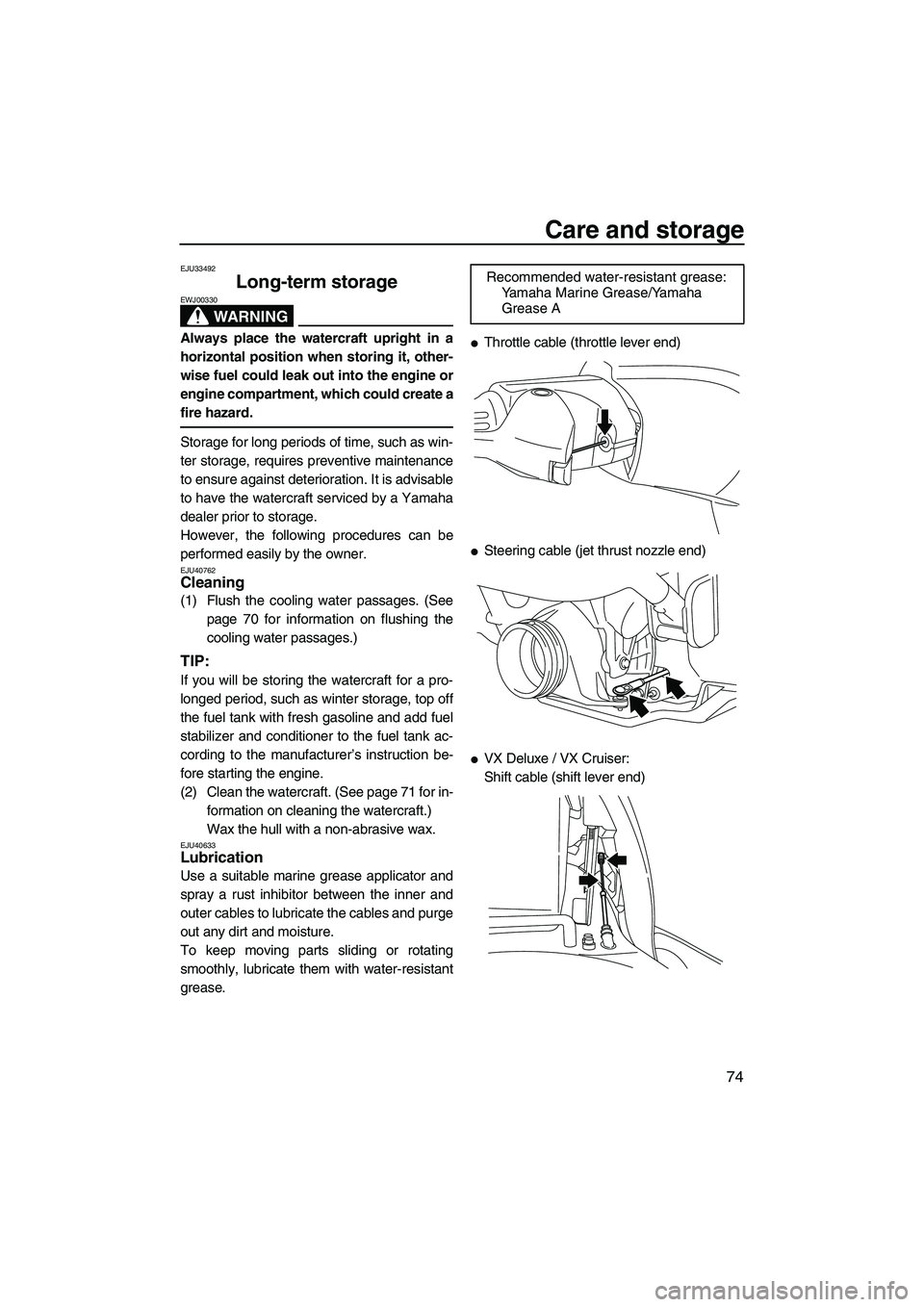

Care and storage
74
EJU33492
Long-term storage
WARNING
EWJ00330
Always place the watercraft upright in a
horizontal position when storing it, other-
wise fuel could leak out into the engine or
engine compartment, which could create a
fire hazard.
Storage for long periods of time, such as win-
ter storage, requires preventive maintenance
to ensure against deterioration. It is advisable
to have the watercraft serviced by a Yamaha
dealer prior to storage.
However, the following procedures can be
performed easily by the owner.
EJU40762Cleaning
(1) Flush the cooling water passages. (See
page 70 for information on flushing the
cooling water passages.)
TIP:
If you will be storing the watercraft for a pro-
longed period, such as winter storage, top off
the fuel tank with fresh gasoline and add fuel
stabilizer and conditioner to the fuel tank ac-
cording to the manufacturer’s instruction be-
fore starting the engine.
(2) Clean the watercraft. (See page 71 for in-
formation on cleaning the watercraft.)
Wax the hull with a non-abrasive wax.
EJU40633Lubrication
Use a suitable marine grease applicator and
spray a rust inhibitor between the inner and
outer cables to lubricate the cables and purge
out any dirt and moisture.
To keep moving parts sliding or rotating
smoothly, lubricate them with water-resistant
grease.

Throttle cable (throttle lever end)

Steering cable (jet thrust nozzle end)

VX Deluxe / VX Cruiser:
Shift cable (shift lever end)Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
UF2N70E0.book Page 74 Tuesday, October 6, 2009 9:57 AM

Care and storage
75

VX Deluxe / VX Cruiser:
Shift cable (reverse gate end)
EJU41670Rustproofing
Rustproofing the hull, deck, and engine
Spray metallic parts of the hull, deck, and en-
gine with a rust inhibitor.
Rustproofing the internal engine compo-
nents
Rustproof the internal engine components
with a rust inhibitor.
To rustproof the internal engine components:
(1) Remove the seat. (See page 37 for seat
removal and installation procedures.)
(2) Loosen the clamp screw and disconnect
the air intake duct.
(3) Spray a rust inhibitor into the intake open-
ing for 3 seconds. WARNING! Do not
spray flammable rust inhibitor prod-
ucts on engine surfaces while the en-gine is hot. The sprayed substance or
propellants could catch fire.
[EWJ00261]
(4) Connect the air intake duct and securely
tighten the clamp screw.
(5) Make sure that the area around the wa-
tercraft is clear, and then start the engine
in a well-ventilated area and let it run at
idle for 15 seconds. (See page 26 for in-
formation on starting the engine.)
(6) Stop the engine.
(7) Securely install the seat in its original po-
sition.
1Air intake duct
2Clamp screw
1Intake opening
UF2N70E0.book Page 75 Tuesday, October 6, 2009 9:57 AM

Maintenance
76
EJU33768
Maintenance
Periodic checks and lubrication will keep your
watercraft in the safest and most efficient con-
dition possible. Therefore, make sure to carry
out the periodic maintenance. Safety is an ob-
ligation of the watercraft owner. Proper main-
tenance must be carried out to keep the
exhaust emission and sound levels within the
regulated limits. The most important points of
watercraft inspection and lubrication are ex-
plained on the following pages.
See a Yamaha dealer for genuine Yamaha re-
placement parts and optional accessories de-
signed for your watercraft.
Remember, failures that are the result of the
installation of parts or accessories which are
not qualitatively equivalent to genuine
Yamaha parts are not covered by the limited
warranty.
Maintenance, replacement, or repair of the
emission control devices and system may
be performed by any marine SI engine re-
pair establishment or individual. Warranty
repair, however, must be performed at an
authorized Yamaha marine dealership.
WARNING
EWJ00311
Be sure to turn off the engine when you
perform maintenance unless otherwise
specified. If you are not familiar with ma-
chine servicing, this work should be done
by a Yamaha dealer or other qualified me-
chanic.
EJU33802Tool kit
A tool kit is included with this watercraft. Place
the tool kit in a waterproof bag and alwayscarry it with you whenever you use the water-
craft.
1Tool bag
2Screwdriver
316 mm box wrench
4Garden hose adapter
510/12 mm box wrench
6Pliers
7Open-end wrench
UF2N70E0.book Page 76 Tuesday, October 6, 2009 9:57 AM

Maintenance
77
EJU37062Periodic maintenance chart
The periodic maintenance chart gives general guidelines for periodic maintenance. Have a
Yamaha dealer perform the checks in the following chart. However, maintenance may need to
be performed more frequently depending on your operating conditions. If you have any ques-
tions, consult a Yamaha dealer.
This“” mark indicates items to be checked and serviced by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50 hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, replace—
Lubrication pointsLubricate—
Intermediate hous-
ingLubricate—
Fuel systemCheck—
Fuel tankCheck, clean—
Engine idling
speedCheck, adjust—
Throttle shaftCheck—
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust—
Shift cable and re-
verse gate
(VX Deluxe /
VX Cruiser)Check, adjust—
Throttle cableCheck—
Stern drain plugsCheck, replace—
BatteryCheck, charge—
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
Air filter elementCheck—
UF2N70E0.book Page 77 Tuesday, October 6, 2009 9:57 AM

Maintenance
78
EJU36942Engine oil and oil filter
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ00991
Do not run the engine with too much or not
enough oil in the engine, otherwise the en-
gine could be damaged.
It is recommended to have a Yamaha dealer
change the engine oil and the engine oil filter.
However, if you choose to change the oil and
filter on your own, consult a Yamaha dealer.
Engine oilReplace 78
Oil filterReplace 78
Valve clearanceCheck, adjust— Item OperationInitial Thereafter every
Page 10
hours50 hours100
hours200
hours
6
months12
months12
months24
months
UF2N70E0.book Page 78 Tuesday, October 6, 2009 9:57 AM

Specifications
79
EJU34542
Specifications
Watercraft capacity:
Maximum people on board:
3 person
Maximum load capacity:
240 kg (530 lb)
Dimensions:
Length:
VX Sport 3220 mm (126.8 in)
VX Deluxe 3220 mm (126.8 in)
VX Cruiser 3270 mm (128.7 in)
Width:
1170 mm (46.1 in)
Height:
1160 mm (45.7 in)
Dry weight:
VX Sport 334 kg (736 lb)
VX Deluxe 337 kg (743 lb)
VX Cruiser 340 kg (750 lb)
Performance:
Maximum output (according to ISO 8665/SAE
J1228):
75.0 kW@8000 r/min
Maximum fuel consumption:
25.7 L/h (6.8 US gal/h, 5.7 Imp.gal/h)
Cruising range at full throttle:
2.33 hour
Trolling speed:
1650 ±50 r/min
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Number of cylinders:
4
Engine displacement:
1052 cm³
Bore & stroke:
76.0 × 58.0 mm (2.99 × 2.28 in)
Compression ratio:
11.4 : 1
Valve clearance-intake (cold):
0.11–0.20 mm (0.0043–0.0079 in)
Valve clearance-exhaust (cold):
0.25–0.34 mm (0.0098–0.0134 in)
Lubrication system:
Dry sump
Cooling system:
WaterStarting system:
Electric
Ignition system:
T.C.I.
Spark plug:
CR9EB
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Battery capacity:
12 V, 19.0 Ah
Charging system:
Flywheel magneto
Drive unit:
Propulsion system:
Jet pump
Jet pump type:
Axial flow, single stage
Impeller rotation:
Counterclockwise
Jet thrust nozzle angle:
24.0+24.0 °
Fuel and oil:
Recommended fuel:
Regular unleaded gasoline
Minimum octane rating (PON):
86
Minimum octane rating (RON):
90
Recommended engine oil type SAE:
SAE 10W-30, 10W-40, 20W-40, 20W-50
Recommended engine oil grade API:
API SE,SF,SG,SH,SJ,SL
Fuel tank total capacity:
60 L (15.9 US gal, 13.2 Imp.gal)
Engine oil quantity with oil filter replacement:
2.2 L (2.33 US qt, 1.94 Imp.qt)
Engine oil quantity without oil filter replacement:
2.0 L (2.11 US qt, 1.76 Imp.qt)
Engine oil total quantity:
4.3 L (4.55 US qt, 3.78 Imp.qt)
UF2N70E0.book Page 79 Tuesday, October 6, 2009 9:57 AM

Trouble recovery
80
EJU34561
Troubleshooting
If you have any trouble with your watercraft, use the troubleshooting chart to check for the pos-
sible cause.
If you cannot find the cause, consult a Yamaha dealer.
EJU34595Troubleshooting chart
Confirm the possible cause and remedy, and then refer to the applicable page.
TROUBLE POSSIBLE CAUSE REMEDY PAGE
Engine does not
start (Starter motor
does not turn over)Yamaha Se-
curity Sys-
tem
(VX Deluxe /
VX Cruiser)Lock mode selected Select unlock mode
25
Engine shut-
off switchClip not in place Install clip
26
Fuse Burned out Replace fuse and
check wiring84
Battery Run down Recharge 71
Poor terminal con-
nectionsTighten as required
71
Terminal corroded Clean or replace 71
Starter motor Faulty Have serviced by
Yamaha dealer—
Engine does not
start (Starter motor
turns over)Throttle lever Squeezed Release 26
Fuel Empty Refill as soon as pos-
sible43
Stale or contaminat-
edHave serviced by
Yamaha dealer—
Fuel tank Water or dirt present Have serviced by
Yamaha dealer—
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Connected to wrong
cylinderHave serviced by
Yamaha dealer—
Fuel injec-
tion systemFuel pump faulty Have serviced by
Yamaha dealer—
UF2N70E0.book Page 80 Tuesday, October 6, 2009 9:57 AM

Trouble recovery
81
Engine runs irregu-
larly or stallsFuel Empty Refill as soon as pos-
sible43
Stale or contaminat-
edHave serviced by
Yamaha dealer—
Fuel tank Water or dirt present Have serviced by
Yamaha dealer—
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Incorrect heat range Have serviced by
Yamaha dealer—
Gap incorrect Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Cracked, torn, or
damagedHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel injec-
tion systemFaulty or clogged in-
jectorsHave serviced by
Yamaha dealer—
Warning light or in-
dicator blinks or
comes onFuel level Empty Refill as soon as pos-
sible43
Oil pressure
warningOil pressure dropped Have serviced by
Yamaha dealer35
Engine over-
heatedJet intake clogged Clean
83
Check engine
warningFaulty sensors Have serviced by
Yamaha dealer36 TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2N70E0.book Page 81 Tuesday, October 6, 2009 9:57 AM

Trouble recovery
82
Watercraft slow or
loses powerWatercraft
operation
mode
(VX Deluxe /
VX Cruiser)Low RPM mode acti-
vatedDeactivate Low RPM
Mode
30
Cavitation Jet intake clogged Clean 83
Impeller damaged or
wornHave serviced by
Yamaha dealer83
Engine over-
heat warningEngine speed reduc-
tion control activatedClean jet intake and
cool engine35
Oil pressure
warningEngine speed reduc-
tion control activatedAdd oil
35
Spark plug Fouled or defective Have serviced by
Yamaha dealer—
Incorrect heat range Have serviced by
Yamaha dealer—
Gap incorrect Have serviced by
Yamaha dealer—
Spark plug
capNot connected or
looseHave serviced by
Yamaha dealer—
Electrical wir-
ingLoose connection Have serviced by
Yamaha dealer—
Fuel Stale or contaminat-
edHave serviced by
Yamaha dealer—
Air filter Clogged Have serviced by
Yamaha dealer—
Oil buildup Have serviced by
Yamaha dealer— TROUBLE POSSIBLE CAUSE REMEDY PAGE
UF2N70E0.book Page 82 Tuesday, October 6, 2009 9:57 AM

Trouble recovery
83
EJU34622
Emergency procedures EJU34634Cleaning the jet intake and impeller
WARNING
EWJ00782
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the watercraft
above trolling speed until they have been
removed.
[ECJ00653]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-ways stop the engine before beaching the wa-
tercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown. NOTICE:
Always turn the watercraft over onto
its port (left) side. When turning the
watercraft on its side, support the bow
so that the handlebars are not bent or
damaged.
[ECJ00661]
STOP
UF2N70E0.book Page 83 Tuesday, October 6, 2009 9:57 AM
