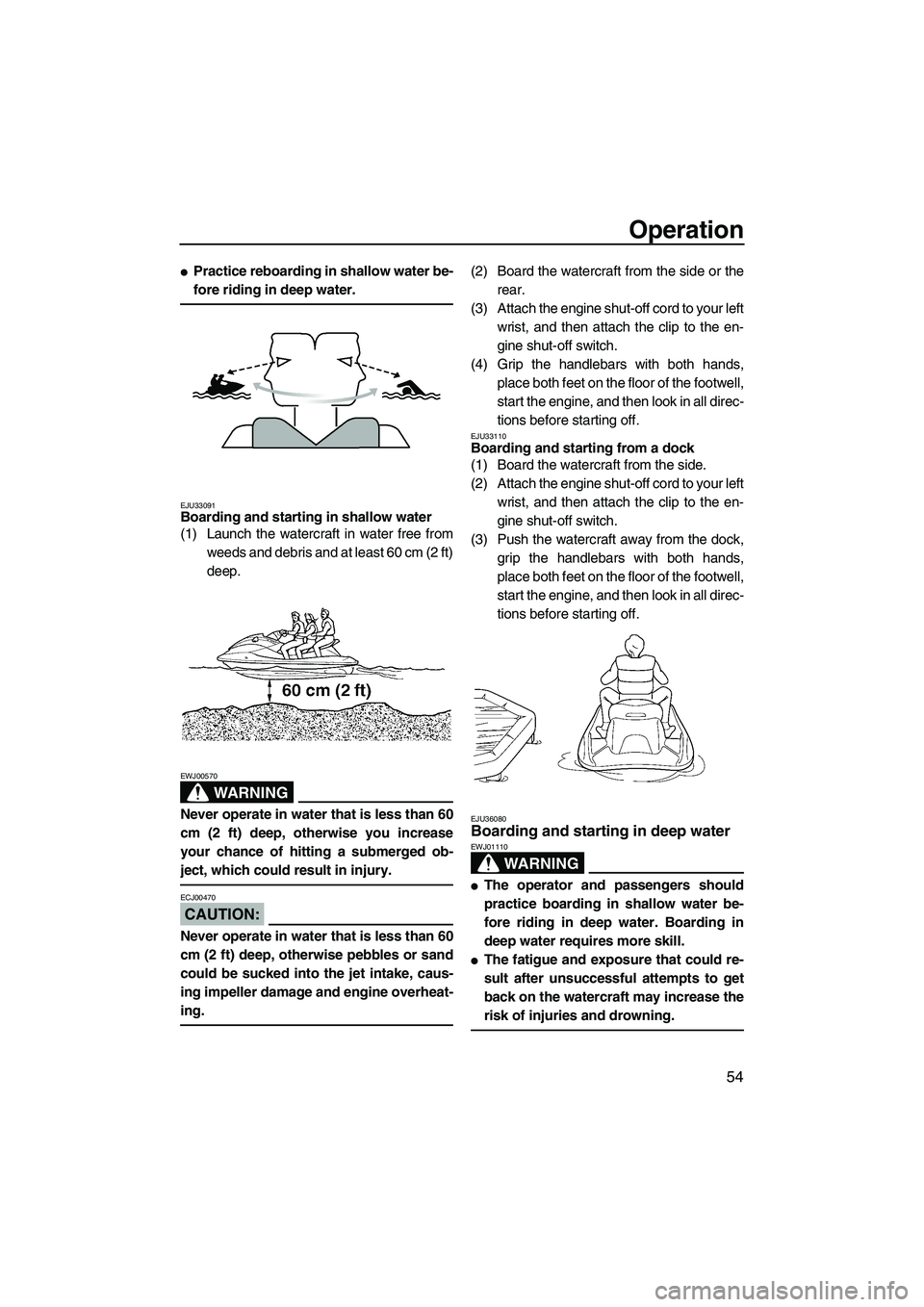

Operation
54

Practice reboarding in shallow water be-
fore riding in deep water.
EJU33091Boarding and starting in shallow water
(1) Launch the watercraft in water free from
weeds and debris and at least 60 cm (2 ft)
deep.
WARNING
EWJ00570
Never operate in water that is less than 60
cm (2 ft) deep, otherwise you increase
your chance of hitting a submerged ob-
ject, which could result in injury.
CAUTION:
ECJ00470
Never operate in water that is less than 60
cm (2 ft) deep, otherwise pebbles or sand
could be sucked into the jet intake, caus-
ing impeller damage and engine overheat-
ing.
(2) Board the watercraft from the side or the
rear.
(3) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
(4) Grip the handlebars with both hands,
place both feet on the floor of the footwell,
start the engine, and then look in all direc-
tions before starting off.
EJU33110Boarding and starting from a dock
(1) Board the watercraft from the side.
(2) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
(3) Push the watercraft away from the dock,
grip the handlebars with both hands,
place both feet on the floor of the footwell,
start the engine, and then look in all direc-
tions before starting off.
EJU36080Boarding and starting in deep water
WARNING
EWJ01110

The operator and passengers should
practice boarding in shallow water be-
fore riding in deep water. Boarding in
deep water requires more skill.

The fatigue and exposure that could re-
sult after unsuccessful attempts to get
back on the watercraft may increase the
risk of injuries and drowning.
UF1K73E0.book Page 54 Wednesday, July 11, 2007 9:15 AM

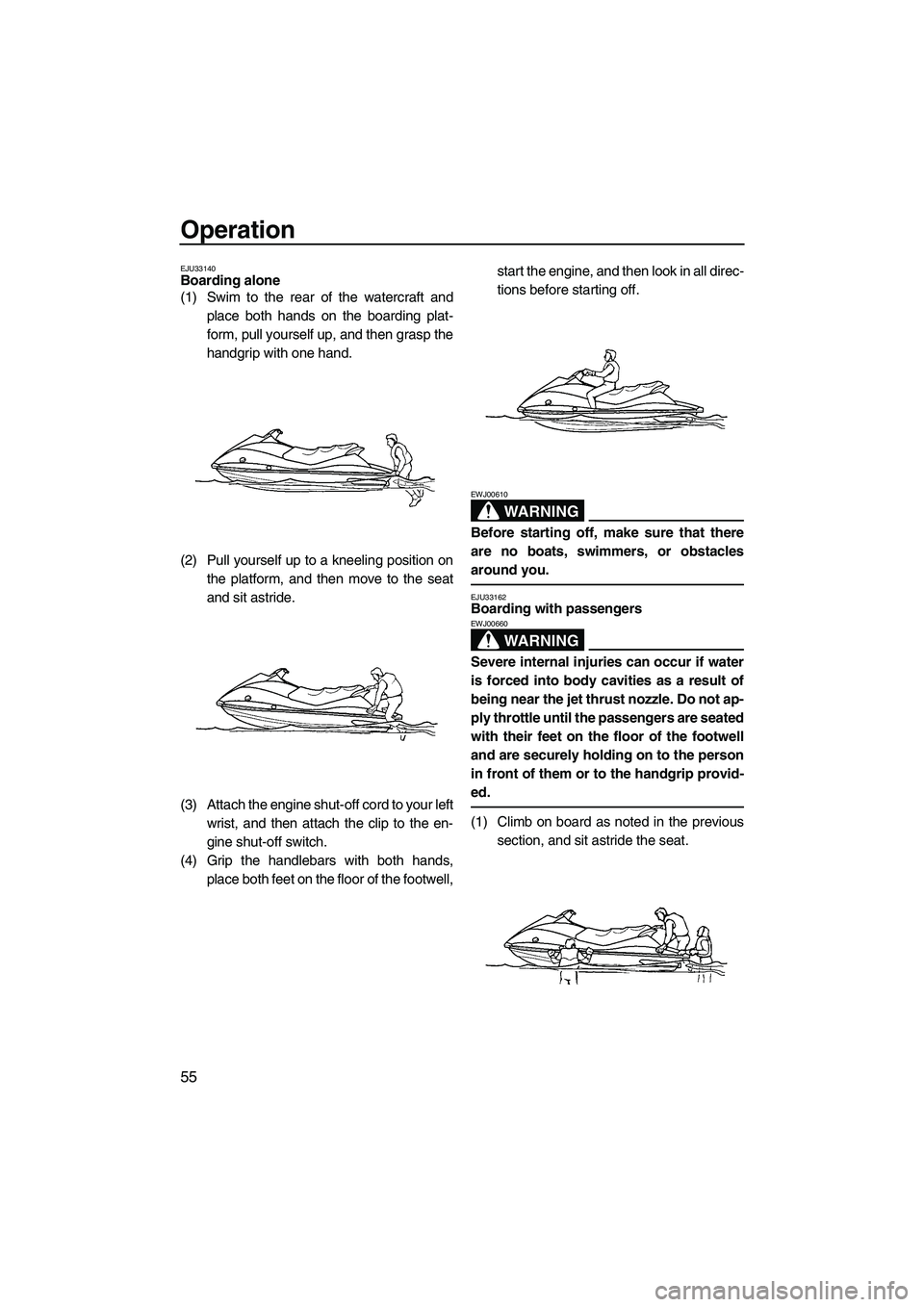

Operation
55
EJU33140Boarding alone
(1) Swim to the rear of the watercraft and
place both hands on the boarding plat-
form, pull yourself up, and then grasp the
handgrip with one hand.
(2) Pull yourself up to a kneeling position on
the platform, and then move to the seat
and sit astride.
(3) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
(4) Grip the handlebars with both hands,
place both feet on the floor of the footwell,start the engine, and then look in all direc-
tions before starting off.
WARNING
EWJ00610
Before starting off, make sure that there
are no boats, swimmers, or obstacles
around you.
EJU33162Boarding with passengers
WARNING
EWJ00660
Severe internal injuries can occur if water
is forced into body cavities as a result of
being near the jet thrust nozzle. Do not ap-
ply throttle until the passengers are seated
with their feet on the floor of the footwell
and are securely holding on to the person
in front of them or to the handgrip provid-
ed.
(1) Climb on board as noted in the previous
section, and sit astride the seat.
UF1K73E0.book Page 55 Wednesday, July 11, 2007 9:15 AM

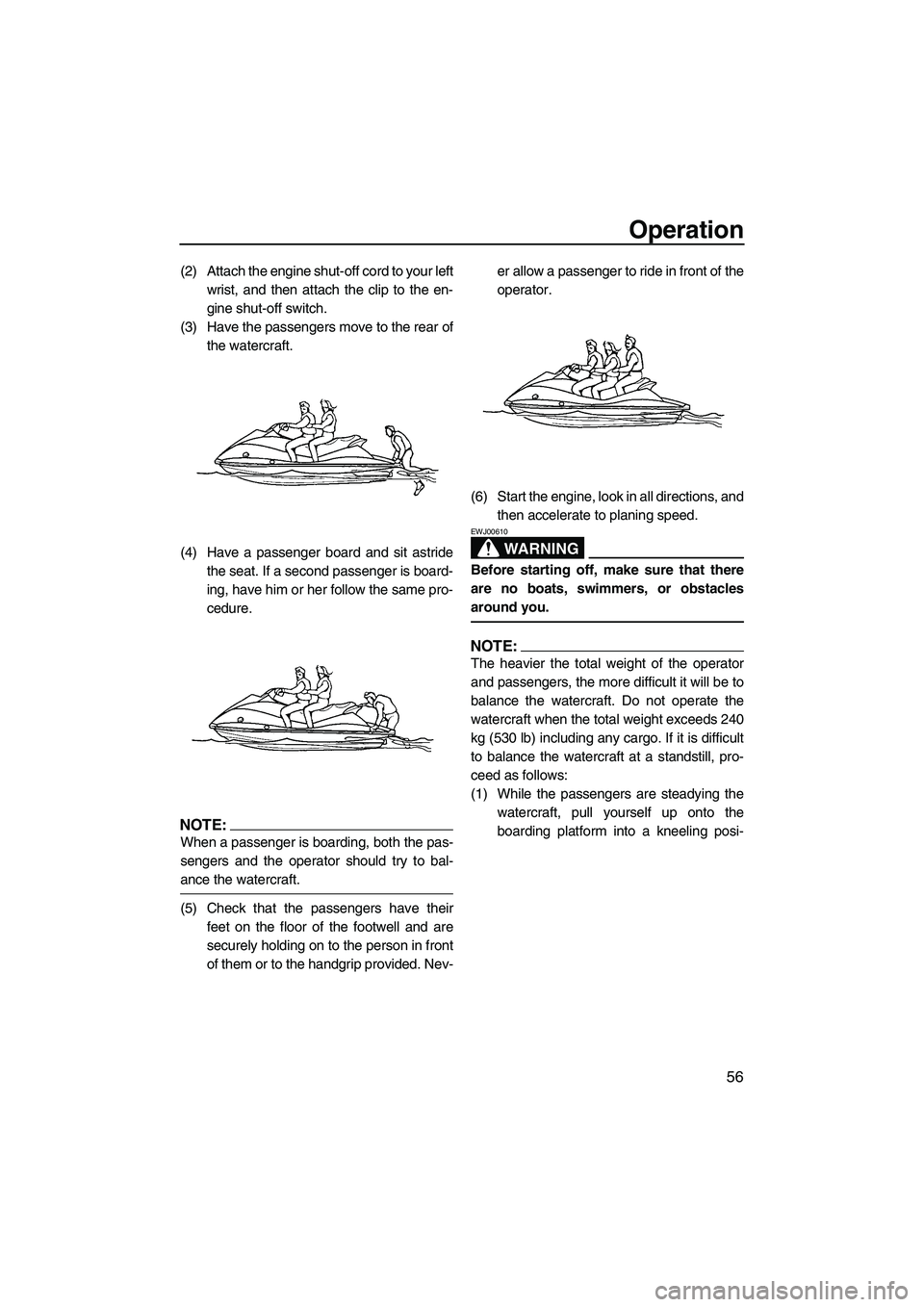

Operation
56
(2) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
(3) Have the passengers move to the rear of
the watercraft.
(4) Have a passenger board and sit astride
the seat. If a second passenger is board-
ing, have him or her follow the same pro-
cedure.
NOTE:
When a passenger is boarding, both the pas-
sengers and the operator should try to bal-
ance the watercraft.
(5) Check that the passengers have their
feet on the floor of the footwell and are
securely holding on to the person in front
of them or to the handgrip provided. Nev-er allow a passenger to ride in front of the
operator.
(6) Start the engine, look in all directions, and
then accelerate to planing speed.
WARNING
EWJ00610
Before starting off, make sure that there
are no boats, swimmers, or obstacles
around you.
NOTE:
The heavier the total weight of the operator
and passengers, the more difficult it will be to
balance the watercraft. Do not operate the
watercraft when the total weight exceeds 240
kg (530 lb) including any cargo. If it is difficult
to balance the watercraft at a standstill, pro-
ceed as follows:
(1) While the passengers are steadying the
watercraft, pull yourself up onto the
boarding platform into a kneeling posi-
UF1K73E0.book Page 56 Wednesday, July 11, 2007 9:15 AM

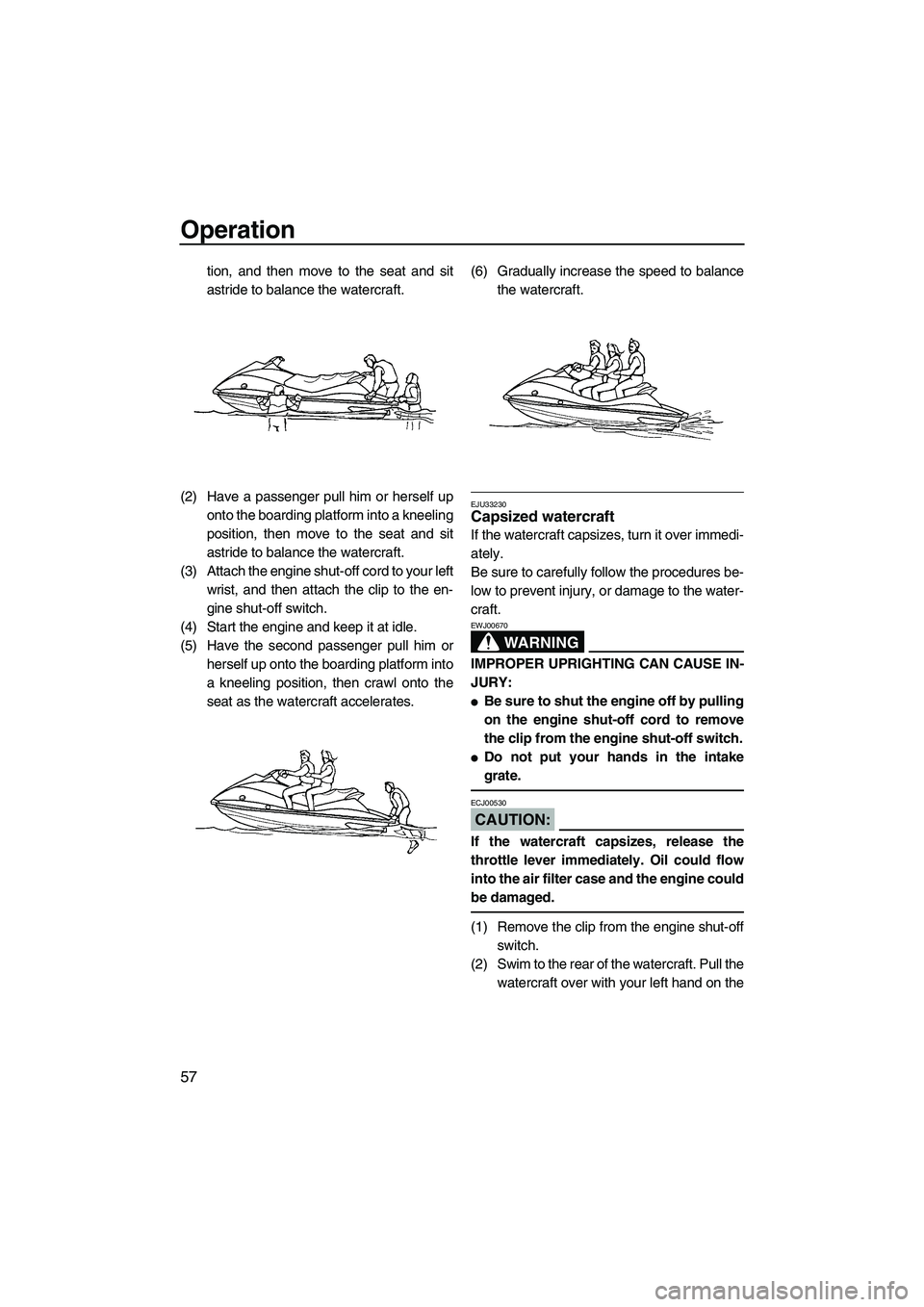

Operation
57
tion, and then move to the seat and sit
astride to balance the watercraft.
(2) Have a passenger pull him or herself up
onto the boarding platform into a kneeling
position, then move to the seat and sit
astride to balance the watercraft.
(3) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
(4) Start the engine and keep it at idle.
(5) Have the second passenger pull him or
herself up onto the boarding platform into
a kneeling position, then crawl onto the
seat as the watercraft accelerates.(6) Gradually increase the speed to balance
the watercraft.
EJU33230Capsized watercraft
If the watercraft capsizes, turn it over immedi-
ately.
Be sure to carefully follow the procedures be-
low to prevent injury, or damage to the water-
craft.
WARNING
EWJ00670
IMPROPER UPRIGHTING CAN CAUSE IN-
JURY:

Be sure to shut the engine off by pulling
on the engine shut-off cord to remove
the clip from the engine shut-off switch.

Do not put your hands in the intake
grate.
CAUTION:
ECJ00530
If the watercraft capsizes, release the
throttle lever immediately. Oil could flow
into the air filter case and the engine could
be damaged.
(1) Remove the clip from the engine shut-off
switch.
(2) Swim to the rear of the watercraft. Pull the
watercraft over with your left hand on the
UF1K73E0.book Page 57 Wednesday, July 11, 2007 9:15 AM

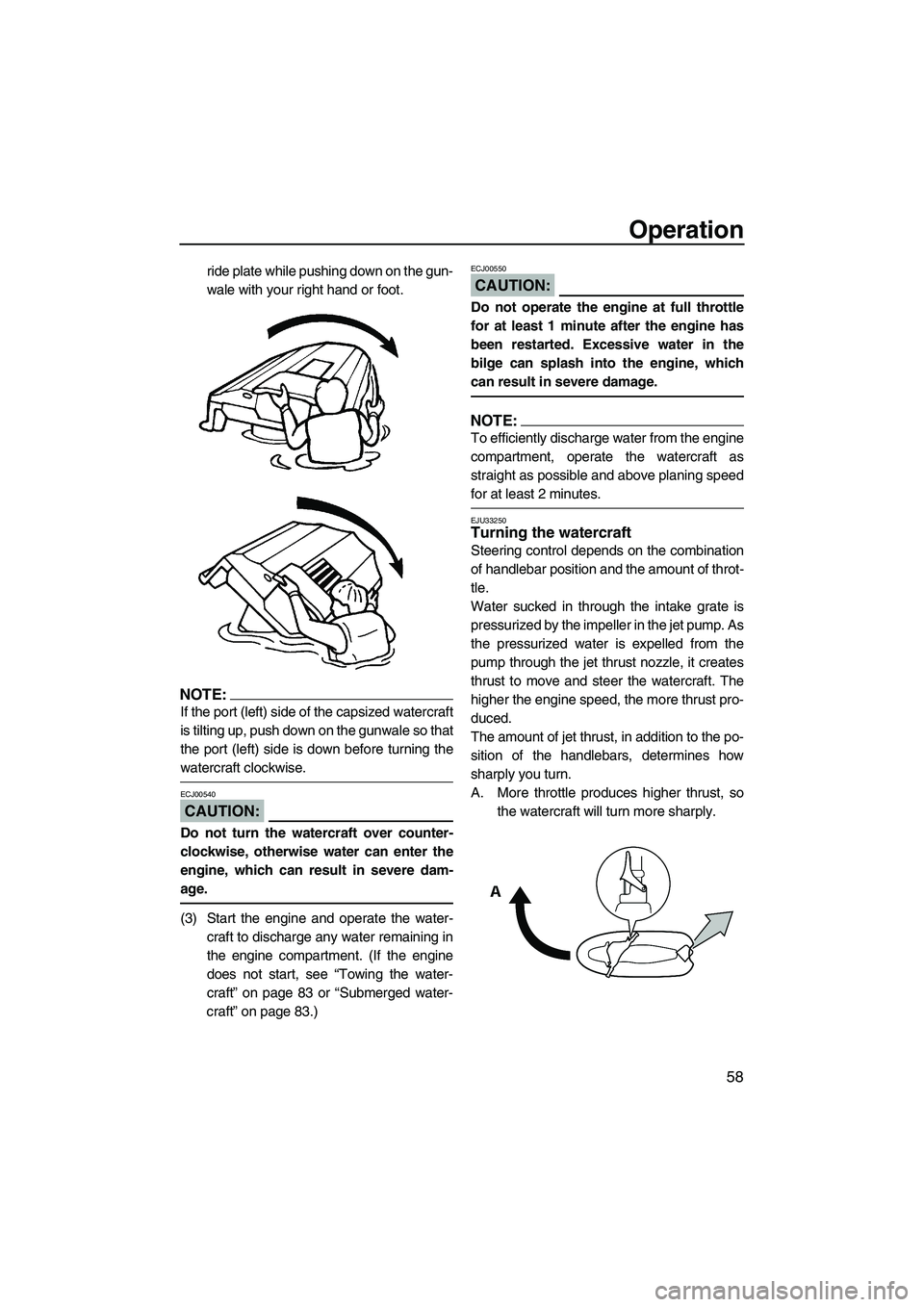

Operation
58
ride plate while pushing down on the gun-
wale with your right hand or foot.
NOTE:
If the port (left) side of the capsized watercraft
is tilting up, push down on the gunwale so that
the port (left) side is down before turning the
watercraft clockwise.
CAUTION:
ECJ00540
Do not turn the watercraft over counter-
clockwise, otherwise water can enter the
engine, which can result in severe dam-
age.
(3) Start the engine and operate the water-
craft to discharge any water remaining in
the engine compartment. (If the engine
does not start, see “Towing the water-
craft” on page 83 or “Submerged water-
craft” on page 83.)
CAUTION:
ECJ00550
Do not operate the engine at full throttle
for at least 1 minute after the engine has
been restarted. Excessive water in the
bilge can splash into the engine, which
can result in severe damage.
NOTE:
To efficiently discharge water from the engine
compartment, operate the watercraft as
straight as possible and above planing speed
for at least 2 minutes.
EJU33250Turning the watercraft
Steering control depends on the combination
of handlebar position and the amount of throt-
tle.
Water sucked in through the intake grate is
pressurized by the impeller in the jet pump. As
the pressurized water is expelled from the
pump through the jet thrust nozzle, it creates
thrust to move and steer the watercraft. The
higher the engine speed, the more thrust pro-
duced.
The amount of jet thrust, in addition to the po-
sition of the handlebars, determines how
sharply you turn.
A. More throttle produces higher thrust, so
the watercraft will turn more sharply.
UF1K73E0.book Page 58 Wednesday, July 11, 2007 9:15 AM

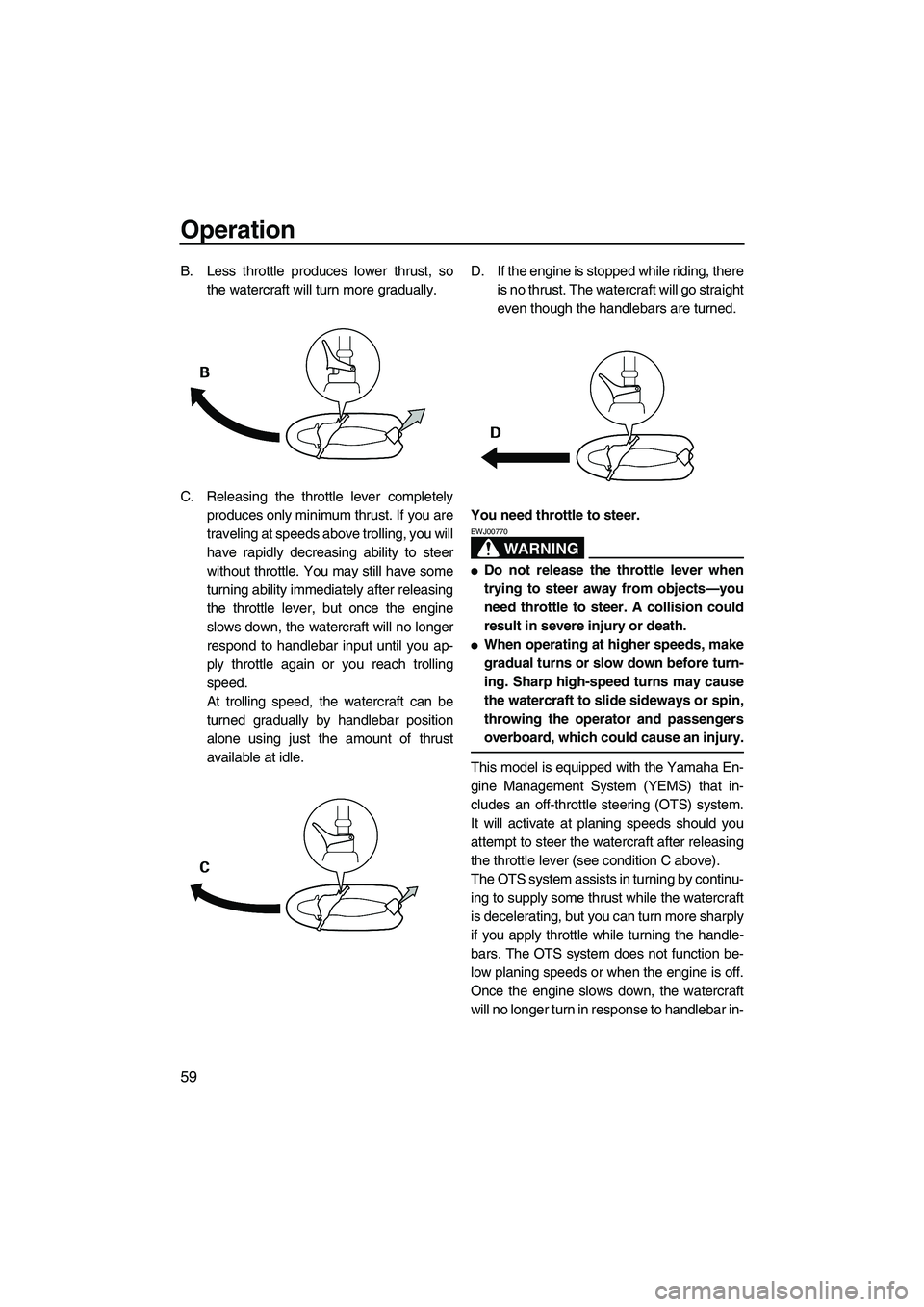

Operation
59
B. Less throttle produces lower thrust, so
the watercraft will turn more gradually.
C. Releasing the throttle lever completely
produces only minimum thrust. If you are
traveling at speeds above trolling, you will
have rapidly decreasing ability to steer
without throttle. You may still have some
turning ability immediately after releasing
the throttle lever, but once the engine
slows down, the watercraft will no longer
respond to handlebar input until you ap-
ply throttle again or you reach trolling
speed.
At trolling speed, the watercraft can be
turned gradually by handlebar position
alone using just the amount of thrust
available at idle.D. If the engine is stopped while riding, there
is no thrust. The watercraft will go straight
even though the handlebars are turned.
You need throttle to steer.
WARNING
EWJ00770

Do not release the throttle lever when
trying to steer away from objects—you
need throttle to steer. A collision could
result in severe injury or death.

When operating at higher speeds, make
gradual turns or slow down before turn-
ing. Sharp high-speed turns may cause
the watercraft to slide sideways or spin,
throwing the operator and passengers
overboard, which could cause an injury.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever (see condition C above).
The OTS system assists in turning by continu-
ing to supply some thrust while the watercraft
is decelerating, but you can turn more sharply
if you apply throttle while turning the handle-
bars. The OTS system does not function be-
low planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar in-
UF1K73E0.book Page 59 Wednesday, July 11, 2007 9:15 AM

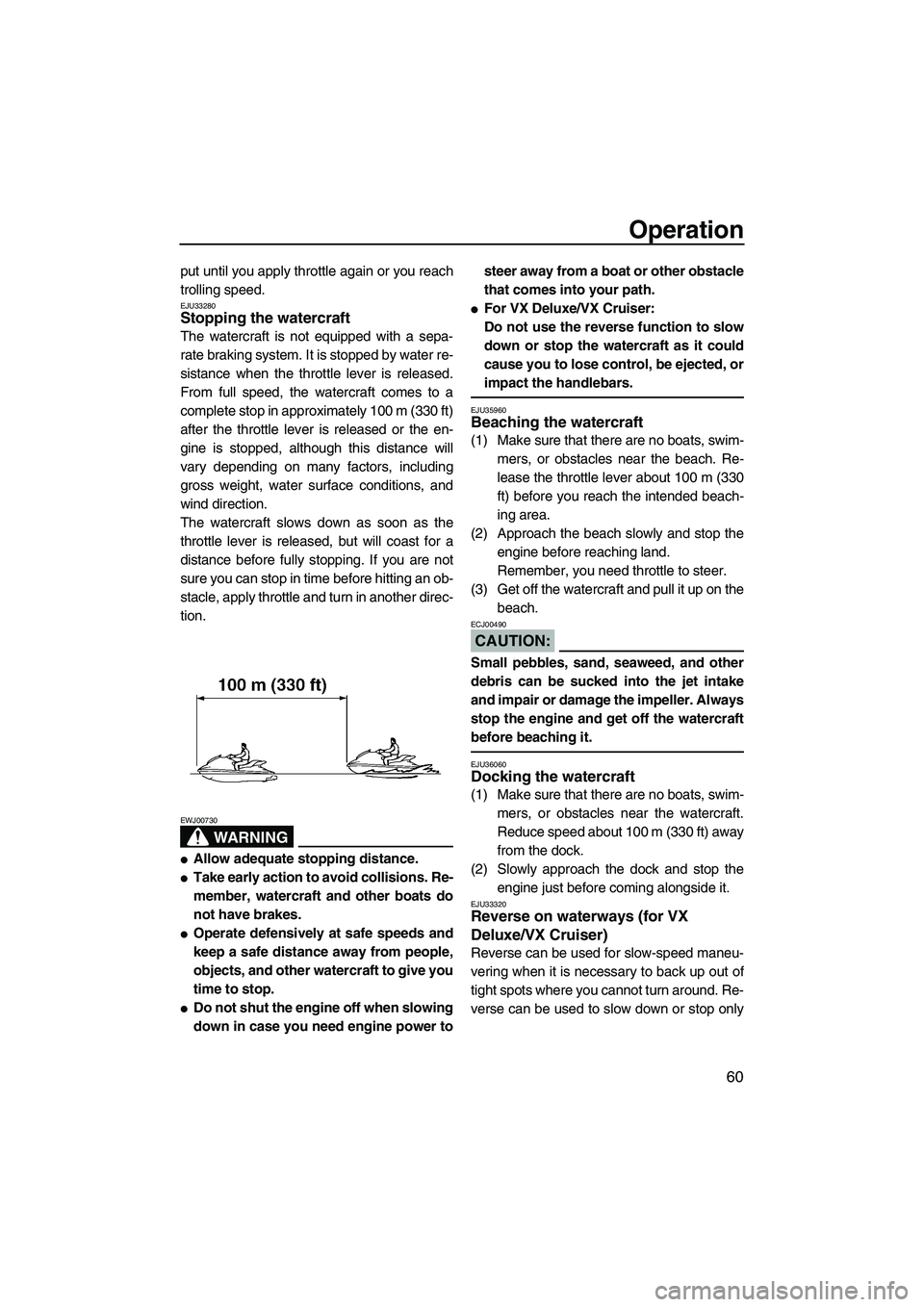

Operation
60
put until you apply throttle again or you reach
trolling speed.
EJU33280Stopping the watercraft
The watercraft is not equipped with a sepa-
rate braking system. It is stopped by water re-
sistance when the throttle lever is released.
From full speed, the watercraft comes to a
complete stop in approximately 100 m (330 ft)
after the throttle lever is released or the en-
gine is stopped, although this distance will
vary depending on many factors, including
gross weight, water surface conditions, and
wind direction.
The watercraft slows down as soon as the
throttle lever is released, but will coast for a
distance before fully stopping. If you are not
sure you can stop in time before hitting an ob-
stacle, apply throttle and turn in another direc-
tion.
WARNING
EWJ00730

Allow adequate stopping distance.

Take early action to avoid collisions. Re-
member, watercraft and other boats do
not have brakes.

Operate defensively at safe speeds and
keep a safe distance away from people,
objects, and other watercraft to give you
time to stop.

Do not shut the engine off when slowing
down in case you need engine power tosteer away from a boat or other obstacle
that comes into your path.

For VX Deluxe/VX Cruiser:
Do not use the reverse function to slow
down or stop the watercraft as it could
cause you to lose control, be ejected, or
impact the handlebars.
EJU35960Beaching the watercraft
(1) Make sure that there are no boats, swim-
mers, or obstacles near the beach. Re-
lease the throttle lever about 100 m (330
ft) before you reach the intended beach-
ing area.
(2) Approach the beach slowly and stop the
engine before reaching land.
Remember, you need throttle to steer.
(3) Get off the watercraft and pull it up on the
beach.
CAUTION:
ECJ00490
Small pebbles, sand, seaweed, and other
debris can be sucked into the jet intake
and impair or damage the impeller. Always
stop the engine and get off the watercraft
before beaching it.
EJU36060Docking the watercraft
(1) Make sure that there are no boats, swim-
mers, or obstacles near the watercraft.
Reduce speed about 100 m (330 ft) away
from the dock.
(2) Slowly approach the dock and stop the
engine just before coming alongside it.
EJU33320Reverse on waterways (for VX
Deluxe/VX Cruiser)
Reverse can be used for slow-speed maneu-
vering when it is necessary to back up out of
tight spots where you cannot turn around. Re-
verse can be used to slow down or stop only
UF1K73E0.book Page 60 Wednesday, July 11, 2007 9:15 AM

Operation
61
during slow-speed maneuvering, such as
when docking.
Once the engine is idling, shift into reverse
and gradually increase engine speed. Make
sure that there are no obstacles or people be-
hind you before shifting into reverse.
EJU33350Rough water operation
The force of landing after jumping can cause
a strong impact on both the watercraft and the
operator and passengers. It is possible for the
operator to hit his or her chest or jaw on the
watercraft or handlebars and be injured. The
passengers could also impact the watercraft
and be injured.
Do not operate the watercraft with your chin
right above the handlebars. In addition, the
operator and passengers should keep their
feet on the floor of the footwell.
Operating in rough water or jumping waves
can also crack the watercraft hull and deck,
and damage internal parts. Avoid operating in
rough water or bad weather conditions.
EJU33381
Post-operation care
To keep your watercraft in top shape, always
take it out of the water after using it and per-
form the following procedures. Leaving the
watercraft in the water for extended periods
will accelerate the rate of normal deterioration
of the jet unit components and hull finish. Ma-
rine organisms and corrosion are some of the
conditions that can adversely affect the life of
many watercraft components.
(1) Remove the watercraft from the water.
(2) Wash down the hull, handlebars, and jet
unit with fresh water.
(3) Remove the seat and check the engine
compartment for water. To drain excess
water, remove the stern drain plugs, and
then raise the bow of the watercraft
enough to allow the water in the bilge to
drain out.
NOTE:
This watercraft is equipped with an automatic
bilge draining system that removes water
from the engine compartment while you are
underway. However, some residual water will
remain.
(4) Place the watercraft in a horizontal posi-
tion.
(5) Flush the cooling system to prevent it
from clogging with salt, sand, or dirt. (See
page 63 for flushing procedures.)
UF1K73E0.book Page 61 Wednesday, July 11, 2007 9:15 AM

Operation
62
(6) Drain residual water from the exhaust
system by alternately squeezing and re-
leasing the throttle lever for 10 to 15 sec-
onds while the engine is running.
CAUTION:
ECJ00561
Do not run the engine for more than 15
seconds without supplying water, other-
wise the engine could overheat.
(7) If the watercraft will be stored for a week
or more, lubricate internal engine compo-
nents to help prevent corrosion. (See
page 64 for lubrication procedures.)
(8) Rinse the engine and engine compart-
ment with a small amount of water.
CAUTION:
ECJ00570
Do not use high-pressure water when rins-
ing the engine or engine compartment as
severe engine damage could result.
(9) Wipe the engine and engine compart-
ment dry with a clean cloth (repeat step 3,
if necessary).
(10) Wipe the hull, handlebars, and jet unit dry
with a clean cloth.
(11) Spray a rust inhibitor on metallic parts to
minimize corrosion.
(12) Allow the engine compartment to air dry
completely before installing the seat.
EJU33451
Transporting
When transporting the watercraft on a trailer,
secure the tie downs to the trailer through the
bow eye and stern eyes.
CAUTION:
ECJ00621

Do not attach ropes or tie downs to any
part of the watercraft other than the bow
eye and stern eyes to secure the water-
craft to the trailer. Otherwise, the water-
craft may be damaged.

Do not route ropes or tie downs over the
seat, as they may leave permanent
marks on the seat’s surface. Also, wrap
the ropes or tie downs with towels or
rags where they touch the body of the
watercraft to avoid scratches or dam-
age.

For VX Deluxe/VX Cruiser:
Before putting the watercraft on the trail-
er or transporting it, be sure to put the
shift lever in the forward position, other-
wise the reverse gate may hit an obsta-
cle, which may cause damage.
UF1K73E0.book Page 62 Wednesday, July 11, 2007 9:15 AM

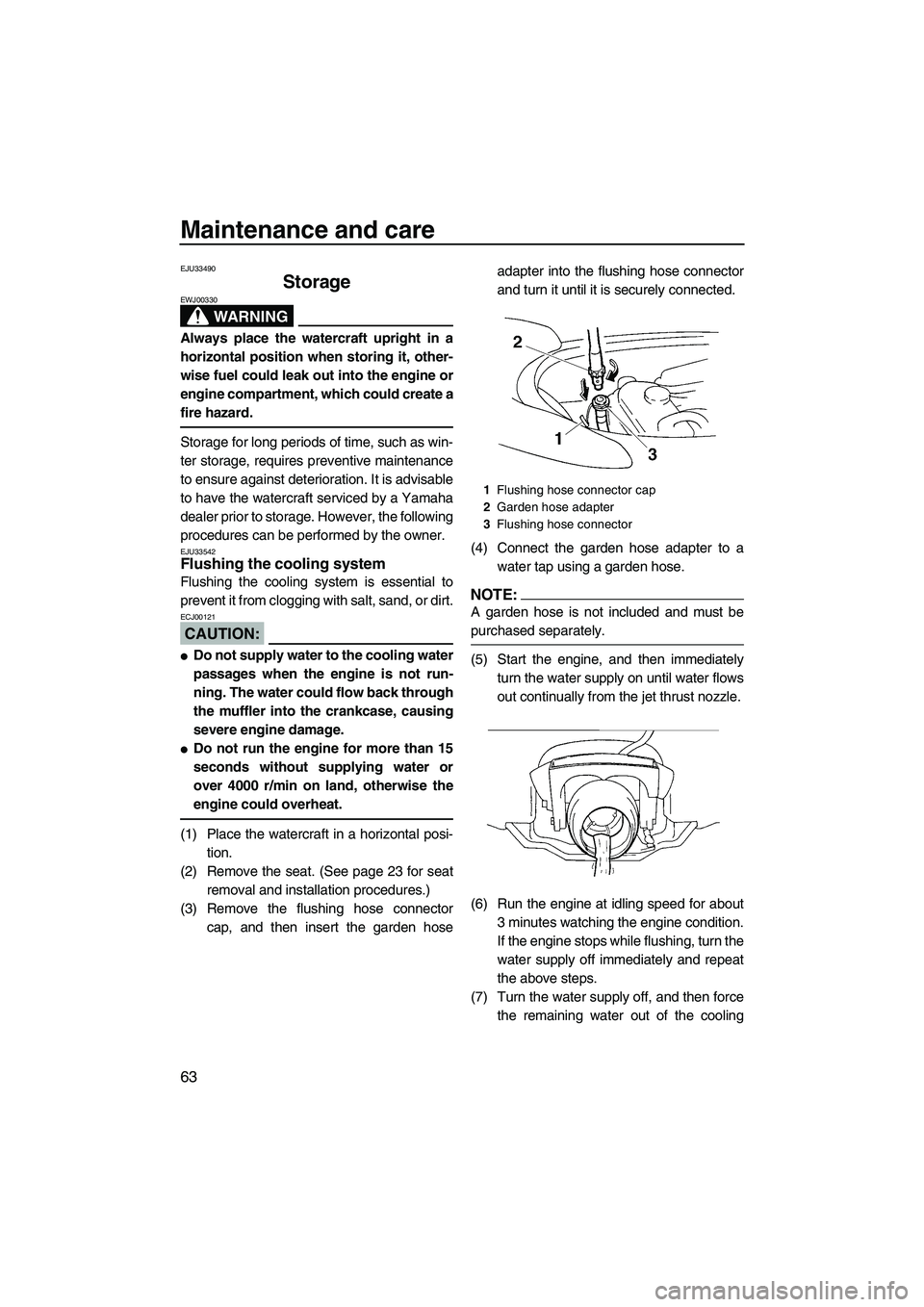

Maintenance and care
63
EJU33490
Storage
WARNING
EWJ00330
Always place the watercraft upright in a
horizontal position when storing it, other-
wise fuel could leak out into the engine or
engine compartment, which could create a
fire hazard.
Storage for long periods of time, such as win-
ter storage, requires preventive maintenance
to ensure against deterioration. It is advisable
to have the watercraft serviced by a Yamaha
dealer prior to storage. However, the following
procedures can be performed by the owner.
EJU33542Flushing the cooling system
Flushing the cooling system is essential to
prevent it from clogging with salt, sand, or dirt.
CAUTION:
ECJ00121

Do not supply water to the cooling water
passages when the engine is not run-
ning. The water could flow back through
the muffler into the crankcase, causing
severe engine damage.

Do not run the engine for more than 15
seconds without supplying water or
over 4000 r/min on land, otherwise the
engine could overheat.
(1) Place the watercraft in a horizontal posi-
tion.
(2) Remove the seat. (See page 23 for seat
removal and installation procedures.)
(3) Remove the flushing hose connector
cap, and then insert the garden hoseadapter into the flushing hose connector
and turn it until it is securely connected.
(4) Connect the garden hose adapter to a
water tap using a garden hose.
NOTE:
A garden hose is not included and must be
purchased separately.
(5) Start the engine, and then immediately
turn the water supply on until water flows
out continually from the jet thrust nozzle.
(6) Run the engine at idling speed for about
3 minutes watching the engine condition.
If the engine stops while flushing, turn the
water supply off immediately and repeat
the above steps.
(7) Turn the water supply off, and then force
the remaining water out of the cooling
1Flushing hose connector cap
2Garden hose adapter
3Flushing hose connector
UF1K73E0.book Page 63 Wednesday, July 11, 2007 9:15 AM
