Page 71 of 94
Maintenance and care
64
water passages by alternately squeezing
and releasing the throttle lever for 10 to
15 seconds.
(8) Stop the engine.
(9) Remove the garden hose adapter and in-
stall the flushing hose connector cap.
EJU33622Lubrication
WARNING
EWJ00260
Do not spray flammable rust inhibitor
products on engine surfaces while the en-
gine is hot. The sprayed substance or pro-
pellants could catch fire.
(1) Remove the seat. (See page 23 for seat
removal and installation procedures.)
(2) Loosen the clamp screw and disconnect
the air intake duct.(3) Spray a rust inhibitor into the intake open-
ing for 3 seconds.
(4) Connect the air intake duct and tighten
the clamp screw.
(5) Start the engine in a well-ventilated area
and let it run at idle for 15 seconds.
CAUTION:
ECJ00561
Do not run the engine for more than 15
seconds without supplying water, other-
wise the engine could overheat.
(6) Lubricate all cables such as the throttle
and steering cables.
NOTE:
Use a suitable marine grease applicator to
pressure-lubricate the cables and purge out
any moisture between the inner and outer ca-
bles.
(7) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
73.
EJU33670Fuel system
WARNING
EWJ00280
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!
1Clamp screw
2Air intake duct
1Intake opening
UF1K73E0.book Page 64 Wednesday, July 11, 2007 9:15 AM
Page 72 of 94
Maintenance and care
65
Do not smoke when refueling, and keep
away from sparks, flames, and other
sources of ignition.
Stop the engine before refueling.
Refuel in a well-ventilated area with the
watercraft in a horizontal position.
Do not stand or sit on the watercraft
while refueling in case of fire.
Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.
Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level reaches approxi-
mately 50 mm (2 in) from the top of the
fuel tank. Fuel expands as it warms up
and could overflow if the fuel tank has
been overfilled. If temporarily leaving
the watercraft with a full fuel tank, do not
leave it in direct sunlight. Leave it in a
well-ventilated area with the watercraft
in a horizontal position.
Tighten the fuel tank filler cap securely
after refueling.
If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.
If any gasoline spills on your skin or
clothing, immediately wash the affected
area with soap and water and change
your clothes.
Top off the fuel tank with fresh gasoline and
add fuel stabilizer and conditioner to the fuel
tank according to the manufacturer’s instruc-
tions.
EJU33680Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
(2) Clean the battery casing using fresh wa-
ter.
(3) If the battery terminals are dirty or corrod-
ed, clean them with a wire brush.
(4) Fully charge the battery.
(5) Apply Yamaha Marine Grease or
Yamaha Grease A to the battery termi-
nals, and then store the battery in a cool,
dry place.
(6) Check the battery at least once every 2
months and fully charge it if necessary.
CAUTION:
ECJ00100
Always keep the battery charged. Storing
a discharged battery can cause permanent
battery damage.
To check the condition of the battery, check
the specific gravity of the electrolyte or mea-
sure the voltage at both battery terminals.
Charge the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and charge the bat-
tery. If you maintain the battery yourself, be
sure to read and follow the instructions provid-
ed with the battery tester and charger you
use.
EJU33730Cleaning the watercraft
Clean the watercraft before storing it for a long
period.
(1) Wash down the hull, handlebars, and jet
unit with fresh water. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
UF1K73E0.book Page 65 Wednesday, July 11, 2007 9:15 AM
Page 73 of 94
Maintenance and care
66

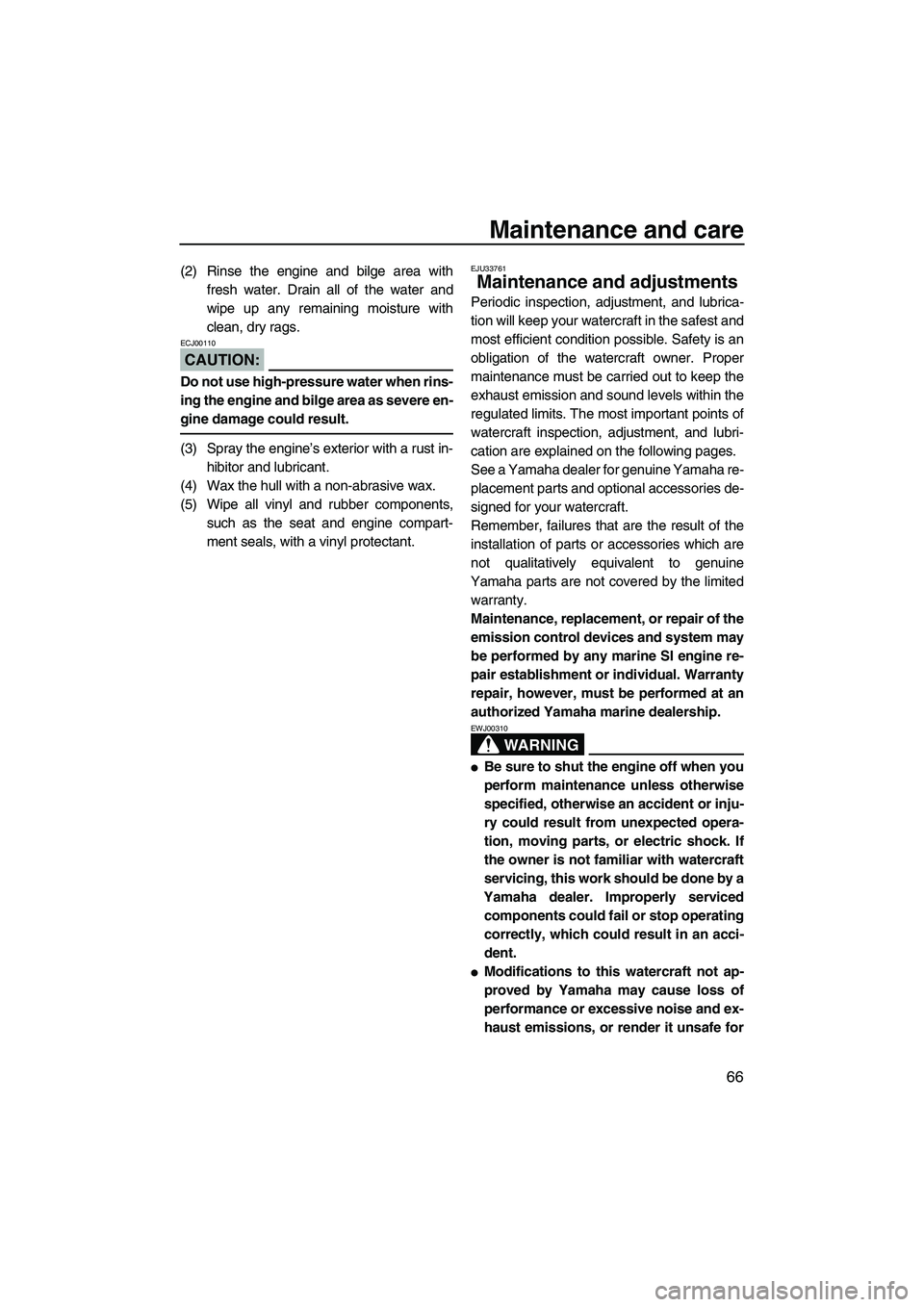

(2) Rinse the engine and bilge area with
fresh water. Drain all of the water and
wipe up any remaining moisture with
clean, dry rags.
CAUTION:
ECJ00110
Do not use high-pressure water when rins-
ing the engine and bilge area as severe en-
gine damage could result.
(3) Spray the engine’s exterior with a rust in-
hibitor and lubricant.
(4) Wax the hull with a non-abrasive wax.
(5) Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant.
EJU33761
Maintenance and adjustments
Periodic inspection, adjustment, and lubrica-
tion will keep your watercraft in the safest and
most efficient condition possible. Safety is an
obligation of the watercraft owner. Proper
maintenance must be carried out to keep the
exhaust emission and sound levels within the
regulated limits. The most important points of
watercraft inspection, adjustment, and lubri-
cation are explained on the following pages.
See a Yamaha dealer for genuine Yamaha re-
placement parts and optional accessories de-
signed for your watercraft.
Remember, failures that are the result of the
installation of parts or accessories which are
not qualitatively equivalent to genuine
Yamaha parts are not covered by the limited
warranty.
Maintenance, replacement, or repair of the
emission control devices and system may
be performed by any marine SI engine re-
pair establishment or individual. Warranty
repair, however, must be performed at an
authorized Yamaha marine dealership.
WARNING
EWJ00310
Be sure to shut the engine off when you
perform maintenance unless otherwise
specified, otherwise an accident or inju-
ry could result from unexpected opera-
tion, moving parts, or electric shock. If
the owner is not familiar with watercraft
servicing, this work should be done by a
Yamaha dealer. Improperly serviced
components could fail or stop operating
correctly, which could result in an acci-
dent.
Modifications to this watercraft not ap-
proved by Yamaha may cause loss of
performance or excessive noise and ex-
haust emissions, or render it unsafe for
UF1K73E0.book Page 66 Wednesday, July 11, 2007 9:15 AM
Page 74 of 94
Maintenance and care
67
use. Consult a Yamaha dealer before at-
tempting any modifications.

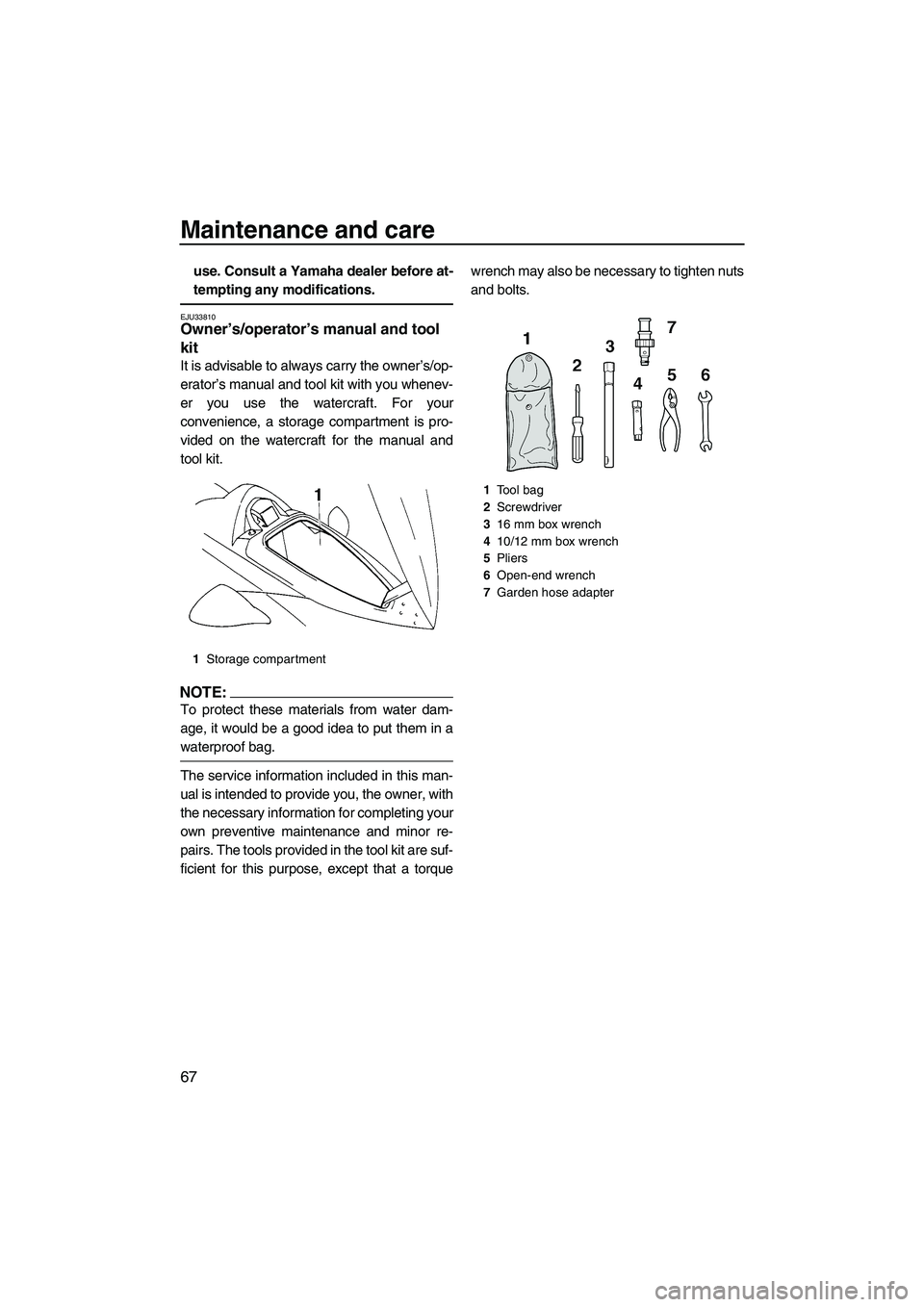

EJU33810Owner’s/operator’s manual and tool
kit
It is advisable to always carry the owner’s/op-
erator’s manual and tool kit with you whenev-
er you use the watercraft. For your
convenience, a storage compartment is pro-
vided on the watercraft for the manual and
tool kit.
NOTE:
To protect these materials from water dam-
age, it would be a good idea to put them in a
waterproof bag.
The service information included in this man-
ual is intended to provide you, the owner, with
the necessary information for completing your
own preventive maintenance and minor re-
pairs. The tools provided in the tool kit are suf-
ficient for this purpose, except that a torquewrench may also be necessary to tighten nuts
and bolts.
1Storage compartment
1Tool bag
2Screwdriver
316 mm box wrench
410/12 mm box wrench
5Pliers
6Open-end wrench
7Garden hose adapter
UF1K73E0.book Page 67 Wednesday, July 11, 2007 9:15 AM
Page 75 of 94
Maintenance and care
68

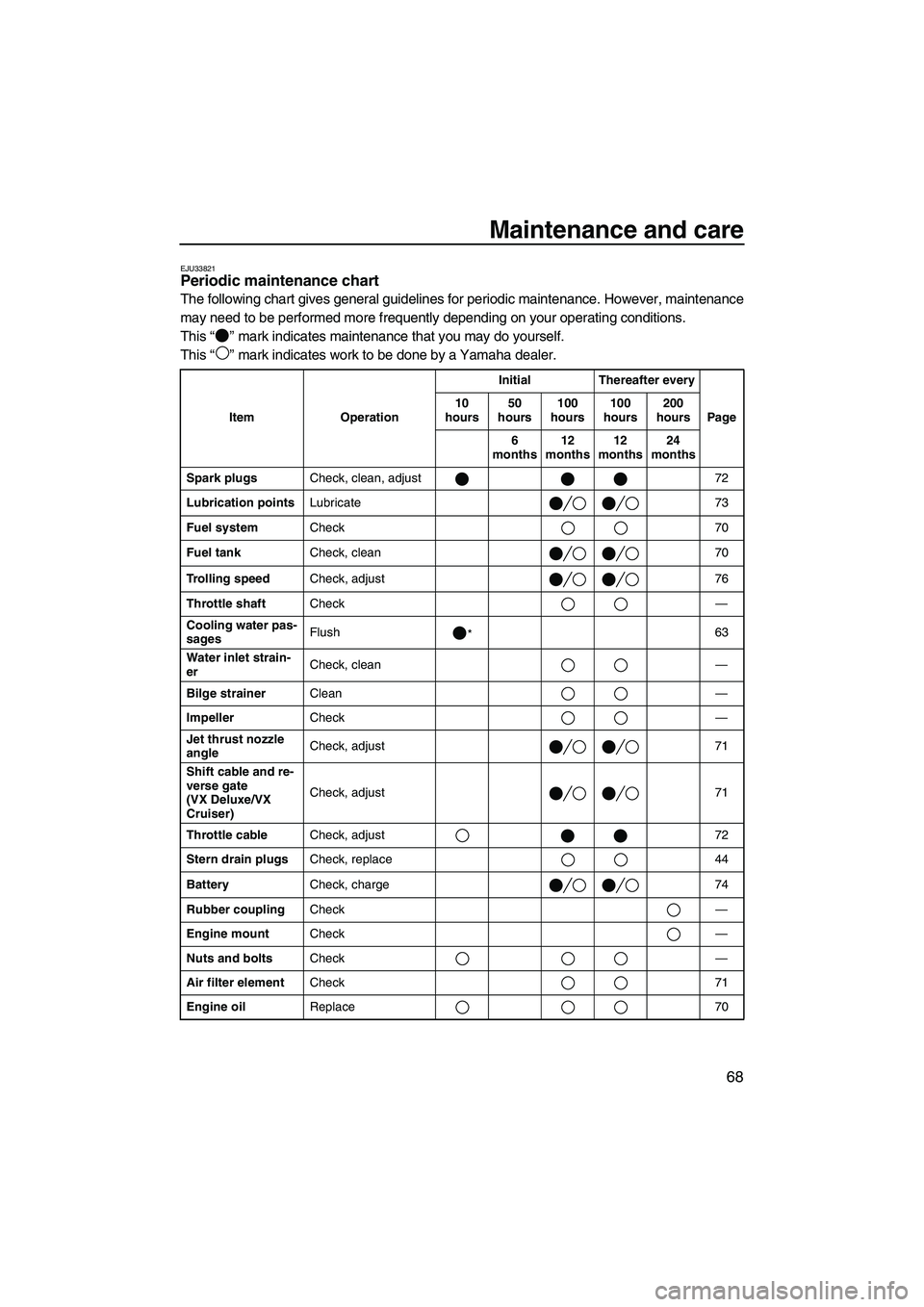

EJU33821Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This“” mark indicates maintenance that you may do yourself.
This“” mark indicates work to be done by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 72
Lubrication pointsLubricate 73
Fuel systemCheck 70
Fuel tankCheck, clean 70
Trolling speedCheck, adjust 76
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*63
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 71
Shift cable and re-
verse gate
(VX Deluxe/VX
Cruiser)Check, adjust 71
Throttle cableCheck, adjust 72
Stern drain plugsCheck, replace 44
BatteryCheck, charge 74
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
Air filter elementCheck 71
Engine oilReplace 70
UF1K73E0.book Page 68 Wednesday, July 11, 2007 9:15 AM
Page 76 of 94
Maintenance and care
69
* This operation should be performed after every use.
Oil filterReplace 70
Valve clearanceCheck, adjust— Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
UF1K73E0.book Page 69 Wednesday, July 11, 2007 9:15 AM
Page 77 of 94
Maintenance and care
70

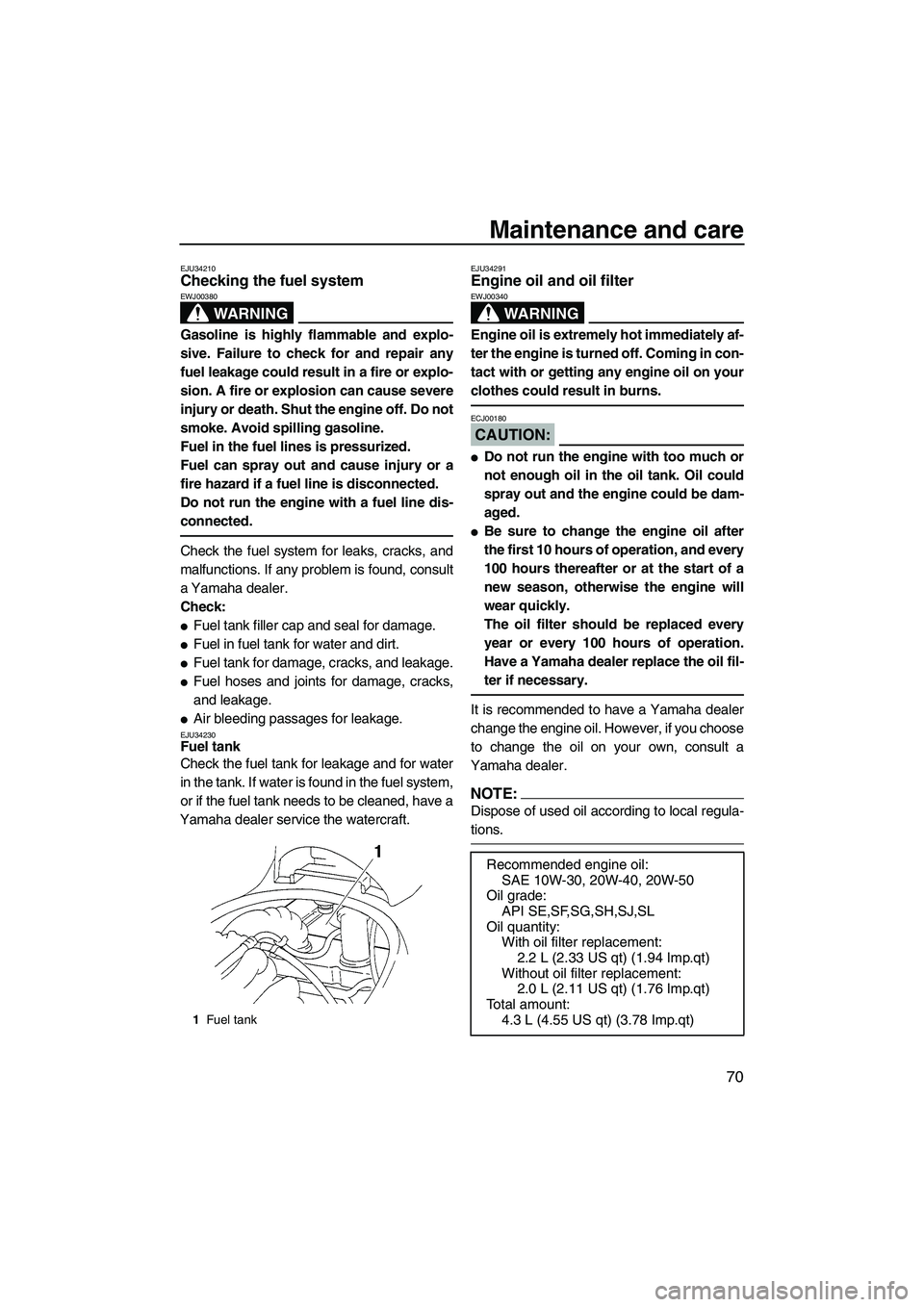

EJU34210Checking the fuel system
WARNING
EWJ00380
Gasoline is highly flammable and explo-
sive. Failure to check for and repair any
fuel leakage could result in a fire or explo-
sion. A fire or explosion can cause severe
injury or death. Shut the engine off. Do not
smoke. Avoid spilling gasoline.
Fuel in the fuel lines is pressurized.
Fuel can spray out and cause injury or a
fire hazard if a fuel line is disconnected.
Do not run the engine with a fuel line dis-
connected.
Check the fuel system for leaks, cracks, and
malfunctions. If any problem is found, consult
a Yamaha dealer.
Check:
Fuel tank filler cap and seal for damage.
Fuel in fuel tank for water and dirt.
Fuel tank for damage, cracks, and leakage.
Fuel hoses and joints for damage, cracks,
and leakage.
Air bleeding passages for leakage.EJU34230Fuel tank
Check the fuel tank for leakage and for water
in the tank. If water is found in the fuel system,
or if the fuel tank needs to be cleaned, have a
Yamaha dealer service the watercraft.
EJU34291Engine oil and oil filter
WARNING
EWJ00340
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
CAUTION:
ECJ00180
Do not run the engine with too much or
not enough oil in the oil tank. Oil could
spray out and the engine could be dam-
aged.
Be sure to change the engine oil after
the first 10 hours of operation, and every
100 hours thereafter or at the start of a
new season, otherwise the engine will
wear quickly.
The oil filter should be replaced every
year or every 100 hours of operation.
Have a Yamaha dealer replace the oil fil-
ter if necessary.
It is recommended to have a Yamaha dealer
change the engine oil. However, if you choose
to change the oil on your own, consult a
Yamaha dealer.
NOTE:
Dispose of used oil according to local regula-
tions.
1Fuel tank
Recommended engine oil:
SAE 10W-30, 20W-40, 20W-50
Oil grade:
API SE,SF,SG,SH,SJ,SL
Oil quantity:
With oil filter replacement:
2.2 L (2.33 US qt) (1.94 Imp.qt)
Without oil filter replacement:
2.0 L (2.11 US qt) (1.76 Imp.qt)
Total amount:
4.3 L (4.55 US qt) (3.78 Imp.qt)
UF1K73E0.book Page 70 Wednesday, July 11, 2007 9:15 AM
Page 78 of 94

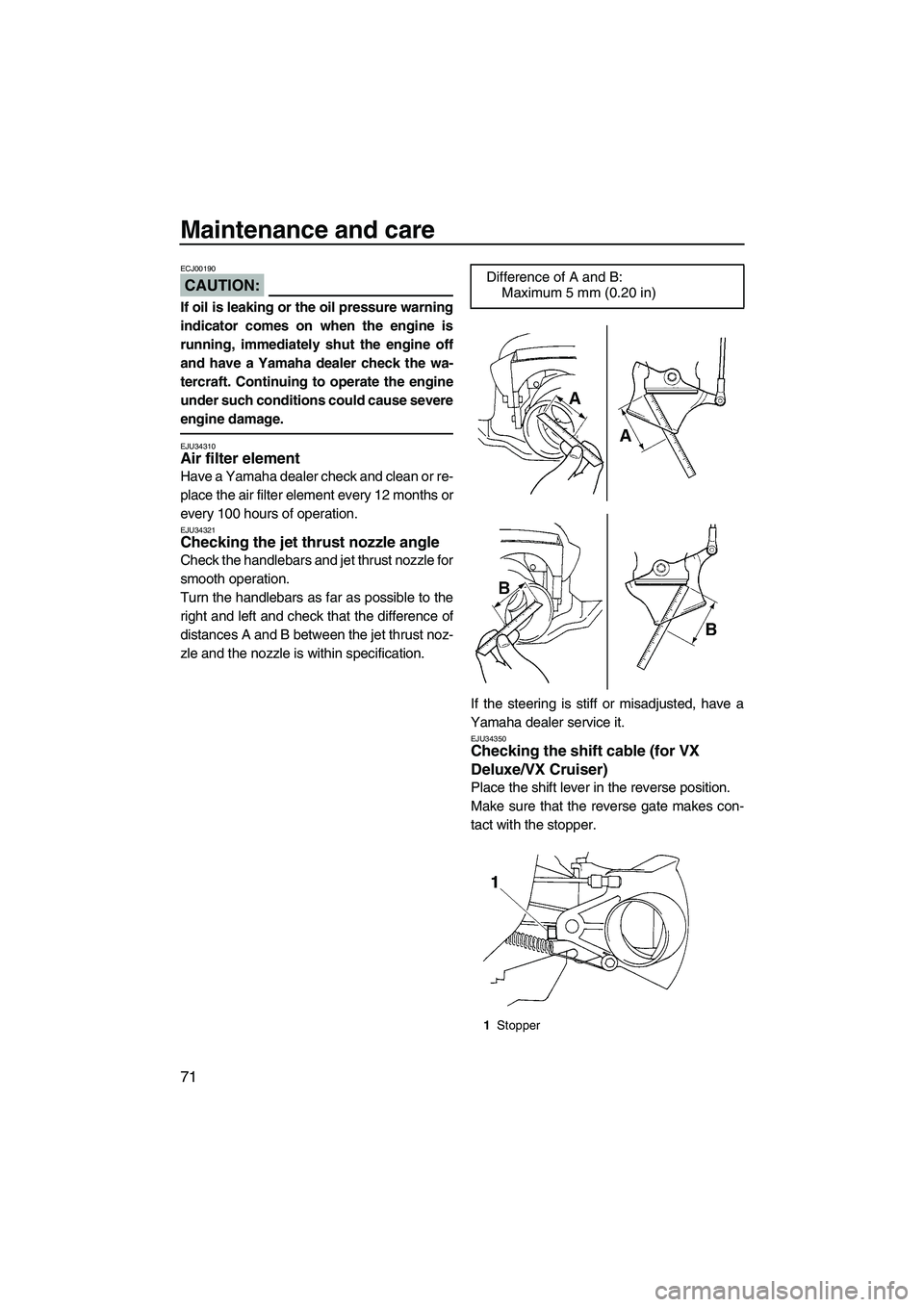

Maintenance and care
71
CAUTION:
ECJ00190
If oil is leaking or the oil pressure warning
indicator comes on when the engine is
running, immediately shut the engine off
and have a Yamaha dealer check the wa-
tercraft. Continuing to operate the engine
under such conditions could cause severe
engine damage.
EJU34310Air filter element
Have a Yamaha dealer check and clean or re-
place the air filter element every 12 months or
every 100 hours of operation.
EJU34321Checking the jet thrust nozzle angle
Check the handlebars and jet thrust nozzle for
smooth operation.
Turn the handlebars as far as possible to the
right and left and check that the difference of
distances A and B between the jet thrust noz-
zle and the nozzle is within specification.
If the steering is stiff or misadjusted, have a
Yamaha dealer service it.
EJU34350Checking the shift cable (for VX
Deluxe/VX Cruiser)
Place the shift lever in the reverse position.
Make sure that the reverse gate makes con-
tact with the stopper.Difference of A and B:
Maximum 5 mm (0.20 in)
1Stopper
UF1K73E0.book Page 71 Wednesday, July 11, 2007 9:15 AM
Page 79 of 94

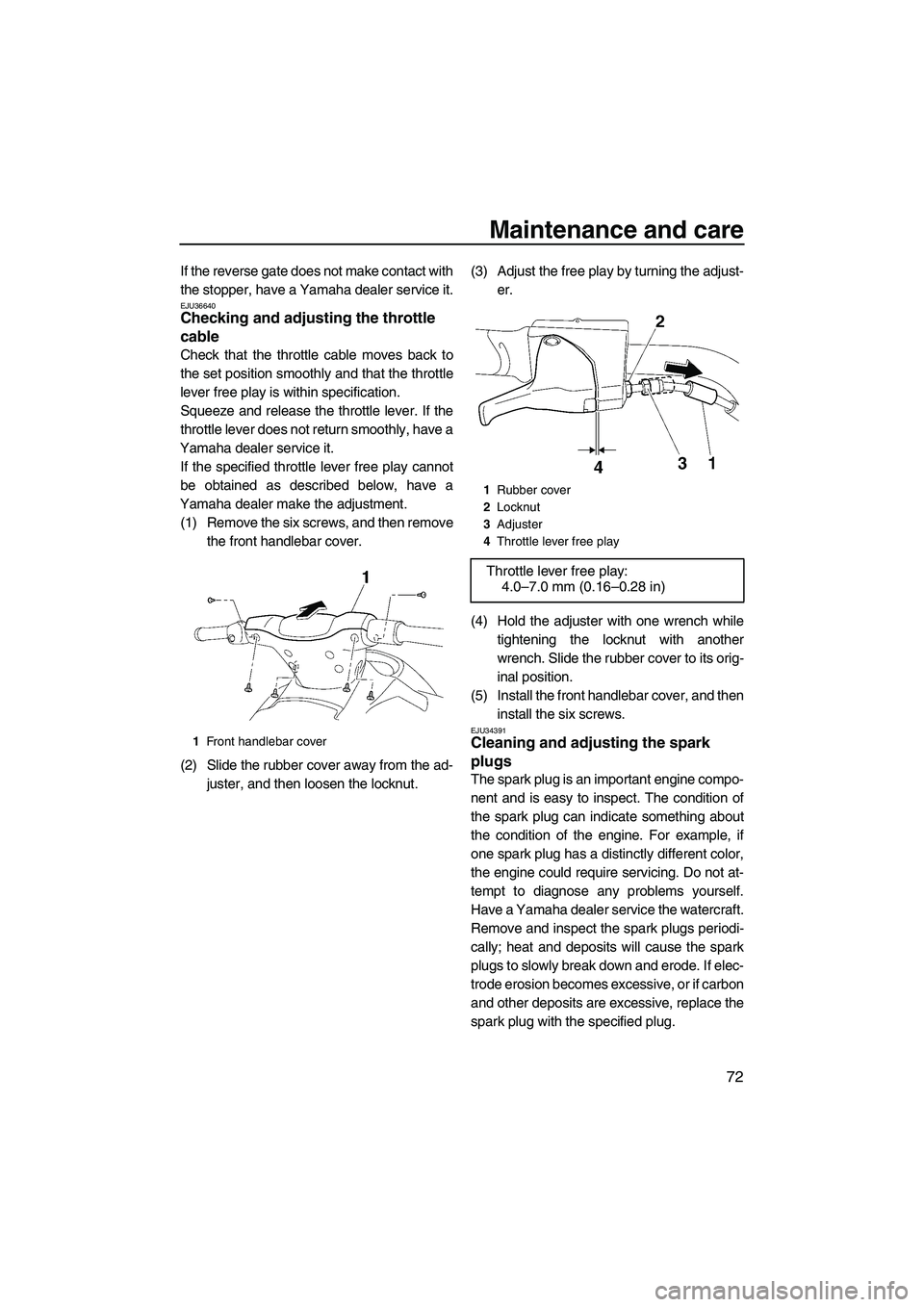

Maintenance and care
72
If the reverse gate does not make contact with
the stopper, have a Yamaha dealer service it.
EJU36640Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
Squeeze and release the throttle lever. If the
throttle lever does not return smoothly, have a
Yamaha dealer service it.
If the specified throttle lever free play cannot
be obtained as described below, have a
Yamaha dealer make the adjustment.
(1) Remove the six screws, and then remove
the front handlebar cover.
(2) Slide the rubber cover away from the ad-
juster, and then loosen the locknut.(3) Adjust the free play by turning the adjust-
er.
(4) Hold the adjuster with one wrench while
tightening the locknut with another
wrench. Slide the rubber cover to its orig-
inal position.
(5) Install the front handlebar cover, and then
install the six screws.
EJU34391Cleaning and adjusting the spark
plugs
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the spark
plugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
1Front handlebar cover
1Rubber cover
2Locknut
3Adjuster
4Throttle lever free play
Throttle lever free play:
4.0–7.0 mm (0.16–0.28 in)
UF1K73E0.book Page 72 Wednesday, July 11, 2007 9:15 AM
Page 80 of 94

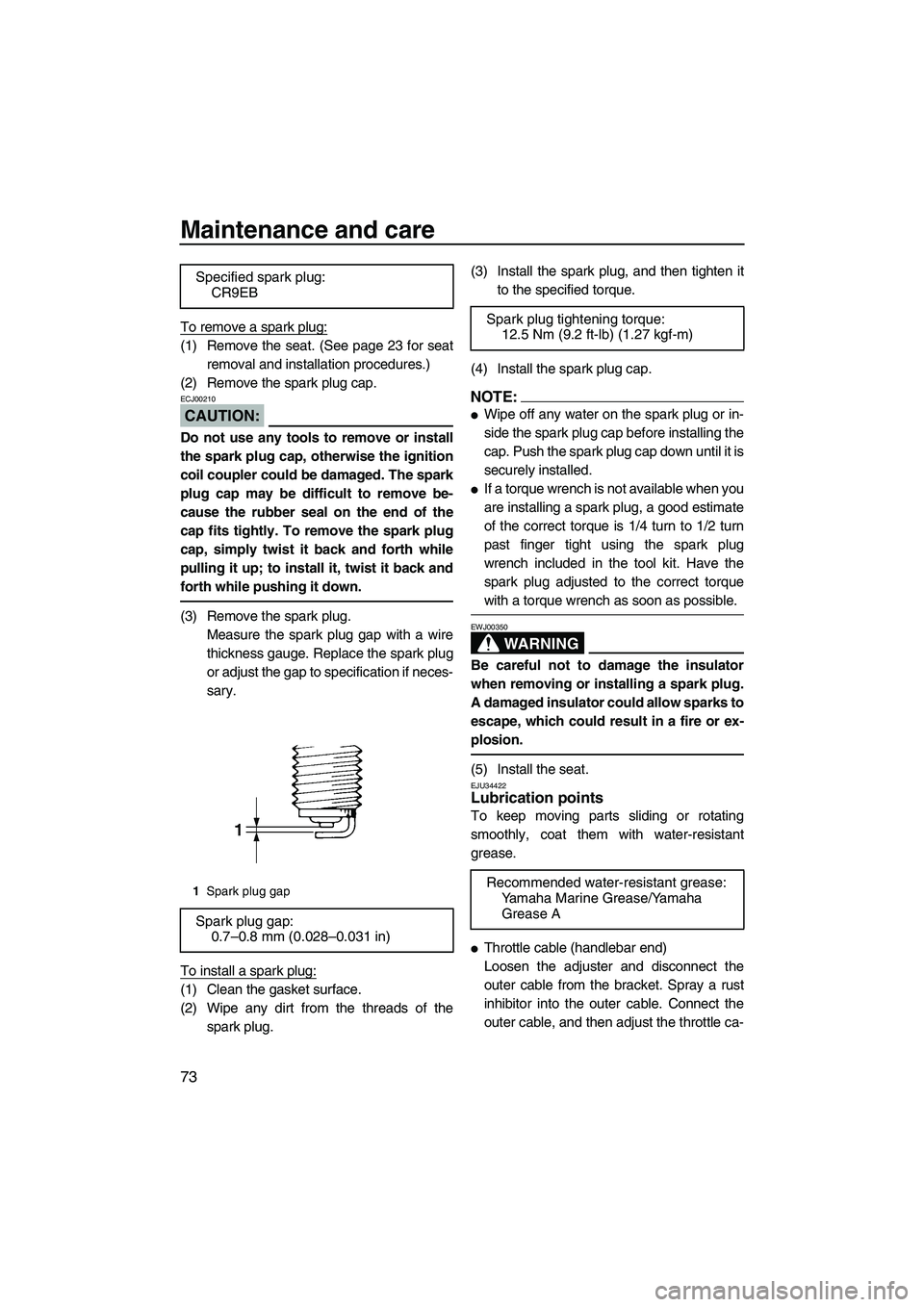

Maintenance and care
73
To remove a spark plug:
(1) Remove the seat. (See page 23 for seat
removal and installation procedures.)
(2) Remove the spark plug cap.
CAUTION:
ECJ00210
Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler could be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the
cap fits tightly. To remove the spark plug
cap, simply twist it back and forth while
pulling it up; to install it, twist it back and
forth while pushing it down.
(3) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plug
or adjust the gap to specification if neces-
sary.
To install a spark plug:
(1) Clean the gasket surface.
(2) Wipe any dirt from the threads of the
spark plug.(3) Install the spark plug, and then tighten it
to the specified torque.
(4) Install the spark plug cap.
NOTE:
Wipe off any water on the spark plug or in-
side the spark plug cap before installing the
cap. Push the spark plug cap down until it is
securely installed.
If a torque wrench is not available when you
are installing a spark plug, a good estimate
of the correct torque is 1/4 turn to 1/2 turn
past finger tight using the spark plug
wrench included in the tool kit. Have the
spark plug adjusted to the correct torque
with a torque wrench as soon as possible.
WARNING
EWJ00350
Be careful not to damage the insulator
when removing or installing a spark plug.
A damaged insulator could allow sparks to
escape, which could result in a fire or ex-
plosion.
(5) Install the seat.EJU34422Lubrication points
To keep moving parts sliding or rotating
smoothly, coat them with water-resistant
grease.
Throttle cable (handlebar end)
Loosen the adjuster and disconnect the
outer cable from the bracket. Spray a rust
inhibitor into the outer cable. Connect the
outer cable, and then adjust the throttle ca- Specified spark plug:
CR9EB
1Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Spark plug tightening torque:
12.5 Nm (9.2 ft-lb) (1.27 kgf-m)
Recommended water-resistant grease:
Yamaha Marine Grease/Yamaha
Grease A
UF1K73E0.book Page 73 Wednesday, July 11, 2007 9:15 AM
