2-15
ESPECTIGHTENING TORQUES
Electrical
Fuse box Nut—2 17 1.7 12 7-2
Fuse box bracket Nut—4 15 1.5 11 7-2
ECM Bolt M6 4 4.0 0.4 2.9
572LT7-7
Bracket1st
Bolt M8 28.80.886.4
572LT7-7
2nd 18 1.8 13
Slant detection switchTapping
screwø6 2 3.90.392.8 7-2
Rectifier/regulator Bolt M8 2 4.0 0.4 2.9
572LT7-7
Brush assembly/spacer Nut—1 8.8 0.88 6.4 7-39
Starter motor rear cover Bolt M5 2 6.4 0.64 4.6 7-39
Remote control transmitter
coverTapping
screwø2 6 0.1 0.01 0.1 7-64 Part to tightenedPart
nameThread
sizeQ’tyTightening torque
RemarksRefer to
page
Nmkgfmftlb
GENERAL TORQUE
This chart specifies tightening torques for stan-
dard fasteners with a standard ISO thread
pitch. Tightening torque specifications for spe-
cial components or assemblies are provided in
applicable sections of this manual. To avoid
warpage, tighten multi-fastener assemblies in
a crisscross fashion and progressive stages
until the specified tightening torque is reached.
Unless otherwise specified, tightening torque
specifications require clean, dry threads.
Components should be at room temperature.Nut A
Bolt B
General torque
specifications
Nmkgfmftlb
8 mm M5 5.0 0.5 3.6
10 mm M6 8.0 0.8 5.8
12 mm M8 18 1.8 13
14 mm M10 36 3.6 26
17 mm M12 43 4.3 31
ProCarManuals.com

2-16
ESPECCABLE AND HOSE ROUTING
CABLE AND HOSE ROUTING
K
E2
1
3
4
5
6
7
8
90
D
C
A
B
Ê
ÈÉ
1
2
5
6
7
6
J
A
A
H
I
G
F
0
62 7
K-K
J-J
I-I
H-H
G-G
A-A
B-B
C-C
D-D
E-E
F-F
BB
CC
EE
FF
DD
II
II
GG
H
H
K
KJ
J
A
A
BB
1Fuel tank breather hose
2Steering cable
3Throttle cable
4Fuse box
5Starter motor lead
6Positive battery lead
7Negative battery lead
8Battery
9Cooling water outlet hose
0Shift cable (Deluxe model only)
ASpeed sensor leadBCooling water inlet hose
CFuel hose
DElectric fuel pump
EAccelerator position sensor
FAntenna lead (Deluxe model only)
GRemote control unit lead (Deluxe model only)
HBilge hose joint
ICooling water hose joint
JCooling water pilot outlet hose
KAccelerator position sensor lead
ProCarManuals.com

2-18
ESPECCABLE AND HOSE ROUTING
12
Ð
Ò
Ó
Õ
Î
ÍÌ
È
É
È
É
Ñ
Ô
3
4
5678
4
B
O
P
5
N
C
D
A09H-H
EFGH
I
P
G
G-G
A
BD
F C
E
JJ
M
C
F
I
I
E
DB
A
A
ÏÐ
H
H
G
G
JK
0
Q
L
Ê
Ë
1Multifunction meter
2Handlebar switch lead
3Buzzer
4Shift cable (Deluxe model only)
5Fuel hose
6Relay assembly
7Fuse box
8ECM
9Positive battery lead
0Flushing hose
ACooling water outlet hoseBBilge hose
CBattery breather hose
DBattery
ENegative battery lead
FStarter motor lead
GSpeed sensor lead
HSteering cable
IRemote control unit lead (Deluxe model only)
JFuel tank breather hose
KAntenna lead (Deluxe model only)
LVentilation hose
ProCarManuals.com

E
–+ELEC
FUEL CONTROL SYSTEM ........................................................................... 7-31
WIRING DIAGRAM ................................................................................. 7-31
ELECTRIC FUEL PUMP ......................................................................... 7-33
FUEL SENDER ....................................................................................... 7-33
FUEL INJECTOR .................................................................................... 7-34
MAIN AND FUEL PUMP RELAY............................................................. 7-34
OIL PRESSURE SWITCH ....................................................................... 7-34
THERMOSWITCH (ENGINE).................................................................. 7-34
THERMOSWITCH (EXHAUST) .............................................................. 7-34
SLANT DETECTION SWITCH ................................................................ 7-34
REMOTE CONTROL UNIT (DELUXE MODEL ONLY) ........................... 7-34
THROTTLE POSITION SENSOR ........................................................... 7-34
ACCELERATOR POSITION SENSOR ................................................... 7-34
STARTING SYSTEM ..................................................................................... 7-35
WIRING DIAGRAM ................................................................................. 7-35
BATTERY ................................................................................................ 7-37
WIRING CONNECTIONS........................................................................ 7-37
FUSES..................................................................................................... 7-37
START SWITCH...................................................................................... 7-37
STARTER RELAY ................................................................................... 7-38
REMOTE CONTROL UNIT (DELUXE MODEL ONLY) ........................... 7-38
THROTTLE POSITION SENSOR ........................................................... 7-38
ACCELERATOR POSITION SENSOR ................................................... 7-38
STARTER MOTOR ........................................................................................ 7-39
EXPLODED DIAGRAM ........................................................................... 7-39
REMOVAL AND INSTALLATION CHART ............................................. 7-39
SERVICE POINTS .................................................................................. 7-41
Armature inspection .......................................................................... 7-41
Brush holder inspection..................................................................... 7-42
Starter motor front cover inspection .................................................. 7-42
CHARGING SYSTEM .................................................................................... 7-43
WIRING DIAGRAM ................................................................................. 7-43
FUSE ....................................................................................................... 7-44
BATTERY ................................................................................................ 7-44
LIGHTING COIL ...................................................................................... 7-44
RECTIFIER/REGULATOR ...................................................................... 7-44
OFF THROTTLE STEERING SYSTEM......................................................... 7-45
WIRING DIAGRAM ................................................................................. 7-45
STEERING SENSOR .............................................................................. 7-47
ECM......................................................................................................... 7-47
PICKUP COIL .......................................................................................... 7-47
THROTTLE POSITION SENSOR ........................................................... 7-47
ACCELERATOR POSITION SENSOR ................................................... 7-47
ProCarManuals.com

7-1
E
–+ELECELECTRICAL COMPONENTS
ELECTRICAL COMPONENTS
O
N
M
L
K
J
I
H
G
F
E
D
C
B
A
0
91
2
3
4
5
6
7
8
1Thermoswitch (engine)
2Fuse box
3Slant detection switch
4Starter motor
5Engine temperature sensor
6Spark plugs and ignition coils
7Cam position sensor
8Battery
9Speed sensor
0Sensor assembly (intake air
pressure and intake air tem-
perature)AOil pressure switch
BFuel injectors
CThermoswitch (exhaust)
DRectifier/regulator
EECM
FThrottle body assembly
GLighting coil and pickup coil
HEngine stop switch, engine
shut-off switch, and start
switch
ISteering sensor
JBuzzerKAccelerator position sensor
LElectric fuel pump
MFuel sender
NMultifunction meter
ORemote control unit (Deluxe
model only)
ProCarManuals.com

7-12
E
–+ELECIGNITION SYSTEM
IGNITION SYSTEM
WIRING DIAGRAM
10A
10A
3A
30A20A
WBrBRFREE
PUSHBWFREE
PUSH
Br BrFREE
PUSH
BW
W
BrBrBrBrR
W
B/W
B/O
B/O
B/O
B/R
P/R
P/R
W/B
P/W
P/W
B/O
L/B
B/WB/R
B/OP/W
P/R
W
W
WLR
Y
G
O
O
W
GG
BW
GG
O
OLG
W
Y
W
G/O
W/BR/Y
Y/G
BL
PBWP/W
B/GB/Y
Y/WL/RB/RB/W
B
B
BBP
P
P
BBP
RR
BBR
R/Y
B/OL/BB/OL/B
B/G
G/OB/OG/O
P/W
B/OB/YB/YR/Y
R/Y
R/Y
R/YB/YR/Y
R/Y
B/O
B/RR/Y
R/Y
R/YY/W
Y/GL/R
Y
P
P
O
O R
R
R
BB
BrRB/O
BBr
B/W
Y BrL R B
R
GB
R/YBBr
4
0 98
B
B B
B
H
I JK LM NOQ
PR
3
5
67 2 1
A
A A
A
C
D
E
F
G
1Battery
2Fuse (30 A)
3Fuse (20 A)
4Fuse (3 A)
5Fuse (10 A)
6Fuse (10 A)
7Starter relay
8Main and fuel pump
relay9Electronic control
throttle valve relay
0Slant detection switch
AIgnition coil
BSpark plug
CCam position sensor
DEngine temperature
sensor
EThermoswitch
(engine)FThermoswitch
(exhaust)
GOil pressure switch
HRemote control unit
(Deluxe model only)
IAntenna
(Deluxe model only)
JECM
KRectifier/regulatorLThrottle body assem-
bly
MAccelerator position
sensor
NPickup coil
OLighting coil
PStart switch
QEngine stop switch
REngine shut-off switch
ProCarManuals.com

7-35
E
–+ELECSTARTING SYSTEM
STARTING SYSTEM
WIRING DIAGRAM
WBrBRFREE
PUSHBWFREE
PUSH
Br BrFREE
PUSH
BW
W
BrBrBrBrR
RB/O
10A
10A
3A
30A20A
RR
B
BBR
BBr
BBr
B
B/W
B/O
B/O
B/R
P/R
P/R
P/W
P/W
B/O
B/WB/R
B/O
P/RP/W
W
W
WL
RY
G
O
W
O
OLG
W
Y
W
G/O
R/YY/G
BOL
BW
R/Y
Y/WL/R
B
B
G/OB/OG/OR/YB/O
R/Y
R/Y
R/Y
Y/W
Y/GL/R
Y
O
O
R
RL
R
B
BLBL
Y BrL R B
Br W
09
B
C DEF G
5 4
6
78 3 I
HJ1
2
A
1Battery
2Starter motor
3Fuse (30 A)
4Fuse (20 A)
5Fuse (3 A)
6Fuse (10 A)
7Fuse (10 A)
8Starter relay
9Main and fuel pump relay0Electronic control throttle valve
relay
ACam position sensor
BRemote control unit
CAntenna
DECM
EThrottle body assembly
FAccelerator position sensor
GElectric fuel pumpHStart switch
IEngine stop switch
JEngine shut-off switch
ProCarManuals.com

7-37
E
–+ELECSTARTING SYSTEM

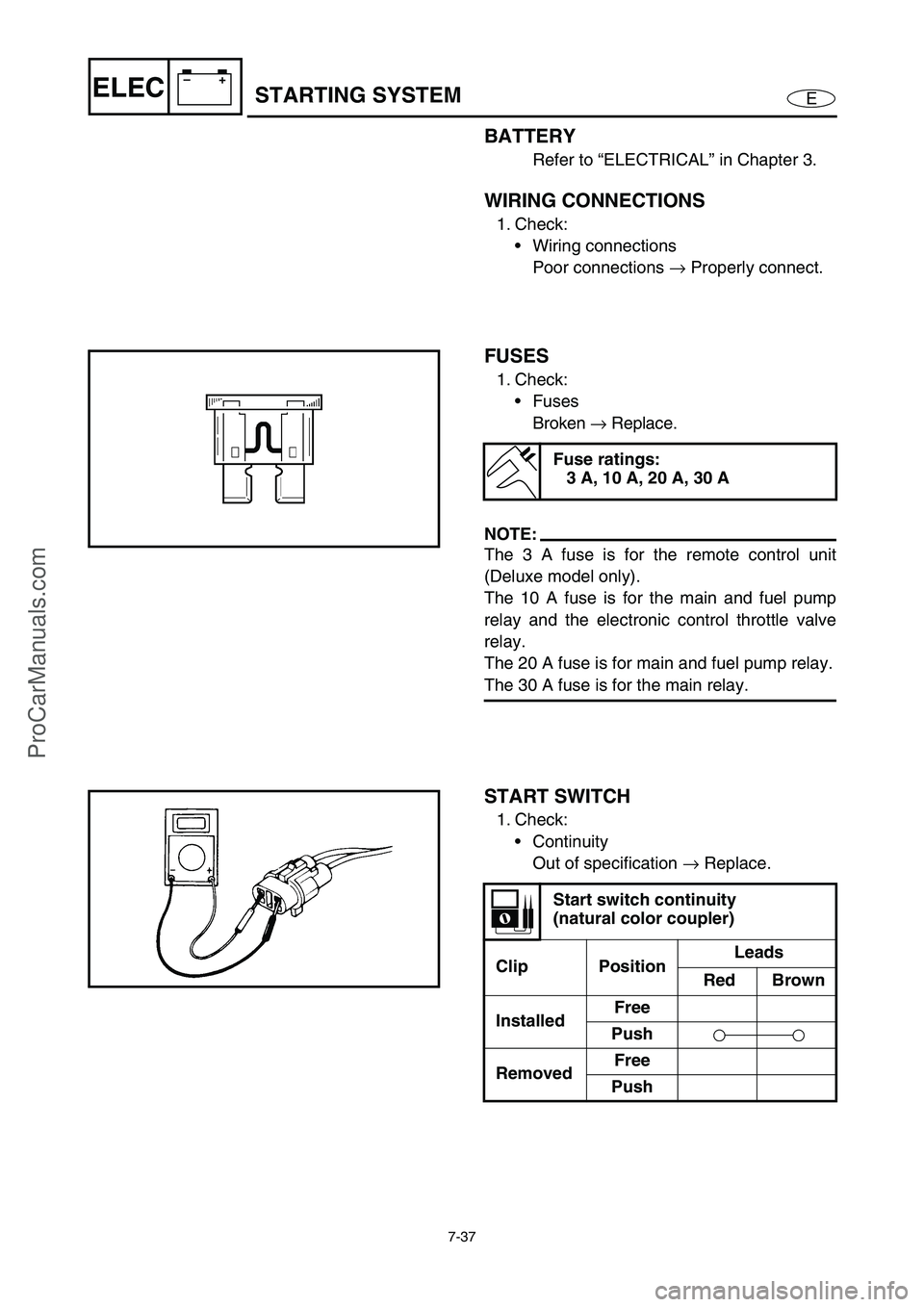

BATTERY
Refer to “ELECTRICAL” in Chapter 3.
WIRING CONNECTIONS
1. Check:
Wiring connections
Poor connections →
Properly connect.
FUSES
1. Check:
Fuses
Broken →
Replace.
NOTE:
The 3 A fuse is for the remote control unit
(Deluxe model only).
The 10 A fuse is for the main and fuel pump
relay and the electronic control throttle valve
relay.
The 20 A fuse is for main and fuel pump relay.
The 30 A fuse is for the main relay.
Fuse ratings:
3 A, 10 A, 20 A, 30 A
START SWITCH
1. Check:
Continuity
Out of specification →
Replace.
Start switch continuity
(natural color coupler)
Clip PositionLeads
Red Brown
Installed Free
Push
Removed Free
Push
ProCarManuals.com

7-38
E
–+ELECSTARTING SYSTEM
STARTER RELAY
1. Inspect:
Brown lead terminal
Black lead terminal
Loose →
Tighten.
2. Check:
Starter relay
Faulty →
Replace.
Checking steps:
Connect the tester leads between the
starter relay terminals as shown.
Connect the brown lead terminal to the
positive battery terminal.
Connect the black lead terminal to the
negative battery terminal.
Check that there is continuity between
the starter relay terminals.
Check that there is no continuity after the
brown or black lead is removed.
Br
B
REMOTE CONTROL UNIT
(DELUXE MODEL ONLY)
Refer to “REMOTE CONTROL SYS-
TEM (DELUXE MODEL ONLY)”.
THROTTLE POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ACCELERATOR POSITION SENSOR
Refer to “IGNITION SYSTEM”.
ProCarManuals.com

7-48
E
–+ELECINDICATION SYSTEM
INDICATION SYSTEM
WIRING DIAGRAM
10A
10A
3A
30A20A
RR
BBR
BBr
BBr
B/OW/B
B/O
B/O
WR
Y
G
O
BW
Y
W
G/OW/B
Y/GR/Y
B
PB
Pu/RPu/B
Pu/GPu/Y
P/W
B/G
R/Y
W/B
B/Y
Y/WL/R
B/RB/W
B
B
BBP
P
PBBP
R/Y
B/G
G/OB/OG/O
P/W
B/OB/YB/YR/Y
R/Y
R/Y
B/LL/YL/B
R/YPu/G
Pu/Y
Pu/B
Pu/RR/Y
R/Y
R/Y
R/YB/YR/Y
R/Y
B/O
B/RR/Y
R/Y
R/YY/W
Y/GL/R
Y
P
P
O
O
R
R
R
B
G
BR
Y
B/YR/W
BRW
P
PB
B/LL/R
L/RL/B
B/WR
BW/BR/YL/RL/YL/B Gy B/G
YB/YR/Y
98
A
A A
A
G
G GG
H IJ K4 3
5
67 2 1
0
0 0
0
B
C
D
E
F LM
N
1Battery
2Fuse (30 A)
3Fuse (20 A)
4Fuse (3 A)
5Fuse (10 A)
6Fuse (10 A)
7Starter relay
8Main and fuel pump relay9Electronic control throttle valve
relay
0Ignition coil
ASpark plug
BCam position sensor
CEngine temperature sensor
DThermoswitch (engine)
EThermoswitch (exhaust)
FOil pressure switchGFuel injector
HRemote control unit
(Deluxe model only)
IECM
JPickup coil
KBuzzer
LFuel sender
MSpeed sensor
NMultifunction meter
ProCarManuals.com
