wheel YAMAHA WOLVERINE 2015 Owners Manual

Valve clearance .................................. 8-38
Brakes ................................................ 8-38
Checking the front and rear brake pads.................................................. 8-38
Checking the brake fluid level ............ 8-39
Brake fluid replacement ..................... 8-40
Checking the brake pedal .................. 8-40
Parking brake ..................................... 8-41
Brake light switch adjustment ............ 8-41
Cable inspection and lubrication........ 8-42
Brake pedal and accelerator pedal
lubrication ......................................... 8-42
Checking the stabilizer bushes .......... 8-43
Rear knuckle upper and lower pivot
lubrication (left and right) .................. 8-43
Steering shaft lubrication ................... 8-44
Wheel removal.................................... 8-44
Tire replacement ................................ 8-45
Wheel installation ............................... 8-46
Battery ................................................ 8-46
Jump-starting ..................................... 8-50
Fuse replacement............................... 8-51
Replacing a headlight bulb................. 8-54 Headlight beam adjustment ...............8-56
Tail/brake light bulb replacement .......8-57
Troubleshooting ..................................8-57
Troubleshooting charts .......................8-59
CLEANING AND STORAGE ....................9-1 Cleaning................................................9-1
Storage .................................................9-2
SPECIFICATIONS..................................10-1
CONSUMER INFORMATION ................11-1 Identification number records.............11-1
INDEX ....................................................12-1
U2MB7AE0.book Page 3 Thursday, January 29, 2015 3:42 PM

1-4
1
YAMAHA MOTOR CO.,LTD.
2500 SHINGAI,IWATA,JAPAN
2015
YXE700E
35.0 kW
595 kg2MB-F155A-10
YA M A H A1XD-K7761-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
12
U2MB7AE0.book Page 4 Thursday, January 29, 2015 3:42 PM

1-6
1
YAMAHA1XD-K8483-00
WARNING
Do not rest hands or arms on door or shoulder bolster.
To avoid Injury, keep hands and arms completely
Inside the vehicle by holding the steering wheel or handhold.YAMAHA1XD-K8483-10
AVERTISSEMENT
Ne pas appuyer les mains ni les bras sur la portiè
re ou sur le coussin de l’épaule. Afin de prévenir les
blessures, garder mains et bras dans l’habitacle et
agripper le volant ou la poignée de maintien.
YAMAHA1XD-K7761-10AVERTISSEMENTToute partie du corps
(bras, jambes, tête) se
trouvant hors de
l’habitacle risque d’être é
crasée par l’arceau de
protection.
Si une roulade ou un
capotage semble
imminent, caler les pieds
sur le plancher ou sur
les repose-pieds et
agripper le volant ou la
poignée de maintien. Ne
jamais agripper l’arceau
de protection.
Ne jamais tenter d’empê
cher un capotage à l’aide
du bras ou de la jambe.
6
7 8
U2MB7AE0.book Page 6 Thursday, January 29, 2015 3:42 PM

1-9
1
YAMAHA2MB-F4897-10
AVERTISSEMENT
Charge maximale dans la caisse : 136 kg (300 lbs)
Charge maximale du véhicule : 327 kg (721 lbs)
Une charge ou une remorque peut nuire à la maniabilité et
à l’équilibre du véhicule.
Lors du transport d’une charge ou lors du remorquage :
Lire le Manuel du propriétaire avant de charger le véhicule,
de tirer ou de remorquer une charge.– Ne pas dépasser la limite de charge nominale pour la caisse
de chargement, le timon et le véhicule.– Réduire la vitesse et prévoir une distance de freinage accrue.– Négocier les virages progressivement et lentement.
– Éviter les pentes et les terrains accidentés.– Arrimer solidement toute charge – un article mal arrimé
pourrait nuire soudainement à la maniabilité ou être projeté
vers l’avant et heurter un occupant.– Répartir le poids de la charge de façon équilibrée et le plus
bas possible dans la caisse; une charge mal équilibrée augmente
le risque de capotage.– Ne tirer ni ne remorquer aucun objet d’un point autre que la
fixation du timon ou le treuil (le cas échéant).Le mauvais usage de la caisse de chargement ou de l’arceau de
protection peut provoquer de graves blessures ou la mort par suite
d’une perte de contrôle, d’un capotage ou d’un accident quelconque.
Aucun passager
dans la caisse de
chargement
YAMAHA1XD-K7762-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
YA M A H A1XD-K7762-10AVERTISSEMENTToute partie du corps
(bras, jambes, tête) se
trouvant hors de
l’habitacle risque d’être é
crasée par l’arceau de
protection.
Si une roulade ou un
capotage semble
imminent, caler les pieds
sur le plancher ou sur
les repose-pieds et
agripper le volant ou la
poignée de maintien. Ne
jamais agripper l’arceau
de protection.
Ne jamais tenter d’empê
cher un capotage à l’aide
du bras ou de la jambe.
13 1415
U2MB7AE0.book Page 9 Thursday, January 29, 2015 3:42 PM

1-12
1

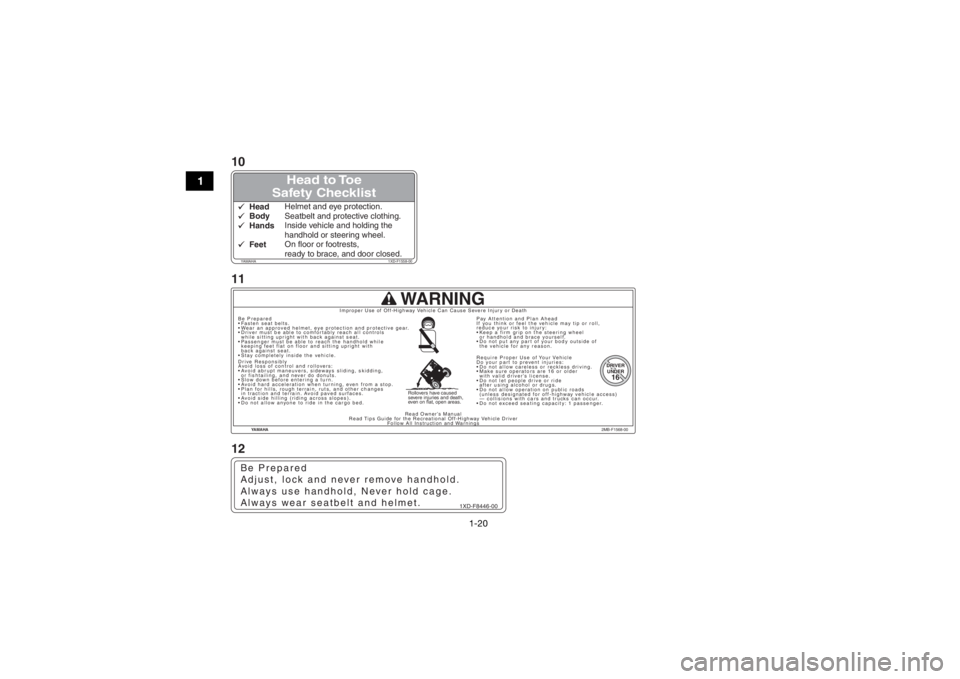

Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.YAMAHA
2MB-F1568-00
WARNING
DRIVER DRIVER
UNDER
UNDER16
16DRIVERUNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passenger must be able to reach the handhold while
keeping feet flat on floor and sitting upright with
back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 1 passenger.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

20
21
U2MB7AE0.book Page 12 Thursday, January 29, 2015 3:42 PM

1-16
1
YAMAHA1XD-K7761-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
YAMAHA 1XD-K8483-00
WARNING
Do not rest hands or arms on door or shoulder bolster.
To avoid Injury, keep hands and arms completely
Inside the vehicle by holding the steering wheel or handhold.
WARNING
Fuel vapors can be a fire or explosion hazard.
To avoid injury or death, never store fuel or
flammable liquids in this storage compartment.Storage should not exceed 13.5 lbs (6.4 kg)
2MB-F151F-00
12
3
U2MB7AE0.book Page 16 Thursday, January 29, 2015 3:42 PM

1-18
1

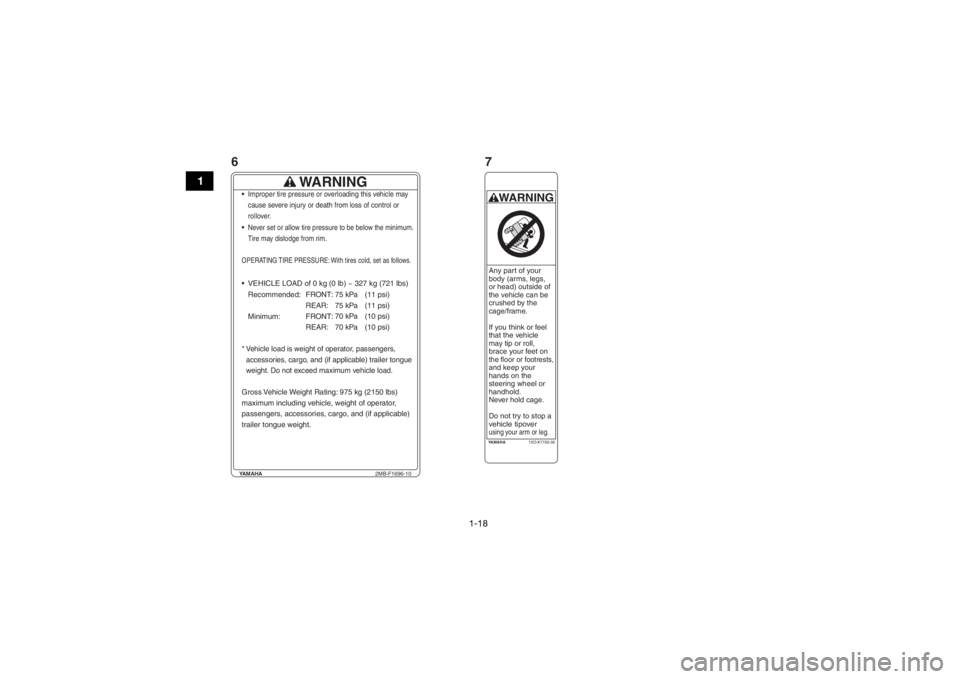

YAMAHA2MB-F1696-10
WARNING
Improper tire pressure or overloading this vehicle may
cause severe injury or death from loss of control or
rollover.Never set or allow tire pressure to be below the minimum.
Tire may dislodge from rim. VEHICLE LOAD of 0 kg (0 lb) ~ 327 kg (721 lbs)
Recommended: FRONT: REAR:
Minimum: FRONT: REAR:75 kPa
75 kPa
70 kPa
70 kPa (11 psi)
(11 psi)
(10 psi)
(10 psi)
*Vehicle load is weight of operator, passengers,
accessories, cargo, and (if applicable) trailer tongue
weight. Do not exceed maximum vehicle load.Gross Vehicle Weight Rating: 975 kg (2150 lbs)
maximum including vehicle, weight of operator,
passengers, accessories, cargo, and (if applicable)
trailer tongue weight.OPERATING TIRE PRESSURE: With tires cold, set as follows.
YA M A H A 1XD-K7762-00WARNINGAny part of your
body (arms, legs,
or head) outside of
the vehicle can be
crushed by the
cage/frame.
If you think or feel
that the vehicle
may tip or roll,
brace your feet on the floor or footrests,and keep your
hands on the
steering wheel or
handhold.
Never hold cage.
Do not try to stop a vehicle tipover using your arm or leg.
67
U2MB7AE0.book Page 18 Thursday, January 29, 2015 3:42 PM

1-20
1
Head to Toe
Safety Checklist
YAMAHA 1XD-F1558-00HeadHelmet and eye protection.BodySeatbelt and protective clothing.HandsInside vehicle and holding the
handhold or steering wheel.FeetOn floor or footrests,
ready to brace, and door closed.
1XD-F8446-00
Be Prepared
Adjust, lock and never remove handhold.
Always use handhold, Never hold cage.
Always wear seatbelt and helmet.YAMAHA
2MB-F1568-00
WARNING
DRIVER DRIVER
UNDER
UNDER16
16DRIVERUNDER16
Improper Use of Off-Highway Vehicle Can Cause Severe Injury or Death
Read Owner’s Manual
Read Tips Guide for the Recreational Off-Highway Vehicle Driver Follow All Instruction and Warnings
Be Prepared
Drive Responsibly
If you think or feel the vehicle may tip or roll,
reduce your risk to injury: Pay Attention and Plan Ahead
Do not allow careless or reckless driving.
Do your part to prevent injuries: Require Proper Use of Your Vehicle
Rollovers have caused
severe injuries and death,
even on flat, open areas.
Stay completely inside the vehicle.
Passenger must be able to reach the handhold while
keeping feet flat on floor and sitting upright with
back against seat.
Driver must be able to comfortably reach all controls
while sitting upright with back against seat.
Wear an approved helmet, eye protection and protective gear.
Fasten seat belts.

Do not allow anyone to ride in the cargo bed.
Avoid side hilling (riding across slopes).
Plan for hills, rough terrain, ruts, and other changes
in traction and terrain. Avoid paved surfaces.
Avoid hard acceleration when turning, even from a stop.
Slow down before entering a turn.
Avoid abrupt maneuvers, sideways sliding, skidding,
or fishtailing, and never do donuts.
Avoid loss of control and rollovers: Do not put any part of your body outside of
the vehicle for any reason.
Keep a firm grip on the steering wheel
or handhold and brace yourself.

Do not exceed seating capacity: 1 passenger.
Do not allow operation on public roads
(unless designated for off-highway vehicle access)
— collisions with cars and trucks can occur.
Do not let people drive or ride
after using alcohol or drugs.
Make sure operators are 16 or older
with valid driver’s license.

10
11
12
U2MB7AE0.book Page 20 Thursday, January 29, 2015 3:42 PM

2-3
2
• Do not drive or ride as passenger after using drugs or alcohol.
Prepare your vehicle
Perform the pre-operation checks each time you use the vehicle to make sure it is in safe oper-
ating condition. Failure to inspect or maintain the vehicle properly increases the possibility of an
accident or equipment damage. See page 5-1 for a list of pre-operation checks.
Prepare your load or trailer
Carrying loads, towing a trailer, or pulling object s can affect handling, stability, and cause the risk
of overturns or other accidents.
 Read Chapter 6 before loading, towing, or pulling objects.
 Do not overload the vehicle or trailer. Refer to label in cargo bed for cargo bed load limit. Refer
to label next to hitch for tongue weight and trailer load limits.
 Keep weight in the cargo bed centered side to side, and as low and as far forward as possible.
 Secure cargo so that it will not shift – a loose load could change handling unexpectedly or be
thrown forward and strike occupants.
While using your Yamaha Wolverine
 Keep your body completely inside the vehicle at all times. Keep both hands on the steering
wheel. Be sure the passenger is seated, belted, and holding onto the passenger handhold.
Close doors before driving. Any part of your body (arms, legs, and head) outside the vehicle
can be struck by objects your vehicle is passing or crushed by the vehicle cage/frame in a roll-
over accident.
 Watch for branches, brush, or other hazards that could enter the vehicle.
U2MB7AE0.book Page 3 Thursday, January 29, 2015 3:42 PM

2-4
2
Abrupt maneuvers or aggressive driving, even on flat, open areas, can cause loss of control,
including rollovers. The Wolverine has higher ground clearance and other features to handle
rugged terrain, and, as a result, can overturn in situations where some other vehicles may not.
 Avoid rollovers:
• Use care when turning:
• Turning the steering wheel too far or too fast can result in a rollover.
• Avoid sideways sliding, skidding, or back-wheel sliding, and never do donuts.
• Slow down before entering a turn and avoid hard braking in a turn.
• When making tight turns from a stop or at sl ow speeds, avoid sudden or hard acceleration.
• Drive straight up and down inclines, not across them. If crossing a hill is unavoidable, drive
slowly and turn downhill immediately if you feel the vehicle may tip.
• Avoid paved surfaces. Turn gradually and go slowly if you must drive on pavement. This vehicle is designed for off-road use only.U2MB7AE0.book Page 4 Thursday, January 29, 2015 3:42 PM
