Checking the coolant level1. Park the vehicle on a level surface.
2. Check the coolant level in the coolant
reservoir when the engi ne is cold as the
coolant level varies with engine tempera-
ture.TIPThe coolant should be between the minimum
and maximum level marks.
3. If the coolant is at or below the minimum level mark, remove the coolant reservoir
cap, add coolant to the maximum level
mark, and install the reservoir cap.
Changing the coolant
WARNING
EWB01891Wait for the engine and radiator to cool be-
fore removing the radiator cap. You could
be burned by hot fluid and steam blown
out under pressure. Always place a thick
rag over the cap when opening. Allow any
remaining pressure to escape before com-
pletely removing the cap. 1. Park the vehicle on a level surface.
2. Remove the hood. (See page 8-10 for hood removal and installation proce-
dures.)

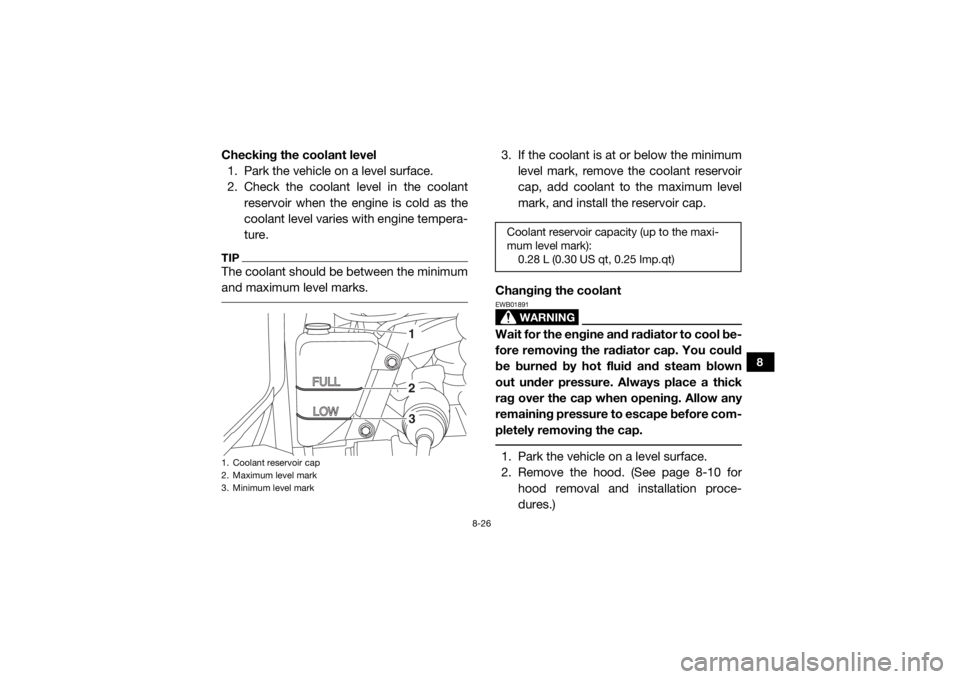

1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
123
Coolant reservoir capacity (up to the maxi-
mum level mark):0.28 L (0.30 US qt, 0.25 Imp.qt)
UBN57AE0.book Page 26 Tuesday, November 24, 2015 1:42 PM

8-27
8
3. Remove the center bottom panel by re-moving the bolts.
4. Place a container under the engine to col- lect the used coolant.
5. Remove the radiator cap. 6. Remove the coolant drain bolt and its
gasket to drain the coolant from the en-

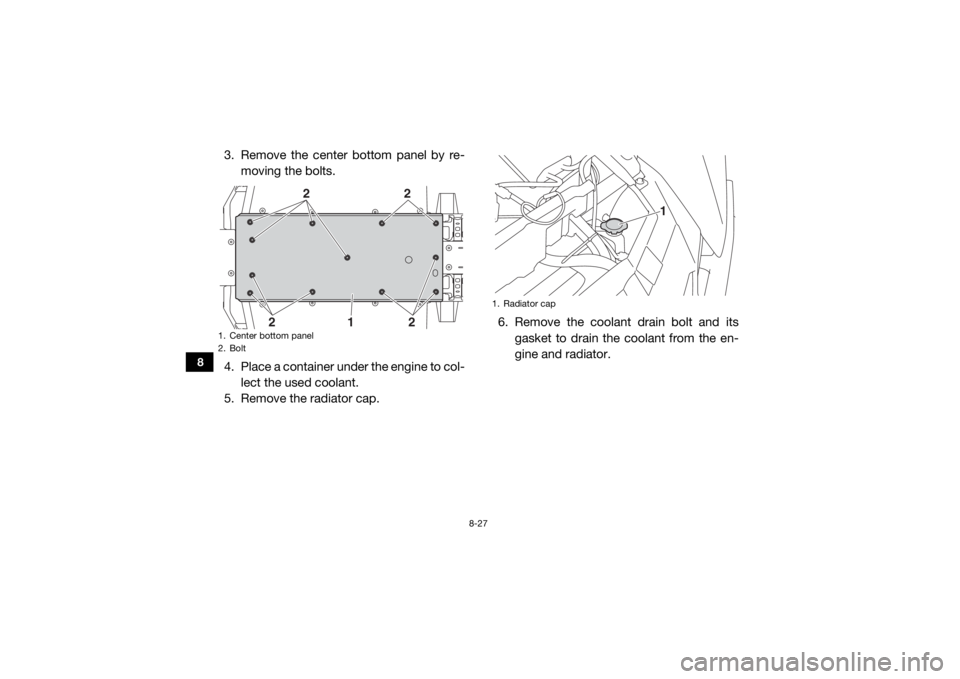

gine and radiator.1. Center bottom panel
2. Bolt
22
2
2
1
1. Radiator cap
1
UBN57AE0.book Page 27 Tuesday, November 24, 2015 1:42 PM

8-29
8
12. Connect the coolant reservoir hose.
13. Pour the recommended coolant into theradiator until it is full.
14. Pour the recommended coolant into the
reservoir to the maximum level mark, and
then install the reservoir cap.NOTICEECB02190Mix antifreeze with distilled water only.
However, if distilled water is not available,
soft water may be used for refilling. Do not
use hard water or salt water since they are
harmful to the engine.
15. Remove the right panel and right rearpanel. (See page 8-11 for right panel and
right rear panel removal and installation
procedures.)
16. Loosen the water pump air bleed bolt, without removing it, to allow all of the air
to escape from the air bleed bolt hole.
Tightening torque:Coolant drain bolt:8 Nm (0.8 m·kgf, 5.8 ft·lbf)
Antifreeze/water mixture ratio:1:1
Recommended antifreeze: High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum
engines
Coolant quantity: Radiator (including all routes):2.85 L (3.01 US qt, 2.51 Imp.qt)
Coolant reservoir (up to the maximum level
mark): 0.28 L (0.30 US qt, 0.25 Imp.qt)
UBN57AE0.book Page 29 Tuesday, November 24, 2015 1:42 PM

8-30
8
17. When coolant begins to flow out of thebolt hole, tighten the water pump air
bleed bolt to the specified torque.
18. Loosen the cylinder head air bleed bolt, without removing it, to allow all of the air
to escape from the air bleed bolt hole. 19. When coolant begins to flow out of the
bolt hole, tighten the cylinder head air
bleed bolt to the specified torque.
20. Start the engine and let it idle for ten mi- nutes.
21. Rev the engine five times.

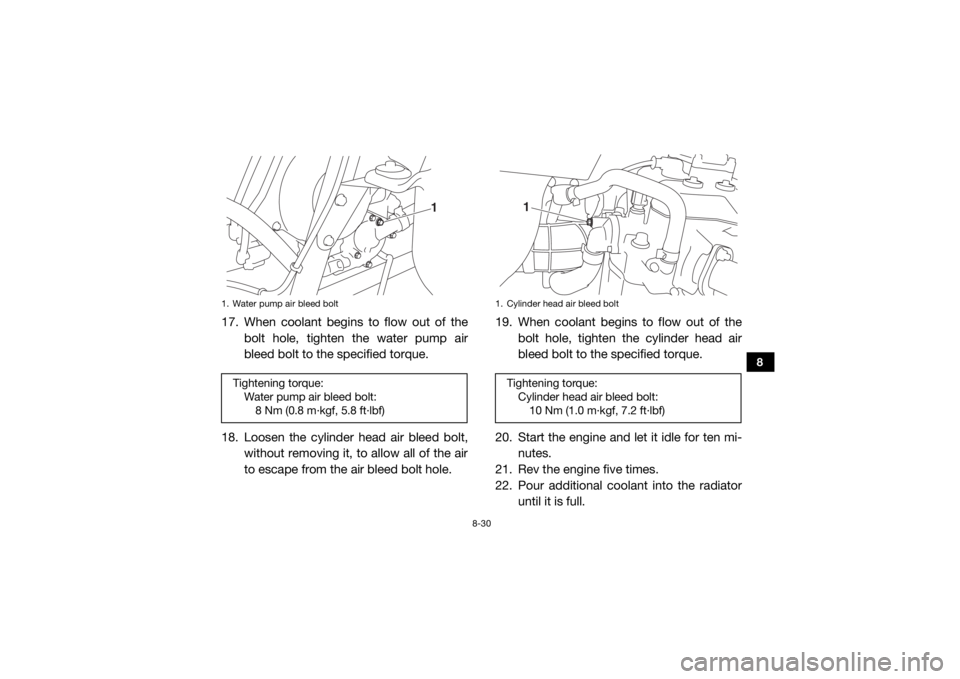

22. Pour additional coolant into the radiator until it is full.1. Water pump air bleed boltTightening torque:Water pump air bleed bolt:8 Nm (0.8 m·kgf, 5.8 ft·lbf)
1
1. Cylinder head air bleed boltTightening torque: Cylinder head air bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
UBN57AE0.book Page 30 Tuesday, November 24, 2015 1:42 PM

8-31
8
23. Stop the engine and allow it to cool. If thecoolant level has dropped after the en-
gine has cooled, add sufficient coolant
until it reaches the top of the radiator, and
then install the radiator cap.
24. Check the coolant level in the reservoir. If necessary, remove the coolant reservoir
cap, add coolant to the maximum level
mark, and then install the cap.
25. Start the engine, and then check for cool- ant leakage.TIPIf any leakage is found, have a Yamaha dealer
check the cooling system. 26. Install the center bottom panel by install-
ing the bolts, and then tightening them to
the specified torque.
27. Install the panels and the hood.

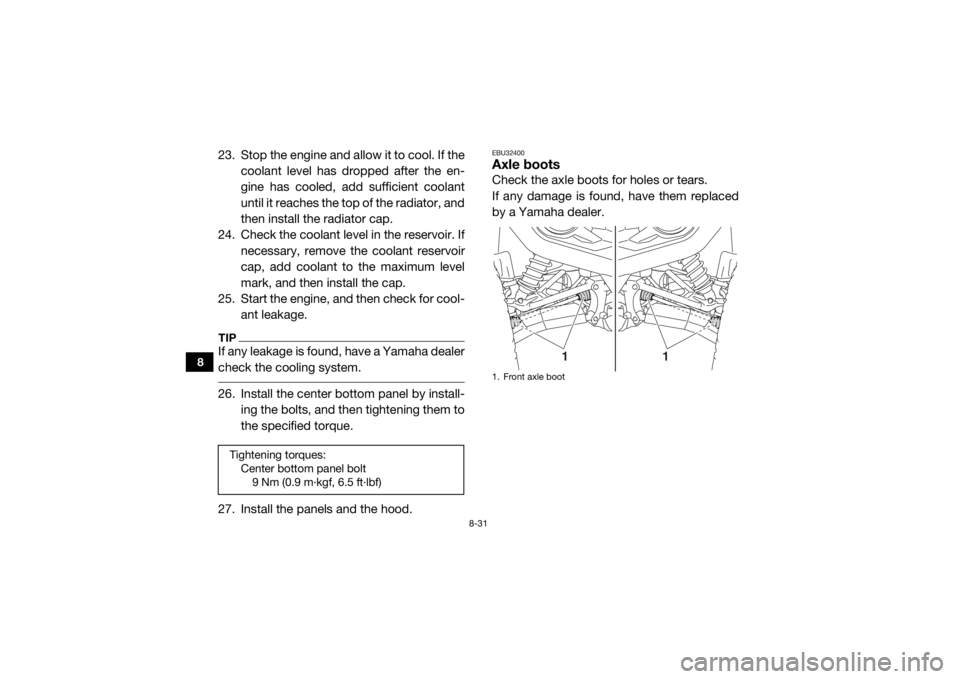

EBU32400Axle bootsCheck the axle boots for holes or tears.
If any damage is found, have them replaced
by a Yamaha dealer.
Tightening torques: Center bottom panel bolt9 Nm (0.9 m·kgf, 6.5 ft·lbf)
1. Front axle boot
1
1
UBN57AE0.book Page 31 Tuesday, November 24, 2015 1:42 PM

8-33
8
Inspection
The spark plug is an important engine com-
ponent and is easy to inspect. The condition
of the spark plug can indicate the condition of
the engine.
The ideal color of the porcelain insulator
around the center electrode is a medium-to-
light tan for a vehicle that is being ridden nor-
mally.
You should periodically remove and inspect
the spark plug because heat and deposits will
cause the spark plug to slowly break down
and erode. If electrode erosion becomes ex-
cessive, or if carbon and other deposits are
excessive, you should replace the spark plug
with the specified plug.
Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.Installation
1. Clean the surface of the spark plug gas- ket and its mating surface, and then wipe
off any grime from the spark plug
threads.
2. Install the spark plug and tighten it to the
specified torque. If a torque wrench is not
available when you are installing the
spark plug, a good estimate of the cor-Specified spark plug:NGK/CPR7EA-9
1. Spark plug gapSpark plug gap:0.8–0.9 mm (0.031–0.035 in)
1
UBN57AE0.book Page 33 Tuesday, November 24, 2015 1:42 PM

8-34
8
rect torque is one-quarter to one-half turn
past finger tight. Have the spark plug
tightened to the specified torque as soon
as possible.
3. Install the spark plug cap.
EBU33580Cleaning the air filter elementThe air filter element should be cleaned every
20–40 hours. It should be cleaned and lubri-
cated more often if the vehicle is operated in
extremely dusty areas. Ea ch time air filter ele-
ment maintenance is performed, check the air
inlet to the air filter case for obstructions.
Check the air filter elem ent rubber joint to the
throttle body and manifold fittings for an air-
tight seal. Tighten all fittings securely to avoid
the possibility of unfiltered air entering the en-
gine.
NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage.
Additionally, the fuel injection system
would be affected, re sulting in poor engine

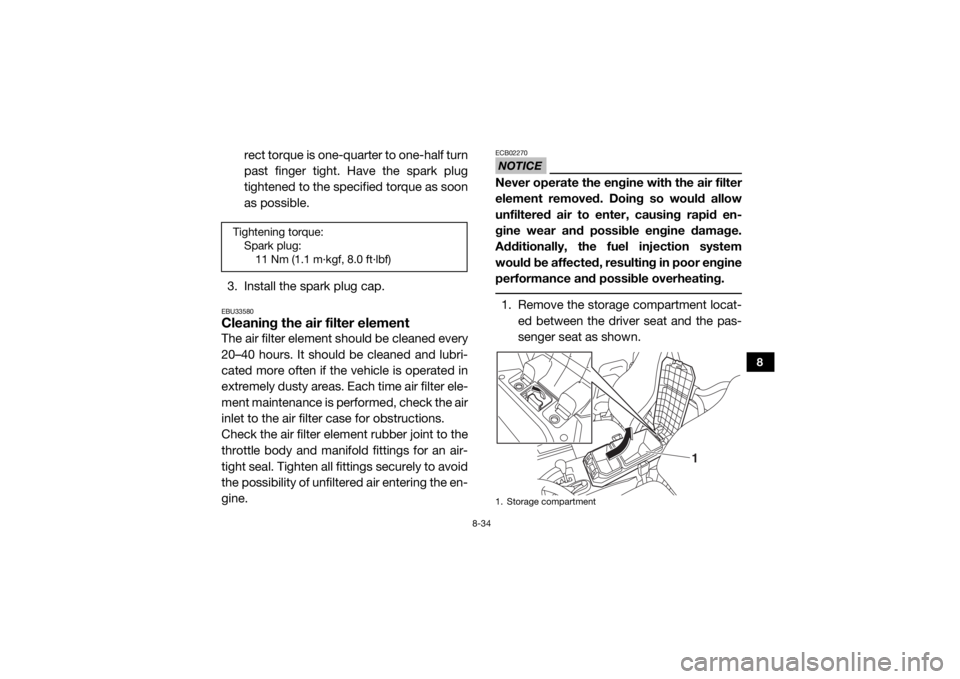

performance and possible overheating. 1. Remove the storage compartment locat- ed between the driver seat and the pas-
senger seat as shown.
Tightening torque:Spark plug:11 Nm (1.1 m·kgf, 8.0 ft·lbf)
1. Storage compartment
1
UBN57AE0.book Page 34 Tuesday, November 24, 2015 1:42 PM

8-39
8
Install the center bottom panel by installing
the bolts, and then tightening them to the
specified torque.
EBU33690V-belt case drain plugThe V-belt case drain plug is located behind
the left panel. (See page 8-11 for left panel re-
moval and installation procedures.)
After riding in water deep enough to allow wa-
ter to enter the V-belt case, remove the drain
plug to drain any water from the case.
If water drains from the V-belt case after re-
moving the drain plug, have a Yamaha dealer
inspect the vehicle, as the water may affect
other engine parts.

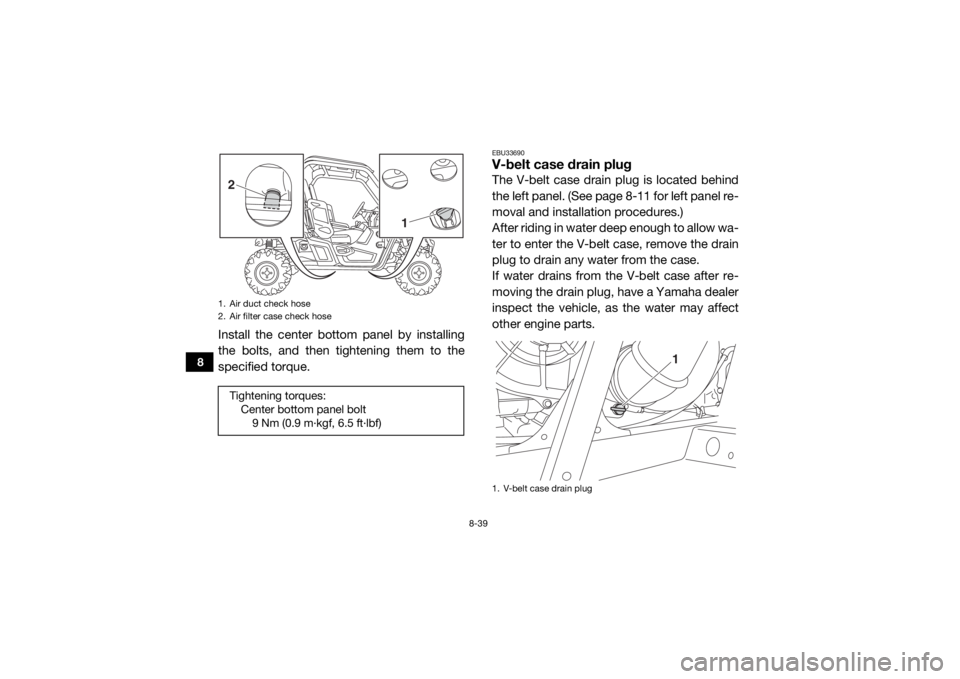

1. Air duct check hose
2. Air filter case check hoseTightening torques: Center bottom panel bolt9 Nm (0.9 m·kgf, 6.5 ft·lbf)2
1
1. V-belt case drain plug
1
UBN57AE0.book Page 39 Tuesday, November 24, 2015 1:42 PM

8-40
8

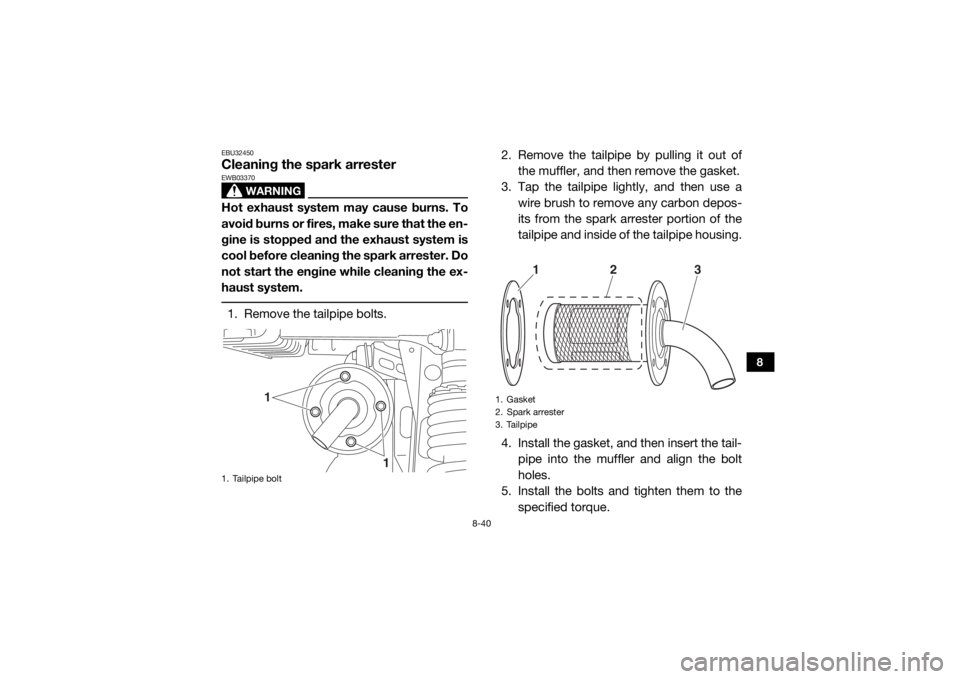

EBU32450Cleaning the spark arrester
WARNING
EWB03370Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system. 1. Remove the tailpipe bolts.2. Remove the tailpipe by pulling it out of
the muffler, and then remove the gasket.
3. Tap the tailpipe lightly, and then use a wire brush to remove any carbon depos-
its from the spark arrester portion of the
tailpipe and inside of the tailpipe housing.
4. Install the gasket, and then insert the tail- pipe into the muffler and align the bolt
holes.
5. Install the bolts and tighten them to the
specified torque.1. Tailpipe bolt
1
1
1. Gasket
2. Spark arrester
3. Tailpipe
3
2
1
UBN57AE0.book Page 40 Tuesday, November 24, 2015 1:42 PM

8-41
8
EBU32460Valve clearanceThe correct valve clearance changes with
use, resulting in improper fuel/air supply or
engine noise. To prevent this, the valve clear-
ance must be adjusted regularly. This adjust-
ment however, should be left to a
professional Yamaha service technician.EBU32470BrakesReplacement of brake components requires
professional knowledge. Brake service
should be performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or ad-
justed brakes could lead to a loss in brak-
ing ability and an accident.
EBU32480Checking the front and rear brake padsEach brake pad is provided with wear indica-
tor grooves, which allow you to check the
brake pad wear without having to disassem-
ble the brake. To check the brake pad wear,
check the wear indicator grooves. If a brake
pad has worn to the point that the wear indi-
cator grooves have almost disappeared, have
a Yamaha dealer replace the brake pads as a
set.
The wheels need to be removed to check the
brake pads. (See pages 8-47, 8-49 for wheel
removal and installation procedures.)
Tightening torque: Tailpipe bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
