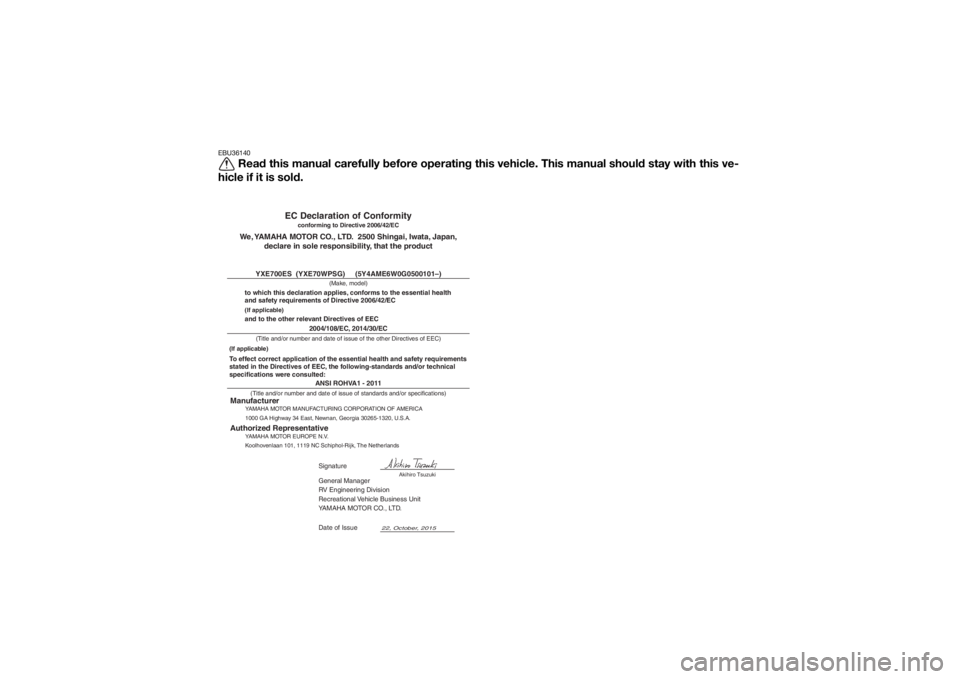

Read this manual carefully before operating this vehicle. This manual should stay with this ve-
hicle if it is sold.
ANSI ROHVA1 - 2011General Manager
RV Engineering Division
Recreational Vehicle Business Unit
YAMAHA MOTOR CO., LTD.
22, October, 2015
We, YAMAHA MOTOR CO., LTD. 2500 Shingai, Iwata, Japan,
declare in sole responsibility, that the product
(Make, model)
(If applicable)
and to the other relevant Directives of EEC
2004/108/EC, 2014/30/EC
(Title and/or number and date of issue of the other Directives of EEC)
(If applicable)YAMAHA MOTOR EUROPE N.V.
Koolhovenlaan 101, 1119 NC Schiphol-Rijk, The Netherlands
Signature
Akihiro Tsuzuki
Date of Issue
to which this declaration applies, conforms to the essential health
and safety requirements of Directive 2006/42/EC
To effect correct application of the essential health and safety requirements
stated in the Directives of EEC, the following-standards and/or technical
specifications were consulted:
(Title and/or number and date of issue of standards and/or specifications)
Authorized Representative
EC Declaration of Conformity
conforming to Directive 2006/42/EC
Manufacturer
YAMAHA MOTOR MANUFACTURING CORPORATION OF AMERICA
1000 GA Highway 34 East, Newnan, Georgia 30265-1320, U.S.A.YXE700ES (YXE70WPSG) (5Y4AME6W0G0500101–)
UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM
Page 6 of 192
EBU31120
CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION......................................... 3-1Left view ............................................... 3-1
Right view ............................................. 3-2
Controls and instruments ..................... 3-3
INSTRUMENT AND CONTROL
FUNCTIONS............................................ 4-1 Main switch .......................................... 4-1
Indicator lights and warning lights ....... 4-2
Multi-function meter unit ...................... 4-6
Light switch ........................................ 4-10
On-Command drive knob “2WD/4WD/DIFF LOCK” .................. 4-11
Horn switch ....................................... 4-12
Accelerator pedal ............................... 4-12
Brake pedal ........................................ 4-12 Parking brake lever ............................ 4-13
Drive select lever ................................ 4-14
Fuel tank cap...................................... 4-14
Doors .................................................. 4-15
Seats .................................................. 4-15
Adjusting the driver seat position....... 4-16
Seat belts ........................................... 4-17
Glove compartment ........................... 4-17
Storage compartments ...................... 4-18
Cup holders ........................................ 4-21
Cargo bed .......................................... 4-22
Adjusting the front shock absorber
assemblies ....................................... 4-23
Adjusting the rear shock absorber
assemblies ....................................... 4-28
Trailer hitch bracket and receiver....... 4-33
Auxiliary DC jack ................................ 4-34
FOR YOUR SAFETY –
PRE-OPERATION CHECKS.................... 5-1 Front and rear brakes ........................... 5-3
Fuel....................................................... 5-3
Engine oil.............................................. 5-5UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM
Page 7 of 192
Coolant ................................................. 5-6
Final gear oil ......................................... 5-6
Differential gear oil................................ 5-6
Accelerator pedal ................................. 5-7
Seat belts ............................................. 5-7
Passenger handhold ............................ 5-7
Steering ................................................ 5-7
Fittings and fasteners ........................... 5-8
Instruments, lights and switches .......... 5-8
Control cables ...................................... 5-8
Tires ...................................................... 5-8
OPERATION ............................................ 6-1 Engine break-in .................................... 6-1
Starting the engine ............................... 6-2
Drive select lever operation and reverse driving .................................... 6-3
On-Command drive knob..................... 6-5
Parking ................................................. 6-7
Loading................................................. 6-7
BASIC GUIDE FOR SAFE USE .............. 7-1 KNOW YOUR VEHICLE........................ 7-1 LEARNING TO OPERATE YOUR
VEHICLE ...........................................7-12
PERIODIC MAINTENANCE AND
ADJUSTMENT .........................................8-1 Owner’s manual and tool kit .................8-2
Periodic maintenance chart for the emission control system .....................8-4
General maintenance and lubrication chart ....................................................8-6
Hood ...................................................8-10
Panels .................................................8-11
Engine oil and oil filter cartridge .........8-14
Final gear oil .......................................8-20
Differential gear oil ..............................8-22
Coolant ...............................................8-25
Axle boots ...........................................8-31
Spark plug inspection .........................8-32
Cleaning the air filter element .............8-34
Cleaning the air filter case/air duct check hose........................................8-38
V-belt case drain plug.........................8-39
Cleaning the spark arrester ................8-40
UBN57AE0.book Page 2 Tuesday, November 24, 2015 1:42 PM
Page 34 of 192
2-5
2
If you think or feel that the vehicle may tip or ro ll, keep your body completely inside the protec-
tive structure of the vehicle:
• Brace yourself by pressing your feet firmly on the floorboard and keep a firm grip on the
steering wheel or passenger handhold.
• Do not put your hands or feet outside of the vehicle for any reason. Your arm or leg could be
crushed.
• Do not try to stop a vehicle tipover using your arm or leg.
Do not operate this vehicle on any public street, road, or highway, even if dirt or gravel.
Do not operate the vehicle in fast-flowing water or water deeper than 37 cm (15 in). If you must
cross shallow, slow-moving water, choose your path carefully to avoid sharp drop-offs, large
rocks, or slippery surfaces. Operating this vehi cle through deep or fast-flowing water can lead
to loss of control or overturn. To reduce your risk of drowning or other injuries, use care when
crossing through water.
When loaded with cargo or towing a trailer:
• Reduce speed, operate in low gear only, and allow more room to stop.
• Avoid hills and rough terrain. Use extreme caution when towing or carrying a load on inclines.
• Load trailer properly and use extra care when towing or pulling.
Do not tow or pull objects from any part of the vehicle other than the trailer hitch bracket or
winch (if installed).
Avoid carbon monoxide poisoning
All engine exhaust contains carbon monoxide, a deadly gas. Breathing carbon monoxide can
cause headaches, dizziness, drowsiness, nausea, confusion, and eventually death.UBN57AE0.book Page 5 Tuesday, November 24, 2015 1:42 PM
Page 35 of 192
2-6
2
Carbon monoxide is a colorless, odorless, tasteless gas which may be present even if you do not
see or smell any engine exhaust. Deadly levels of carbon monoxide can collect rapidly and you
can quickly be overcome and unable to save yourself. Also, deadly levels of carbon monoxide
can linger for hours or days in enclosed or poor ly-ventilated areas. If you experience any symp-
toms of carbon monoxide poisoning, leave th e area immediately, get fresh air, and SEEK MED-
ICAL TREATMENT.
Do not run engine indoors. Even if you try to ventilate engine exhaust with fans or open win-
dows and doors, carbon monoxide can rapidly reach dangerous levels.
Do not run engine in poorly ventilated or partia lly enclosed areas such as barns, garages, or
carports.
Do not run engine outdoors where engine exhaust can be drawn into a building through open-
ings such as windows and doors.
Genuine Yamaha Accessories
Choosing accessories for your Wolverine is an important decision. Genuine Yamaha Accesso-
ries, which are available only from a Yamaha de aler, have been designed, tested, and approved
by Yamaha for use on your Wolverine.
Many companies with no connect ion to Yamaha manufacture parts and accessories or offer oth-
er modifications for Yamaha vehicles. Yamaha is no t in a position to test the products that these
aftermarket companies produce. Therefore, Yamaha can neither endorse nor recommend the
use of accessories not sold by Yamaha or modifications not specifically recommended by
Yamaha, even if sold and installed by a Yamaha dealer.UBN57AE0.book Page 6 Tuesday, November 24, 2015 1:42 PM
Page 38 of 192
3-2
3

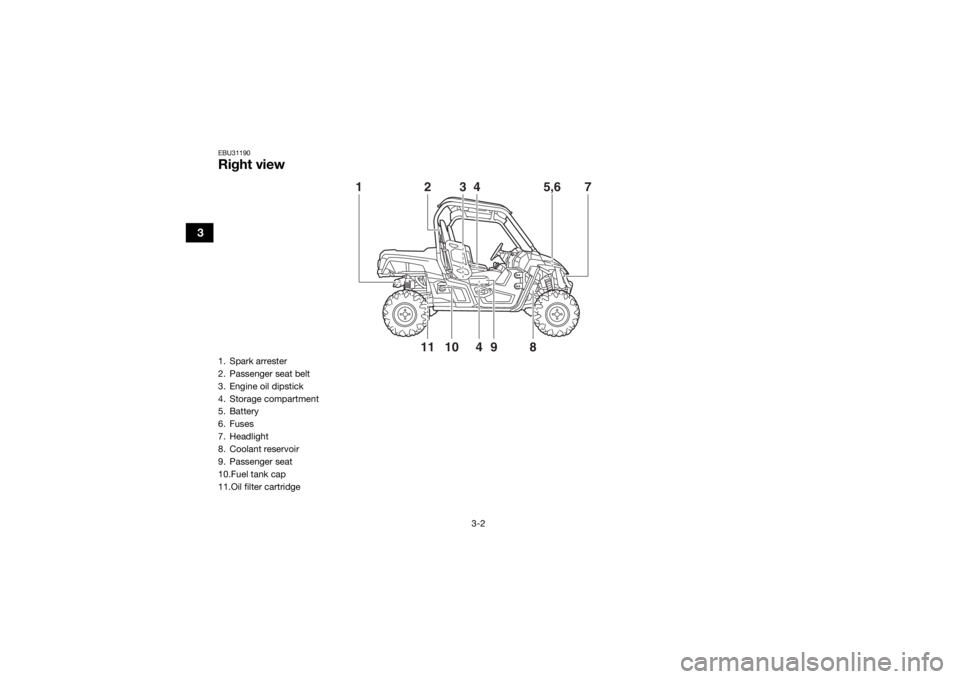

EBU31190Right view
10
9
4
118
3
4
5,6
1
7
2
1. Spark arrester
2. Passenger seat belt
3. Engine oil dipstick
4. Storage compartment
5. Battery
6. Fuses
7. Headlight
8. Coolant reservoir
9. Passenger seat
10.Fuel tank cap
11.Oil filter cartridgeUBN57AE0.book Page 2 Tuesday, November 24, 2015 1:42 PM
Page 40 of 192
4-1
4
EBU31213INSTRUMENT AND CONTROL FUNCTIONSEBU31220Main switchFunctions of the respective switch positions
are as follows:
EBU31230“” (on):
All electrical circuits are supplied with power.
The key cannot be removed.TIPThe helmet indicator light comes on and stays
on while the key is turned to “ ” (on). EBU31240“ ” (off):
All electrical circuits are switched off. The key
can be removed.EBU31250“ ” (start):
The electric starter is engaged by turning and
holding the key in this position. Release the
key when the engine starts.

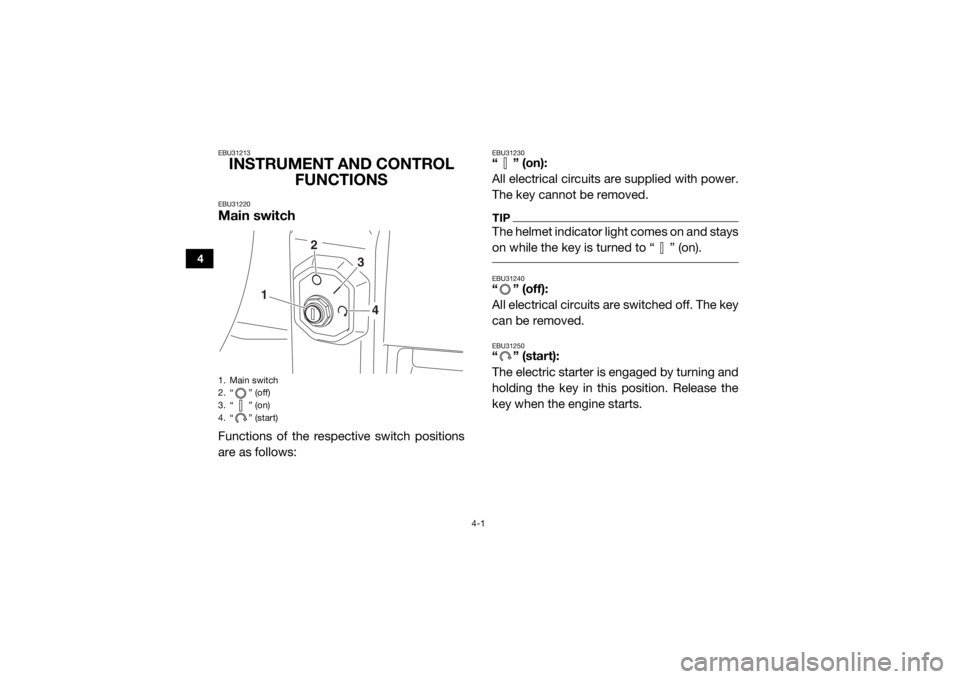

1. Main switch
2. “ ” (off)
3. “ ” (on)
4. “ ” (start)
1
2
3
4
UBN57AE0.book Page 1 Tuesday, November 24, 2015 1:42 PM
Page 41 of 192
4-2
4
EBU31262Indicator lights and warning lights
EBU31270Low-range indicator light “L”
This indicator light comes on when the drive
select lever is in the “L” position.EBU31280High-range indicator light “H”
This indicator light co mes on when the drive
select lever is in the “H” position.

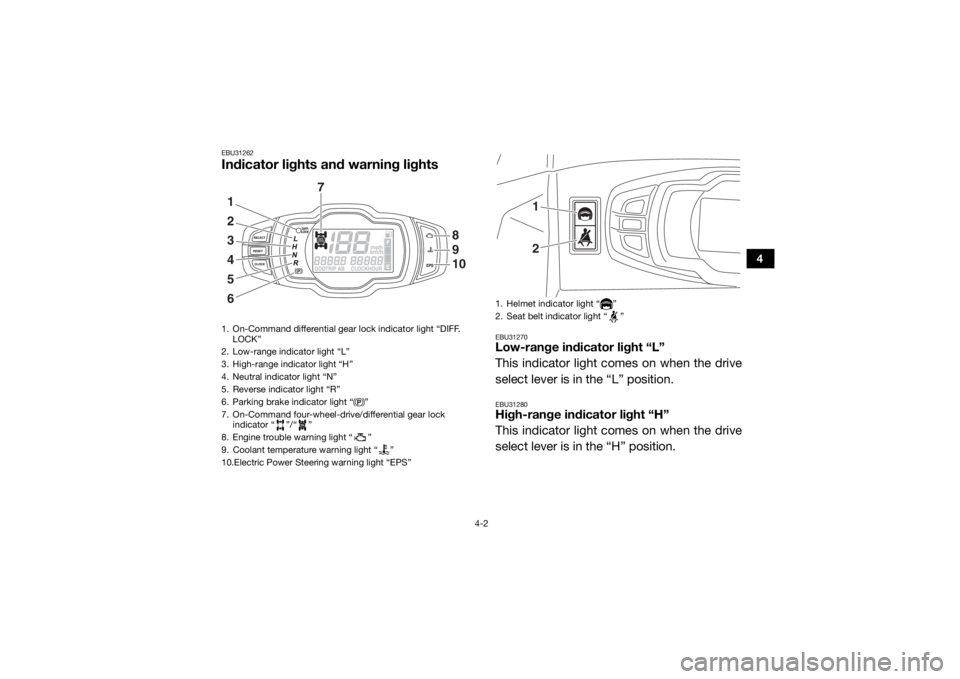

1. On-Command differential gear lock indicator light “DIFF.
LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Parking brake indicator light “ ”
7. On-Command four-wheel-drive/differential gear lock indicator “ ”/“ ”
8. Engine trouble warning light “ ”
9. Coolant temperature warning light “ ”
10.Electric Power Steering warning light “EPS”356421
7
8109
1. Helmet indicator light “ ”
2. Seat belt indicator light “ ”
21
UBN57AE0.book Page 2 Tuesday, November 24, 2015 1:42 PM
Page 43 of 192
4-4
4
EBU31330Coolant temperature warning light “ ”
If the coolant temperature reaches a specific
level, this light comes on to warn that the
coolant temperature is too hot. If the light
comes on during operation, stop the engine
as soon as it is safe to do so and allow the en-
gine to cool down for about 10 minutes. (See
page 8-63.)
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the electrical circuit.NOTICEECB02040 The engine may overheat if the vehicle is
overloaded. If this happens, reduce the
load to specification.
After restarting, make sure that the
warning light is out. Continuous use
while this warning light is on may cause
damage to the engine.
EBU31340Engine trouble warning light “ ”
This warning light comes on or flashes if a
problem is detected in the electrical circuit
monitoring the engine. When this occurs,
have a Yamaha dealer check the self-diagno-
sis system. (See page 4-10 for an explanation
of the self-diagnosis device.)
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on initially
when the key is turned to “ ” (on), or if the
warning light remains on, have a Yamaha
dealer check the electrical circuit.
UBN57AE0.book Page 4 Tuesday, November 24, 2015 1:42 PM
Page 44 of 192
4-5
4
EBU33041Electric Power Steering warning light
“EPS”
This warning light comes on when the key is
turned to “ ” (on), and then goes off once
the engine is started. If the warning light re-
mains on or comes on after the engine is
started, the EPS system may not be working
correctly. When this occurs, have a Yamaha
dealer check the EPS system.
The electrical circuit of the warning light can
be checked by turning the key to “ ” (on). If
the warning light does not come on, have a
Yamaha dealer check the electrical circuit.TIPIf the steering load is too heavy (e.g., exces-
sive steering use at slow speed or when op-
erating in deep mud, sand, or snow), the
power assist is reduced to protect the EPS
motor from overheating.
EBU31360Helmet indicator light “ ”
The indicator light comes on and stays on
while the key is turned to “ ” (on) to remind
the occupants to always wear a helmet. If the
indicator light does not come on when the key
is turned to “ ” (on), have a Yamaha dealer
check the electrical circuit.EBU31370Seat belt indicator light “ ”
The indicator light comes on when the key is
turned to “ ” (on) to remind the occupants
to fasten their seat belt. The indicator light
stays on until the driver seat belt is properly
latched. If the indicator light does not come
on when the key is turned to “ ” (on), or if
the indicator light remains on after the driver
seat belt is properly latched, have a Yamaha
dealer check the electrical circuit.
UBN57AE0.book Page 5 Tuesday, November 24, 2015 1:42 PM
