4-6
4
EBU31380Multi-function meter unitThe multi-function meter unit is equipped with
the following:
a speedometer
an odometer
two tripmeters (which show the distance
traveled since they were last set to zero)
a clock
an hour meter (which shows the total time
the engine has been running)
a voltage display (which shows the battery
voltage)
a fuel meter
a self-diagnosis device
Odometer and tripmeter modes1. “CLOCK” button
2. “RESET” button
3. “SELECT” button
4. Speedometer
5. Fuel meter
6. Clock/Hour meter/Voltage display
7. Odometer/Tripmeter A/Tripmeter B321
4
5
6
7
1. “SELECT” button
2. “RESET” button
3. Odometer/Tripmeter A/Tripmeter B12
3
UBN57AE0.book Page 6 Tuesday, November 24, 2015 1:42 PM
4-7
4
Pushing the “SELECT” button switches the
display between the odometer mode “ODO”
and the tripmeter modes “TRIP A” and “TRIP
B” in the following order:
ODO → TRIP A → TRIP B → ODO
To reset a tripmeter, select it by pushing the
“SELECT” button, and then push the “RE-
SET” button for at least three seconds. The
tripmeters can be used to estimate the dis-
tance that can be traveled with a full tank of
fuel. This information enables you to plan fu-
ture fuel stops.TIPTo switch the display between “mph” and
“km/h”, turn the key to “ ” (off), then push
and hold the “SELECT” button while turning
the key to “ ” (on).
Clock, hour meter and voltage display
modes
Pushing the “CLOCK” button switches the
display between the clock mode “CLOCK”,
the hour meter mode “HOUR”, and the volt-
age display mode “ ” in the following or-
der:
CLOCK → HOUR → → CLOCK1. “SELECT” button
2. “RESET” button
3. “CLOCK” button
4. Clock/Hour meter/Voltage display
4
123
UBN57AE0.book Page 7 Tuesday, November 24, 2015 1:42 PM
4-8
4

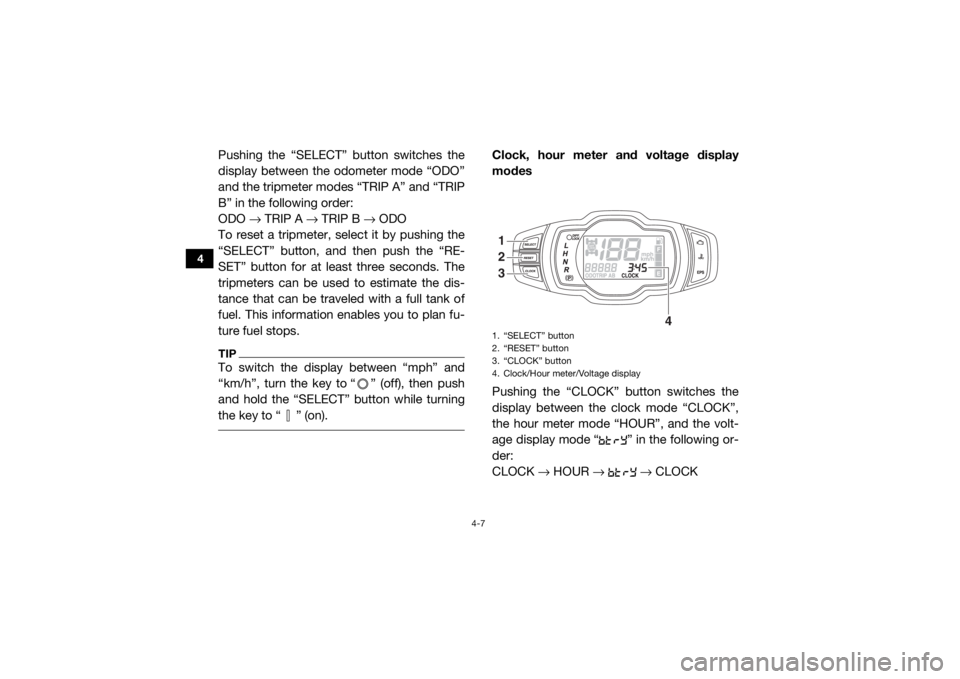

To set the clock1. Set the display to the clock mode.
2. Push the “SELECT” button and “RESET”button together for at least three sec-
onds.
3. When the hour digits start flashing, push the “RESET” button to set the hours.
4. Push the “SELECT” button, and the mi-
nute digits will start flashing.
5. Push the “RESET” button to set the minu- tes.
6. Push the “SELECT” button, and then re- lease it to start the clock. Voltage display mode

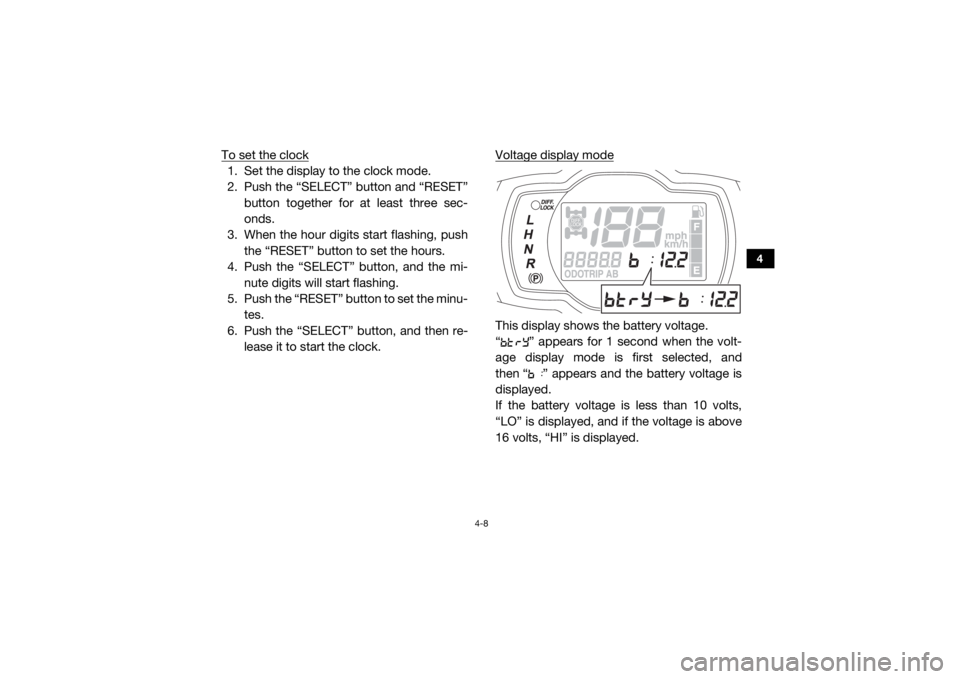

This display shows the battery voltage.
“ ” appears for 1 second when the volt-
age display mode is first selected, and
then “ ” appears and the battery voltage is
displayed.
If the battery voltage is less than 10 volts,
“LO” is displayed, and if the voltage is above
16 volts, “HI” is displayed.
UBN57AE0.book Page 8 Tuesday, November 24, 2015 1:42 PM
