YAMAHA WOLVERINE 2018 Owners Manual

8-28
8
11. Connect the coolant reservoir hose.
12. Pour the specified amount of fresh cool-ant into the radiator, then install the radi-
ator cap.
13. Pour the specified amount of fresh cool- ant into the reservoir, then install the res-
ervoir cap.
14. Remove the right panel and right rear panel. (See page 8-11.)
15. Loosen the water pump air bleed bolt to
allow air to escape from the system. 16. When coolant begins to flow out, tighten
the bleed bolt.
17. Loosen the cylinder head air bleed bolt to allow air to escape from the system.Tightening torque:Coolant drain bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
1. Water pump air bleed boltTightening torque: Water pump air bleed bolt:8 N·m (0.8 kgf·m, 5.9 lb·ft)
1
UB3D7AE0.book Page 28 Tuesday, November 7, 2017 9:38 AM

8-29
8
18. When coolant begins to flow out, tightenthe bleed bolt.
19. Start the engine and let it idle for ten mi- nutes.TIPWhile the engine is idling, check the cooling
system for leaks.
20. Rev the engine five times, then stop theengine and allow it to cool.TIPWhile waiting for the engine to cool, clean up
the used coolant and prepare it for disposal
according to local regulations. 21. When the engine is cool, remove the radi-
ator cap and check the coolant level in
the radiator. WARNING! Never attempt
to remove the radiator cap when the
engine is hot.
[EWB04250]
If necessary, add
coolant until the radiator is full. Install the
radiator cap.
22. Check the coolant level in the reservoir and replenish if necessary.
23. Install the panels and the hood.
EBU32400Axle bootsCheck the axle boots for holes or tears.
If any damage is found, have them replaced
by a Yamaha dealer.
1. Cylinder head air bleed boltTightening torque: Cylinder head air bleed bolt:10 N·m (1.0 kgf·m, 7.4 lb·ft)
1
UB3D7AE0.book Page 29 Tuesday, November 7, 2017 9:38 AM

8-30
8
EBU33570Spark plug inspectionRemoval1. Remove the spark plug cap.
2. Use the spark plug wrench in the tool kit to remove the spark plug as shown.

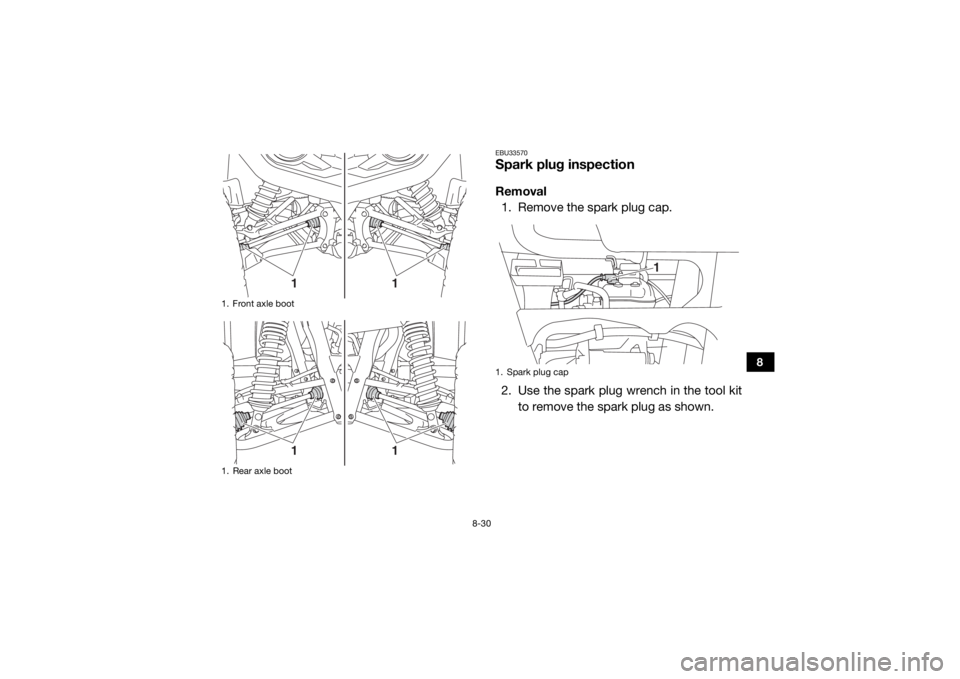

1. Front axle boot
1. Rear axle boot
1
1
1
1
1. Spark plug cap
1
UB3D7AE0.book Page 30 Tuesday, November 7, 2017 9:38 AM

8-31
8
Inspection
The spark plug is an important engine com-
ponent and is easy to inspect. The condition
of the spark plug can indicate the condition of
the engine.
The ideal color of the porcelain insulator
around the center electrode is a medium-to-
light tan for a vehicle that is being ridden nor-
mally.
You should periodically remove and inspect
the spark plug because heat and deposits will
cause the spark plug to slowly break downand erode. If electrode erosion becomes ex-
cessive, or if carbon and other deposits are
excessive, you should replace the spark plug
with the specified plug.
Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap

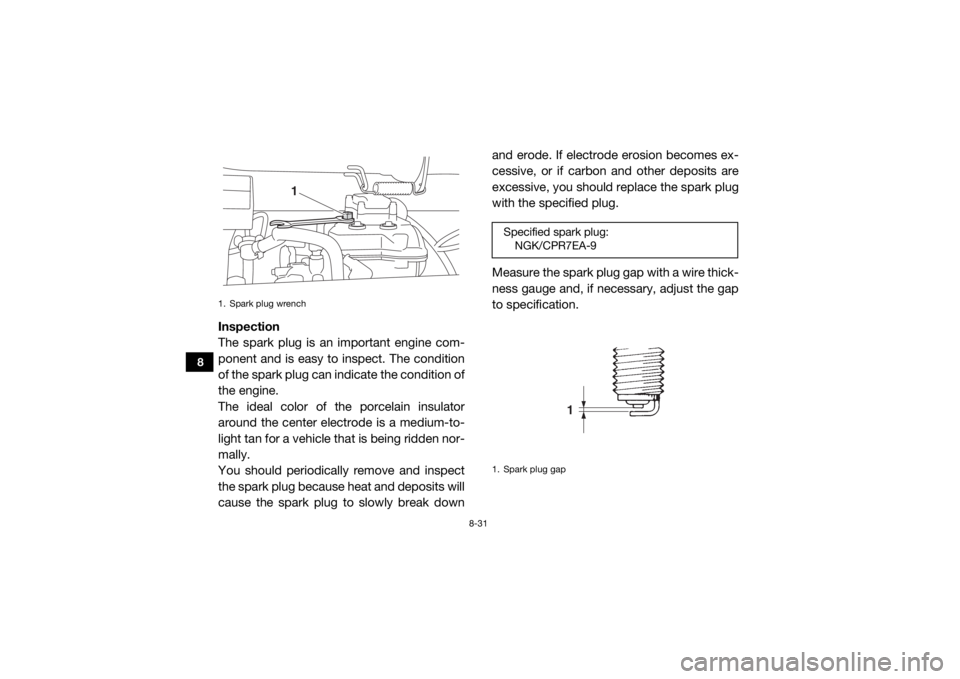

to specification.1. Spark plug wrench
1
Specified spark plug:
NGK/CPR7EA-91. Spark plug gap
1
UB3D7AE0.book Page 31 Tuesday, November 7, 2017 9:38 AM

8-32
8
Installation1. Clean the surface of the spark plug gas-
ket and its mating surface, and then wipe
off any grime from the spark plug
threads.
2. Install the spark plug and tighten it to the specified torque. If a torque wrench is not
available when you are installing the
spark plug, a good estimate of the cor-
rect torque is one-quarter to one-half turn
past finger tight. Have the spark plug
tightened to the specified torque as soon
as possible.
3. Install the spark plug cap.
EBU33581Cleaning the air filter elementThe air filter element should be cleaned every
20–40 hours. It should be cleaned and lubri-
cated more often if the vehicle is operated in
extremely dusty areas. Each time air filter ele-
ment maintenance is performed, check the air
inlet to the air filter case for obstructions.
Check the air filter elem ent rubber joint to the
throttle body and manifold fittings for an air-
tight seal. Tighten all fittings securely to avoid
the possibility of unfiltered air entering the en-
gine.NOTICEECB02270Never operate the engine with the air filter
element removed. Doing so would allow
unfiltered air to enter, causing rapid en-
gine wear and possible engine damage.
Additionally, the fuel injection system
would be affected, re sulting in poor engine
performance and possible overheating.
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Tightening torque: Spark plug:11 N·m (1.1 kgf·m, 8.1 lb·ft)
UB3D7AE0.book Page 32 Tuesday, November 7, 2017 9:38 AM

8-33
8
1. Remove the storage compartment locat-ed between the driver seat and the pas-
senger seat as shown.
2. Remove the air filter case cover by un- hooking the snap holders, and then rotat-
ing the cover up and pulling it away from

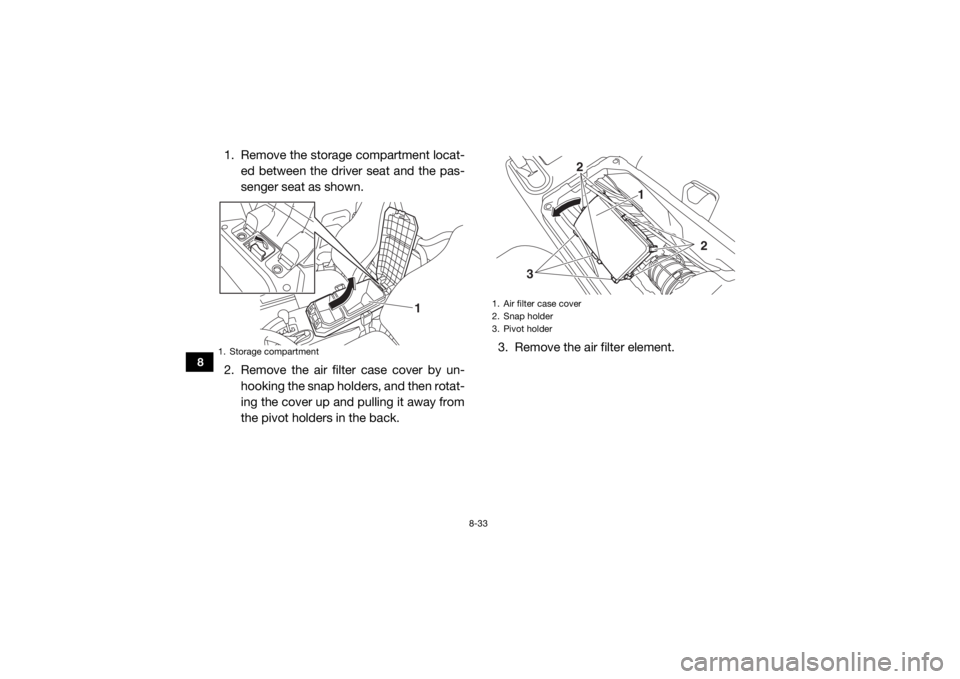

the pivot holders in the back. 3. Remove the air filter element.1. Storage compartment
1
1. Air filter case cover
2. Snap holder
3. Pivot holder
1
2
2
3
UB3D7AE0.book Page 33 Tuesday, November 7, 2017 9:38 AM

8-34
8
4. While pushing the projections on the airfilter frame inward, remove the air filter el-
ement holder. 5. Remove the sponge material from the air
filter frame.1. Air filter element
1
1. Air filter element holder
2. Projection
1
2
UB3D7AE0.book Page 34 Tuesday, November 7, 2017 9:38 AM

8-35
8
6. Wash the sponge material gently butthoroughly in parts cleaning solvent.
WARNING! Using gasoline or other flammable solvents to clean the air fil-
ter element can cause a fire or explo-
sion, which could lead to serious
injury.
[EWB03360]
7. Squeeze the excess solvent out of the
sponge material. NOTICE: Do not twist
the sponge material when squeezing
it.
[ECB00442]
8. Wash the sponge material in warm soapy
water to remove remaining solvent, then
rinse thoroughly with plain warm water.
9. Squeeze excess water out of the sponge
material. NOTICE: Do not twist the
sponge material when squeezing it.
[ECB00442]
10. Allow the sponge material to dry thor- oughly. Inspect the sponge material and
replace it if damaged.

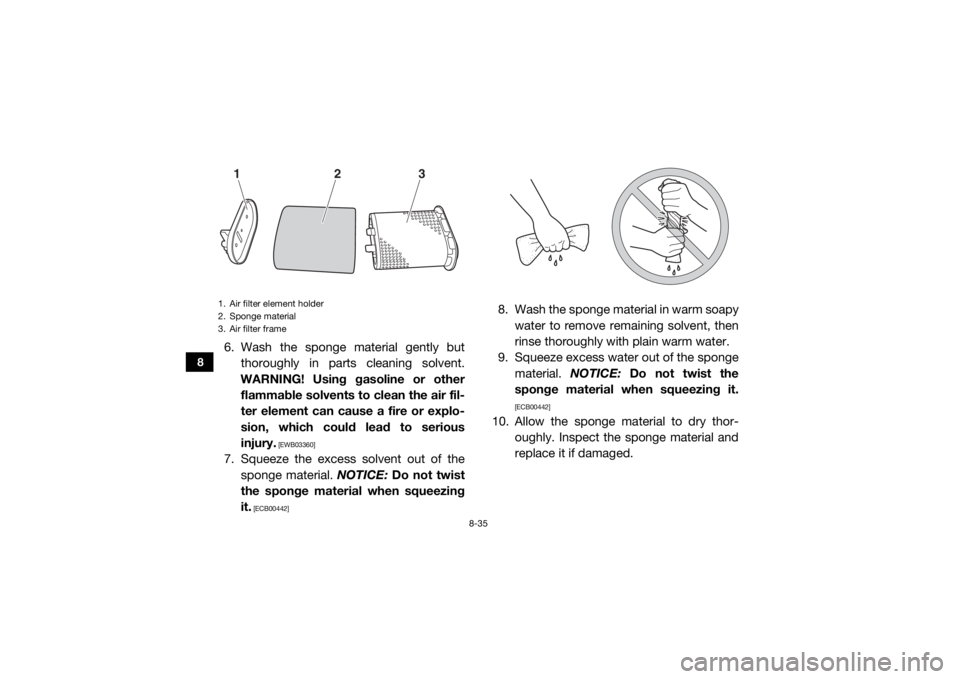

1. Air filter element holder
2. Sponge material
3. Air filter frame
3
2
1
UB3D7AE0.book Page 35 Tuesday, November 7, 2017 9:38 AM

8-36
8
11. Thoroughly apply Yamaha foam air filteroil or other quality liquid foam air filter oil
(not spray type) to the sponge material.
The sponge material should be wet but
not dripping.
12. Pull the sponge material over its frame.
13. Install the air filt er element holder.
14. Install the air filter element.
15. Install the air filter case cover by fitting the
pivot holders onto the projections on the
air filter case, and th en close and lock the
cover in place with the snap holders. 16. Install the storage compartment as
shown.
EBU33673Air filter check hosesThere is a check hose at the bottom of the air
filter case and at the bottom of the air intake
duct. If dust or water collects in a check hose,
the air filter element may be soiled. Clean the
check hose, air filter element and air filter
case.

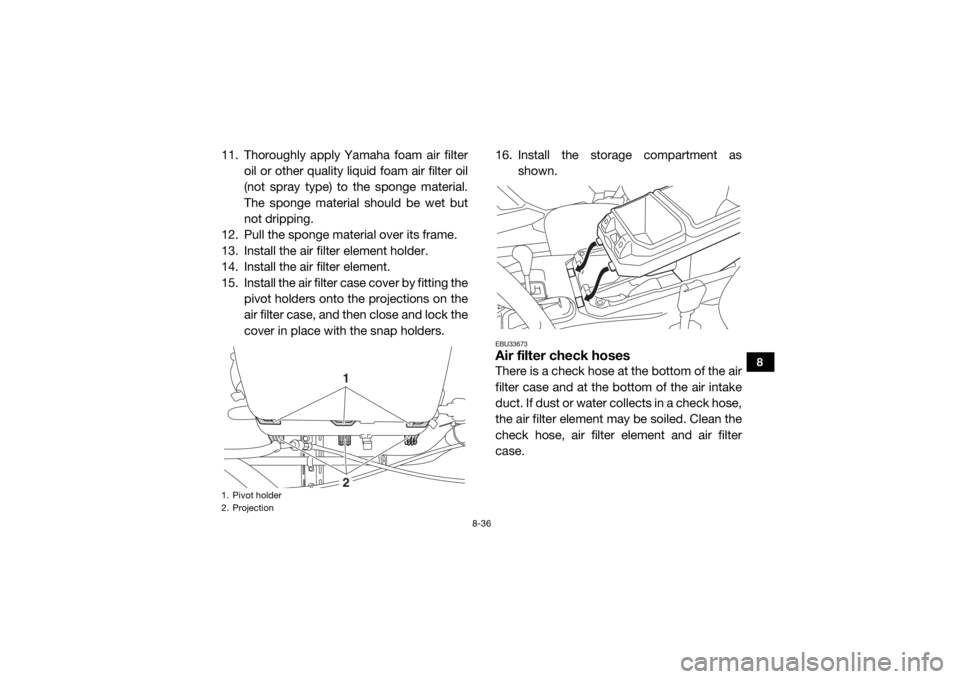

1. Pivot holder
2. Projection
1
2
UB3D7AE0.book Page 36 Tuesday, November 7, 2017 9:38 AM

8-37
8
EBU33691V-belt case drain plugThe V-belt case drain plug is located behind
the left panel. (See page 8-11 for left panel re-
moval and installation procedures.)
After operating in water deep enough to allow
water to enter the V-belt case, remove the
drain plug to drain any water from the case.
If water drains from the V-belt case after re-
moving the drain plug, have a Yamaha dealer
inspect the vehicle, as the water may affect
other engine parts.
EBU32450Cleaning the spark arrester
WARNING
EWB03370Hot exhaust system may cause burns. To
avoid burns or fires, make sure that the en-
gine is stopped and the exhaust system is
cool before cleaning the spark arrester. Do
not start the engine while cleaning the ex-
haust system. 1. Remove the tailpipe bolts.
1. Air intake duct check hose
2. Air filter case check hose2
1
1. V-belt case drain plug
1
