7-24
7

If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
THE REAR BRAKE – the ATV may tip over on
top of you. Dismount the ATV on the uphill side.
(See page 7-14.)
If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-18.)
If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let wa-
ter drain from the ATV and CHECK YOUR
BRAKES FOR PROPER OPERATION when
you come out of the water. Do not continue to
ride your ATV until you have regained adequate
braking ability. (See page 7-19.)
U3D563E0.book Page 24 Monday, May 12, 2008 11:12 AM

8-1
8
EBU28782

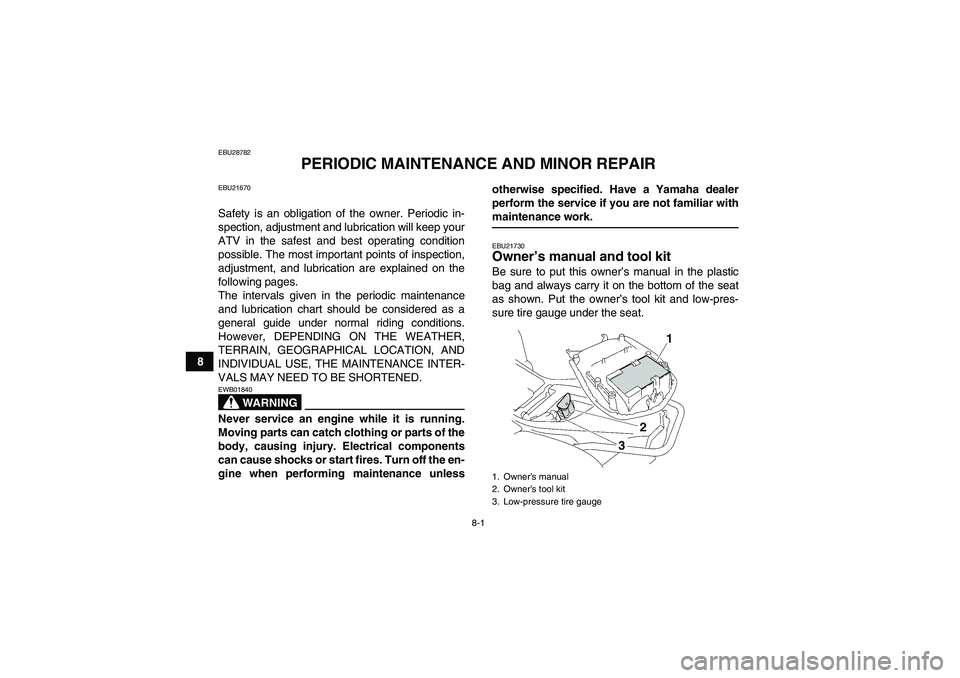

PERIODIC MAINTENANCE AND MINOR REPAIR
EBU21670Safety is an obligation of the owner. Periodic in-
spection, adjustment and lubrication will keep your
ATV in the safest and best operating condition
possible. The most important points of inspection,
adjustment, and lubrication are explained on the
following pages.
The intervals given in the periodic maintenance
and lubrication chart should be considered as a
general guide under normal riding conditions.
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORTENED.
WARNING
EWB01840Never service an engine while it is running.
Moving parts can catch clothing or parts of the
body, causing injury. Electrical components
can cause shocks or start fires. Turn off the en-
gine when performing maintenance unlessotherwise specified. Have a Yamaha dealer
perform the service if you are not familiar with
maintenance work.EBU21730Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and always carry it on the bottom of the seat
as shown. Put the owner’s tool kit and low-pres-
sure tire gauge under the seat.1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gauge
U3D563E0.book Page 1 Monday, May 12, 2008 11:12 AM

8-2

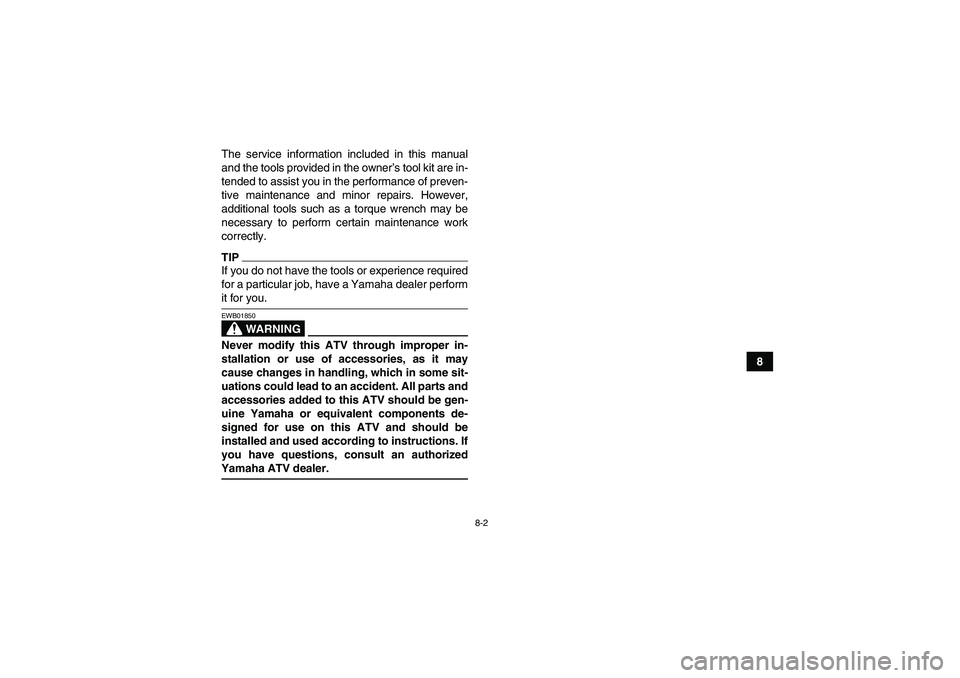

8 The service information included in this manual
and the tools provided in the owner’s tool kit are in-
tended to assist you in the performance of preven-
tive maintenance and minor repairs. However,
additional tools such as a torque wrench may be
necessary to perform certain maintenance work
correctly.
TIPIf you do not have the tools or experience required
for a particular job, have a Yamaha dealer performit for you.
WARNING
EWB01850Never modify this ATV through improper in-
stallation or use of accessories, as it may
cause changes in handling, which in some sit-
uations could lead to an accident. All parts and
accessories added to this ATV should be gen-
uine Yamaha or equivalent components de-
signed for use on this ATV and should be
installed and used according to instructions. If
you have questions, consult an authorizedYamaha ATV dealer.U3D563E0.book Page 2 Monday, May 12, 2008 11:12 AM

8-3
8
EBU21742Periodic maintenance chart for the emission control system TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1*Fuel lineCheck fuel hoses for cracks or other damage, and
replace if necessary.√√√
2 Spark plugCheck condition and clean, regap, or replace if
necessary.√√√√√
3*ValvesCheck valve clearance and adjust if necessary.√ √√√
4*CarburetorCheck starter (choke) operation and correct if nec-
essary.
Check engine idling speed and adjust if neces-
sary.√√√√
5*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
U3D563E0.book Page 3 Monday, May 12, 2008 11:12 AM

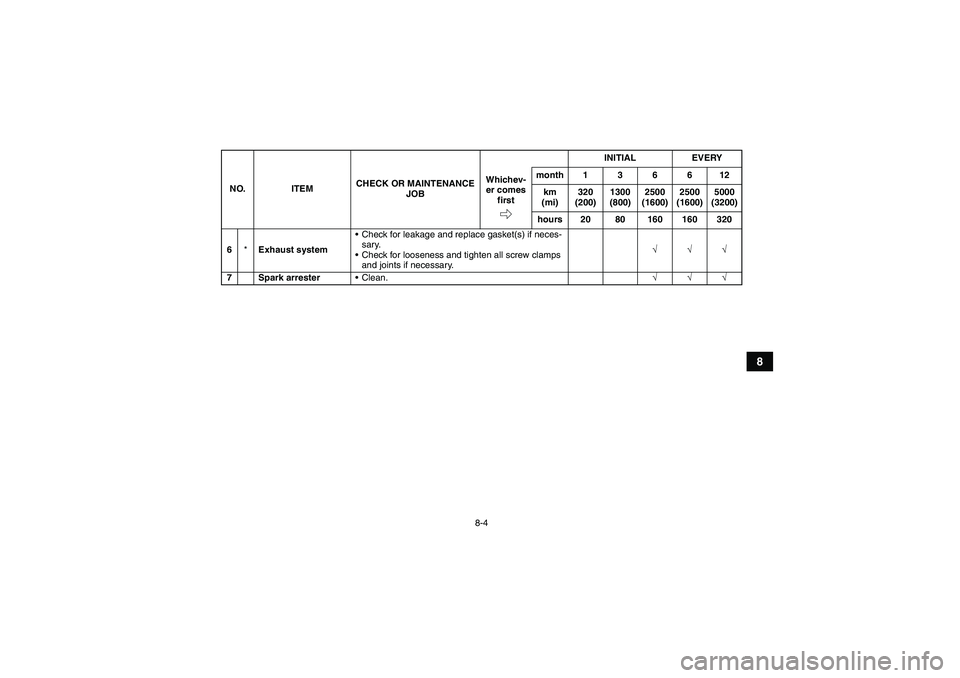

8-4
8
6*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
7 Spark arresterClean.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U3D563E0.book Page 4 Monday, May 12, 2008 11:12 AM

8-5
8

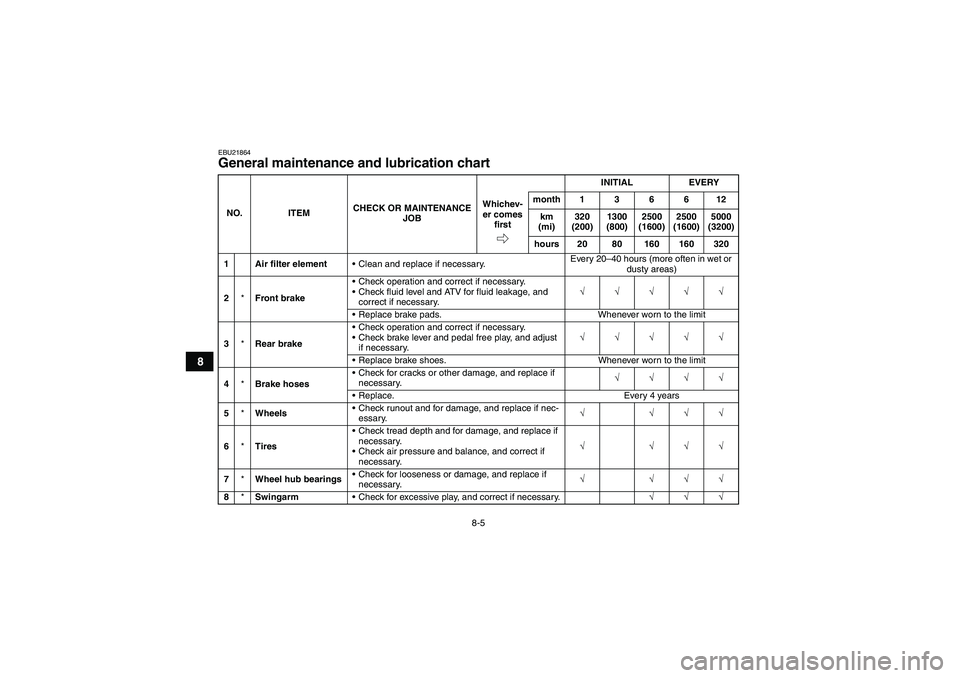

EBU21864General maintenance and lubrication chart NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1 Air filter elementClean and replace if necessary.Every 20–40 hours (more often in wet or
dusty areas)
2*Front brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
3*Rear brakeCheck operation and correct if necessary.
Check brake lever and pedal free play, and adjust
if necessary.√√√√√
Replace brake shoes. Whenever worn to the limit
4*Brake hosesCheck for cracks or other damage, and replace if
necessary.√√√√
Replace. Every 4 years
5*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
6*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
7*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
8*SwingarmCheck for excessive play, and correct if necessary.√√√
U3D563E0.book Page 5 Monday, May 12, 2008 11:12 AM

8-6
8
9*V- b e l tCheck for wear, cracks or other damage, and re-
place if necessary.√ √√√
10*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
11*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
12*Steering shaftLubricate with lithium-soap-based grease.√√√
13*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
14*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
15*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
16 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
17Engine oil filter car-
tridgeReplace.√√√
18*Engine oil strainerClean.√√√
19 Final gear oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√√
20*Moving parts and
cablesLubricate.√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U3D563E0.book Page 6 Monday, May 12, 2008 11:12 AM

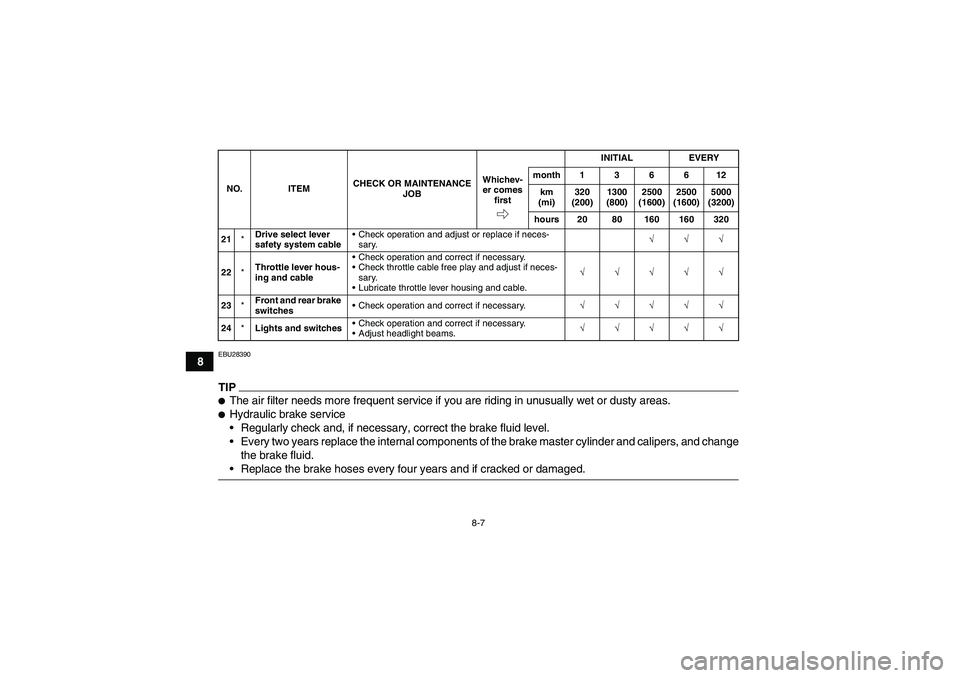

8-7
8
EBU28390TIP
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and calipers, and change
the brake fluid.Replace the brake hoses every four years and if cracked or damaged.21*Drive select lever
safety system cableCheck operation and adjust or replace if neces-
sary.√√√
22*Throttle lever hous-
ing and cableCheck operation and correct if necessary.
Check throttle cable free play and adjust if neces-
sary.
Lubricate throttle lever housing and cable.√√√√√
23*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
24*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beams.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U3D563E0.book Page 7 Monday, May 12, 2008 11:12 AM

8-8
8
EBU23080Removing and installing the panel The panel shown needs to be removed to perform
some of the maintenance jobs described in this
chapter. Refer to this section each time the panel
needs to be removed and installed.EBU23111Panel A
To remove the panelRemove the bolt, and then take the panel off.To install the panel
Place the panel in the original position and install
the bolt.NOTICEECB00380When installing the panel, be sure not to pinchthe cables or wires.EBU23211Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
1. Panel A
1. Panel A
2. Bolt
U3D563E0.book Page 8 Monday, May 12, 2008 11:12 AM

8-9
8plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.
2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-stead, have a Yamaha dealer check the ATV.
2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
1. Spark plug cap
1. Spark plug wrench
U3D563E0.book Page 9 Monday, May 12, 2008 11:12 AM
