YAMAHA WOLVERINE 350 2009 Owners Manual

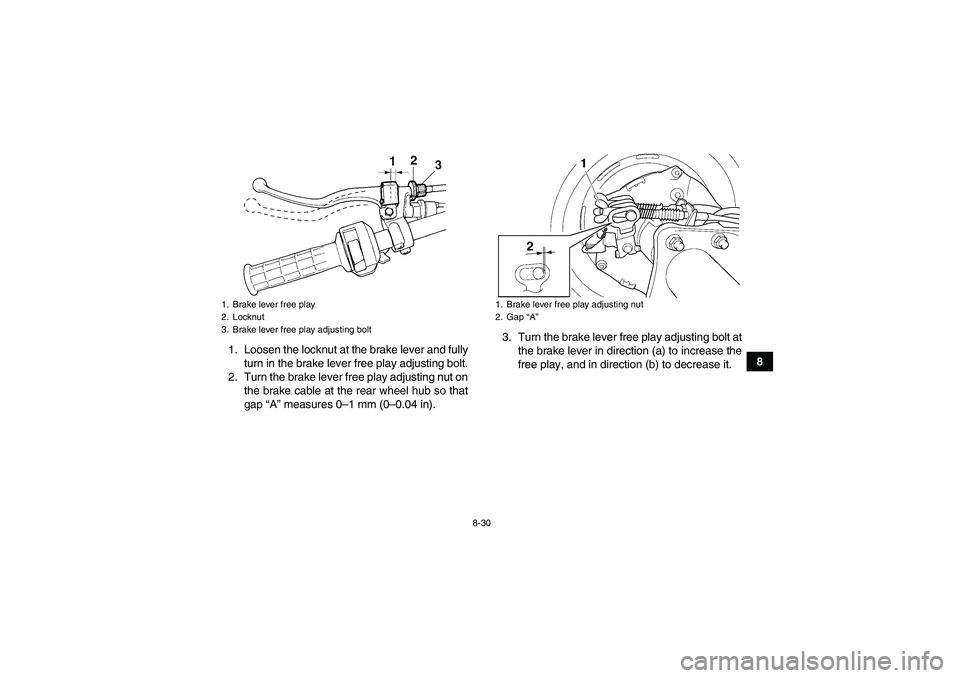

8-30
8 1. Loosen the locknut at the brake lever and fully
turn in the brake lever free play adjusting bolt.
2. Turn the brake lever free play adjusting nut on
the brake cable at the rear wheel hub so that
gap “A” measures 0–1 mm (0–0.04 in).3. Turn the brake lever free play adjusting bolt at
the brake lever in direction (a) to increase the
free play, and in direction (b) to decrease it.
1. Brake lever free play
2. Locknut
3. Brake lever free play adjusting bolt
1. Brake lever free play adjusting nut
2. Gap “A”
U3D563E0.book Page 30 Monday, May 12, 2008 11:12 AM

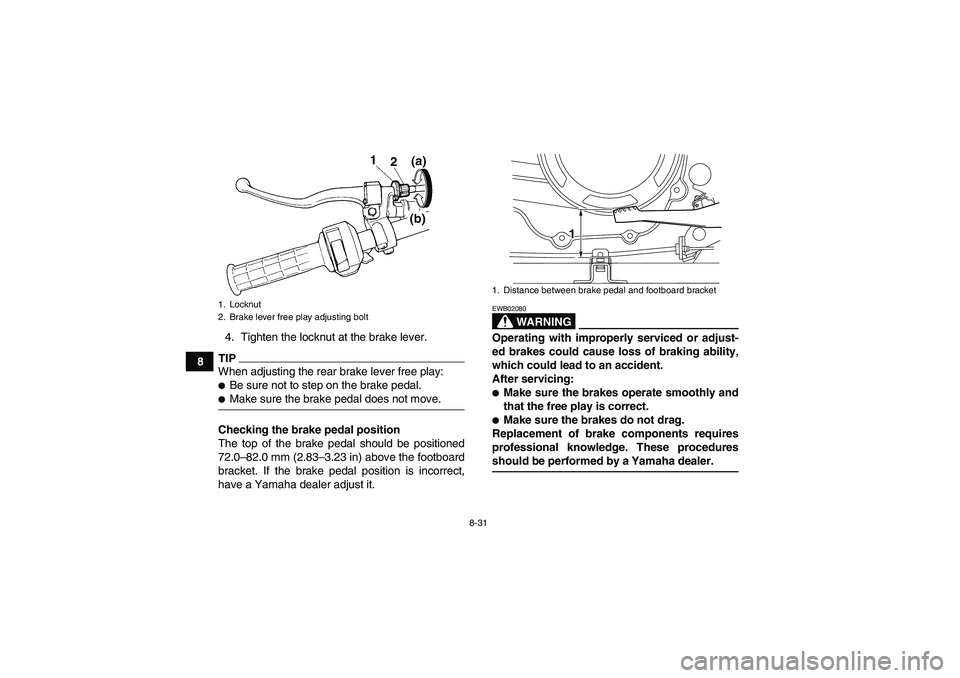

8-31
84. Tighten the locknut at the brake lever.
TIPWhen adjusting the rear brake lever free play:
Be sure not to step on the brake pedal.
Make sure the brake pedal does not move.
Checking the brake pedal position
The top of the brake pedal should be positioned
72.0–82.0 mm (2.83–3.23 in) above the footboard
bracket. If the brake pedal position is incorrect,
have a Yamaha dealer adjust it.
WARNING
EWB02080Operating with improperly serviced or adjust-
ed brakes could cause loss of braking ability,
which could lead to an accident.
After servicing:
Make sure the brakes operate smoothly and
that the free play is correct.
Make sure the brakes do not drag.
Replacement of brake components requires
professional knowledge. These proceduresshould be performed by a Yamaha dealer.
1. Locknut
2. Brake lever free play adjusting bolt
1. Distance between brake pedal and footboard bracket
1 1
U3D563E0.book Page 31 Monday, May 12, 2008 11:12 AM

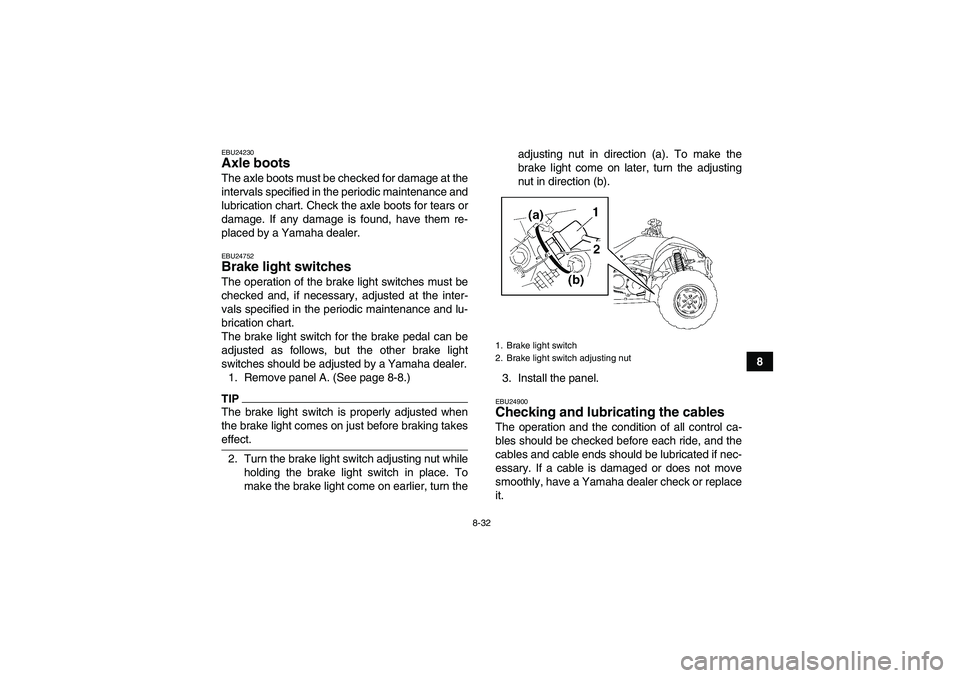

8-32
8
EBU24230Axle boots The axle boots must be checked for damage at the
intervals specified in the periodic maintenance and
lubrication chart. Check the axle boots for tears or
damage. If any damage is found, have them re-
placed by a Yamaha dealer.EBU24752Brake light switches The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
1. Remove panel A. (See page 8-8.)TIPThe brake light switch is properly adjusted when
the brake light comes on just before braking takeseffect.
2. Turn the brake light switch adjusting nut while
holding the brake light switch in place. To
make the brake light come on earlier, turn theadjusting nut in direction (a). To make the
brake light come on later, turn the adjusting
nut in direction (b).
3. Install the panel.
EBU24900Checking and lubricating the cables The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.1. Brake light switch
2. Brake light switch adjusting nut
U3D563E0.book Page 32 Monday, May 12, 2008 11:12 AM

8-33
8
WARNING
EWB02130Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could re-
strict the operation of controls and lead to anaccident or injury.EBU28711Checking and lubricating the front and
rear brake levers The operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
EBU28832Checking and lubricating the brake
pedal The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.TIPTo access the brake pedal pivot, remove panel A.(See page 8-8.) Recommended lubricant:
Engine oil
Recommended lubricants:
Front brake lever:
Silicone grease
Rear brake lever:
Lithium-soap-based greaseRecommended lubricant:
Lithium-soap-based grease
U3D563E0.book Page 33 Monday, May 12, 2008 11:12 AM

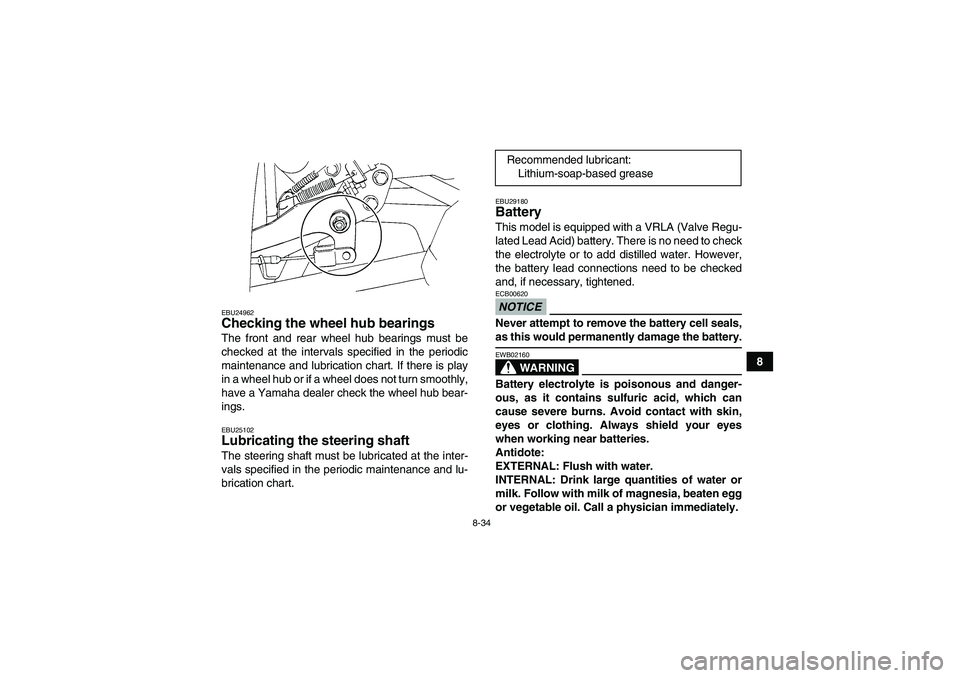

8-34
8
EBU24962Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.EBU25102Lubricating the steering shaft The steering shaft must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU29180Battery This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.NOTICEECB00620Never attempt to remove the battery cell seals,as this would permanently damage the battery.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.Recommended lubricant:
Lithium-soap-based grease
U3D563E0.book Page 34 Monday, May 12, 2008 11:12 AM

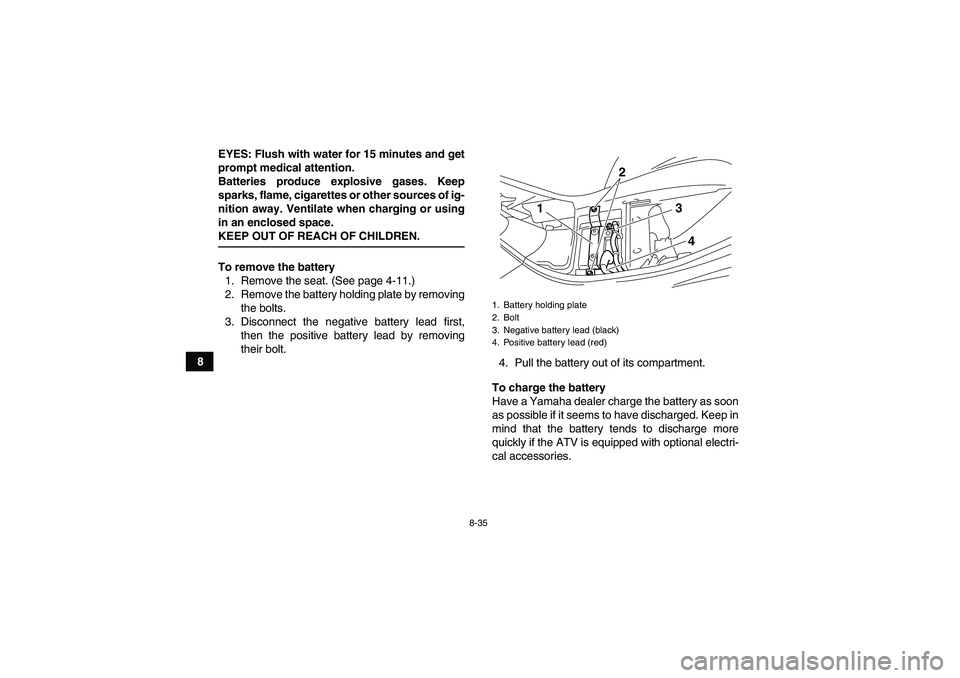

8-35
8EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.
KEEP OUT OF REACH OF CHILDREN.
To remove the battery
1. Remove the seat. (See page 4-11.)
2. Remove the battery holding plate by removing
the bolts.
3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt.
4. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
1. Battery holding plate
2. Bolt
3. Negative battery lead (black)
4. Positive battery lead (red)
2
1
4
3
U3D563E0.book Page 35 Monday, May 12, 2008 11:12 AM

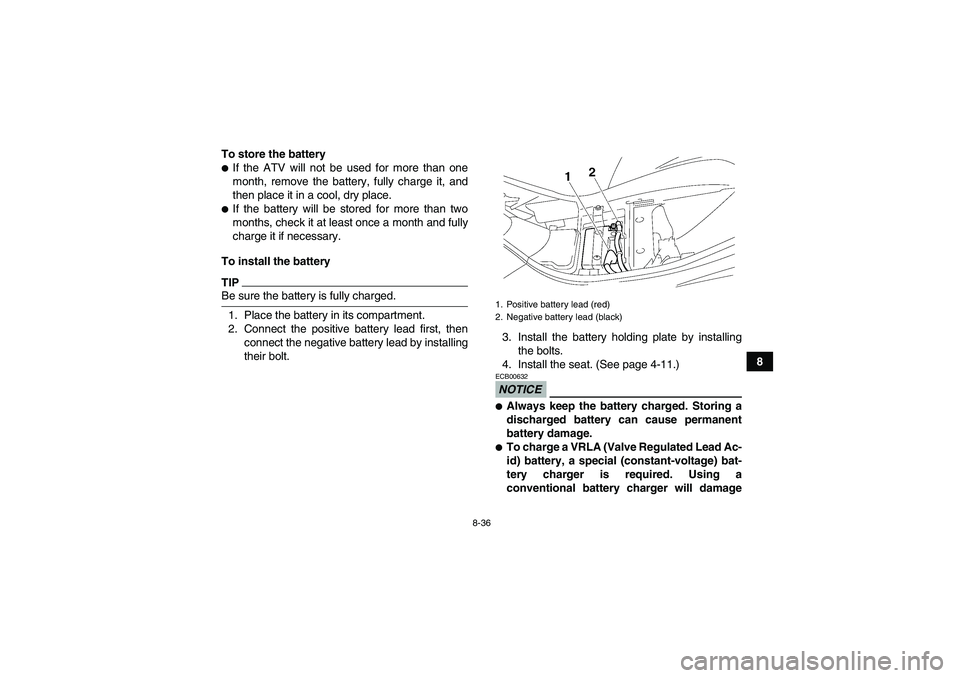

8-36
8 To store the battery

If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.
To install the batteryTIPBe sure the battery is fully charged.
1. Place the battery in its compartment.
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt.3. Install the battery holding plate by installing
the bolts.
4. Install the seat. (See page 4-11.)
NOTICEECB00632
Always keep the battery charged. Storing a
discharged battery can cause permanent
battery damage.
To charge a VRLA (Valve Regulated Lead Ac-
id) battery, a special (constant-voltage) bat-
tery charger is required. Using a
conventional battery charger will damage1. Positive battery lead (red)
2. Negative battery lead (black)
U3D563E0.book Page 36 Monday, May 12, 2008 11:12 AM

8-37
8the battery. If you do not have access to a
constant-voltage battery charger, have a
Yamaha dealer charge your battery.EBU25324Replacing a fuse
The main fuse and the fuse box are located under
the seat. (See page 4-11.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Signaling system fuse
4. Spare fuse
U3D563E0.book Page 37 Monday, May 12, 2008 11:12 AM

8-38
8 2. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING
EWB02171Always use a fuse of the specified rating, and
never use a substitute object in place of the
proper fuse. An improper fuse or a substitute
object can cause damage to the electrical sys-tem, which could lead to a fire.
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.
EBU25541Replacing a headlight bulb If a headlight bulb burns out, replace it as follows.
1. Remove the headlight bulb holder cover at the
rear of the headlight by pulling it off.
2. Remove the headlight bulb holder by pushing
it inward and turning it counterclockwise. Specified fuses:
Main fuse:
20.0 A
Headlight fuse:
15.0 A
Ignition fuse:
15.0 A
Signaling system fuse:
10.0 A1. Headlight bulb holder cover
U3D563E0.book Page 38 Monday, May 12, 2008 11:12 AM

8-39
83. Remove the defective bulb from the headlight
unit by pulling it out.
WARNING
EWB02220A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-es something flammable.
4. Install a new headlight bulb into the headlight
unit by aligning the projection on the bulb with
the groove in the headlight unit.
NOTICEECB00650Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a clothmoistened with alcohol or thinner.
5. Install the headlight bulb holder by aligning the
projections with the holes in the headlight unit,
pushing it inward, and turning it clockwise until
it stops.
1. Headlight bulb holder
1. Do not touch the glass part of the bulb.
U3D563E0.book Page 39 Monday, May 12, 2008 11:12 AM
