3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Front shock absorber assembly spring preload adjusting
ring
2. Fuel cock
3. Air filter case
4. Fuses
5. Storage compartment and tool kit
6. Seat lock lever
7. Rear shock absorber assembly spring preload adjusting
ring
8. Engine oil filler cap
9. Oil filter cartridge
10.V-belt cooling duct check hose
1. Spark arrester
2. Tail/brake light
3. Spark plug
4. Front shock absorber assembly spring preload adjusting
ring
5. Rear brake light switch
6. Brake pedal
7. V-belt case
U3D563E0.book Page 1 Monday, May 12, 2008 11:12 AM

4-9
4
TIPIf knocking or pinging occurs, use a different brandof gasoline or higher octane grade.NOTICEECB00070Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and pistonrings, as well as to the exhaust system.
WARNING
EWB00310
Do not overfill the fuel tank. Fuel expands
when it heats up. If the fuel tank is overfilled,
fuel could spill out due to heat from the en-
gine or the sun.
Be careful not to spill fuel, especially on the
engine or exhaust pipe which can cause a
fire and severe injury. Wipe up any spilled
fuel immediately.
Do not refuel right after the engine has been
running and is still very hot.
Be sure the fuel tank cap is closed securely.
EBU18820Fuel cock The fuel cock supplies fuel from the tank to the car-
buretor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations.
OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this position
when the engine is not running.1. Arrow mark positioned over “OFF”
U3D563E0.book Page 9 Monday, May 12, 2008 11:12 AM

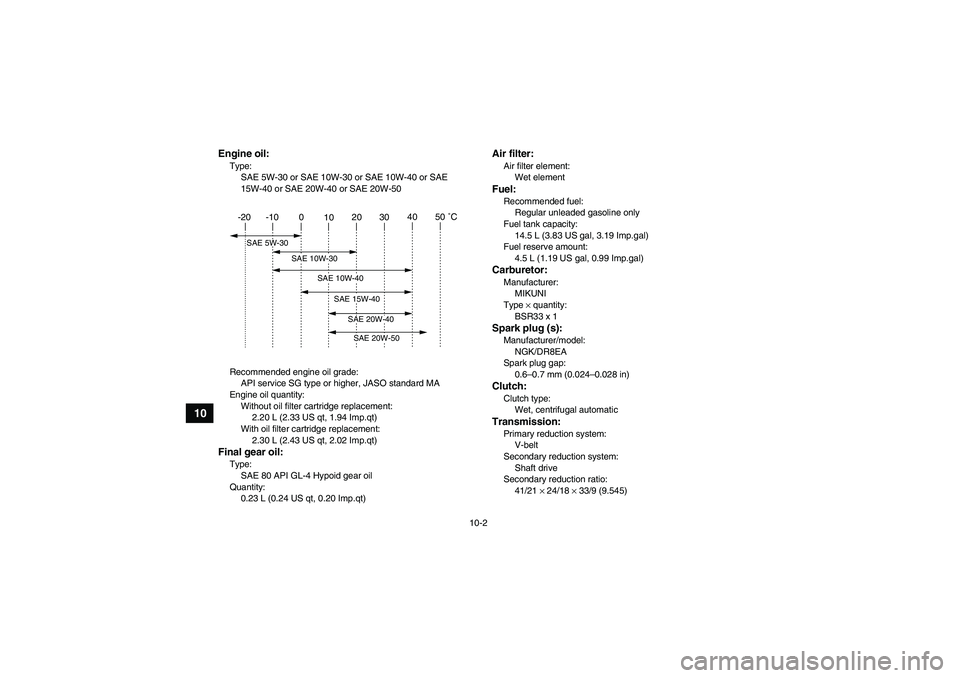

10-2
10
Engine oil:Type:
SAE 5W-30 or SAE 10W-30 or SAE 10W-40 or SAE
15W-40 or SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement:
2.30 L (2.43 US qt, 2.02 Imp.qt)Final gear oil:Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.23 L (0.24 US qt, 0.20 Imp.qt)
Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
14.5 L (3.83 US gal, 3.19 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)Carburetor:Manufacturer:
MIKUNI
Type × quantity:
BSR33 x 1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, centrifugal automaticTransmission:Primary reduction system:
V-belt
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
41/21 × 24/18 × 33/9 (9.545)
-20 -10 0
1020 304050 ˚C
SAE 15W-40
SAE 20W-40SAE 20W-50
SAE 10W-40
SAE 5W-30
SAE 10W-30
U3D563E0.book Page 2 Monday, May 12, 2008 11:12 AM

INDEX
AAccessories and loading ................................................ 6-6
Air filter element, cleaning ............................................ 8-17
Axle boots .................................................................... 8-32BBattery .......................................................................... 8-34
Brake fluid, changing .................................................... 8-27
Brake fluid level, checking ............................................ 8-26
Brake lever free play, checking the front ...................... 8-28
Brake lever, front ............................................................ 4-5
Brake levers, checking and lubricating ......................... 8-33
Brake light switches ..................................................... 8-32
Brake pads and shoes, checking ................................. 8-25
Brake pedal and brake lever free play (rear) and
brake pedal position, adjusting and checking ............ 8-28
Brake pedal and rear brake lever ................................... 4-5
Brake pedal, checking and lubricating ......................... 8-33
Brakes, front and rear .................................................... 5-3CCables, checking and lubricating ................................. 8-32
Carburetor, adjusting .................................................... 8-23
Chassis fasteners ........................................................... 5-6
Cleaning ......................................................................... 9-1DDrive select lever ............................................................ 4-7
Drive select lever and driving in reverse ........................ 6-3
Drive select lever safety system cable, adjusting ......... 8-25
EEngine break-in .............................................................. 6-4
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-23
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-10
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-3FFinal gear oil .......................................................... 5-3, 8-14
Fuel ......................................................................... 4-8, 5-3
Fuel cock ........................................................................ 4-9
Fuel tank cap .................................................................. 4-7
Fuses, replacing ........................................................... 8-37HHandlebar switches ........................................................ 4-3
Headlight beam, adjusting ............................................ 8-40
Headlight bulb, replacing .............................................. 8-38IIdentification numbers .................................................. 11-1
Indicator lights and warning light .................................... 4-2
Instruments, lights and switches .................................... 5-6KKey identification number ............................................. 11-1LLabel locations ............................................................... 2-1
Light switch .................................................................... 4-3
