8-37
8the battery. If you do not have access to a
constant-voltage battery charger, have a
Yamaha dealer charge your battery.EBU25324Replacing a fuse

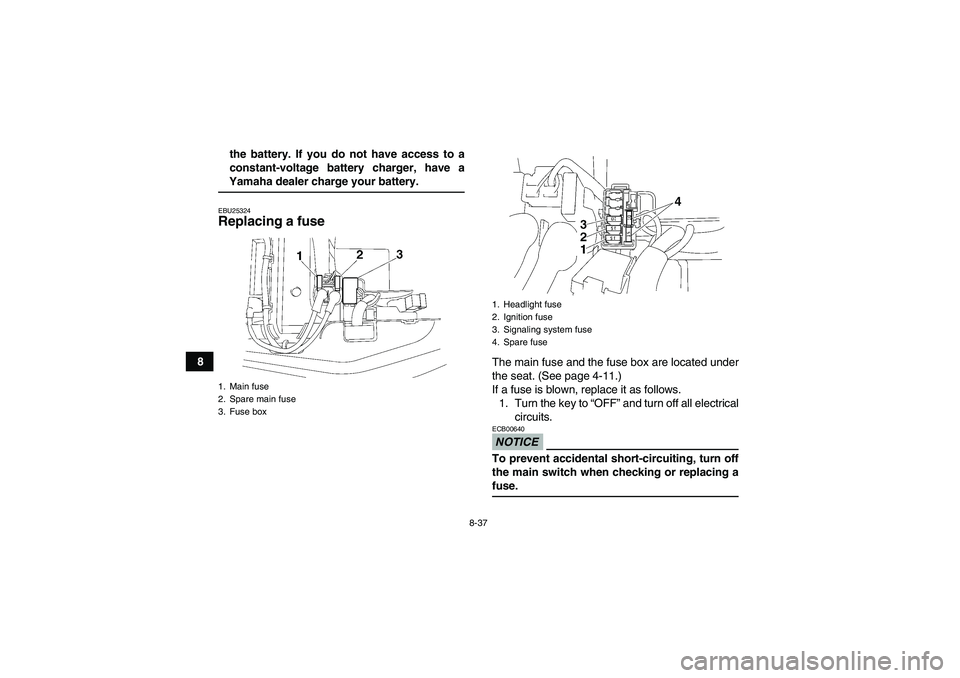

The main fuse and the fuse box are located under
the seat. (See page 4-11.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing afuse.
1. Main fuse
2. Spare main fuse
3. Fuse box
1. Headlight fuse
2. Ignition fuse
3. Signaling system fuse
4. Spare fuse
U3D563E0.book Page 37 Monday, May 12, 2008 11:12 AM
