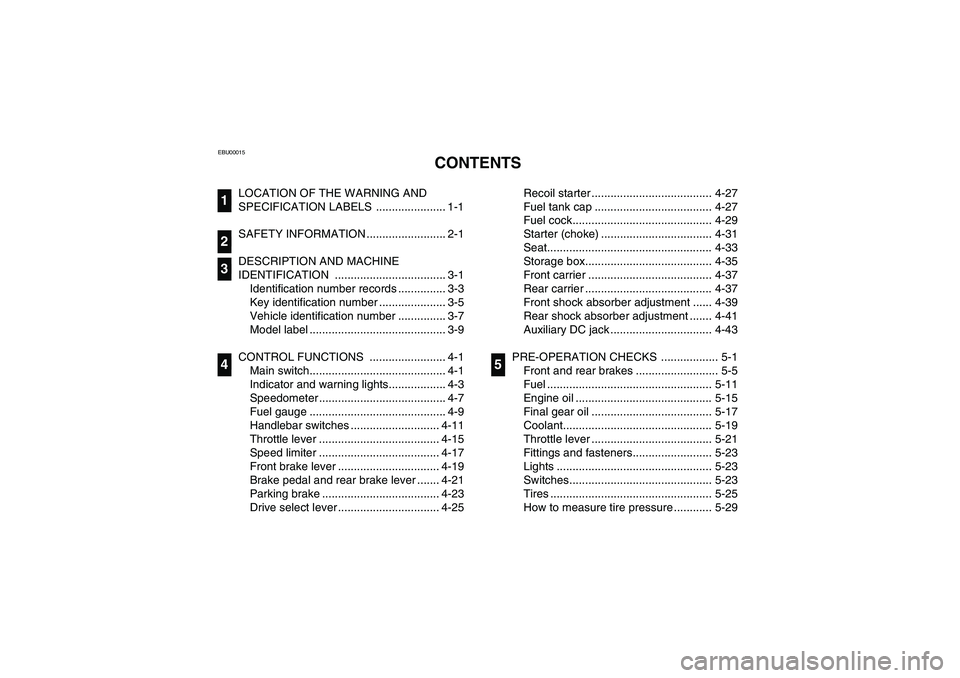

1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer ........................................ 4-7
Fuel gauge ........................................... 4-9
Handlebar switches ............................ 4-11
Throttle lever ...................................... 4-15
Speed limiter ...................................... 4-17
Front brake lever ................................ 4-19
Brake pedal and rear brake lever ....... 4-21
Parking brake ..................................... 4-23
Drive select lever ................................ 4-25
1234
Recoil starter ...................................... 4-27
Fuel tank cap ..................................... 4-27
Fuel cock............................................ 4-29
Starter (choke) ................................... 4-31
Seat.................................................... 4-33
Storage box........................................ 4-35
Front carrier ....................................... 4-37
Rear carrier ........................................ 4-37
Front shock absorber adjustment ...... 4-39
Rear shock absorber adjustment ....... 4-41
Auxiliary DC jack ................................ 4-43
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel .................................................... 5-11
Engine oil ........................................... 5-15
Final gear oil ...................................... 5-17
Coolant............................................... 5-19
Throttle lever ...................................... 5-21
Fittings and fasteners......................... 5-23
Lights ................................................. 5-23
Switches............................................. 5-23
Tires ................................................... 5-25
How to measure tire pressure ............ 5-29
5
U5VH61.book Page 1 Friday, May 2, 2003 2:19 PM

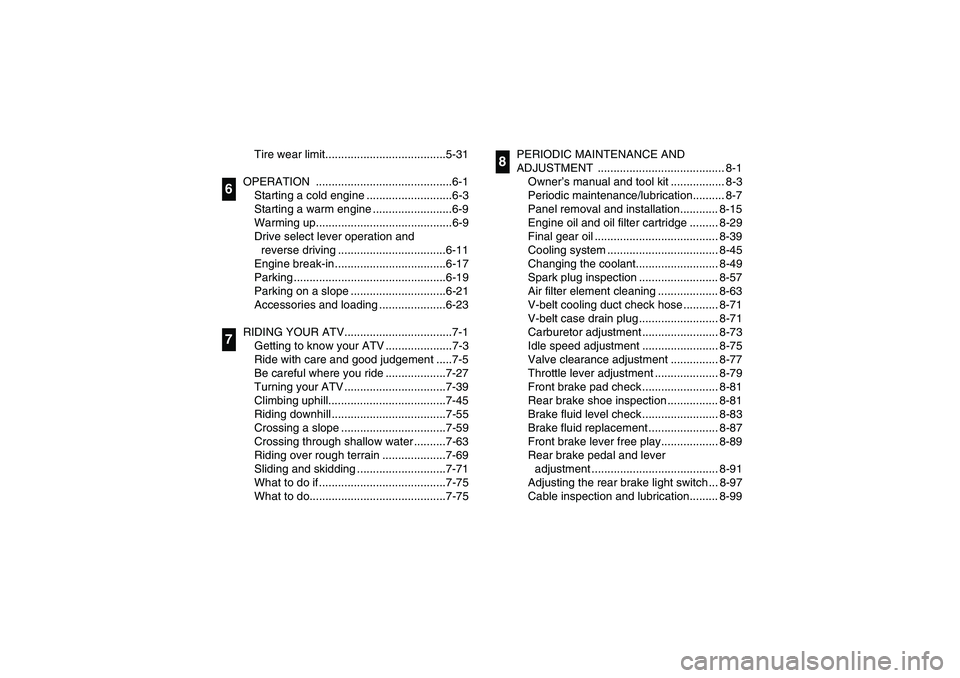

Tire wear limit......................................5-31
OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-15
Engine oil and oil filter cartridge ......... 8-29
Final gear oil ....................................... 8-39
Cooling system ................................... 8-45
Changing the coolant.......................... 8-49
Spark plug inspection ......................... 8-57
Air filter element cleaning ................... 8-63
V-belt cooling duct check hose ........... 8-71
V-belt case drain plug ......................... 8-71
Carburetor adjustment ........................ 8-73
Idle speed adjustment ........................ 8-75
Valve clearance adjustment ............... 8-77
Throttle lever adjustment .................... 8-79
Front brake pad check ........................ 8-81
Rear brake shoe inspection ................ 8-81
Brake fluid level check ........................ 8-83
Brake fluid replacement ...................... 8-87
Front brake lever free play.................. 8-89
Rear brake pedal and lever
adjustment ........................................ 8-91
Adjusting the rear brake light switch ... 8-97
Cable inspection and lubrication......... 8-99
8
U5VH61.book Page 2 Friday, May 2, 2003 2:19 PM

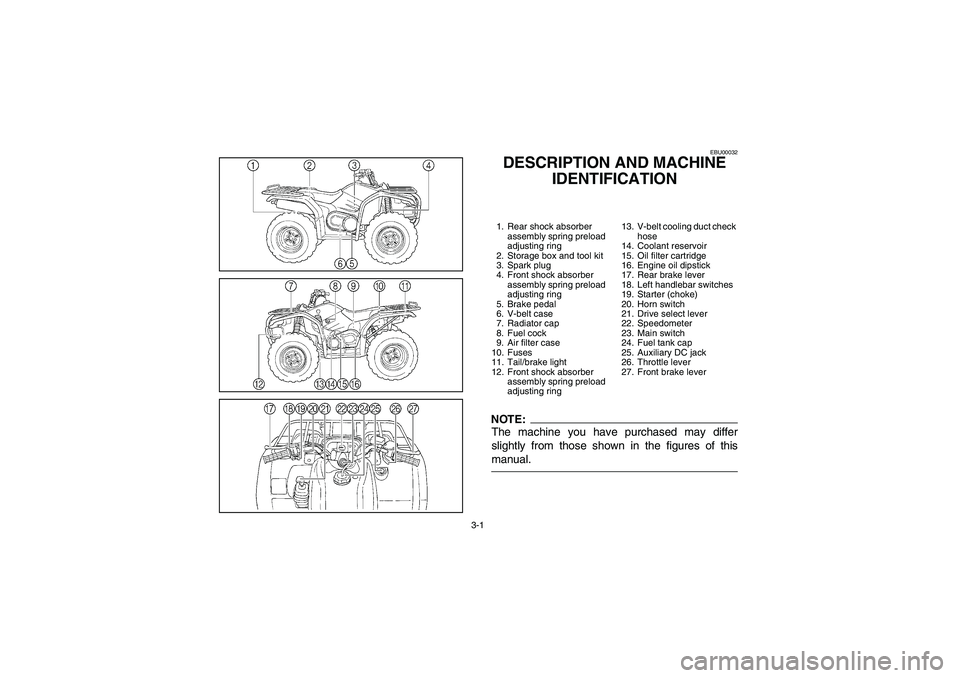

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Front shock absorber
assembly spring preload
adjusting ring
5. Brake pedal
6. V-belt case
7. Radiator cap
8. Fuel cock
9. Air filter case
10. Fuses
11. Tail/brake light
12. Front shock absorber
assembly spring preload
adjusting ring13. V-belt cooling duct check
hose
14. Coolant reservoir
15. Oil filter cartridge
16. Engine oil dipstick
17. Rear brake lever
18. Left handlebar switches
19. Starter (choke)
20. Horn switch
21. Drive select lever
22. Speedometer
23. Main switch
24. Fuel tank cap
25. Auxiliary DC jack
26. Throttle lever
27. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5VH61.book Page 1 Friday, May 2, 2003 2:19 PM

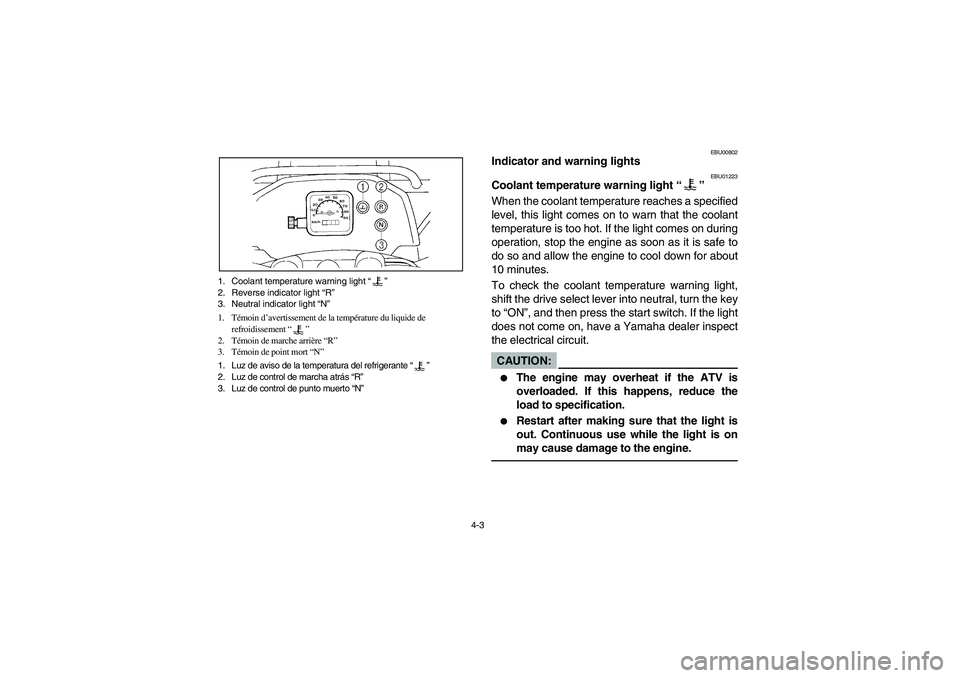

4-3 1. Coolant temperature warning light “”
2. Reverse indicator light “R”
3. Neutral indicator light “N”
1. Témoin d’avertissement de la température du liquide de
refroidissement “”
2. Témoin de marche arrière “R”
3. Témoin de point mort “N”
1. Luz de aviso de la temperatura del refrigerante “”
2. Luz de control de marcha atrás “R”
3. Luz de control de punto muerto “N”
EBU00802
Indicator and warning lights
EBU01223
Coolant temperature warning light “”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
To check the coolant temperature warning light,
shift the drive select lever into neutral, turn the key
to “ON”, and then press the start switch. If the light
does not come on, have a Yamaha dealer inspect
the electrical circuit.CAUTION:_

The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.


Restart after making sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
U5VH61.book Page 3 Friday, May 2, 2003 2:19 PM

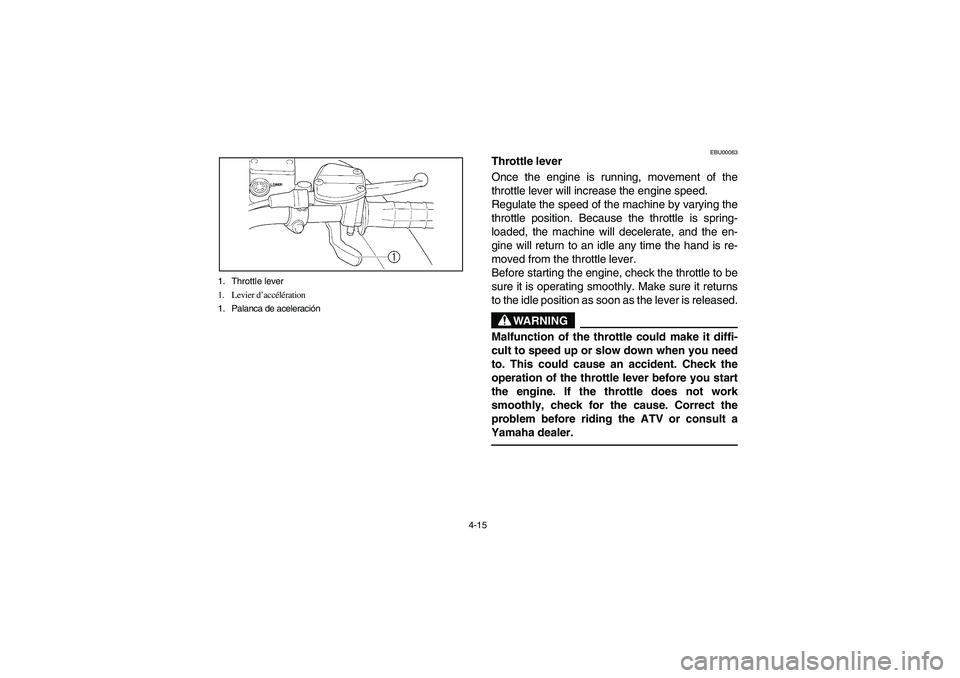

4-15 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
U5VH61.book Page 15 Friday, May 2, 2003 2:19 PM

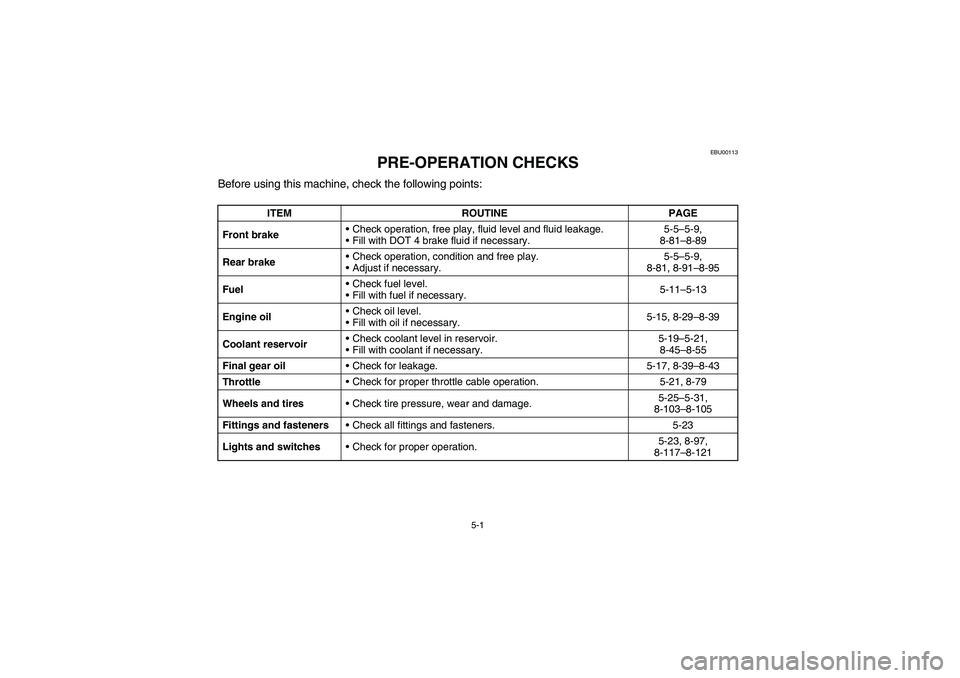

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-9,
8-81–8-89
Rear brakeCheck operation, condition and free play.
Adjust if necessary.5-5–5-9,
8-81, 8-91–8-95
FuelCheck fuel level.
Fill with fuel if necessary.5-11–5-13
Engine oilCheck oil level.
Fill with oil if necessary.5-15, 8-29–8-39
Coolant reservoirCheck coolant level in reservoir.
Fill with coolant if necessary.5-19–5-21,
8-45–8-55
Final gear oilCheck for leakage. 5-17, 8-39–8-43
ThrottleCheck for proper throttle cable operation. 5-21, 8-79
Wheels and tiresCheck tire pressure, wear and damage.5-25–5-31,
8-103–8-105
Fittings and fastenersCheck all fittings and fasteners. 5-23
Lights and switchesCheck for proper operation.5-23, 8-97,
8-117–8-121
U5VH61.book Page 1 Friday, May 2, 2003 2:19 PM

5-19
EBU01316

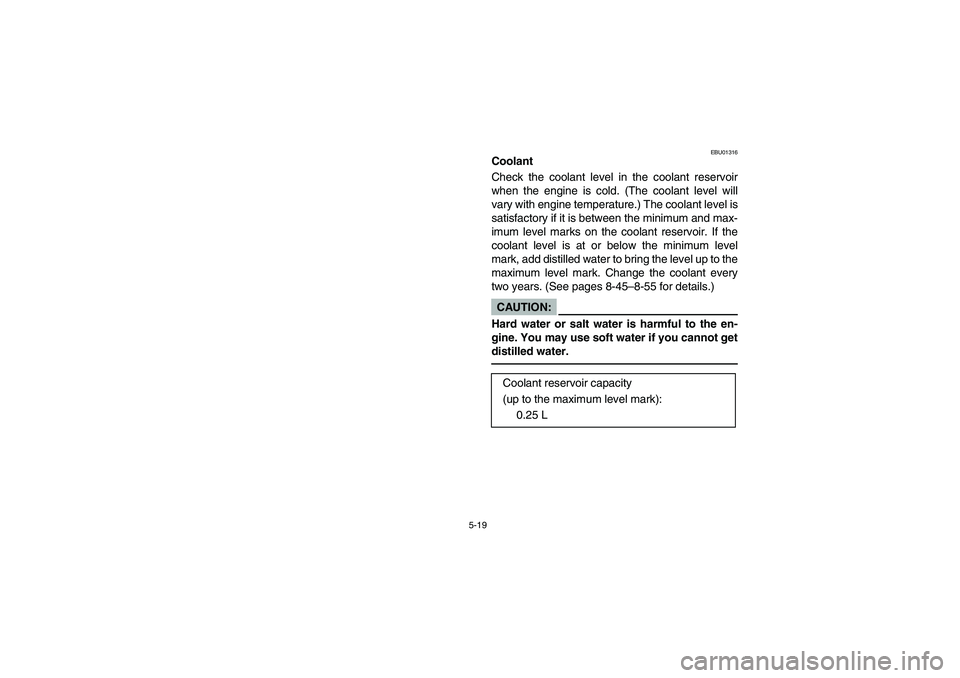

Coolant
Check the coolant level in the coolant reservoir
when the engine is cold. (The coolant level will
vary with engine temperature.) The coolant level is
satisfactory if it is between the minimum and max-
imum level marks on the coolant reservoir. If the
coolant level is at or below the minimum level
mark, add distilled water to bring the level up to the
maximum level mark. Change the coolant every
two years. (See pages 8-45–8-55 for details.)CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U5VH61.book Page 19 Friday, May 2, 2003 2:19 PM

5-21

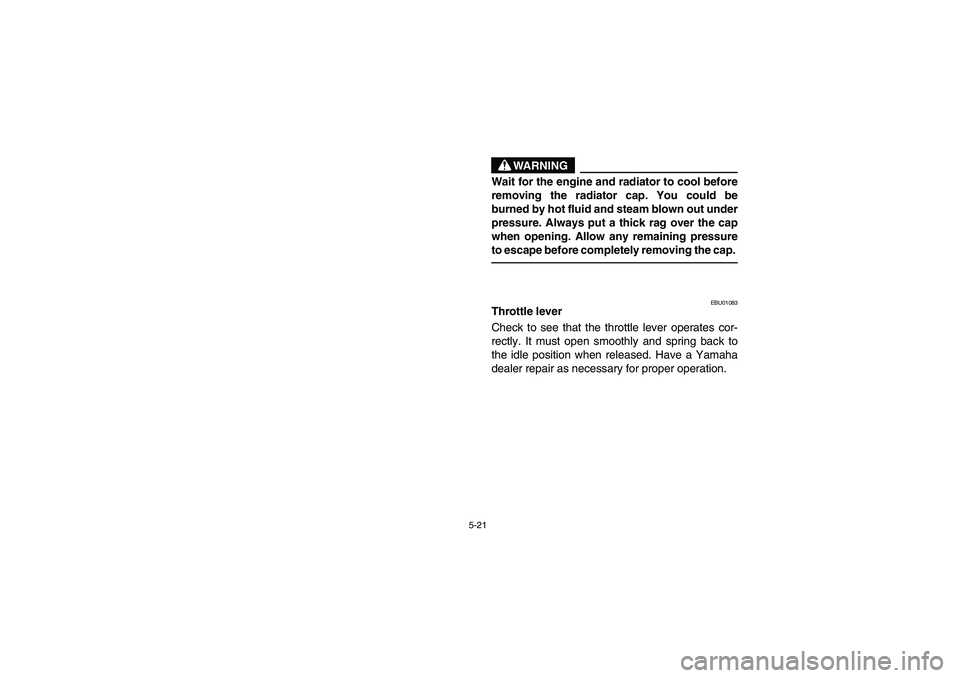

WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.
U5VH61.book Page 21 Friday, May 2, 2003 2:19 PM

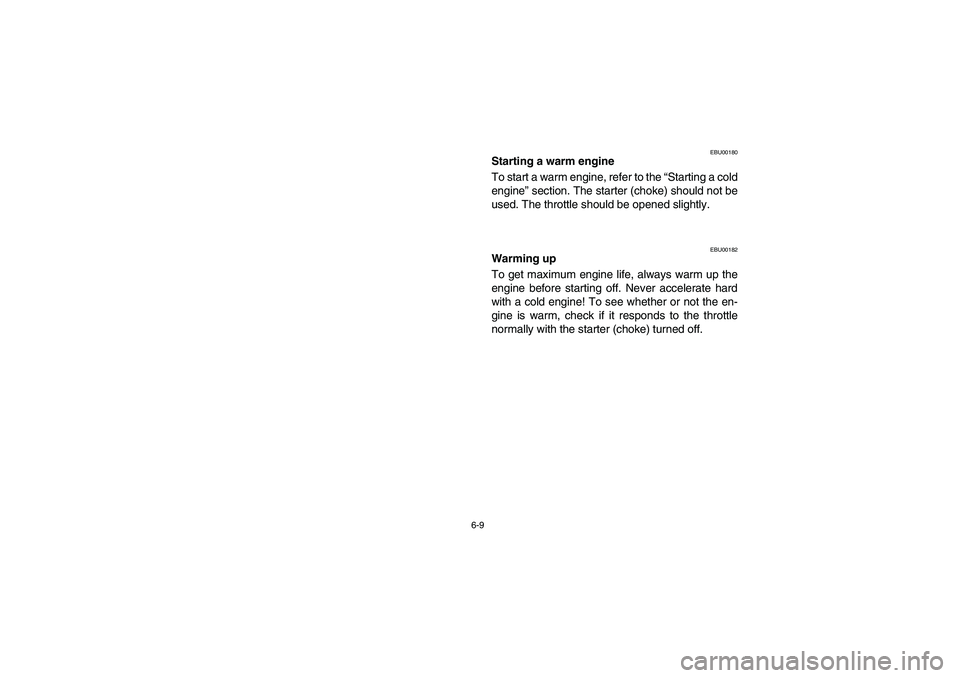

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
U5VH61.book Page 9 Friday, May 2, 2003 2:19 PM

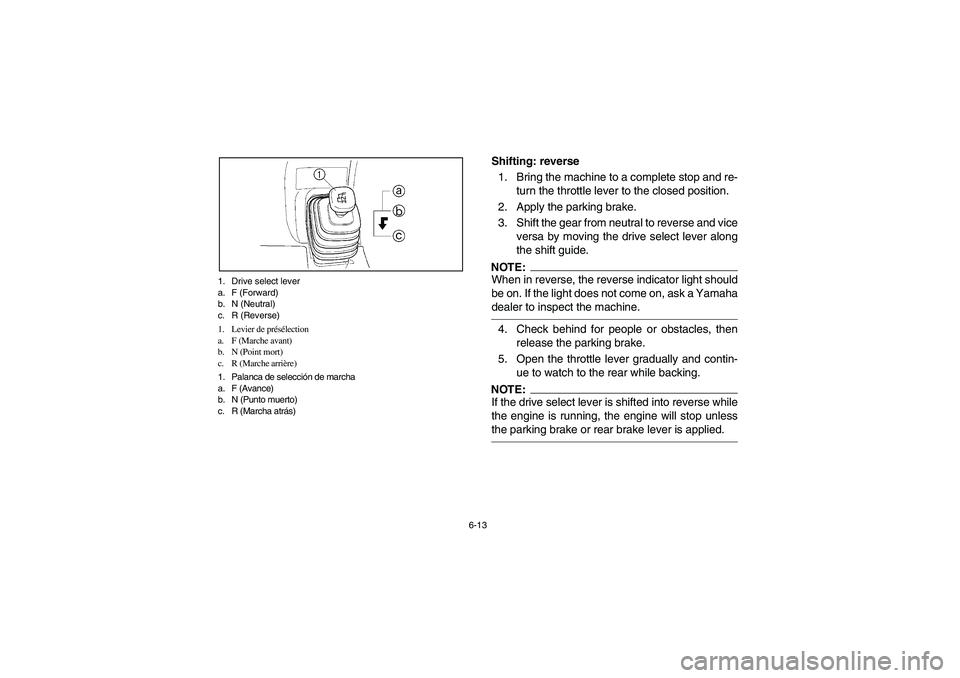

6-13 1. Drive select lever
a. F (Forward)
b. N (Neutral)
c. R (Reverse)
1. Levier de présélection
a. F (Marche avant)
b. N (Point mort)
c. R (Marche arrière)
1. Palanca de selección de marcha
a. F (Avance)
b. N (Punto muerto)
c. R (Marcha atrás)
Shifting: reverse
1. Bring the machine to a complete stop and re-
turn the throttle lever to the closed position.
2. Apply the parking brake.
3. Shift the gear from neutral to reverse and vice
versa by moving the drive select lever along
the shift guide.NOTE:_ When in reverse, the reverse indicator light should
be on. If the light does not come on, ask a Yamaha
dealer to inspect the machine. _4. Check behind for people or obstacles, then
release the parking brake.
5. Open the throttle lever gradually and contin-
ue to watch to the rear while backing.NOTE:_ If the drive select lever is shifted into reverse while
the engine is running, the engine will stop unless
the parking brake or rear brake lever is applied. _
U5VH61.book Page 13 Friday, May 2, 2003 2:19 PM
