8-1
8
EBU28782
PERIODIC MAINTENANCE AND MINOR REPAIR
EBU21670Safety is an obligation of the owner. Periodic in-
spection, adjustment and lubrication will keep your
ATV in the safest and best operating condition
possible. The most important points of inspection,
adjustment, and lubrication are explained on the
following pages.
The intervals given in the periodic maintenance
and lubrication chart should be considered as a
general guide under normal riding conditions.
However, DEPENDING ON THE WEATHER,
TERRAIN, GEOGRAPHICAL LOCATION, AND
INDIVIDUAL USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORTENED.
WARNING
EWB01840Never service an engine while it is running.
Moving parts can catch clothing or parts of the
body, causing injury. Electrical components
can cause shocks or start fires. Turn off the en-
gine when performing maintenance unlessotherwise specified. Have a Yamaha dealer
perform the service if you are not familiar with
maintenance work.EBU21730Owner’s manual and tool kit Be sure to put this owner’s manual in the plastic
bag and always carry it on the bottom of the seat
as shown. Put the owner’s tool kit and low-pres-
sure tire gauge under the seat.1. Owner’s manual
2. Owner’s tool kit
3. Low-pressure tire gauge
U3C263E0.book Page 1 Thursday, May 15, 2008 10:44 AM
8-53
8

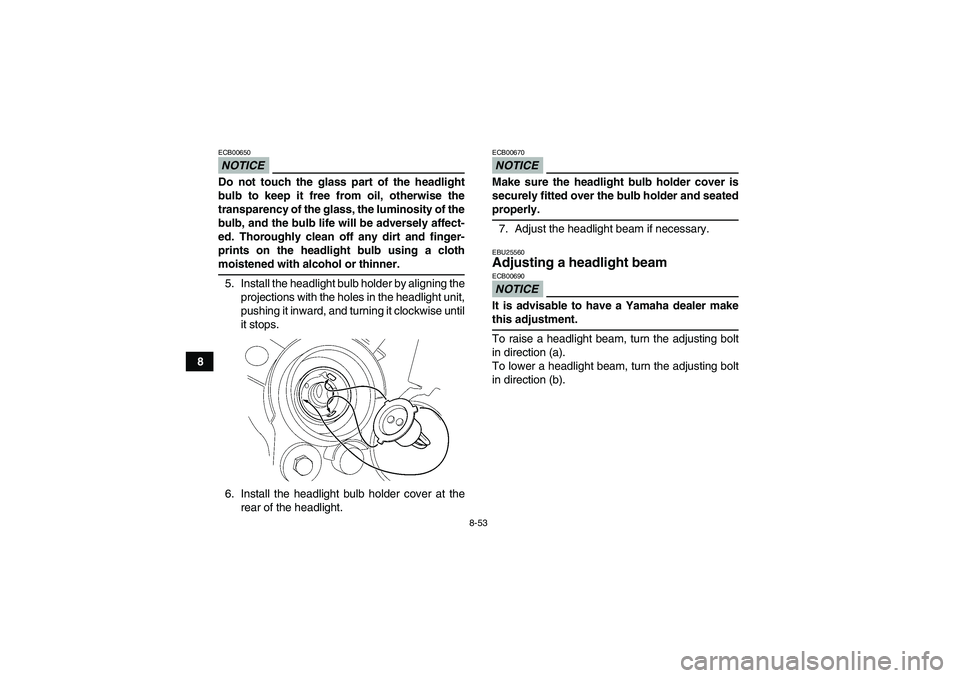

NOTICEECB00650Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a clothmoistened with alcohol or thinner.
5. Install the headlight bulb holder by aligning the
projections with the holes in the headlight unit,
pushing it inward, and turning it clockwise until
it stops.
6. Install the headlight bulb holder cover at the
rear of the headlight.
NOTICEECB00670Make sure the headlight bulb holder cover is
securely fitted over the bulb holder and seatedproperly.
7. Adjust the headlight beam if necessary.EBU25560Adjusting a headlight beam NOTICEECB00690It is advisable to have a Yamaha dealer makethis adjustment.
To raise a headlight beam, turn the adjusting bolt
in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).
